VYXWIFI-011802.11a/b/g/n 300Mbps AP Router

ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 ARGtek ARG-1220 WLAN Dual Band AP Router For 802.11a/b/g/n POWER KING SPACE Quick Installation Guide ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 Part I: External Installation Direction Package Content AP Router 1 DC 12V Power Adapter 1 Dual Band Antenna 1 PoE DC Injector 1 Paper QIG 1 Manual/QIG CD 1 AP Router Connection Before installing the router, connect your PC to the internet through your broadband service.(If there is any problem, contact your ISP.)Then proceed through the following steps. 1. Turn off your PC(s), cable/(A)DSL modem and the router. 2. Adjust the antenna. Normally, upright is a good place to start. 3. Connect the PC(s) and each switch/hub on your local area network to the LAN ports on the router. 4. Connect the ADSL/DSL/cable modem to the router WAN port. 5. Connect the power adapter between the power socket on the router and an electrical outlet. The router will start to work automatically. 6. Turn on your PC(s) and the cable/(A)DSL modem. ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 The Front LED Indicator AP Router configuration The AP Router is delivered with the following factory default parameters on the Ethernet LAN interfaces. Default IP Address: 10.10.10.254 Default IP subnet mask: 255.255.255.0 Web login User Name: admin Web login Password: admin The device has four operation modes (Gateway/Bridge/WISP/AP Client). The default IP addresses for the device are 10.10.10.254, so you need to make sure the IP address of your PC is in the same subnet as the device, such ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 as 10.10.10.X. It will take about 55 seconds to complete the boot up sequence after power on. PoE DC Injector Configuration POE means Power over Ethernet, usually used with Wireless Device. You can use it to integrate the power and the Ethernet then connected with the RJ45 cable. ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 With POE, you can bring the power and Ethernet with long distance as far as the length of RJ45 cable. Since you used PoE DC Injector, the cable line won’t perplex you anymore. Your Access Point & Router are installed conveniently to gain more efficient bandwidth by yourself. Less space and electricity limitation, more comfortable wireless life. Part II: Internal Web Management AP Mode Setup (ADSL) 1、 Install the antenna & power adapter, and then connect the LAN cable with LAN port of this equipment. Another side of cable line connects with network card of computer. Waiting for booting around 20 seconds. 2、 Open the IE ( Internet Explorer) and type 10.10.10.254 on Website to enter the setup frame. If you can’t enter to setup frame, you can try to set the IP address for 10.10.10.XXX and try to connect again. Otherwise, please press Reset button around 10 seconds to restore AP and try to enter again Select the Operation Mode on the left side of setup frame 1. In Operation Mode, select Gateway and press Apply ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 2a. In Internet Settings / WAN /, select PPPoE (ADSL) for your WAN Connection Type and enter your User Name & Password which were presented by your ISOP company. And then press Apply 2b. In Internet Setting/LAN/, you may change the setting of IP address, DHCP and etc. then press Apply ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 3. In Wireless Settings / Basic, you may change the setting of SSID, and then press Apply 4. In Wireless Settings / Security , you may change the setting of password, and then press Apply ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 Finish setting and press Apply, the setting will be completed after rebooting around 20 seconds. Note: You have to connect ADSL cable with the WAN port of this equipment. ========================================================== ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 AP Mode Setup (IP Share) 1、 Install the antenna & power adapter, and then connect the LAN cable with LAN port of this equipment. Another side of cable line connects with RJ-45 of computer. Waiting for booting around 20 seconds. 2、 Open the IE ( Internet Explorer) and type 10.10.10.254 on Website to enter the setup frame. If you can’t enter to setup frame, you can try to set the IP address for 10.10.10.XXX and try to connect again. Otherwise, please press Reset button around 10 seconds to restore AP and try to enter again Select the Operation Mode on the left side of setup frame 1. In Operation Mode , please select Bridge. Select AP or Main AP in Wireless Operation Mode and press Apply ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 2 In Internet Setting/LAN/ , you may change the setting of IP address, DHCP and etc. then press Apply 3 In Wireless Settings / Basic, you may change the setting of SSID, and then press Apply ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 4. In Wireless Settings / Security, you may change the setting of password, and then press Apply ARGtek Communication Inc. www.argtek.com E‐Mail: [email protected] Tel: + 886‐2‐2999‐6958 Fax: + 886‐2‐2999‐7742 Finish setting and press Apply, the setting will be completed after rebooting around 20 seconds. Note: You have to connect cable line with the LAN port of this equipment. ========================================================== Federal …

Text truncated - open the document above for the full version.

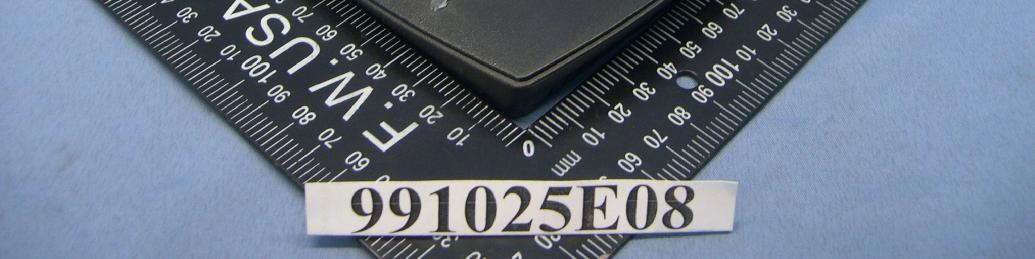

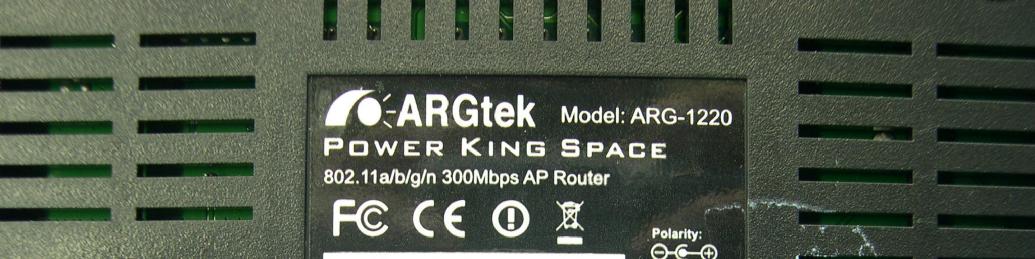

Report No.: 991025E08 1 CONSTRUCTION PHOTOS OF EUT Report No.: 991025E08 2 Report No.: 991025E08 6 Report No.: 991025E08 7

Report No.: 991025E08 3 Report No.: 991025E08 4 Report No.: 991025E08 5

FCC ID: VYXWIFI-011 Report No.: RF991025E08 Operational Description This device is 802.11a/b/g/n 300Mbps AP Router, which operates in both 2.4GHz and 5 GHz bands; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc AC adapter. The antennas are Dipole and PCB antennas with RP-SMA antenna connectors. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA991025E08 Report Format Version 4.0.0 1 RF EXPOSURE REPORT APPLICANT: Argtek Communication Inc. ADDRESS: 8F-9,No. 4, Lane 609,Sec. 5, Chung Hsin Rd. San Chung City, Taipei Hsien ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. REPORT NO.: SA991025E08 MODEL NO.: ARG-1220 FCC ID: VYXWIFI-011 RECEIVED: Oct. 25, 2010 TESTED: Aug. 25, 2011 ISSUED: Dec. 30, 2011 Report No.: SA991025E08 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD.....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA991025E08 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA991025E08 Original release Dec. 30, 2011 Report No.: SA991025E08 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: 802.11a/b/g/n 300Mbps AP Router BRAND NAME: ARGtek MODEL NO.: ARG-1220 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Argtek Communication Inc. TESTED: Aug. 25, 2011 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: ARG-1220) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Nov. 10, 2011 ( Lori Chung, Specialist ) APPROVED BY : , DATE: Nov. 10, 2011 ( May Chen, Deputy Manager ) Report No.: SA991025E08 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN There are three sets of antennas provided to this EUT, please refer to the following table: Set Antenna Type Gain (dBi) Antenna Connector Frequency Range Function 1 Dipole 5 RP-SMA 2400 ~ 2483 Tx / Rx 2 Dipole 5 RP-SMA 5725 ~ 5850 Tx / Rx 3 PCB 0 RP-SMA 5725 ~ 5850 Rx only Report No.: SA991025E08 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 14.1 5 20 0.009 1.00 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 144.5 5 20 0.091 1.00 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 134.9 5 20 0.085 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 128.8 5 20 0.081 1.00 Report No.: SA991025E08 Report Format Version 4.0.0 7 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 1.3 5 20 0.001 1.00 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 2.0 5 20 0.001 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5755 ~ 5795 1.9 5 20 0.001 1.00 Report No.: SA991025E08 Report Format Version 4.0.0 8 For 15.407(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 7.9 5 20 0.005 1.00 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 8.1 5 20 0.005 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5190-5230 6.5 5 20 0.004 1.00 --- END ---
