VYXWIFI-018ARGTEK GM5 WLAN 802.11b/g/n USB adapter

User Manual WLAN USB Adapter for 802.11b/g/n Contents Chapter 1 Getting Start ......................................................................3 Minimum System Requirements ..................................................................................3 Optimize Wireless Performance ...................................................................................3 Installation.................................................................................................................5 Uninstall ....................................................................................................................8 Chapter 2 Management Guide..........................................................10 Making a Basic Network Connection .......................................................................... 10 Chapter 3 Introduction to the Wireless LAN Utility .........................13 Utility Interfaces....................................................................................................... 13 Network................................................................................................................... 15 Profile...................................................................................................................... 16 Advanced................................................................................................................. 18 Statistics.................................................................................................................. 19 WMM....................................................................................................................... 20 WPS ........................................................................................................................ 21 SSO......................................................................................................................... 22 CCX......................................................................................................................... 23 Radio On/Off............................................................................................................ 24 About ...................................................................................................................... 25 Chapter 4 AP mode management guide...........................................26 Control Menu ........................................................................................................... 27 Config Setting.......................................................................................................... 28 Access Control ......................................................................................................... 30 MAC Table................................................................................................................ 31 Event Log ................................................................................................................ 32 Statistics.................................................................................................................. 33 About ...................................................................................................................... 34 Chapter 1 Getting Start Minimum System Requirements
Pentium ® 300 MHz or higher compatible processor
At least one available USB 2.0 or 1.1 port
The installation CD
5Mbytes free hard disk space.
Windows 2000, XP, XP professional, Vista, or Windows 7. If you do not have a USB 2.0 port on your computer, the throughput of the USB adapter will be limited to the 14 Mbps of the USB 1.1 standard. Windows XP users must install SP2 or above for the Hot fix which fixes the USB 2.0 Host controller driver. Before you proceed with the installation, please notice the following descriptions. If you have installed the WLAN USB driver & utility before, please uninstall the old version first. The following installation was operated under Windows XP. (Procedures are similar for Windows 98SE/Me/2000.) The installation guide herein is operated under Windows system. For Linux or Mac driver installation guide, please refer to the instruction in README at directory the driver has stored in CD-Rom. Optimize Wireless Performance The speed and wireless coverage range of your connection can vary significantly based on the location of AP/router. You should choose a location for your AP/router that will maximize the network performance. You can refer to the following methods to maximize AP/router performance. Choose placement carefully for your AP/Router. Place your AP/router at the center among your computers. Place your AP/router at an elevated location. Avoid obstacles to wireless signals. Keep your wireless devices far away from metallic file cabinets, refrigerators, pipes, metal ceilings, reinforced concrete, and metal partitions. Keep away from large amounts of water such as fish tanks and water coolers. Reduce interference Keep away from computers, cordless phones, cell phone, coping machine and fax machines. Keep away from microwave oven. Site survey nearby wireless devices to determine your operating channel. Installation 1. If you insert the Wireless LAN USB Adaptor into your computer USB port, the following hardware setup wizard will pop up. Click Cancel to install driver from installation CD. 2. Insert your installation CD into CD drive of your computer. An installation page will pop up for you to install. Click Utility Driver. If the installation page does not appear, double click CD-ROM drive the installation CD was inserted to, or open the CD-ROM drive then click Autorun.exe 3. Clink checkbox to accept the terms of license agreement, then click Next 4. Select setup type for installing both driver and WLAN utility or install driver only. Choose Install driver and WLAN utility, then click Next If you choose to install driver only, refer to the note on next step. 5. Select if you are going to con…

Text truncated - open the document above for the full version.

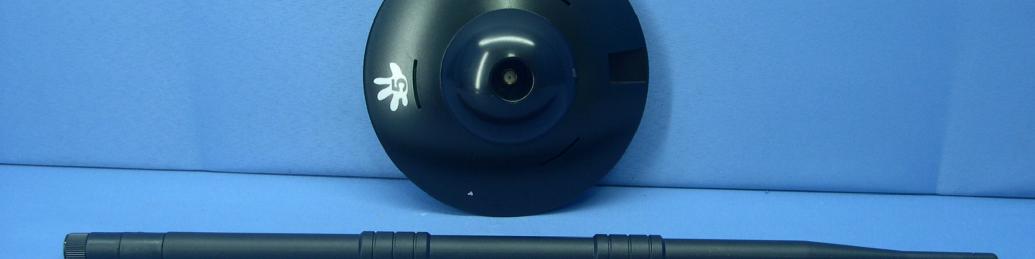

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: ARG-0812 Page 2

FCC ID： ：： ：VYXWIFI-018 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Page 3 Model No.: ARG-0812 Page 4 Page 5 Page 6

FCC ID: VYXWIFI-018 Report No.: RF110111E06 Operational Description This device is a WLAN 802.11b/g/n USB adapter, which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise ratio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied The transmitter of the EUT is powered by 5Vdc from host equipment. The antenna is Dipole antenna with RP-SMA antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA110111E06 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110111E06 MODEL NO.: ARG-0812 FCC ID: VYXWIFI-018 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Argtek Communication Inc. ADDRESS: 8F-9,No. 4, Lane 609,Sec. 5, Chung Hsin Rd. San Chung City, Taipei Hsien ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110111E06 Report Format Version 4.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110111E06 Report Format Version 4.0.0 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 478.6 9 20 0.756 1.00 --- END ---
