VYXWIFI-006802.11 b/g/n WLAN USB Adapter

Outdoor USB CPE Quick Installation Guide 1. Check the parts in your box CPE SET 1 USB Cable 1 Hose Clamps 2 Stand 2 CD Driver 1 2. How to fix the CPE on the Pole (1”- 1.5”) (For better water resistance please wrap the USB cable connector) ARGtek USB CPE which fully supports the features and functional compliance of IEEE 802.11 b/g/n standards and operate in 2.4GHz bands. It enables the deployment the latest updated QoS–WMM, WMM-PS ,support MIMO, connectivity at high throughput from an extended distance and giving end users the greatest performance Features ■ Cisco CCX Suppotr up to v5.0 ■ 2.4GHz unlicensed ISM frequency band ■ Support QoS – WMM, WMM-PS, MIMO ■ Support USB 2.0 interface ■ WEP 64/128-bit , WPA, WPA2 support ■ Multiple BSSID Support ■ Software AP mode Specifications Standard IEEE 802.11b, IEEE 802.11g, IEEE802.11n Frequency Band 11b/g/n 2.4GHZ Data Rate 802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300Mbps LED indicators Active/Power Interface USB2.0 Antenna Internal Patch antenna*2 12dBi SMA/Female antenna connector*2 Transmitter Power 802.11b 12 ± 2 dBm 802.11g 16 ± 2 dBm 802.11n 16 ± 2 dBm Receive Sensitivity [email protected] -73dBm@54Mbps -86dBm@11Mbps -92dBm@1Mbps Operating Range Up to 500M, depending on surrounding environment Power Consumption Transmit:<500mA, Receive:<300mA Security 64/128-bit WEP, WPA, WPA2 Operating System Windows XP/98SE/ME/CE/2000, Vista , Linux and Apple Mac Operating Temperature 0~55 Celsius Storage Temperature -10 ~ 70 Celsius Humidity 5~90%(non-condensing) Dimension 9.3(L) x 6.4(W) x 2.1 (H) cm Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

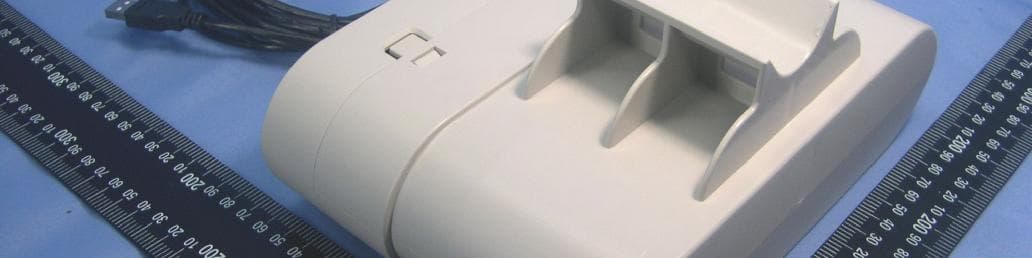

Page 1 CONSTRUCTION PHOTOS OF EUT

802.11 b/g/n WLAN USB Adapter Model name: USB CPE FCC ID: VYXWIFI-006

FCC ID  VYXWIFI-006 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: VYXWIFI-006 Report No. RF981123H05 Operational Description This device is an 802.11 b/g/n WLAN USB Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise rate is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of EUT is powered by host equipment. 1. There are two antennas provided to this EUT, please refer to the following table: Chain Brand No. Model No. Gain (dBi) Antenna Type Connector Frequency range (MHz to MHz) Chain (0) NA CPE 2512 12 Patch RP-SMA 2400~2500 Chain (1) NA CPE 2512 12 Patch RP-SMA 2400~2500 2. The EUT incorporates a SIMO function with 802.11b, 802.11g, 802.11n. Physically, the EUT provides one completed transmitter and two completed receivers. 3. The EUT is 1 * 2 spatial SIMO (1Tx & 2Rx) without beam forming function. The antenna configurations are one transmitter antenna and two receiver antennas, as there are two Patch antennas. There is one transmitter and two receivers. 4. The EUT complies with 802.11n standards and backwards compatible with 802.11b, 802.11g products. 5. The EUT, operates in the 2.4GHz frequency range, lets you connect IEEE 802.11g or IEEE 802.11b and 802.11n technique devices to the network. 6. The above EUT information was declared by the manufacturer and for more detailed features description, please refers to the manufacturer's specifications or User's Manual.

Report No.: SA981123H05 1 Report Format Version 3.0.1 RF EXPOSURE REPORT REPORT NO.: SA981123H05 MODEL NO.: USB CPE ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Argtek Communication Inc. ADDRESS: 8F-9,No. 4, Lane 609,Sec. 5, Chung Hsin Rd. San Chung City, Taipei Hsien ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA981123H05 2 Report Format Version 3.0.1 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA981123H05 3 Report Format Version 3.0.1 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA981123H05 4 Report Format Version 3.0.1 6. Test Results 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Chain Brand No. Model No. Gain (dBi) Antenna Type Connector Frequency range (MHz to MHz) Chain (0) NA CPE 2512 12 Patch RP-SMA 2400~2500 Chain (1) NA CPE 2512 12 Patch RP-SMA 2400~2500 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 33.1 0.104 1.0 6 2437 33.9 0.107 1.0 11 2462 40.7 0.128 1.0 For 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 208.9 0.659 1.0 6 2437 204.2 0.644 1.0 11 2462 208.9 0.659 1.0 Report No.: SA981123H05 5 Report Format Version 3.0.1 For 802.11n (20MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 195.0 0.615 1.0 6 2437 195.0 0.615 1.0 11 2462 162.2 0.511 1.0 For 802.11n (40MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 169.8 0.535 1.0 4 2437 182.0 0.574 1.0 7 2452 114.8 0.362 1.0

Report No.: RF981123H05 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF981123H05 MODEL NO.: USB CPE RECEIVED: Nov. 23, 2009 TESTED: Dec. 30, 2009 to Jan. 16, 2010 ISSUED: Jan. 21, 2010 APPLICANT: Argtek Communication Inc. ADDRESS: 8F-9,No. 4, Lane 609,Sec. 5, Chung Hsin Rd. San Chung City, Taipei Hsien ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981123H05 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS..................................................................5 2.1 MEASUREMENT UNCERTAINTY...........................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS........................12 3.4 DESCRIPTION OF SUPPORT UNITS...................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST....................................14 4. TEST TYPES AND RESULTS....................................................................16 4.1 CONDUCTED EMISSION MEASUREMENT.........................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................16 4.1.2 TEST INSTRUMENTS...........................................................................16 4.1.3 TEST PROCEDURES...........................................................................17 4.1.4 DEVIATION FROM TEST STANDARD..................................................17 4.1.5 TEST SETUP.........................................................................................17 4.1.6 EUT OPERATING CONDITIONS...........................................................18 4.1.7 TEST RESULTS....................................................................................19 4.2 RADIATED EMISSION MEASUREMENT..............................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................21 4.2.2 TEST INSTRUMENTS...........................................................................22 4.2.3 TEST PROCEDURES...........................................................................23 4.2.4 DEVIATION FROM TEST STANDARD..................................................23 4.2.5 TEST SETUP.........................................................................................24 4.2.6 EUT OPERATING CONDITIONS...........................................................24 Below 1GHz Test Data...........................................................................................25 4.2.7 TEST RESULTS....................................................................................25 Above 1GHz Test Data...........................................................................................26 4.2.8 TEST RESULTS....................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT.....................................................54 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................54 4.3.2 TEST INSTRUMENTS...........................................................................54 4.3.3 TEST PROCEDURE..............................................................................54 4.3.4 DEVIATION FROM TEST STANDARD..................................................54 4.3.5 TEST SETUP.........................................................................................55 4.3.6 EUT OPERATING CONDITIONS...........................................................55 Report No.: RF981123H05 3 Report Format Version 3.0.1 4.3.7 TEST RESULTS....................................................................................56 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................60 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......60 4.4.2 INSTRUMENTS.....................................................................................60 4.4.3 TEST PROCEDURES...........................................................................60 4.4.4 DEVIATION FROM TEST STANDARD..................................................60 4.4.5 TEST SETUP.........................................................................................61 4.4.6 EUT OPERATING CONDITIONS...........................................................61 4.4.7 TEST RESULTS....................................................................................62 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................63 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............63 4.5.2 TEST INSTRUMENTS...........................................................................63 4.5.3 TEST PROCEDURE..............................................................................63 4.5.4 DEVIATION FROM TEST STANDARD..................................................63 4.5.5 TEST SETUP.........................................................................................64 4.5.6 EUT OPERATING CONDITION.............................................................64 4.5.7 TEST RESULTS........................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
