ARGtek Give Me Five Wireless LAN 802.11b/g/n USB Adapter for Ralink RT3070 User Manual Contents CHAPTER 1 GETTING START ..................................................................................................................................3 MINIMUM SYSTEM REQUIREMENTS..................................................................................................................................3 WINDOWS 7 USERS.......................................................................................................................................................3 Steps for changing notification level of UAC settings ...........................................................................................3 Steps for Enabling Windows built-in Administrator account................................................................................5 CHAPTER 2 INSTALLATION AND UNINSTALL ......................................................................................................... 8 PART I – INSTALL WLAN ADAPTER DRIVER.......................................................................................................................8 Install WLAN adapter Driver for Windows XP ......................................................................................................8 Install WLAN adapter Driver for Windows 7 ......................................................................................................11 PART II - INSTALL GIVE ME FIVE UTILITY...................................................................................................................11 Install Give Me Five utility for Windows XP ..................................................................................................11 Install Give Me Five utility for Windows 7 ....................................................................................................13 UNINSTALL GIVE-ME-FIVE UTILITY.................................................................................................................................13 CHAPTER 3 GIVE ME FIVE USER GUIDE ............................................................................................................... 16 QUICK START..............................................................................................................................................................16 FUNCTION DESCRIPTION...............................................................................................................................................18 File Menu ...........................................................................................................................................................19 Tools Menu .........................................................................................................................................................19 About Menu .......................................................................................................................................................19 Connections Pane ...............................................................................................................................................19 Properties Pane ..................................................................................................................................................19 Action Bar...........................................................................................................................................................19 Status Bar...........................................................................................................................................................20 Chapter 1 Getting Start Minimum System Requirements
Pentium ® 300 MHz or higher compatible processor
At least one available USB 2.0 or 1.1 port
At least one built-in NIC interface.
The installation CD
5Mbytes free hard disk space.
Windows, XP, XP professional, Vista, or Windows 7. Before you proceed with the installation, please notice the following descriptions. 1. Windows XP users must install SP3 or above. 2. If you have installed the WLAN USB driver & utility before, please uninstall the old version first. 3. The installation guide herein is operated under Windows system. For Linux or Mac driver installation guide, please refer to the instruction in README at directory the driver has stored in CD-Rom. 4. Give Me Five utility support Windows operating systems only. Linux and MAC users Give-Me-Five wireless adapter can only act as a normal wireless adapter, without the advance function the Give-Me-Five have. 5. Many WLAN chipset vendors have provided proprietary UI. If users already have pre-installed WLAN adapter on system. We strongly suggest to turn off proprietary UI and switch to Windows zero configuration instead. Windows 7 Users To install Give Me Five utility and execute. Windows 7 Home Edition users have to change notification level of UAC (User Account Control) settings to “Never Notify”. For Windows Professional and Ultimate Edition users, in addition to change UAC settings, enable and switch to Windows built-in Administrator account get the most performance of operation. Steps for changing notification level of UAC settings 1. Open Control Panel and click System and Security 2. In Action Center, click Change User Account Control settings 3. Drag notification button down to Never Notify Steps for Enabling Windows built-in Administrator account 1. Right click Computer icon on desktop, from popup menu, select Manage. 2. Expend the console tree on Local Users and Groups, click Users, and right click Administrator on action pane, and then click Properties 3. Uncheck Account is disabled and click OK 4. Click Start button and Select Switch user 5. Login Administrator account Chapter 2 Installation and Uninstall The installation consists of two parts. The first part is driver installation for the WLAN chipset inside Give …

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Mode No.: ARG-0410 Page 5 Mode No.: ARG-0800

FCC ID： ：： ：VYXWIFI-007 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

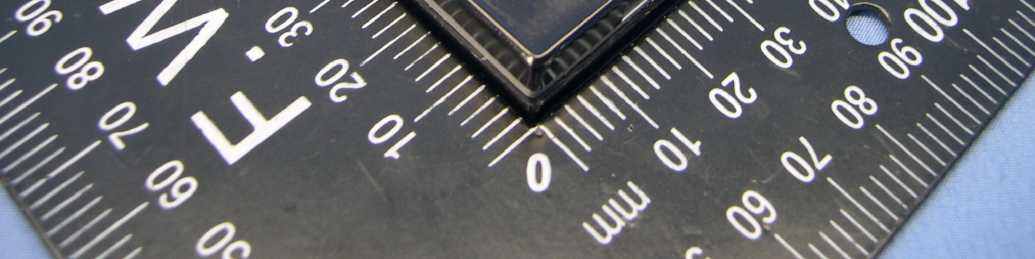

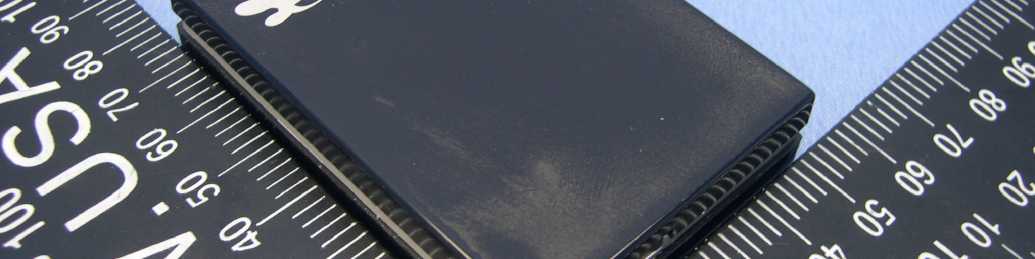

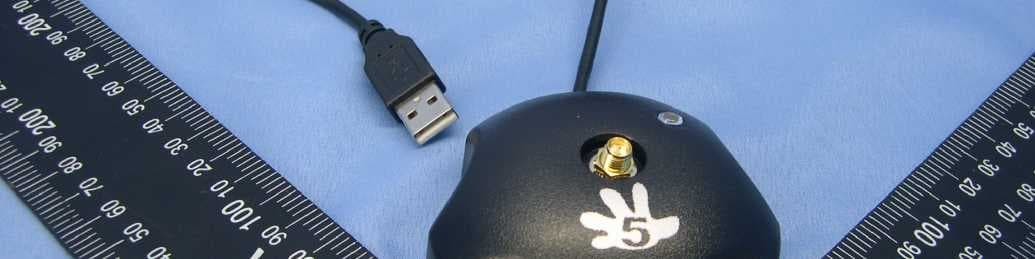

Page 1 CONSTRUCTION PHOTOS OF EUT Mode No.: ARG-0410 Page 2 Page 3 Page 4 Page 5 Mode No.: ARG-0800 Page 6 Page 7 Page 8 Page 9 5dBi Dipole antenna Page 10 7dBi Panel antenna Page 11 Page 12 9dBi Dipole antenna Page 13

FCC ID: VYXWIFI-007 Report No.: RF990716E06 Operational Description This device is a Wireless LAN USB Adapter, which operates in the 2.4GHz band, the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise ratio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antennas are Dipole and Panel antennas with RP-SMA antenna connectors. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA990716E06 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990716E06 MODEL NO.: ARG-0410, ARG-0800 FCC ID: VYXWIFI-007 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Argtek Communication Inc. ADDRESS: 8F-9, No. 4, Lane 609, Sec. 5, Chung Hsin Rd. San Chung City, Taipei Hsien ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990716E06 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990716E06 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device Report No.: SA990716E06 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 7dBi or 5.011872 (numeric) for panel antenna and 9dBi or 7.943282 (numeric) for dipole antenna. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Dipole Antenna: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 26.9 0.043 1.0 6 2437 31.6 0.050 1.0 11 2462 42.7 0.067 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 478.6 0.756 1.0 6 2437 478.6 0.756 1.0 11 2462 467.7 0.739 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 446.7 0.706 1.0 6 2437 457.1 0.722 1.0 11 2462 457.1 0.722 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 316.2 0.500 1.0 4 2437 457.1 0.722 1.0 7 2452 269.2 0.425 1.0 Report No.: SA990716E06 Report Format Version 3.0.1 5 For Panel Antenna: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 26.9 0.027 1.0 6 2437 31.6 0.032 1.0 11 2462 42.7 0.043 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 478.6 0.477 1.0 6 2437 478.6 0.477 1.0 11 2462 467.7 0.466 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 446.7 0.445 1.0 6 2437 457.1 0.456 1.0 11 2462 457.1 0.456 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 316.2 0.315 1.0 4 2437 457.1 0.456 1.0 7 2452 269.2 0.268 1.0 --- END ---

Report No.: RF990716E06 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990716E06 MODEL NO.: ARG-0410, ARG-0800 FCC ID: VYXWIFI-007 RECEIVED: July 16, 2010 TESTED: Aug. 18 to Oct. 15, 2010 ISSUED: Nov. 16, 2010 APPLICANT: Argtek Communication Inc. ADDRESS: 8F-9, No. 4, Lane 609, Sec. 5, Chung Hsin Rd. San Chung City, Taipei Hsien ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 105 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990716E06 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION....................................................................................................4 2. SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3. GENERAL INFORMATION.....................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................7 3.2 DESCRIPTION OF TEST MODES.........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................12 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................13 4. TEST TYPES AND RESULTS..............................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................14 4.1.2 TEST INSTRUMENTS..........................................................................................14 4.1.3 TEST PROCEDURES..........................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.................................................................15 4.1.5 TEST SETUP.......................................................................................................15 4.1.6 EUT OPERATING CONDITIONS.........................................................................16 4.1.7 TEST RESULTS...................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT.............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................19 4.2.2 TEST INSTRUMENTS..........................................................................................20 4.2.3 TEST PROCEDURES..........................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD.................................................................21 4.2.5 TEST SETUP.......................................................................................................22 4.2.6 EUT OPERATING CONDITIONS.........................................................................22 4.2.7 TEST RESULTS (Dipole antenna)........................................................................23 4.2.8 TEST RESULTS (Panel antenna).........................................................................53 4.3 6dB BANDWIDTH MEASUREMENT....................................................................83 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................83 4.3.2 TEST INSTRUMENTS..........................................................................................83 4.3.3 TEST PROCEDURE.............................................................................................83 4.3.4 DEVIATION FROM TEST STANDARD.................................................................83 4.3.5 TEST SETUP.......................................................................................................83 4.3.6 EUT OPERATING CONDITIONS.........................................................................83 4.3.7 TEST RESULTS...................................................................................................84 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................88 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................88 4.4.2 INSTRUMENTS....................................................................................................88 4.4.3 TEST PROCEDURES..........................................................................................88 4.4.4 DEVIATION FROM TEST STANDARD.................................................................88 Report No.: RF990716E06 3 Report Format Version 3.0.1 4.4.5 TEST SETUP.......................................................................................................88 4.4.6 EUT OPERATING CONDITIONS.........................................................................88 4.4.7 TEST RESULTS...................................................................................................89 4.5 POWER SPECTRAL DENS…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Dipole antenna) 2 RADIATED EMISSION TEST (ARG-0410 with 5dBi Dipole Antenna) 3 RADIATED EMISSION TEST (ARG-0410 with 7dBi Panel antenna) 4 RADIATED EMISSION TEST (ARG-0800 with 9dBi Dipole Antenna) 5 RADIATED EMISSION TEST (ARG-0800 with 7dBi Panel antenna)
