W59AP3025AC1300 Dual-Band Outdoor Wireless Access Point

FoldFoldFold REGULATORY, COMPLIANCE AND SAFETY DOCUMENT 6436 City West Pkwy Eden Prairie, MN 55344 USA 1-801-822-5465 ©2022 Legrand AV Inc. All Rights Reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Legrand AV Inc. All other trademarks and registered trademarks are property of their respective holders. This documentation contains regulatory compliance and safety information. No part of this publication, or any other publication may be modified or adapted in any way, for any purposes without written permission from Luxul. LUX-REG-COM-AP-3025-221213-01 Last Updated: 12/13/2022 FCC STATEMENT—WIRELESS FCC 2.4GHZ & 5GHZ 802.11B/G/N/AC FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: W59AP3025 IC: 8584A-AP3025 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: X Reorient or relocate the receiving antenna. X Increase the separation between the equipment and receiver. X Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. X Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. REGULATORY COMPLIANCE Th e device complies with internationally-recognized standards covering human ex posure to electromagnetic fields from radio devices. This equipment also complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure l imits, human proximity to the antenna shall not be less than 32 cm (12.6 in) during normal operation. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulatory approvals. Any changes or modifications not expressly a pproved by the party responsible for compliance could void the authority to operate the equipment. Luxul equipment marketed in the U.S. is restricted to usage of channels 1-11 only for 2.4GHz and channels 36-48/149-165 for 5GHz. Warnings and Safety Information X Ensure that the electrical circuits have appropriate grounding, overload and surge protection. X Attach only approved power cords to the device. X Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment operation specifications. X DO NOT install in or near hot or humid places, such as a kitchen or bathroom. Take care to minimize exposure to excessive heat or moisture. X Small parts and plastic bags used for packaging may be harmful to small children. KEEP ALL ACCESSORIES OUT OF THE REACH OF CHILDREN! X This product may become hot when in use for extended time periods. This is normal and is not a malfunction. DO NOT install where it will be exposed to paper, cloth or other flammable materials. AP-3025 AC1300 Dual-Band Outdoor Wireless Access Point FoldFoldFold Health and Safety Recommendations Warnings for the use of Wireless Devices: Please observe all warning notices with regard to the use of wireless devices Potentially Hazardous Atmospheres: You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants, and other similar areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Safety in Hospitals: Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. RF Exposure Guidelines Safety Information: The device complies with internationally-recognized standards covering human exposure to electromagnetic fields from radio devices. The following safety precautions should be observed: X Do not touch or move the antenna while the unit is transmitting or receiving. X Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. X Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause damage to the radio. ErP Statement The purpose of this product is to create a constant network connection for your devices. It does not have a standby mode or use a power management mode. If you wish to power down this product, please unplug it from the power socket. Industry Canada This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ ISDE applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le di spositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouil…

Text truncated - open the document above for the full version.

Access Point Setup Guide Setting up your AP: Place the AP in the center of the desired coverage area NOTE: If installing this AP with a wireless controller, refer to the Wireless Controller Setup Guide Connect a PoE+ Ethernet cable to the AP’s PoE port (for power, use a PoE injector or a compatible PoE+ switch - not included) AP power source router or switch IN OUT POE INJECTOR 2. 1. Connecting Via an Ethernet Device Use an Ethernet cable to connect your computer to the LAN port of the AP. Ethernet is the preferred method of connection Connecting Via a Wireless Device Connect a wireless client device to the AP’s default wireless SSID Luxul_AP-302X* and use the passphrase: luxulwifi *X corresponds to the model number of the AP NOTE: If your computer or device isn’t set to obtain an IP address automatically, you’ll need to set a temporary static IP address on that device. Set the IP address of your computer to an address in the 192.168.0.X range and set your subnet mask to 255.255.255.0. You can leave the default gateway/router ip address blank. 3a. 3b. Open a web browser and go to 192.168.0.10 Login with the default User Name and password User Name: admin Password: admin SECURITY NOTE: You will be required to change the default administrator password. 4. NOTE: Power Supply Cord must be connected to a properly grounded outlet. Technical Support P: 801-822-5450 E: [email protected] Support chat: LegrandAV.com click ‘Live Chat’ (upper right) and select Luxul under ‘Brand’ Sales P: 801-822-5450 E: [email protected] AP-3025-QIG-220919-01 View Luxul’s Privacy policy at: https://www.legrandav.com/legal/privacy_policy The marking information is located at the bottom of the apparatus Copyright and Trademark Notices No part of this document may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsys- tems contained in this or any Luxul product. © Copyright 2022 Legrand AV Inc. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Legrand AV Inc. All other trademarks and registered trademarks are property of their respective holders. Suggested Operation Temperature: -20° to 50°C I need to restore factory default settings? To restore factory default settings to your AP, press and hold the button labeled ‘RESET ’ until the green system LED starts flashing (5 seconds) I need to restart my AP? To restart your AP, press and quickly release the button labeled ‘RESET ’ I want to perform advanced configuration? 1.Open a web browser and go to 192.168.0.10 or the IP address you specified during the setup process 2. Enter the login credentials you created during the setup process What if... What do the LEDs on my AP indicate? Indicator StateDescription Green System LED On AP is properly connected to power supply BlinkingAP is booting Off Power disconnected or AP is off, or LEDs are turned off in the web interface Blue LEDs The blue LEDs indicate the status of the wireless broadcast; one for 2.4GHz and the other for 5GHz OnAP is broadcasting a wireless signal BlinkingIndicates wireless activity Off AP is not broadcasting a signal, or the LEDs are turned off in the web interface 97A0000072LXG

Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 Date: November 29, 2022 We, Legrand AV Inc. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: W59AP3025 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Vaughn Staheli, Senior Director, Engineering Legrand AV Inc. Tel: 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 PROFESSIONAL INSTALLATION ATTESTATION Date: 2022-12-29 FCC ID: W59AP3025 We, Legrand AV Inc. hereby declare that requirements of KDB 353028 D01 Antennas Part 15 Transmitters v01 have been met and shown on the following questions. Further we declare that the info listed below are correct and represent the product in consideration under this filing. 1. Professional installation must be justified. Description: The device is an outdoor Access Point and requires traine d professionals to configure and install. For more details, please refer to the user manual exhibit included with this application. 2. Professional installation does not permit use of any antenna with the transmitter; the permitted types of antenna specified as below. Description: The list of antennas below is compliant with FCC Rule Part 15. For more details, please refer to the test reports. Antenna NO. RF Chain NO. Brand Model Antenna Net Gain(dBi) Frequency range Antenna Type Connector Type *Cable Length 1 RF Chain 0 Nienyi Industrial Corp NYS5390 6.5 2400~2500 Dipole ipex(MHF) 30mm 2 RF Chain 1 Nienyi Industrial Corp NYS5390 6.5 2400~2500 Dipole ipex(MHF) 30mm 3 RF Chain 0 Nienyi Industrial Corp NYS5390 5 5150~5850 Dipole ipex(MHF) 30mm 4 RF Chain 1 Nienyi Industrial Corp NYS5390 5 5150~5850 Dipole ipex(MHF) 30mm 3. The applicant should address the following items when justifying professional installation. (1) To qualify for professional installation, please explain why the hardware is not readily available to average consumer. Description: The average customer does not have the necessary training and skills to install the product in a safe and correct manner. The product will not be sold in retail stores for this reason. Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 (2) Marketing — Applicant must ensure device cannot be sold via retail to the general public or by mail order. Description: This product and will not be sold directly to the general public through retail stores. It will be sold to authorized dealers or installers onl y. (3) Applicant must show that device intended use is not for consumers and general public. Description: Device is for industrial/commercial use. (4) Explain what is unique, sophisticated, complex, or specialized about the equipment that REQUIRES it to be installed by a professional installer? Description: The product must be placed correctly to ensure proper antenna orientation and operation. Unit is typically mounted on the side of a building or on a pole above ground which requires a ladder and specialized skills to install. All watertight seals must be properly installed for proper operation and to prevent premature failure and/or a risk of electrical shock. 4. Other professional installation requirements (1) Installation must be controlled. Description: The product will be distributed through controlled distribution channel which has special trained professionals to install this product to ensure it is done safely and corr e c t l y. (2) Installed by licensed professionals. Description: Installation of the product requires running CAT-5 cable for POE power from an interior to an outdoor location. There is a risk of electrical shock and damage to the structure if this is done improperly. Installation frequently involves installing watertight exterior power boxes on the structure. Depending on the distance of the installation location from the structure, it can require trenching channels to run cables underground, mounting hardware properly to the outside of structures without damaging siding, installation of posts, and other actions which require a trained professional . Every step of this installation must be done in such a way as to ensure the product’s seals are watertight, the structure remains watertight, and all applicable code for construction and installation has been followed. (3) Installation requires special training. Description: The product needs special setup using additional complex equipment and requires field strength measurements. A special ized, trained professional must be used for configuring and installing the product. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 ----------------------------------- Vaughn Staheli, Senior Director, Engineering Legrand AV Inc. Te l : 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 Date: 2022-11-29 FCC ID: W59AP3025 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Vaughn Staheli, Senior Director, Engineering Legrand AV Inc. Tel: 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 Date: 2022-11-29 FCC ID: W59AP3025 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 2023/06/30 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Vaughn Staheli, Senior Director, Engineering Legrand AV Inc. Te l : 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

Legrand AV Inc. 6436 City West Pkwy, Eden Prairie, MN 55344 USA TEL: 801-822-5465 FAX: 801-822-5460 Date: 2022-11-29 FCC ID: W59AP3025 AUTHORIZATION LETTER To Whom It May Concern: Legrand AV Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on Legrand AV Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Vaughn Staheli, Senior Director, Engineering Legrand AV Inc. Tel: 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

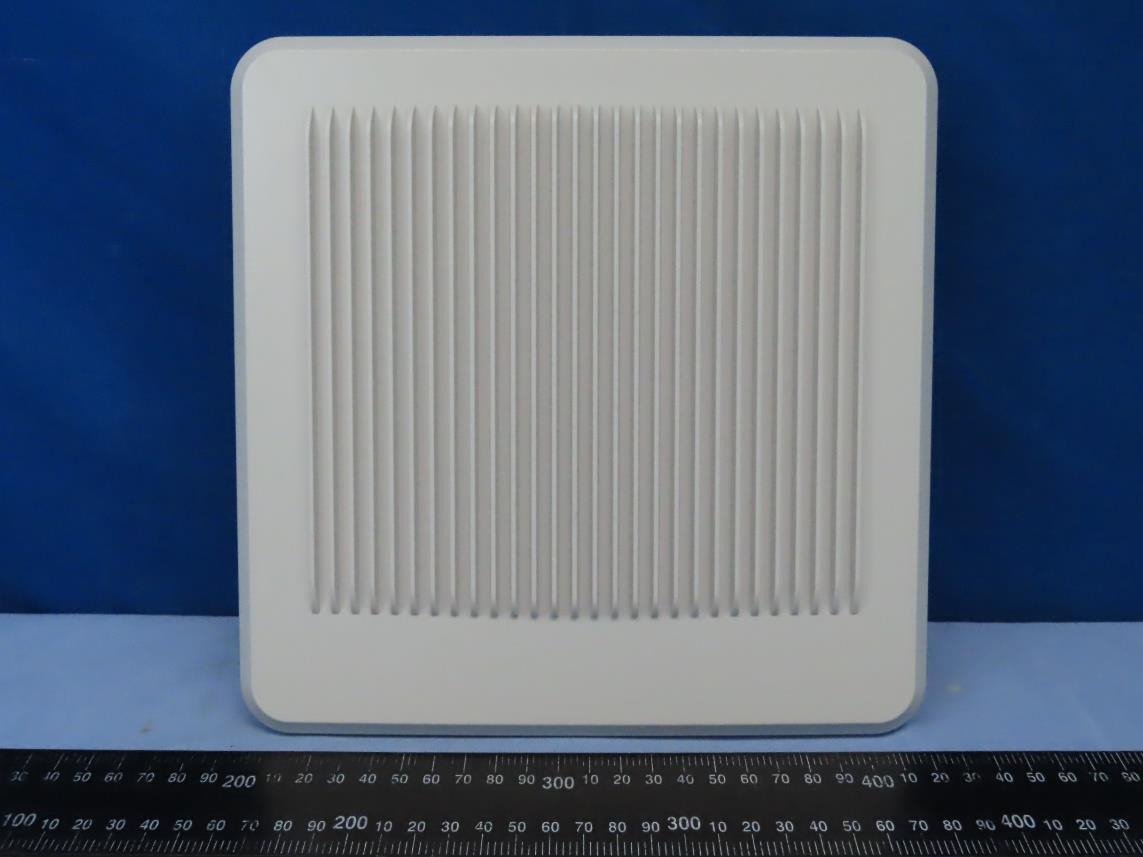

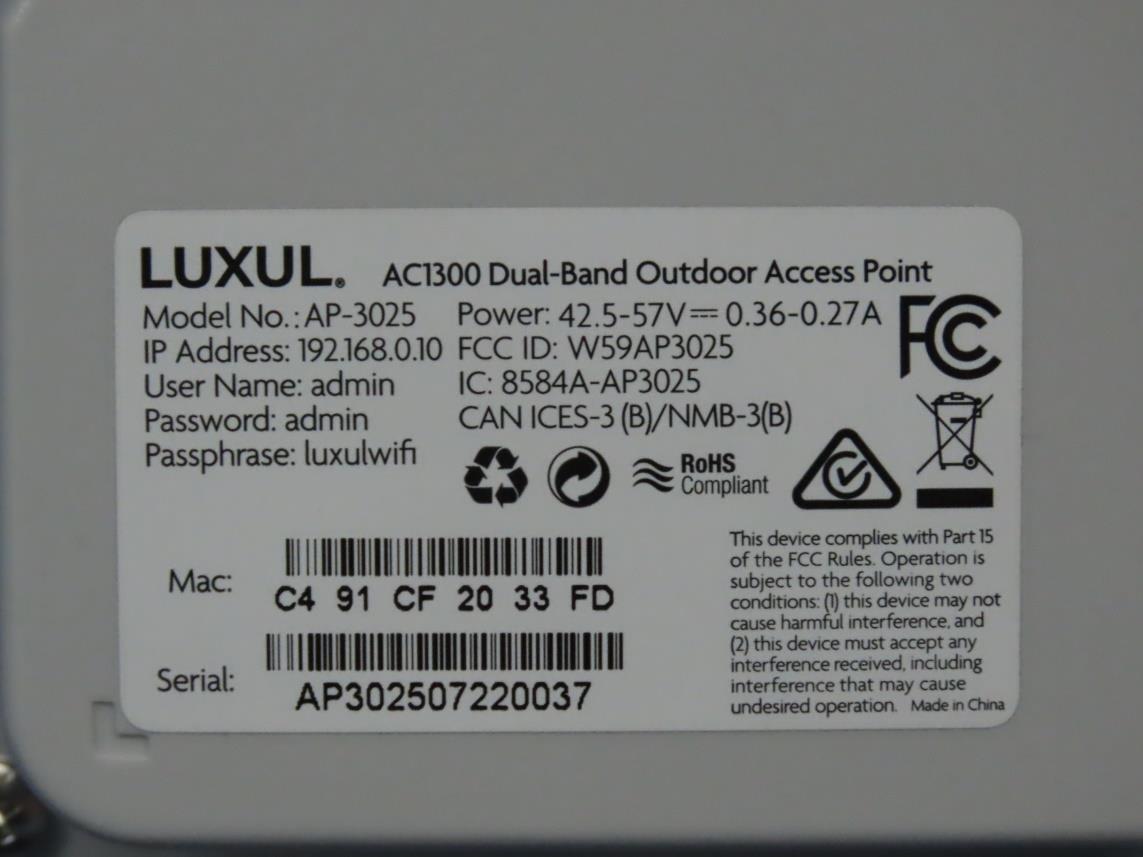

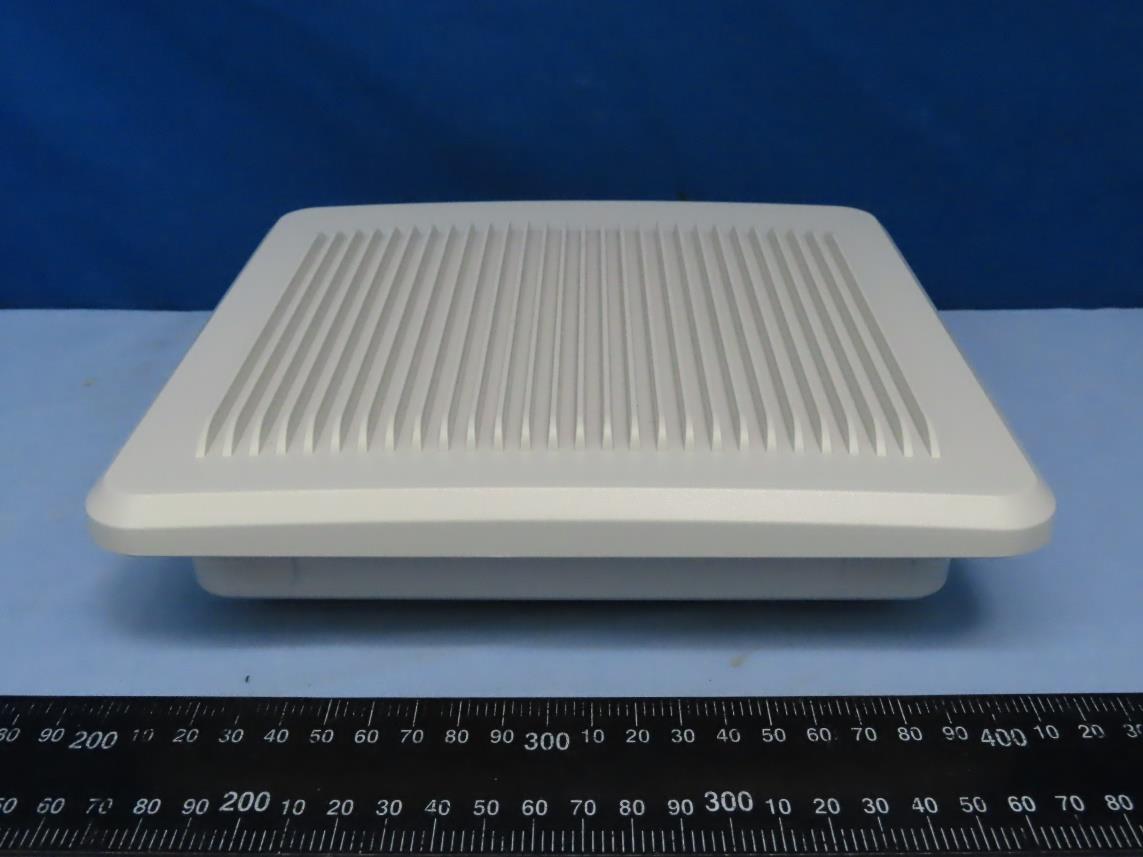

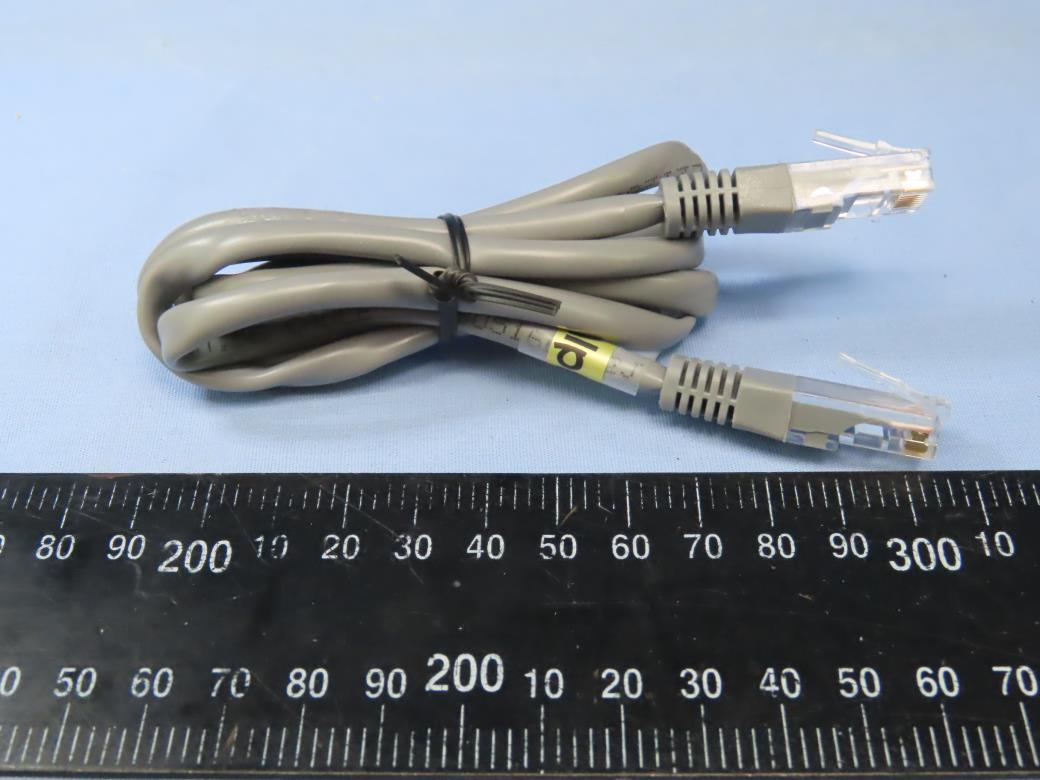

Reference No.:BAOZ-WTW-P22061108_EXT Page 1/5 CONSTRUCTION PHOTOS OF EUT Reference No.:BAOZ-WTW-P22061108_EXT Page 2/5 Reference No.:BAOZ-WTW-P22061108_EXT Page 3/5 Reference No.:BAOZ-WTW-P22061108_EXT Page 4/5 Reference No.:BAOZ-WTW-P22061108_EXT Page 5/5 Ethernet Cable Ground wire

Reference No.:BAOZ-WTW-P22061108_INT Page 1/14 CONSTRUCTION PHOTOS OF EUT Reference No.:BAOZ-WTW-P22061108_INT Page 2/14 Reference No.:BAOZ-WTW-P22061108_INT Page 3/14 Reference No.:BAOZ-WTW-P22061108_INT Page 4/14 Reference No.:BAOZ-WTW-P22061108_INT Page 5/14 Reference No.:BAOZ-WTW-P22061108_INT Page 6/14 Reference No.:BAOZ-WTW-P22061108_INT Page 7/14 Reference No.:BAOZ-WTW-P22061108_INT Page 8/14 Reference No.:BAOZ-WTW-P22061108_INT Page 9/14 Antenna: 2G_Chain 0 Reference No.:BAOZ-WTW-P22061108_INT Page 10/14 Antenna: 2G_Chain 1 Reference No.:BAOZ-WTW-P22061108_INT Page 11/14 Antenna: 5G_Chain 0 Reference No.:BAOZ-WTW-P22061108_INT Page 12/14 Reference No.:BAOZ-WTW-P22061108_INT Page 13/14 Antenna: 5G_Chain 1 Reference No.:BAOZ-WTW-P22061108_INT Page 14/14

Report No.: MFBAOZ-WTW-P22061108 Page No. 1 / 11 Report Format Version: 7.1.0 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBAOZ-WTW-P22061108 FCC ID: W59AP3025 Product: AC1300 Dual-Band Outdoor Wireless Access Point Brand: LUXUL Model No.: AP-3025 Received Date: 2022/7/27 Test Date: 2022/11/7 Issued Date: 2022/12/14 Applicant: Legrand AV Inc. Address: 6436 City West Pkwy, Eden Prairie, MN 55344 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2022/12/14 May Chen / Manager This test report consists of 11 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vivian Huang / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBAOZ-WTW-P22061108 Page No. 2 / 11 Report Format Version: 7.1.0 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 2.1 RF Exposure ............................................................................................................................................................. 6 3 Test Results ................................................................................................................................................................ 8 3.1 RF Exposure ............................................................................................................................................................. 8 4 Conclusion ................................................................................................................................................................ 10 5 Information of the Testing Laboratories ................................................................................................................ 11 Report No.: MFBAOZ-WTW-P22061108 Page No. 3 / 11 Report Format Version: 7.1.0 Release Control Record Issue No. Description Date Issued MFBAOZ-WTW-P22061108 Original release. 2022/12/14 Report No.: MFBAOZ-WTW-P22061108 Page No. 4 / 11 Report Format Version: 7.1.0 1 Certificate Product: AC1300 Dual-Band Outdoor Wireless Access Point Brand: LUXUL Test Model: AP-3025 Sample Status: Engineering sample Applicant: Legrand AV Inc. Test Date: 2022/11/7 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBAOZ-WTW-P22061108 Page No. 5 / 11 Report Format Version: 7.1.0 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatialaverage SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as ex…

Text truncated - open the document above for the full version.

AP-3025 Antenna Check Sheet Date: 2023/01/09 1 AP-3025 Antenna Check Sheet © 2018 by Alpha Networks Corporation All Right Reserved AP-3025 Antenna Check Sheet Date: 2023/01/09 2 Revision History: Version Date Change Description 1.0 2022/12/28 New Release 2.0 2023/01/09 Add pattern and gain table description AP-3025 Antenna Check Sheet Date: 2023/01/09 3 Contents Index.............................................................................. 3 Antenna Specification............................................................... 4 Test Result........................................................................ 5 Return Loss................................................................. 5 2D Radiation Patterns....................................................... 7 Antenna Gain Table....................................................... 12 Antenna Vendor Information................................................18 AP-3025 Antenna Check Sheet Date: 2023/01/09 4 Antenna Specification Ant. Antenna. model Antenna type Antenna Gain (dBi) Frequency Range from GHz to GHz Connector type Cable length (cm) Remark #1 NYS5390 Dipole 6.5 2.4~2.5 IPEX 3 2.4G-1Black #2 NYS5390 Dipole 6.5 2.4~2.5 IPEX 3 2.4G-2 Gray #3 NYS5390 Dipole 5 5.15~5.85 IPEX 3 5G-1 Black #4 NYS5390 Dipole 5 5.15~5.85 IPEX 3 5G-2 Gray AP-3025 Antenna Check Sheet Date: 2023/01/09 5 Test Result: Return Loss 2.4G-1 2.4G-2 AP-3025 Antenna Check Sheet Date: 2023/01/09 6 5G-1 5G-2 AP-3025 Antenna Check Sheet Date: 2023/01/09 7 2D Radiation Patterns: 2.4G-1 AP-3025 Antenna Check Sheet Date: 2023/01/09 8 2.4G-2 AP-3025 Antenna Check Sheet Date: 2023/01/09 9 5G-1 AP-3025 Antenna Check Sheet Date: 2023/01/09 10 5G-2 AP-3025 Antenna Check Sheet Date: 2023/01/09 11 5150 MHz(Antenna 5G-2, Plane X-Z) 5150 MHz(Antenna 5G-2, Plane Y-Z) AP-3025 Antenna Check Sheet Date: 2023/01/09 12 Antenna Gain Table: Frequency(MHz) 2.4G-1(dBi) 2.4G-2(dBi) 2400 5.88 5.98 2450 6.50 6.50 2500 5.53 5.61 Frequency(MHz) 5G-1(dBi) 5G-2(dBi) 5150 3.97 4.93 5600 4.51 4.6 5850 5.00 5.00 AP-3025 Antenna Check Sheet Date: 2023/01/09 13 Antenna Gain Table(5150 MHz-Antenna 5G-2, Plane X-Z): angle (dBi) angle (dBi) 0 2.83 182 -24.5 2 2.91 184 -23.87 4 2.95 186 -23.9 6 2.99 188 -23.45 8 3.03 190 -22.86 10 3.06 192 -22.87 12 3.02 194 -21.27 14 2.94 196 -19.6 16 2.82 198 -18.47 18 2.66 200 -17.94 20 2.5 202 -17.83 22 2.32 204 -18.19 24 2.19 206 -18.81 26 2.09 208 -18.86 28 1.96 210 -18.83 30 1.93 212 -17.55 32 1.8 214 -17.01 34 1.57 216 -17.07 36 1.29 218 -17.11 38 0.9 220 -17.31 40 0.51 222 -17.09 42 0.18 224 -17.04 44 -0.06 226 -17.02 46 -0.13 228 -18.01 48 -0.15 230 -18.53 50 -0.32 232 -17.65 52 -0.79 234 -16.57 54 -1.42 236 -15.91 56 -1.94 238 -16.67 58 -2.16 240 -17.9 60 -2.24 242 -17.94 62 -2.25 244 -16.73 64 -2.44 246 -14.54 AP-3025 Antenna Check Sheet Date: 2023/01/09 14 66 -2.67 248 -12.76 68 -3.25 250 -11.94 70 -4.1 252 -12.06 72 -5.23 254 -12.27 74 -6.09 256 -11.97 76 -6.48 258 -11.87 78 -6.53 260 -11.81 80 -6.79 262 -10.96 82 -7.56 264 -10.16 84 -8.42 266 -10.26 86 -9.53 268 -10.62 88 -10.84 270 -9.9 90 -11.32 272 -8.75 92 -10.53 274 -7.84 94 -9.81 276 -7.38 96 -9.84 278 -6.79 98 -10.32 280 -6.33 100 -10.99 282 -6.52 102 -11.83 284 -6.98 104 -11.87 286 -6.94 106 -11.27 288 -6.45 108 -10.9 290 -5.78 110 -10.61 292 -5.2 112 -9.91 294 -4.51 114 -9.35 296 -3.93 116 -9.34 298 -3.33 118 -9.56 300 -2.81 120 -9.58 302 -2.22 122 -9.53 304 -1.73 124 -10.24 306 -1.05 126 -11 308 -0.58 128 -11.1 310 -0.1 130 -11.02 312 0.19 132 -11.56 314 0.38 134 -12.98 316 0.56 136 -14.19 318 0.72 AP-3025 Antenna Check Sheet Date: 2023/01/09 15 138 -14.9 320 0.9 140 -15.23 322 1.03 142 -14.95 324 1.13 144 -15.29 326 1.19 146 -15.85 328 1.32 148 -17.04 330 1.52 150 -18.17 332 1.74 152 -18.08 334 1.93 154 -17.97 336 2.07 156 -18.43 338 2.1 158 -18.67 340 2.15 160 -17.62 342 2.17 162 -16.37 344 2.19 164 -14.81 346 2.19 166 -14.3 348 2.24 168 -13.86 350 2.4 170 -14.26 352 2.54 172 -15.24 354 2.64 174 -16.7 356 2.72 176 -18.74 358 2.73 178 -21.23 360 2.83 180 -23.26 AP-3025 Antenna Check Sheet Date: 2023/01/09 16 Antenna Gain Table(5150 MHz-Antenna 5G-2, Plane Y-Z): angle (dBi) angle (dBi) 0 4.56 182 -26.09 2 4.78 184 -25.15 4 4.93 186 -26.12 6 4.67 188 -27.44 8 4.39 190 -27.4 10 4.12 192 -27.02 12 3.83 194 -27.31 14 3.67 196 -26.37 16 3.51 198 -26.28 18 3.29 200 -25.96 20 3.12 202 -25.08 22 2.95 204 -24.61 24 2.77 206 -23.26 26 2.59 208 -21.44 28 2.41 210 -19.3 30 1.91 212 -17.48 32 1.9 214 -16.74 34 1.88 216 -16.64 36 1.84 218 -16.95 38 1.78 220 -17.15 40 1.75 222 -17.45 42 1.69 224 -17.53 44 1.56 226 -16.92 46 1.37 228 -15.67 48 1.06 230 -14.14 50 0.75 232 -13.39 52 0.38 234 -12.8 54 -0.02 236 -12.86 56 -0.36 238 -13.05 58 -0.75 240 -13.17 60 -1.19 242 -13.62 62 -1.69 244 -13.67 64 -2.28 246 -13.51 AP-3025 Antenna Check Sheet Date: 2023/01/09 17 66 -2.87 248 -12.95 68 -3.63 250 -12.66 70 -4.5 252 -12.54 72 -5.6 254 -12.61 74 -6.78 256 -13.12 76 -8.06 258 -13.72 78 -8.87 260 -13.58 80 -9.21 262 -13.61 82 -8.99 264 -13.16 84 -8.81 266 -12.48 86 -8.95 268 -12.01 88 -9.38 270 -11.55 90 -9.97 272 -11.21 92 -10.64 274 -10.82 94 -11.11 276 -10.12 96 -11.…
