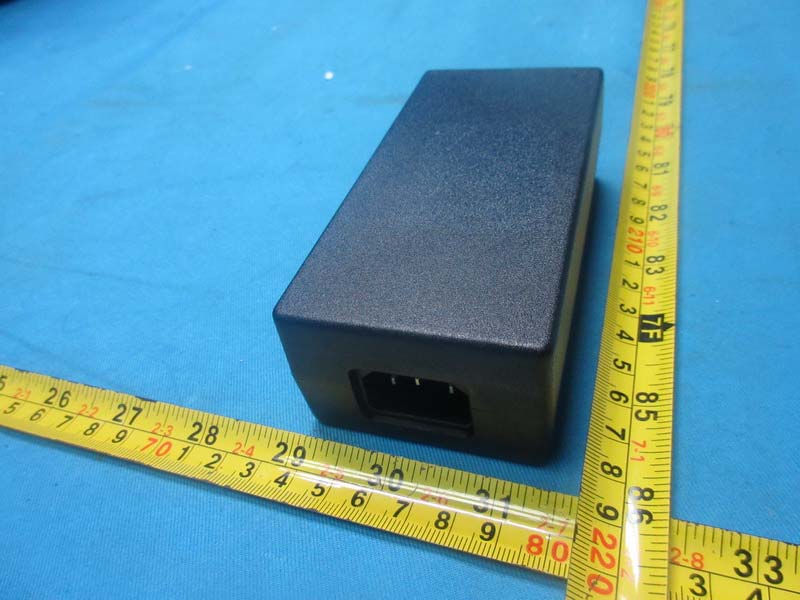

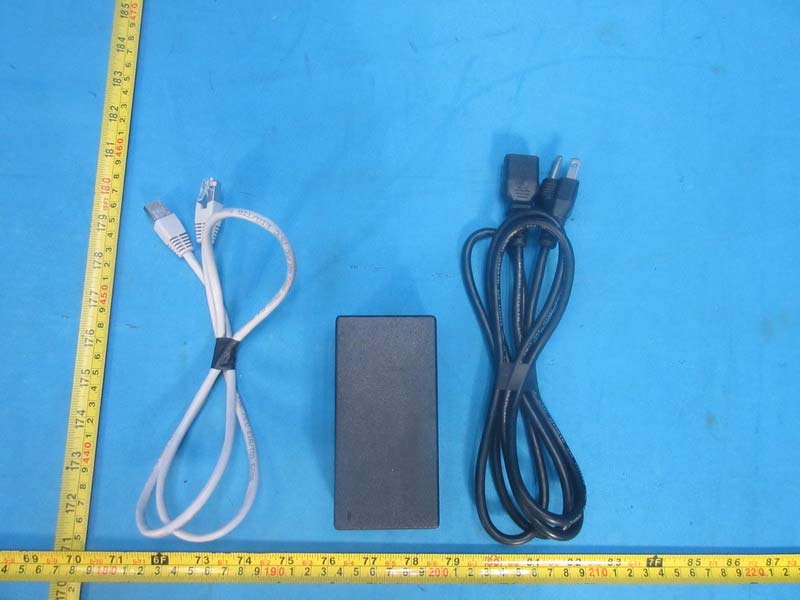

W59XAP1240High Power Wireless 300N Outdoor AP

REGULATORY COMPLIANCE AND SAFETY NOTIFICATION This documentation contains regulatory compliance and safety information for both wireless and non-wireless hardware. Not all the information contained in this document applies to every product. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation. Regulatory Compliance The device complies with internationally recognized standards covering human exposure to electro- magnetic fields from radio devices. This equipment also complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 in) during normal operation. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulatory approvals. Any changes or modifications not expressly approved by the party responsible for compli- ance could void the authority to operate the equipment. Luxul equipment marketed in the U.S. is restricted to usage of channels 1-11 only for 2.4GHz and channels 100-140/149-165 for 5GHz. FCC Statement—Wireless FCC 2.4GHz & 5GHz 802.11b/g/n/ac This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for either a Class A or Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Refer to included Quick Installation Guide for device-specific FCC Class information. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. „ This device complies with part 15 of the FCC Rules. „ This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm (8in) between the radiator & your body. Warnings and Safety Information „ Verify that the electrical circuits have appropriate grounding and overload protection. „ Attach only approved power cords to the device. „ Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment operation specifications. „ DO NOT install in or near hot or humid places, such as a kitchen or bathroom. Take care to minimize exposure to excessive heat or moisture. „ Small parts and plastic bags used for packaging may be harmful to small children. KEEP ALL ACCESSORIES OUT OF THE REACH OF CHILDREN! „ This product may become hot when in use for extended time periods. This is normal and is not a malfunction. DO NOT install where it will be exposed to paper, cloth or other flammable materials. © 2015 Luxul. All Rights Reserved. LUX-REG-FCCSAFETY 0541505 Health and Safety Recommendations Warnings for the use of Wireless Devices: Please observe all warning notices with regard to the usage of wireless devices Potentially Hazardous Atmospheres: You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants, and other similar areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Safety in Hospitals: Wireless devices transmit radio frequency energy and may affect medical elec- trical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. RF Exposure Guidelines Safety Information: The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. Warning: Exposure to Radio Frequency (RF) Radiation: The radiated output of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. „ The end user must avoid any extended human RF exposure directly in front of the device, up to a distance of 20cm (8in), when unit is on. „ When servicing the equipment and selecting a location for the antennas, it is important to note that a minimum distance of 20cm (8in) is required between personnel and the device or antenna to comply with the radio frequency exposure limit. „ The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm (8in) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The following safety precautions should be observed: „ Do not touch or move the antenna while the unit is transmitting or receiving. „ Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. „ Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause d…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment High Power Wireless 300N Outdoor AP Model Name XAP-1240 Brand Name LUXUL Applicant Luxul Wireless Address 14203 Minuteman Drive, Suite 201, Draper, UT USA Standard(s) FCC Part 15, Subpart B: 2014 ANSI C63.4-2014 Report(s) BTL-FCCE-1-1507C072 The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

Project No.: 1507C072 Page 2 of 11 Project No.: 1507C072 Page 3 of 11 Project No.: 1507C072 Page 4 of 11 Project No.: 1507C072 Page 5 of 11 Project No.: 1507C072 Page 6 of 11

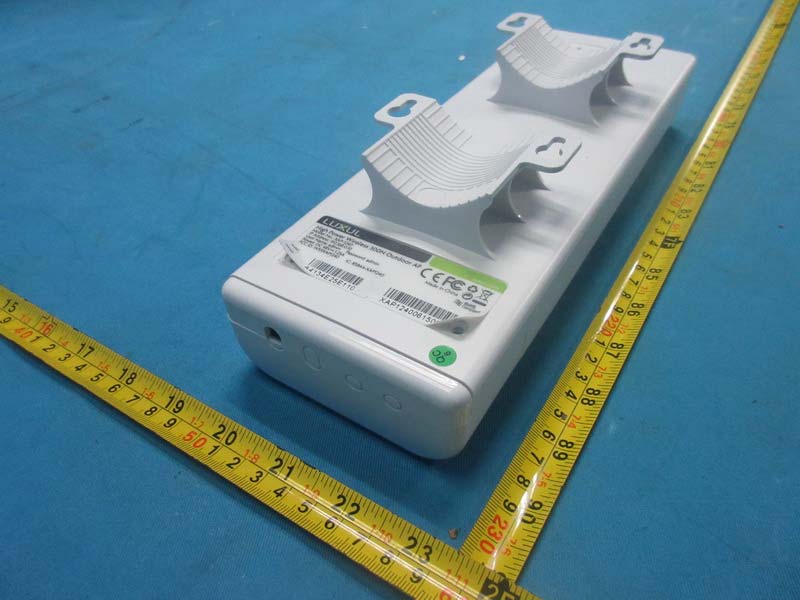

Label location

Project No.: 1507C072 Page 7 of 11 Project No.: 1507C072 Page 8 of 11 Project No.: 1507C072 Page 9 of 11 Project No.: 1507C072 Page 10 of 11 Project No.: 1507C072 Page 11 of 11

FCC RF EXPOSURE REPORT FCC ID: W59XAP1240 Project No. : 1507C072 Equipment : High Power Wireless 300N Outdoor AP Model : XAP-1240 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A Internal N/A 7 TX/RX 2 N/A N/A Internal N/A 7 TX/RX TEST RESULTS EUT： High Power Wireless 300N Outdoor AP Model Name : XAP-1240 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7 5.0119 27.69 587.4894 0.586071191 Complies 7 5.0119 28.31 677.6415 0.676005721 Complies 7 5.0119 27.52 564.9370 0.563573251 Complies EUT： High Power Wireless 300N Outdoor AP Model Name : XAP-1240 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7 5.0119 28.60 724.4360 0.722687211 Complies 7 5.0119 28.89 774.4618 0.772592291 Complies 7 5.0119 28.59 722.7698 0.721025081 Complies EUT： High Power Wireless 300N Outdoor AP Model Name : XAP-1240 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7 5.0119 28.55 716.1434 0.71441468 1 Complies 7 5.0119 28.38 688.6523 0.68698993 1 Complies 7 5.0119 27.76 597.0353 0.59559408 1 Complies EUT： High Power Wireless 300N Outdoor AP Model Name : XAP-1240 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7 5.0119 27.80 602.5596 0.60110504 1 Complies 7 5.0119 25.67 368.9776 0.36808691 1 Complies 7 5.0119 26.35 431.5191 0.43047741 1 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1507C072 Page 1 of 138 FCC Radio Test Report FCC ID:W59XAP1240 This report concerns (check one): Original Grant Class I Change Class II Change Project No. : 1507C072 Equipment : High Power Wireless 300N Outdoor AP Model Name : XAP-1240 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Date of Receipt : Jul. 20, 2015 Date of Test : Jul. 20, 2015 ~ Aug. 03, 2015 Issued Date : Aug. 04, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3,Jinshagang 1st Road, Shixia,Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1507C072 Page 2 of 138 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1507C072 Page 3 of 138 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 13 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (30MHZTO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 22 Report No.: BTL-FCCP-1-1507C072 Page 4 of 138 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 .EUT TEST PHOTO 27 ATTACHMENT A -CONDUCTED EMISSION 31 ATTACHMENT B -RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C -RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D -RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F– MAXIMUM PEAK CONDUCTED OUTPUT POWER 101 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 105 ATTACHMENT H - POWER SPECTRAL DENSITY 124 Report No.: BTL-FCCP-1-1507C072 Page 5 of 138 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1507C072 Original Issue. Aug. 04, 2015 Report No.: BTL-FCCP-1-1507C072 Page 6 of 138 1. CERTIFICATION Equipment : High Power Wireless 300N Outdoor AP Brand Name : LUXUL Model Name : XAP-1240 Applicant : Luxul Wireless Manufacturer : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Date of Test : Jul. 20, 2015 ~ Aug. 03, 2015 Test Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C: 2014 (15.247) /ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1507C072) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1507C072 Page 7 of 138 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2014 Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2)…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1507C072 Page 27 of 138 10.EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1507C072 Page 28 of 138 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1507C072 Page 29 of 138 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1507C072 Page 30 of 138 Radiated Measurement Photos Above 1000MHz
