W59XAP1510High Power AC1900 Dual-Band Wireless AP

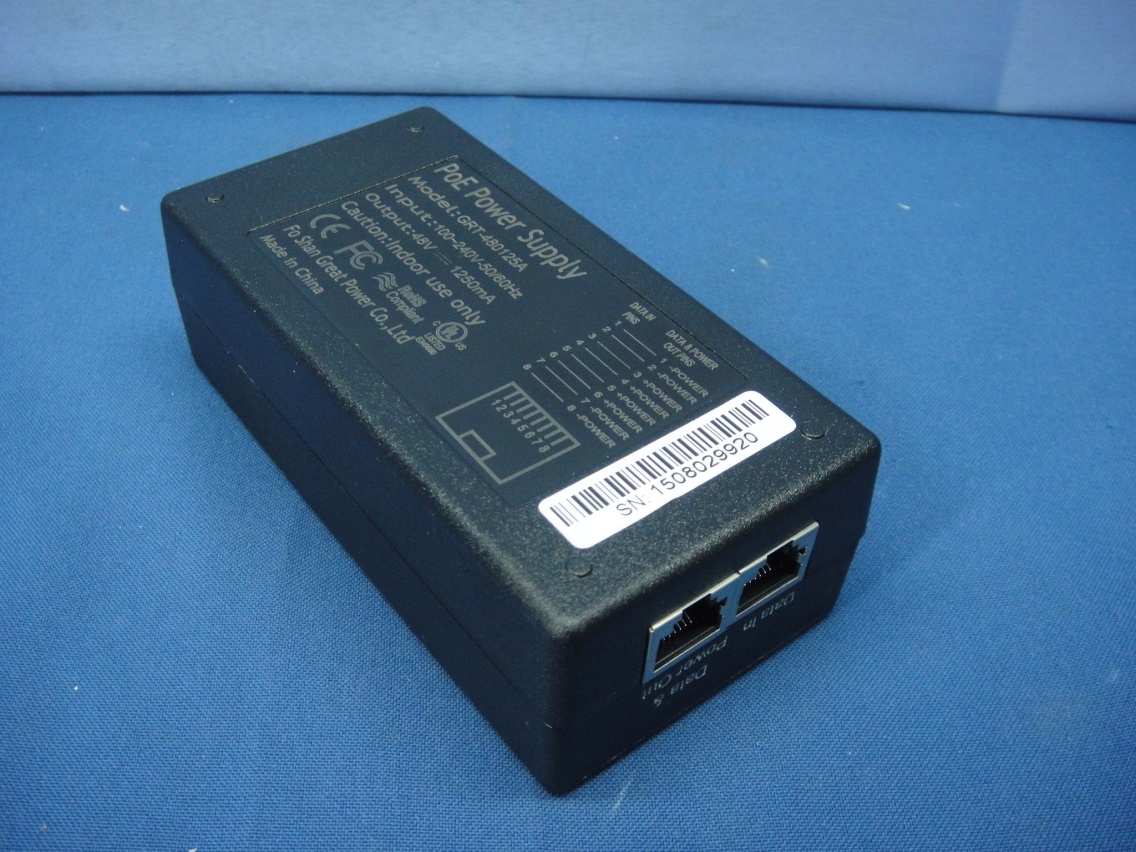

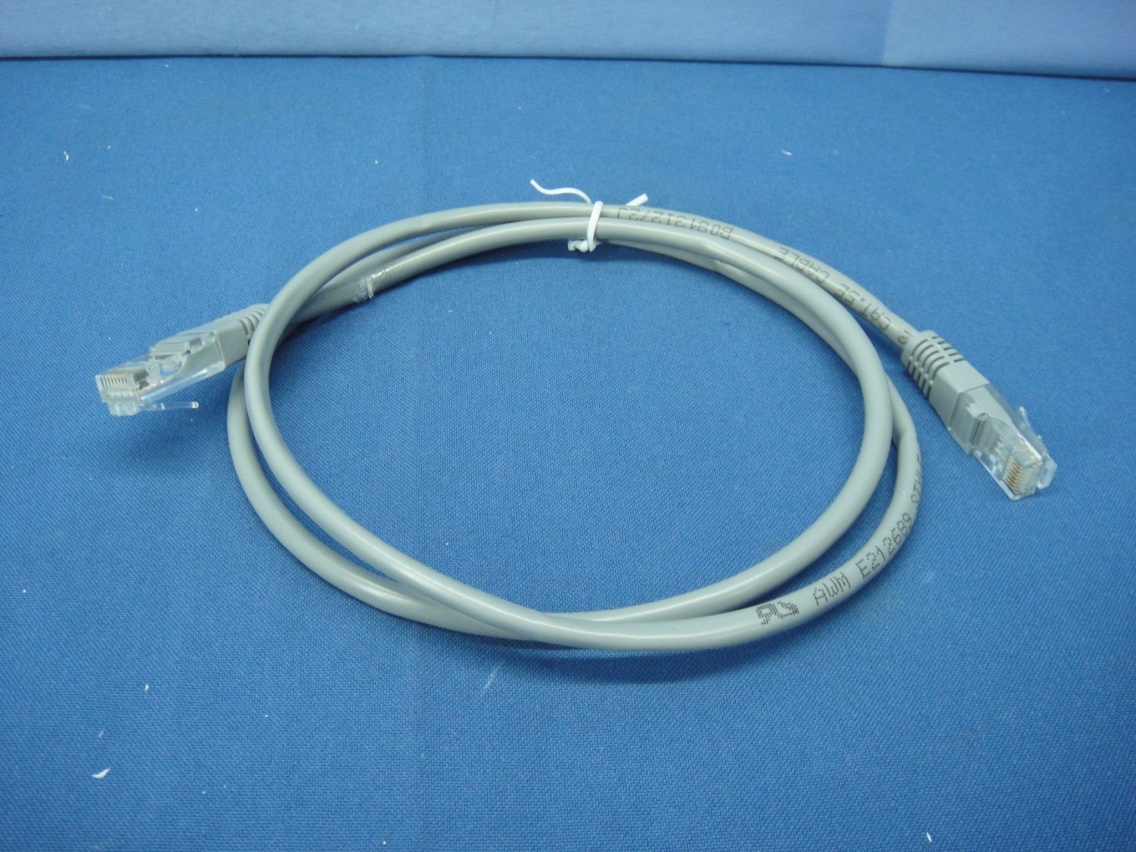

READ ME FIRST QUICK INSTALL GUIDE High Power AC1900 Dual-Band Wireless Access Point XAP-1510 Includes:  One: High Power AC1900 Dual-Band Wireless AP  Two: Mounting Brackets and Hardware  One: PoE Injector and Power Adapter  One: Ethernet Cables READ ME FIRST - CONTROLLER COMPATIBILITY This XAP-1510 is compatible with the Luxul Wireless Controller for fast, easy configuration and deployment of wireless networks with multiple APs. n Note: If you’ll be using this AP with a Wireless Controller, refer to the Quick Install Guide included with the Wireless Controller for setup instructions. AP SETUP AND CONFIGURATION 1 Physical Installation The XAP-1510 access point is designed for simple and efficient installation and can be located one of three ways. First, the included mount is designed to attach directly to several different regions’ standard electrical boxes. Second, the XAP-1510 may be mounted on a ceiling or wall without a box by using the included mount as a guide to mark attachment locations. Finally, the XAP-1510 can be placed on a flat surface by attaching the included rubber feet to the mount. c Caution: Attach the rubber feet to the mount and attach the mount to the AP for flat surface placement to avoid overheating and failure.  Single Access Point Placement: Because the signal generated by the XAP-1500 is omnidirectional, the unit should be located as near as possible to the center of the desired coverage area. XAP-1510 Single AP Coverage Pattern  Multiple Access Point Placement: You may need to experiment with AP placement to optimize the roaming experience. Place APs to ensure adequate coverage, but not so far apart that there is no signal overlap. Adjacent APs should overlap enough that the client device has a good connection to the AP to which it is currently attached, but also sees the next-nearest AP. Ideally, roaming clients should see signal strength of two overlapping APs in the range of -60 to -70 dBm at the midway point between two APs. To learn more about AP placement, visit luxul.com/ap-placement. Ideally, roaming clients should see signal strength of two overlapping APs in the range of -60 to -70 dBm at the midway point between two APs XAP-1510 Multiple AP Coverage and Overlap nNote: Consider using Ekahau HeatMapper to assist with this process, available from www.ekahau.com. Luxul also offers an informative “How-To” video on HeatMapper at luxul.com/how-to-videos. AP SETUP AND CONFIGURATION CONT. 2 Connecting Ethernet and Power Ethernet and Power To apply power and network simultaneously, simply connect one end of an Ethernet cable to a PoE switch, and the other end to the XAP-1510 PoE port. To connect power and Ethernet separately, first connect an Ethernet cable from the supplied PoE Injector Data & PWR Out port to the PoE port on the XAP-1510. An Ethernet cable length of up to 300 feet can be used. LEGAL AND REGULATORY INFORMATION No part of this publication, or any other publication may be modified or adapt- ed in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. FCC ID: W59XAP1510 IC: 8584A-XAP1510 FCC Statement—Wireless FCC 2.4GHz & 5GHz 802.11abgn This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XAP-1510 is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC. For a copy of this report send a self addressed stamped envelope to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020. Industry Canada (RSS-Gen Issue 4) CAN ICES-3(B)/NMB-3(B) Sales P: 801-822-5450 E: [email protected] Technical Support P: 801-822-5450 Option 3 E: [email protected] © 2015 Luxul. All Rights Reserved. LUX-QIG-XAP-1510-v3 07271511 Next, connect an Ethernet cable from your Router or Switch to the Data IN port on the PoE Injector. Finally, connect the AC cord to the included PoE Injector, then to the AC outlet. n Note: Category-6 shielded twisted pair is recommended for best results and stable data transmission at the highest data rates. However, CAT5/CAT5e/CAT6 UTP cable can also be used. PoE Injector Setup  Data In: Connect an Ethernet cable from your router or switch to the Data In port of the included PoE Injector  Data & PWR Out: Connect an Ethernet cable from the Data & PWR Out port of the included PoE Injector to the PoE Port of the XAP-1510  AC Power: Connect the included AC Cord to the Power Input of the Included Injector first and then to the AC outlet. Power Source From your Router or Switch Luxul AP DATA I N DATA & PWR OUT POE Injector PoE injector 3 Preparing for Access IP Addressing If the XAP-1510 is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup . n Note: If another device on your network shares the 192.168.0.10 address, you’ll need to temporarily reassign or remove that device while you configure the XAP-1510. If your network uses an address scheme other than 192.168.0.X, you’ll need to set a temporary static IP address on the computer you’re using for config- uration. To do so, set the IP address of your computer to an …

Text truncated - open the document above for the full version.

14203 Minuteman Dr Suite 201 Draper UT 84020 USA Date: September 25, 2015 Declaration for no non-US channel operation We, Luxul Wireless declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: W59XAP1510 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Vaughn Staheli / VP Engineering Luxul Wireless Tel: 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

14203 Minuteman Dr Suite 201 Draper UT 84020 USA Date: 2015-09-25 FCC ID: W59XAP1510 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned, hereby authorize Amanda Wu / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu / Senior Specialist of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Vaughn Staheli / VP Engineering Luxul Wireless Tel: 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

14203 Minuteman Dr Suite 201 Draper UT 84020 USA Date: 2015-09-25 FCC ID: W59XAP1510 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Vaughn Staheli / VP Engineering Luxul Wireless Tel: 801-822-5465 Fax: 801-822-5460 E-mail: [email protected]

Report No.: 150828E07 Page No. 1 / 14 CONSTRUCTION PHOTOS OF EUT Report No.: 150828E07 Page No. 12 / 14 Report No.: 150828E07 Page No. 13 / 14 Report No.: 150828E07 Page No. 14 / 14

FCC IDW59XAP1510 IC : 8584A-XAP1510 LABEL LOCATION Brad name : LUXUL Model name : XAP-1510

Report No.: 150828E07 Page No. 2 / 14 Report No.: 150828E07 Page No. 3 / 14 Report No.: 150828E07 Page No. 4 / 14 Report No.: 150828E07 Page No. 5 / 14 Report No.: 150828E07 Page No. 6 / 14 Report No.: 150828E07 Page No. 7 / 14 Report No.: 150828E07 Page No. 8 / 14 Report No.: 150828E07 Page No. 9 / 14 Report No.: 150828E07 Page No. 10 / 14 Report No.: 150828E07 Page No. 11 / 14

Report No.: SA150828E07 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150828E07 FCC ID: W59XAP1510 Test Model: XAP-1510 Series Model: XWS-2510 Received Date: Aug. 28, 2015 Test Date: Sep. 09 to 12, 2015 Issued Date: Sep. 23, 2015 Applicant: Luxul Wireless Address: 14203 Minuteman Dr Suite 201 Draper UT 84020 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA150828E07 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Antenna Gain ......................................................................................................................................... 5 4 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: SA150828E07 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150828E07 Original release. Sep. 23, 2015 Report No.: SA150828E07 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 30cm away from the body of the user. So, this device is classified as Mobile Device. 3 Antenna Gain The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Brand Model Antenna Gain (dBi) Frequency range (GHz to GHz) Antenna Type Connecter Type Chain (0) NA 29020222 2.7 2.4-2.4835 PIFA i-pex(MHF) 5.2 5.15-5.85 Chain (1) NA 29020223 2.7 2.4-2.4835 PIFA i-pex(MHF) 5.2 5.15-5.85 Chain (2) NA 29020224 2.7 2.4-2.4835 PIFA i-pex(MHF) 5.2 5.15-5.85 Report No.: SA150828E07 Page No. 6 / 6 Report Format Version: 6.1.1 4 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 790.746 7.47 30 0.39047 1 5180-5240 471.757 9.97 30 0.41425 1 5745-5825 611.716 9.97 30 0.53715 1 NOTE: 2.4GHz: Directional gain = 2.7dBi + 10log(3) = 7.47dBi 5GHz: Directional gain = 5.2dBi + 10log(3) = 9.97dBi Conclusion: Both of the 2.4GHz/5GHz can transmit simultaneously, the formula of calculated the MPE is CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.39047 / 1 + 0.53715 / 1= 0.928, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF150828E07 Page No. 1 / 68 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150828E07 FCC ID: W59XAP1510 Test Model: XAP-1510 Series Model: XWS-2510 Received Date: Aug. 28, 2015 Test Date: Sep. 09 to 11, 2015 Issued Date: Sep. 23, 2015 Applicant: Luxul Wireless Address: 14203 Minuteman Dr Suite 201 Draper UT 84020 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150828E07 Page No. 2 / 68 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 14 3.5 General Description of Applied Standards ........................................................................................ 15 4 Test Types and Results ...................................................................................................................... 16 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 16 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 16 4.1.2 Test Instruments ................................................................................................................................ 17 4.1.3 Test Procedures ................................................................................................................................. 19 4.1.4 Deviation from Test Standard ............................................................................................................ 19 4.1.5 Test Setup .......................................................................................................................................... 20 4.1.6 EUT Operating Conditions ................................................................................................................. 20 4.1.7 Test Results ....................................................................................................................................... 21 4.2 Conducted Emission Measurement .................................................................................................. 40 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 40 4.2.2 Test Instruments ................................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF150828E07-1 Page No. 1 / 74 Report Format Version:6.1.1 FCC Test Report Report No.: RF150828E07-1 FCC ID: W59XAP1510 Test Model: XAP-1510 Series Model: XWS-2510 Received Date: Aug. 28, 2015 Test Date: Sep. 09 to 12, 2015 Issued Date: Sep. 23, 2015 Applicant: Luxul Wireless Address: 14203 Minuteman Dr Suite 201 Draper UT 84020 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150828E07-1 Page No. 2 / 74 Report Format Version:6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 14 3.4 Description of Support Units ............................................................................................................. 15 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standard .......................................................................................... 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedure .................................................................................................................................. 20 4.1.4 Deviation from Test Standard ............................................................................................................ 20 4.1.5 Test Setup .......................................................................................................................................... 21 4.1.6 EUT Operating Condition .................................................................................................................. 21 4.1.7 Test Results ....................................................................................................................................... 22 4.2 Conducted Emission Measurement .................................................................................................. 53 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 53 4.2.2 Test Instruments ...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF150828E07-2 Page No. 1 / 27 Report Format Version: 6.1.1 Supplemental “Transmit Simultaneously” Test Report Report No.: RF150828E07-2 FCC ID: W59XAP1510 Test Model: XAP-1510 Series Model: XWS-2510 Received Date: Aug. 28, 2015 Test Date: Sep. 01 to 12, 2015 Issued Date: Sep. 23, 2015 Applicant: Luxul Wireless Address: 14203 Minuteman Dr Suite 201 Draper UT 84020 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies Report No.: RF150828E07-2 Page No. 2 / 27 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ...................................................................................…

Text truncated - open the document above for the full version.
