W6YHP400HOTEL DOOR LOCK

PASSTECH CO., LTD

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 19, 2022
Application Purpose: Original Equipment
Date of Application: Jun 19, 2022
Equipment Note: HOTEL DOOR LOCK
Frequency Range: 2405.00000000 - 2480.00000000
Company: PASSTECH CO., LTD
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Version 1.0 - 1 - USER GUIDE HP400 HOTEL DOOR LOCK Version 1.0 - 2 - Table of Contents 1. Understanding HP400 Hotel Door Lock ................................. 3 1.1 What is HP400 Hotel Door Lock? ....................................................... 3 1.2 Operation cards .................................................................................. 4 2. Types of Lock Operating Scenario ........................................ 5 2.1 Guest Card issue .................................................................................. 5 2.2 Using RFID card ................................................................................... 7 2.3 Using Smartphone ................................................................................ 8 2.3.1 Synchronizing guest card to Smartphone .................................................... 8 2.3.2 Using Mobile Bluetooth (Esmart Sync) ..................................................... 10 3. Lock Operation ...................................................................... 14 3.1 Lock Installation .................................................................................. 14 3.2 Lock Setting(LIS) card ........................................................................ 18 Main Item Description .......................................................................................... 18 3.4 Open in Emergency ............................................................................ 20 Main Item Description .......................................................................................... 21 3.5 Low Battery warning and battery change ......................................... 22 4. Specification .......................................................................... 24 5. Indicator .................................................................................. 24 ANNEX A Beep & LED Table & Trouble Shooting .................... 24 6 Regulatory Statement ............................................................ 27 Version 1.0 - 3 - 1. Understanding HP400 Hotel Door Lock 1.1 What is HP400 Hotel Door Lock? - HP400 hotel door lock is operated by either 13,56 MHz RF keys or Mobile. - HP400 can work as both offline (stand alone) and online mode. - To set HP400 as online system, additional peripherals such as Access point, Server and client software are necessary. FEATURES H P 4 0 0 e-Paper display - Touch Key (12 Key) Yes Support Mortise ANSI Standard (Top) ANSI Standard (bottom) Euro #6 Support deadbolt Yes Panic release Yes Mechanical key override Yes Low battery indicator Yes Power supply 4 x AA ((Alkaline battery) Battery Lifetime 18 months for wireless online lock 24 months for standalone lock Block/Unblock card Yes Online Intrusion alarm (over 3 times of unauthorized open trial) Yes Online Ajar alarm Yes Instant Stay Extension Yes Instant Room change Yes Automatic unlock/lock Yes Passage mode Yes Remote audit trail Yes (Online: Unlimited/Offline:2,000 events) Remote Maintenance reporting Yes Mobile Key Access Yes Version 1.0 - 4 - 1.2 Operation cards Card Name Description Card type Key card • Security Key value to be loaded to locks at scanning. • Then, the locks will accept only the RFID cards which have the same security key value. Mifare 1KB Setup card • Lock will be programmed with various options at scanning. • Setup card can be set from PTHMS Client Pro Software Staff card • For staffs access card • Set name/title/authority/holiday, etc. Emergen cy card • All rooms can be opened with an emergency card. Particular attention should be paid to loss Blocking card • A Blocking card is used to block all user groups on a particular door. For example, this card is used to block all groups except Maid by reading the blocking card when Maid cleans the Fitness Club. Erase card • A card that cancels the registered Guest Card. This card can only be used after the Employee (Maid) Card has been read. Passage Mode card • A card to unlock the door until the specified time for the defined door. Privacy card • It is operated by the Toggle concept in order to display “D.N.D” on the door with the card provided in each room. It can be operated only when Guest Card is registered. In order to delete it, Maid must read Maid Card/Employee Card and then Erase Card/Power-Down Card to cancel it, or it will be automatically cancelled when a new guest card is registered. Audit trail card • A card for collecting usage histories for each lock. (Up to 2000 cases) Combi card (Mifare + Kona COS) Lock info card • A card to read the setting value of each door. Version 1.0 - 5 - 2. Types of Lock Operating Scenario HP400 Hotel Door locks are designed to work for the various operation requirements by simple set up process. Following operation modes can be set by hotel staffs and guests. 2.1 Guest Card issue Guest issue It is a screen for checking in and issuing a guest card for the guests who stay in a general room. Main Item Description Item Description Room No. Room Number you just chose to check-in will be shown. - Room number must be at least 3 digits for floor number and room number. . Ex) Floor→1, Room→1 ➔ “101” Floor→10, Room→2 ➔ “1002” Version 1.0 - 6 - Floor→11, Room→12 ➔ “1112” ※ If you enter more than 10 floors and input 1~9 rooms, please note that it will be recognized as another floor when the number is below 4 digits. Check In Check in date and time Check Out Check out date and time No. of cards Number of guest card you are going to issue Issue to Guest’s name Mobile Guest’s mobile number (Smartcode will be sent to this number) E-Mail Guest’s E-mail address (Mobile key app link will be sent to this address) Option (Combo box) If ticked, it means it will be available for the option. - Deadbolt: Deadbolt availabilty - Breakfast: Breakfast option - Full Gate: Gate that the card will be accepted Individual gates can be ticked separately. - Elevator Full floor: Accessibility of the elevators(floor) Individual floors can be ticked se…

Text truncated - open the document above for the full version.

Attestation Statements

Cover Letter(s)

PASSTECH CO., LTD. B-402, 215 Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea 13217 Tel. +82-31-743-7277 Fax +82-31-743-7276 June 10, 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : PASSTECH CO., LTD. FCC ID : W6YHP400 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), PASSTECH CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give PASSTECH CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX W6YHP400 SCH DIA.pdf Parts list CONF APPENDIX W6YHP400 PL.pdf Block diagram CONF APPENDIX W6YHP400 BLK DIA.pdf Operational description CONF APPENDIX W6YHP400 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF W6YHP400EXT Photo.pdf Internal Photos SHORT-TERM CONF W6YHP400 INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF W6YHP400 Test Photo.pdf User’s Manual SHORT-TERM CONF W6YHP400 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Best Regards, Hyung-Mo Park / CEO PASSTECH CO., LTD.

Cover Letter(s)

June 10, 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover letter FCC ID : W6YHP400 Gentlemen: 1.Variant Model name : HP400N, HP400N-01,HP400N-02,HP400N-03 HP400-01,HP400-02,HP400-03 2.This derivative has the same electrical and circuit configuration, has differences in accessories, and is attached to the next page. Best Regards, Hyung-Mo Park / CEO PASSTECH CO., LTD. PASSTECH CO., LTD. B-402, 215 Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea 13217 Tel. +82-31-743-7277 Fax +82-31-743-7276 ● HP400 MORTISE COMPARISON TABLE (CE/FCC) HP400-01, HP400N-01HP400-02, HP400N-02, HP400NHP400-03, HP400N-03 Mortise(based on latch) change of upper/lower Position Simple Model name changeMortise mechanism design difference 1MECHANICAL KEY SENSORMECHANICAL KEY SENSOR- 2ANTI FRICTION SENSORANTI FRICTION SENSORANTI FRICTION SENSOR 3DEADBOLT LATCH SEMSORDEADBOLT LATCH SEMSORDEADBOLT LATCH SEMSOR 4GNDGNDGND 5MOTOR FMOTOR FMOTOR F 6MOTOR RMOTOR RMOTOR R BACKB ack PCB specifications are the same M O R T I S E Derived model P HOTO FRONT Difference Front PCB specifications are the same

External Photos

FCC ID: W6YHP400 Front Rear Copyright ○ c 2022, LTA Co., Ltd .Page 1 of 4 FCC ID: W6YHP400 Side Side Copyright ○ c 2022, LTA Co., Ltd .Page 2 of 4 FCC ID: W6YHP400 ANTENNA(2.4 GHz) RFID BLE Copyright ○ c 2022, LTA Co., Ltd .Page 3 of 4 FCC ID: W6YHP400 Label Position Copyright ○ c 2022, LTA Co., Ltd .Page 4 of 4

ID Label/Location Info

Internal Photos

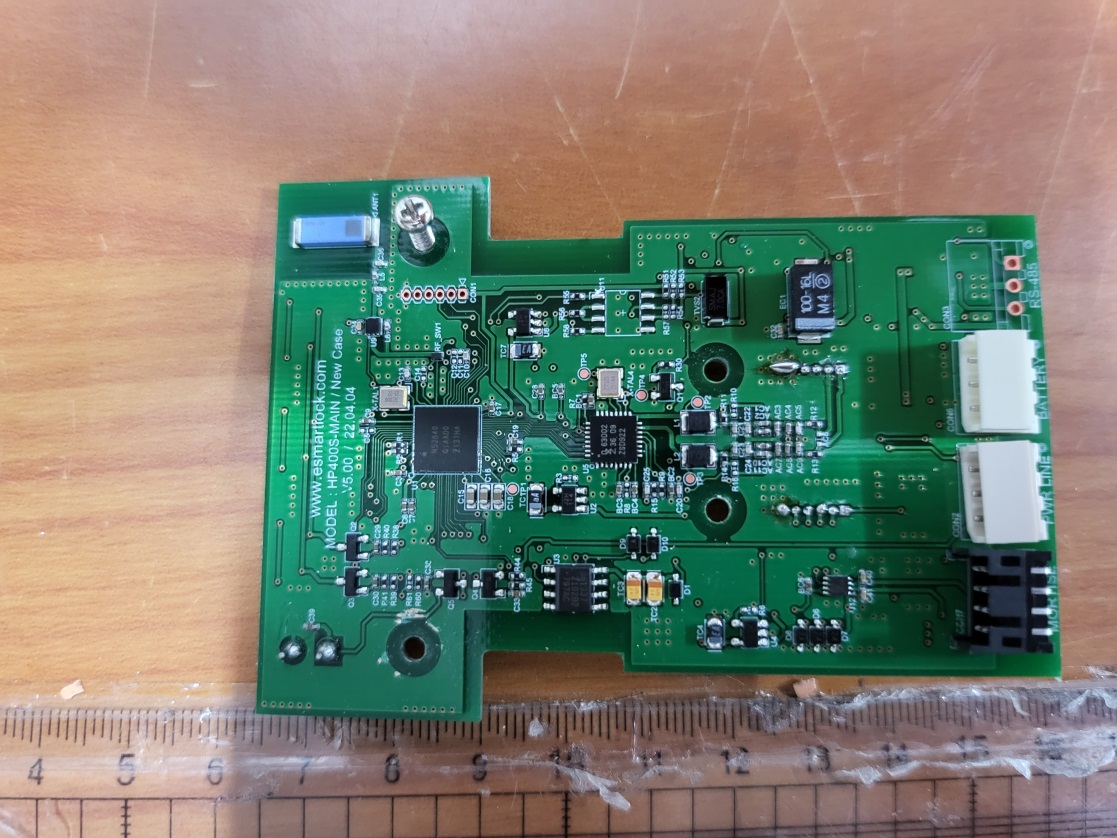

FCC ID: W6YHP400 MainBoard–Front MainBoard–Rear Copyright ○ c 2022, LTA Co., Ltd. Page 1 of 3 FCC ID: W6YHP400 MainBoard–Front MainBoard–Rear Copyright ○ c 2022, LTA Co., Ltd. Page 2 of 3 FCC ID: W6YHP400 Internal Copyright ○ c 2022, LTA Co., Ltd. Page 3 of 3

RF Exposure Info

FCC ID: W6YHP400 ATTACHMENT RF EXPOSURE EVULATION 1.1 Limit According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength Magnetic field Strength Power density Averaging time 1.34 - 30....................................... 824/f 2.19/f *(180/ f²) 30 30 - 300....................................... 27.5 0.073 0.2 30 300 - 1500.................................... ............... ............... f/1500 30 1500 - 100.000................................. ............... ............... 1.0 30 F = frequency in MHz * = Plane-wave equivalent power density 1.2 MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20 cm = limit for MPE) S = (0.1 * 2.24) / (4 * 5 2 * π) S = 0.02 mW/cm 2 FCC ID: W6YHP400 ATTACHMENT 1.3 MAXIMUM PERMISSIBLE EXPOSURE Prediction - Calculated under the worst-case conditions of each mode. (Measured power 3 dBm ± 0.5dB) 3-1. 2.4 GHz Mode Max Peak output Power at antenna input terminal -10.02 dBm Max Peak output Power at antenna input terminal 0.1 mW Prediction distance 5 mm Prediction frequency 2,402 MHz Antenna Gain(typical) 3.5 dBi Antenna Gain(numeric) 2.24 - Power density at prediction frequency( S) 0.02 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.007 mW/cm 2 SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm = Used [(max.power of channel, including tune-up torelance, mW)/(min. test separation distance, mm)] * [√f(GHz)] = [0.1 / 5 ] * [ √2.402 ] = 0.03 ≤ 3.0, for 1g SAR Thus, SAR for this device is not required.

Test Report

Ref. No.: LR500112206E 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: May 25,2022 ~ June 10, 2022 Test Report S/N: LR500112206E Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : HOTEL DOOR LOCK Manufacturer : PASSTECH CO., LTD. Model name : HP400 Variant Model name : HP400N, HP400N-01,HP400N-02,HP400N-03 HP400-01,HP400-02,HP400-03 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C63.10 - 2013 Frequency Range : 2402 ~ 2480 MHz BLE Max. Output Power : Max -10.02 dBm - Conducted Data of issue : June 13, 2022 This test report is issued under the authority of: The test was supervised by: Ja-Beom Koo, Manager Eun-Hwan Jung, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 W6YHP400 PASSTECH CO., LTD. Copyright ○ c 2022, LTA Co., Ltd. Page 1 of 23 Ref. No.: LR500112206E TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT ------------------------------------------------------------------------------------------ 3.1 SUMMARY OF TESTS ---------------------------------------------------------------------------- 3.2 TECHNICAL CHARACTERISTICS TEST ---------------------------------------------------- 3.2.1 6 dB BANDWIDTH -------------------------------------------------------------------------- 3.2.2 PEAK OUTPUT POWER -------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY ------------------------------------------------------------ 3.2.4 BAND EDGE ---------------------------------------------------------------------------------- 3.2.5 CONDUCTED SPURIOUS EMISSIONS ------------------------------------------------- 3.2.6 RADIATED SPURIOUS EMISSIONS ---------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 12 14 16 29 Copyright ○ c 2022, LTA Co., Ltd. Page 2 of 23 Ref. No.: LR500112206E 1. General information 1- 1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 17159 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1- 2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2022-09-28 ECT accredited Lab. RRA KOREA KR0049 - EMC accredited Lab. FCC U.S.A 649054 2023-01-25 FCC CAB VCCI JAPAN C-4948, 2023-09-10 VCCI registration VCCI JAPAN T-2416, 2023-09-10 VCCI registration VCCI JAPAN R-4483(10 m), 2023-08-15 VCCI registration VCCI JAPAN G-847 2022-12-13 VCCI registration IC CANADA 5799A-1 2022-10-18 IC filing Copyright ○ c 2022, LTA Co., Ltd. Page 3 of 23 Ref. No.: LR500112206E 2. Information about test item 2-1 Client & Manufacturer Client Company name : PASSTECH CO., LTD Address : B-402, 215 Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea 13217 Tel / Fax : +82-31-743-7277 / +82-31-743-7276 Manufacturer PASSTECH CO., LTD Address B-402, 215 Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea 13217 Tel / Fax +82-31-743-7277 / +82-31-743-7276 2- 2 Equipment Under Test (EUT) Model name : PASSTECH CO., LTD Model name : HP400 Variant Model name : HP400N, HP400N-01,HP400N-02,HP400N-03 HP400-01,HP400-02,HP400-03 Serial number : Identical prototype Date of receipt : May 25 ,2022 EUT condition : Pre-production, not damaged Antenna type : Chip Antenna (Max Gain : 3.5 dBi) Frequency Range : 2402 ~ 2480 MHz BLE RF output power : Max -10.02 dBm – Conducted Type of Modulation : GFSK Power Source : DC 6 V 2- 3 Tested frequency LOW MID HIGH Frequency (MHz) Zigbee 2402 2442 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook - MS-1736 MSI Copyright ○ c 2022, LTA Co., Ltd. Page 4 of 23 Ref. No.: LR500112206E 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Status (note 1) 15.247(a) 6 dB Bandwidth Conducted C 15.247(b) Transmitter Peak Output Power C 15.247(e) Transmitter Power Spectral Density C 15.247(d) Band Edge & Conducted Spurious emission C 15.209 Transmitter emission Radiated C 15.207 AC Conducted Emissions Conducted N/A 15.203 Antenna requirement - C N/A : This product is only operated with DC voltage. The above equipment was tested by LTA Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. The tests were performed according to the method of measurements prescribed in KDB No.558074.  Antenna Requirement PASSTECH CO., LTD FCC ID: W6YHP400 unit complies with the requirement of §15.203. The antenna type is Chip Antenna Copyright ○ c 2022, LTA Co., Ltd. Page 5 of 23 Ref. No.: LR500112206E 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6 dB below the highest in-band spectral density was m…

Text truncated - open the document above for the full version.

Test Report

Ref. No.: LR500112206G 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: May 25,2022 ~ June 10, 2022 Test Report S/N: LR500112206G Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : HOTEL DOOR LOCK Manufacturer : PASSTECH CO., LTD. Model name : HP400 Variant Model name : HP400N, HP400N-01,HP400N-02,HP400N-03 HP400-01,HP400-02,HP400-03 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C63.10 - 2013 Frequency Range : 2405 ~ 2480 MHz Zigbee Max. Output Power : Max -10.37 dBm - Conducted Data of issue : June 13, 2022 This test report is issued under the authority of: The test was supervised by: Ja-Beom Koo, Manager Eun-Hwan Jung, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 W6YHP400 PASSTECH CO., LTD. Copyright ○ c 2022, LTA Co., Ltd. Page 1 of 23 Ref. No.: LR500112206G TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT ------------------------------------------------------------------------------------------ 3.1 SUMMARY OF TESTS ---------------------------------------------------------------------------- 3.2 TECHNICAL CHARACTERISTICS TEST ---------------------------------------------------- 3.2.1 6 dB BANDWIDTH -------------------------------------------------------------------------- 3.2.2 PEAK OUTPUT POWER -------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY ------------------------------------------------------------ 3.2.4 BAND EDGE ---------------------------------------------------------------------------------- 3.2.5 CONDUCTED SPURIOUS EMISSIONS ------------------------------------------------- 3.2.6 RADIATED SPURIOUS EMISSIONS ---------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 11 16 21 25 29 42 Copyright ○ c 2022, LTA Co., Ltd. Page 2 of 23 Ref. No.: LR500112206G 1. General information 1- 1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 17159 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1- 2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2022-09-28 ECT accredited Lab. RRA KOREA KR0049 - EMC accredited Lab. FCC U.S.A 649054 2023-01-25 FCC CAB VCCI JAPAN C-4948, 2023-09-10 VCCI registration VCCI JAPAN T-2416, 2023-09-10 VCCI registration VCCI JAPAN R-4483(10 m), 2023-08-15 VCCI registration VCCI JAPAN G-847 2022-12-13 VCCI registration IC CANADA 5799A-1 2022-10-18 IC filing Copyright ○ c 2022, LTA Co., Ltd. Page 3 of 23 Ref. No.: LR500112206G 2. Information about test item 2-1 Client & Manufacturer Client Company name : PASSTECH CO., LTD Address : B-402, 215 Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea 13217 Tel / Fax : +82-31-743-7277 / +82-31-743-7276 Manufacturer PASSTECH CO., LTD Address B-402, 215 Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea 13217 Tel / Fax +82-31-743-7277 / +82-31-743-7276 2- 2 Equipment Under Test (EUT) Model name : PASSTECH CO., LTD Model name : HP400 Variant Model name : HP400N, HP400N-01,HP400N-02,HP400N-03 HP400-01,HP400-02,HP400-03 Serial number : Identical prototype Date of receipt : May 25 ,2022 EUT condition : Pre-production, not damaged Antenna type : Chip Antenna (Max Gain : 3.5 dBi) Frequency Range : 2405 ~ 2480 MHz Zigbee RF output power : Max -10.37 dBm – Conducted Type of Modulation : DSSS, O-QPSK Power Source : DC 6 V 2- 3 Tested frequency LOW MID HIGH Frequency (MHz) Zigbee 2405 2440 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook - MS-1736 MSI Copyright ○ c 2022, LTA Co., Ltd. Page 4 of 23 Ref. No.: LR500112206G 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Status (note 1) 15.247(a) 6 dB Bandwidth Conducted C 15.247(b) Transmitter Peak Output Power C 15.247(e) Transmitter Power Spectral Density C 15.247(d) Band Edge & Conducted Spurious emission C 15.209 Transmitter emission Radiated C 15.207 AC Conducted Emissions Conducted N/A 15.203 Antenna requirement - C N/A : This product is only operated with DC voltage. The above equipment was tested by LTA Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. The tests were performed according to the method of measurements prescribed in KDB No.558074.  Antenna Requirement PASSTECH CO., LTD FCC ID: W6YHP400 unit complies with the requirement of §15.203. The antenna ty pe is Chip Antenna Copyright ○ c 2022, LTA Co., Ltd. Page 5 of 23 Ref. No.: LR500112206G 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6 dB below the highest in-band spectr…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: W6YHP400 Radiate Emission Copyright ○ c 2022, LTA Co., Ltd. Page 1 of 3 FCC ID: W6YHP400 Copyright ○ c 2022, LTA Co., Ltd. Page 2 of 3 FCC ID: W6YHP400 Copyright ○ c 2022, LTA Co., Ltd. Page 3 of 3
