W75-CCT278RADAR DETECTOR

enKo products RADAR-LASER DETECTOR Operating Instructions MODEL : CCT278 Thank you for purchasing enKo products radar laser detector. The CCT278 model incorporates the advanced new radar antenna technology and extremely low power-consuming circuitry to ensure top class performance. It is a complete integrated laser and radar detector, whic h responds not only to X, K and Ka band radar guns in use today, but also the laser guns. The CCT278 provides distinct visual and a udio alerts to warn you of the presence of X, K, Ka band and laser signals for 360° round. You can drive with confidence when you bring along the CCT278 PACKAGE CONTENTS CCT278 package includes the following components.  CCT278 radar and laser detector  Coiled 12-volt DC power cord and fuse  Windshield mounting bracket with suction cups  Dashboard mounting hook and loop fasteners  Operation manual BASIC FEATURES AND CONTROLS 1. DIM mode reduces the illumination of the display . You can adjust the brightness of the display – Bright, Dim, Dimmer and Dark 2. Mute silences the audio alarm 3. City r educes false alarms while driving in the city. While driving on the highways or rural areas, press the City button again to turn off the City mode for long-range detection. 4. DC 12V Power Input 5. Buzzer hole 6. Radar Antenna Lens 7. Windshield Mounting Bracket Slot 8. Laser Lens 9. Rear Laser Lens 10. Power on-off & Volume Control Wheel 8 7 6 5 9 3 1 2 10 4 11. Highway Icon ‘H’ lights to indicate Highway mode is selected. 12. City Icon ‘C’ lights to indicate City mode is selected. 13. X Band Icon ‘X’ lights and blinks to indicate the presence of X band radar signal. The blink rate increases as the radar source gets closer. 14. K Band Icon ‘K’ lights and blinks to indicate the presence of K band radar signal. The blink rate increases as the radar source gets closer. 15. Ka Band Icon ‘Ka’ lights and blinks to indicate the presence of Ka band radar signal. The blink rate increases as the radar source gets closer. 16. Laser Signal Icon ‘L’ lights and blinks to indicate the pres ence of laser signal. 17. Signal Strength Meter Icon ‘2 3 4’ indicates the strength level of present radar INSTALLING THE UNIT Mounting Guidelines For the best performance, select the prope r location for the detector where it has a direct view of the road. Remember the radar antenna and laser sensor are located behind the rear panel of the unit. The antenna and sensors should not be obstructed by metal or metallic surfaces and should be pointed at the horizon for accurate long-range detection. - Choose a location that does not block the driver's vision - Mount the detector in a level position. - Do not mount the detector behind th e metal surfaces and ornaments mirrored sunscreen. Tinted windows reduce the received laser signal strength. Do not mount the detector behind tinted glass. Do not mount the detector where the driver or passenger might hit in a sudden stop or accident. НС Х ККа L2 3 4 11 12 1 3 1 4 15 1 6 1 7 Mounting Type There are two ways of installation Hook and Loop Mounting The hook and loop tape included with your detector might be the best mounting method for some dashboards. Follow these instructions to use the hook and loop tape to mount the unit on the dashboard. 1. Use a damp cloth to thoroughly clean the dashboard. 2. Peel off the paper backing of the tape and apply the tape to the bottom of the detector 3. Remove the paper backing from the other side of the tape and press the detector onto the dashboard. Windshield Mounting The supplied windshield bracket and suc tion cups l et you quickly mount the detector on your vehicle’s windshield. Follow these steps to use mounting bracket kit. 1. Install the suction cups onto the brack et by fitting them into their holes. 2. Attach the bracket to windshield. 3. Attach the detector to the bracket. 4. Bend bracket for correct detection angle. 5. Plug power cord DC12V into detector. 6. Plug power cord into cigarette lighter. Cautions: Some new models of cars have a plastic safety coating which is applied to the windshield. The suction cups may leave permanent marks on the wind shield once they are re moved. Check vehicle owner’s manual to s ee if your car has the plastic safety coating. Connecting the Power The CCT278 detector is designed to op erate on most DC 12V negative ground vehicle ele ctrical sy stems. The power cord provided with the detector has a cigarette lighter socket plug at one e nd and a small connector at the other. 1. Insert the small connector into th e jack on the side of the detector. 2. Insert the other end into the cigarette lighter socket of your vehicle. If the detector does not operate when you turn it on, remove the adapter from the cigarette lighter socket and carefully check the socket for debris. Also, check the fuse in the adapter and your vehicle's fuse box. Replacing the Fuse If the detecto r stops operating, the fuse in the cigarette lighter plug m ight be blown. If it has blown, follow these steps to replace it: 1. To replace the fuse, unscrew the top of the plug. 2. Remove the fuse and check the fuse to see if it has blown. If it has, replace it. OPERATION 1) Power On & Volume Control Rotate the Power and Volume control wheel clockwise to turn the Power on/off. This wheel can adjust volume up/down also by moving back and forth. 2) Memory It will automatically remember your last settings when the unit is turned off or removed from the power. All features select ed are retained in the memory except for MUTE. Each time when power turns on, MUTE OFF will be set. 3) Display Brightness Control (Dim mode) Dim mode r educes the il lumination of the display. Press the DIM button repeatedly to toggle between four leve ls of bri ghtness modes: Bright - Dim - Dimmer – Dark 4) Highway & City mode Selection Press the CITY button to toggle between Highway and City modes. X-band occupied by police radar is also shared for other uses, such as automatic door openers like t he…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 February 24, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ATTOWAVE CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): RADAR DETECTOR / CCT278 (FCC ID: W75-CCT278) We affirm that between SIEMIC and ATTOWAVE CO., LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Hyun Joo, Cho / Director ATTOWAVE CO., LTD. 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 February 24, 2014 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W75-CCT278 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyun Joo, Cho / Director ATTOWAVE CO., LTD. 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea

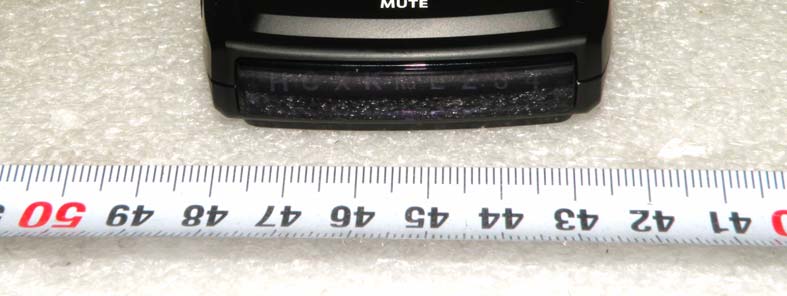

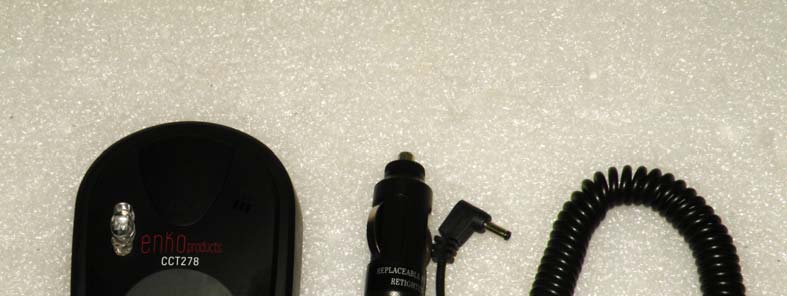

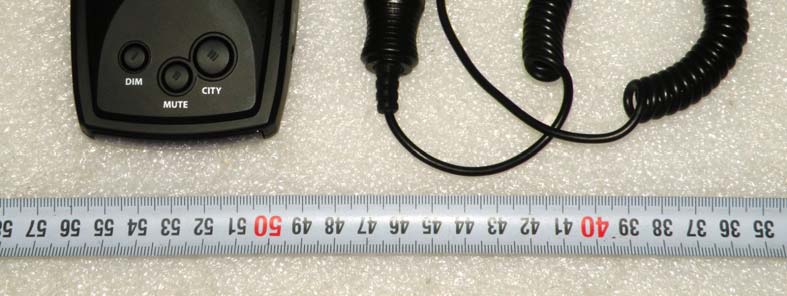

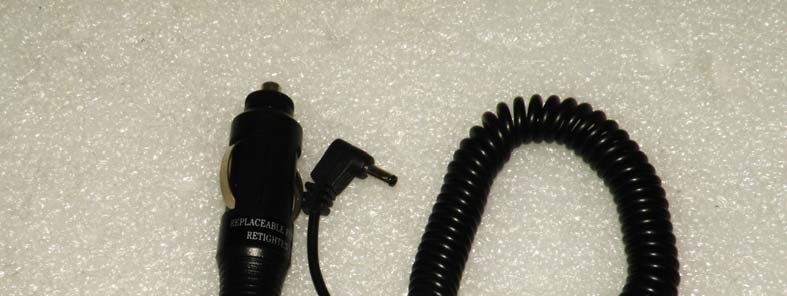

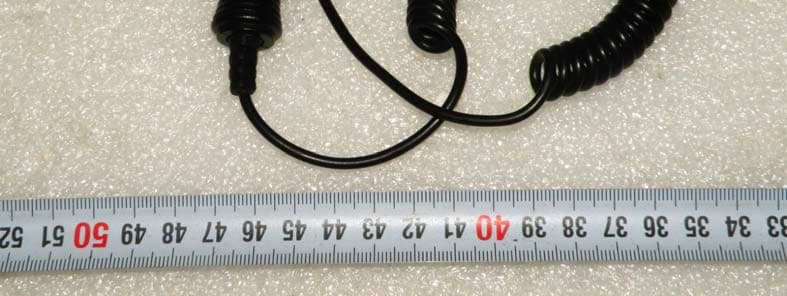

Appendix C. External Photographs Report no. ETLE140204.0170, Page C1 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 View of total construct Appendix C. External Photographs Report no. ETLE140204.0170, Page C2 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE140204.0170, Page C3 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Left side view of EUT Right side view of EUT Appendix C. External Photographs Report no. ETLE140204.0170, Page C4 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Top side view of EUT Bottom side view of EUT Appendix C. External Photographs Report no. ETLE140204.0170, Page C5 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 View of power line

Appendix A. FCC ID Label and Location Report no. ETLE140204.0170, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D1 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D2 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D3 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Top side view of main board #1 Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D4 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Top side view of main board #1-1 (without case) Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D5 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Top side view of main board #1-2 (without sub board) Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D6 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D7 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Bottom side view of main board (without sub board) Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D8 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Top side view of sub board Appendix D. Internal Photographs Report no. ETLE140204.0170, Page D9 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Bottom side view of sub board

Report no. ETLE140204.0170, Page 2 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCCID:W75-CCT278 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Description Appendix G. User Manual Appendix H. Circuit Diagram Report no. ETLE140204.0170, Page 3 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCCID:W75-CCT278 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : RADAR DETECTOR  Model Number : CCT278  FCC ID : W75-CCT278  S/N : Proto-type  Frequency Range : X-tal  8 MHz  Rule Part(s) : FCC Part 15 Subpart B  Test Procedure : ANSI C63.4-2001 and FCC 02-211  FCC Classification : Unintentional Radiators CRD - Part 15 Radar Detector  Dates of Tests : February 10, 2014 Temperature: 5.9 °C Humidity: 56.2 % R.H.  Environmental of Tests: Atmospheric Pressure: 102.4 kPa  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea  Test Report No. : ETLE140204.0170 Applicant Name : ATTOWAVE CO., LTD. Address : 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea Attention : Hyun Joo, Cho / Director Report no. ETLE140204.0170, Page 4 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCCID:W75-CCT278 1. INTRODUCTION The measurement tests for radiated and conducted emission test were conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2001) was used in determining radiated and conducted emissions from the ATTOWAVE CO., LTD., Model: CCT278. Report no. ETLE140204.0170, Page 5 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCCID:W75-CCT278 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the RADAR DETECTOR (model: CCT278). 2.2 General Specification Radar Receiver Type Dual Conversion Super heterodyne Antenna Type Linear Polarized. Self-Contained Antenna Detector Type Frequency Discriminator X Band: (10.525 ± 0.050) GHz K Band: (24.150 ± 0.100) GHz Frequency of Operation Ka Band: (34.700 ± 1.300) GHz (Super wide band) Laser Receiver Type Pulse Laser Signal Receiver Detector Type Digital Signal Processor Opto Sensor Photo Diode with convex Condenser Lens Spectral Response (905 ± 50) nm General Operating Temperature Range (25 ± 45) °C Storage Temperature Range (25 ± 55) °C Power Requirement (13.5 ± 1.5) V DC, 120 mA (Negative Ground) High Internal Frequency X-tal  8 MHz Report no. ETLE140204.0170, Page 6 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCCID:W75-CCT278 3. DESCRIPTION OF TESTS 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with section 12, “Measurement of unintentional radiators other than ITE" of ANSI C63.4-2001 and FCC 02-211. The measurements were performed over the frequency range of 11.7 GHz to 12.2 GHz using antenna as the input transducer to a spectrum analyzer. The measurements were made with the detector set for "Peak" within a bandwidth of 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determined the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from Above 1 GHz; linearly polarized double ridge horn antennas were used. Final measurements were made open site at 3 m. A search was made of spectrum from 11.7 GHz to 12.2 GHz the measurements indicate that the unit meets the FCC requirements. Measurements in the 11.7 GHz to 12.2 GHz band were made with a Standard Gain Horn. The measurements in the 11.7 GHz to 12.2 GHz band represent the ambient noise levels. The attached plots were made with peak detector with the analyzer in a maximum hold for 2 minutes. The test equipment was laced on a wooden turn-table. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. Each frequency found during pre-scan measurement…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE140204.0170, Page B1 of B1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:W75-CCT278 Radiated Emission Test Setup
