W75-RL-RCUIIIRemote Control Unit

Mini RCU Operation Manual FCC ID: W75-RL-RCU III 1. MUTE Button Press and release MUTE button to turn off the audio for any alert. When an audio alert is sounded, you can silence the alarm by pressing MUTE button. Press MUTE button again to turn on the audio alert. 2. Mark Alert(MA)Button Press and release MARK ALERT(MA) button to memory the location you have selected. This location is stored in the memory and give an audio alert when you pass the marked location. 3. Mark Mute(MM) Button Press and release MARK MUTE(MM) button to mute the location you have selected. This location is stored in the memory and mute an audio alert when you pass the marked location 4. Volume Up(+) Button Press Volume Up button to increase the audio volume. 5. Volume Down(-) Button Press Volume down button to decrease the audio volume. 6. SENS Button SENS mode reduces the annoyance of false alerts typically encountered in urban driving areas. 7. Power Button Press and release the POWER button to turn the unit on or off. 8. MENU Button Press the MENU button to enter menu mode. 9. DIM Button Press the DIM button to control LED brightness. 10. Quiet Ride Press this button to mute the audio under selected speed. INSTALLATION Mounting Guidelines • Mount the RCU near the driver’s seat or host board. • Do not mount your unit behind any objects. These obstructions have metal surfaces which can affect communication with host board. • To reduce the possibility of theft, conceal your unit when not in use. • Make sure the mounting location you have chosen is relatively level and is clean and dry. Clean with isopropyl alcohol if necessary to remove any waxes or polishes. • Separate the fastener strips. Peel the paper backing off each strip and adhere one piece to the place and the other piece to the bottom of the unit. Battery Replacement LIMITED WARRANTY The manufacturer warrants this product against all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions: The sole responsibility of the manufacturer under this Warranty is limited to either repair or, at the option of the manufacturer, replacement of the unit. There are no expressed or implied warranties, including those of fitness for a particular purpose of merchantability, which extend beyond the face hereof. SPECIFICATIONS Carrier Frequencies: 433.92 MHz (Single Channel) Frequency Stabilization Scheme: High-Q SAW Resonator Stabilization Modulation Method: Amplitude Shift Keying (By Carrier ON/OFF) Bit Duration: “1” – 2.25 msec / “0” – 1.125 msec Operating Temperature Range: -10° C to +80° C Storage Temperature Range: -20° C to +90° C Power Requirements: DC 12 V

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 August 13, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ATTOWAVE CO., LTD. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Remote Control Unit / K40 Version Mini RCU FCC ID: W75-RL-RCUIII Sincerely, Hyun Joo, Cho / Director ATTOWAVE CO., LTD. 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 August 13, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: W75-RL-RCUIII We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyun Joo, Cho / Director ATTOWAVE CO., LTD. 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea

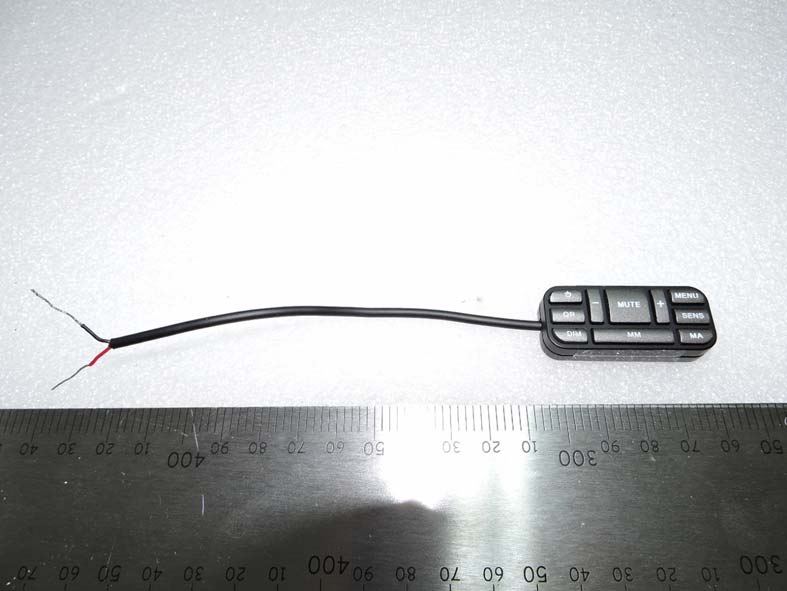

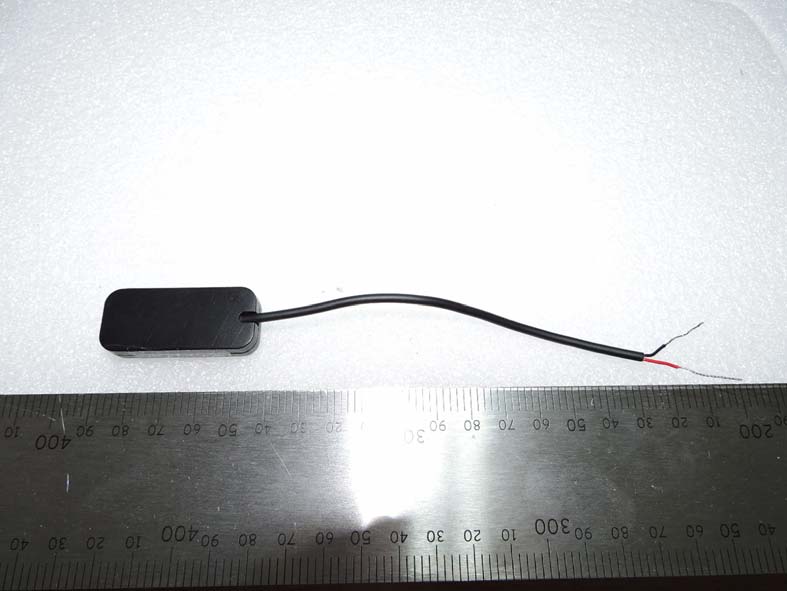

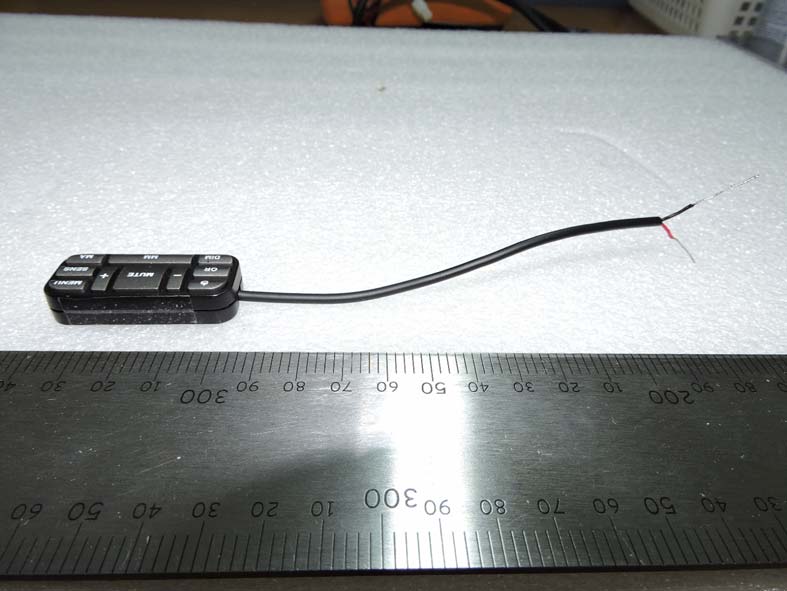

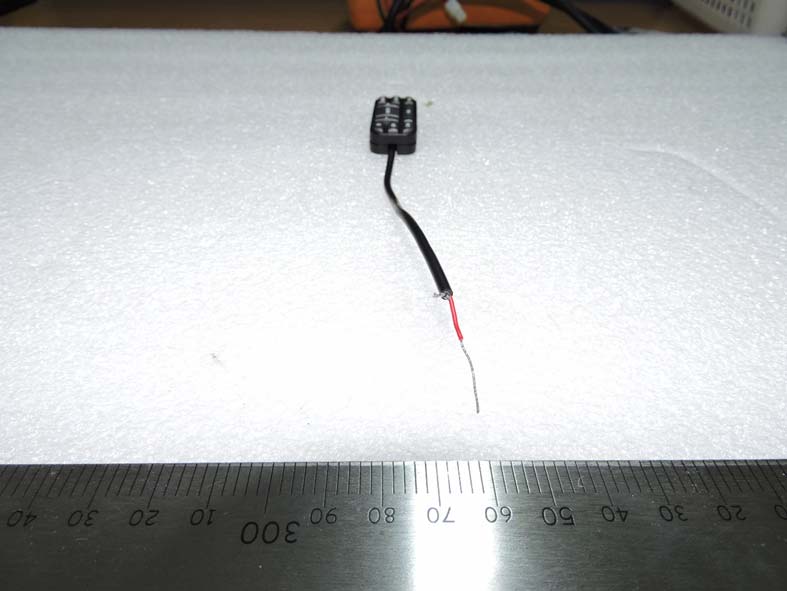

Appendix C. External Photographs Report no. ETLT150721.0055, Page C1 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLT150721.0055, Page C2 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLT150721.0055, Page C3 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLT150721.0055, Page A1 of A1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLT150721.0055, Page D1 of D3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Inside view of EUT Appendix D. Internal Photographs Report no. ETLT150721.0055, Page D2 of D3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Top side view of main board Appendix D. Internal Photographs Report no. ETLT150721.0055, Page D3 of D3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: W75-RL-RCUIII Bottom side view of main board

Report no. ETLT150721.0055, Page 2 of 23 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: W75-RL-RCUIII Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 20 dB Bandwidth 5.3 Radiated Emissions for Periodic radiators 5.4 Fundamental Radiated Emission 5.5 Harmonic Radiated Emission 5.6 Periodic Operation Measurement Plot 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. Operating Description Appendix H. User Manual Appendix I. Antenna Requirement Report no. ETLT150721.0055, Page 3 of 23 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: W75-RL-RCUIII FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Remote Control Unit  Model Number : K40 Version Mini RCU  FCC ID : W75-RL-RCUIII  S/N : Proto-type  Freq. Range : 433.92 MHz  Number of Channels : 1 CH  Modulation Technique : FSK  Antenna Type : PCB Antenna (Unique Type)  Environmental of Tests : Temperature: (28.6 ± 7.1) °C  Humidity: (57 ± 8) % R.H.  Atmospheric Pressure: (100.7 ± 0.3) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.10-2009  Equipment Class : DSC (Part 15 Security/Remote Control Transmitter)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : ATTOWAVE CO., LTD. Address : 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea Attention : Hyun Joo, Cho / Director Report no. ETLT150721.0055, Page 4 of 23 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: W75-RL-RCUIII 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.10-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.10-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the ATTOWAVE CO., LTD. Model: K40 Version Mini RCU Report no. ETLT150721.0055, Page 5 of 23 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: W75-RL-RCUIII 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Remote Control Unit, Model: K40 Version Mini RCU 2.2 General Specification - Carrier Frequencies: 433.92 MHz (Single Channel) - Frequency Stabilization Scheme: High-Q SAW Resonator Stabilization - Modulation Method: Amplitude Shift Keying (By Carrier ON/OFF) - Bit Duration: “1”: 2.25 msec / “0”: 1.125 msec - Operating Temperature Range: (35 ± 45) °C - Storage Temperature Range: (35 ± 55) °C - Power Requirements: DC 12 V - High Internal Frequency: X-tal  433.92 MHz Report no. ETLT150721.0055, Page 6 of 23 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: W75-RL-RCUIII 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.10-2009 and FCC CFR 47 15.207, 15.209 and 15.231. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.10-2009 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 100 Hz, 9 kHz, 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 9 kHz to 30 MHz using Loop antenna and 30 MHz to 1 000 MHz using Log-Bicon antenna. Above 1 GHz, linearly polarized double…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLT150721.0055, Page B1 of B3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:W75-RL-RCUIII Radiated Emission Test Setup (9 kHz - 30 MHz) Appendix B. Test Setup Photographs Report no. ETLT150721.0055, Page B2 of B3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:W75-RL-RCUIII Radiated Emission and Fundamental Test Setup (30 MHz - 1 000 MHz) Appendix B. Test Setup Photographs Report no. ETLT150721.0055, Page B3 of B3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:W75-RL-RCUIII Radiated Emission Test Setup (1 GHz Above)
