W75-RLS2RADAR DETECTOR

K40 ELECTRONICS RADAR-LASER DETECTOR Operating Instructions MODEL : RLS2 - 1 - INTRODUCTION Thank you for purchasing K40’s newest radar laser detector “RLS2” The RLS2 model incorporates the advanced new radar antenna technology and extremely low power-consuming circuitry to ensure top class performance. It is a complete integrated laser and radar detector, which responds not only to X, K and Ka band radar guns in use today, but also the laser guns. The RLS2 provides distinct visual and audio alerts to warn you of the presence of X, K, Ka band and laser signals for 360° round. You can drive with confidence when you bring along the RLS2 radar laser detector. PACKAGE CONTENTS RLS2 package includes the following components. · RLS2 radar and laser detector · 12-volt DC power cord and fuse (2types – Coiled and Straight) · Windshield mounting bracket with suction cups · Dashboard mounting hook and loop fasteners · Operation manual - 2 - INSTALLING THE UNIT Mounting Guidelines For the best performance, select the proper location for the detector where it has a direct view of the road. Remember the radar antenna and laser sensor are located behind the rear panel of the unit. The antenna and sensors should not be obstructed by metal or metallic surfaces and should be pointed at the horizon for accurate long-range detection. - Choose a location that does not block the driver's vision. - Mount the detector in a level position. - Do not mount the detector behind the metal surfaces and ornaments mirrored sunscreen. Tinted windows reduce the received laser signal strength. Do not mount the detector behind tinted glass. Do not mount the detector where the driver or passenger might hit in a sudden stop or accident. Mounting Type There are two ways of installation. Hook and Loop Mounting The hook and loop tape included with your detector might be the best mounting method for some dashboards. Follow these instructions to use the hook and loop tape to mount the unit on the dashboard. 1. Use a damp cloth to thoroughly clean the dashboard. 2. Peel off the paper backing of the tape and apply the tape to the bottom of the detector. 3. Remove the paper backing from the other side of the tape and press the detector onto the dashboard. - 3 - Windshield Mounting The supplied windshield bracket and suction cups let you quickly mount the detector on your vehicle’s windshield. Follow these steps to use mounting bracket kit. 1. Install the suction cups onto the bracket by fitting them into their holes. 2. Attach the bracket to windshield. 3. Attach the detector to the bracket. 4. Bend bracket for correct detection angle. 5. Plug power cord DC12V into detector. 6. Plug power cord into cigarette lighter. Cautions: Some new models of cars have a plastic safety coating which is applied to the windshield. The suction cups may leave permanent marks on the wind shield once they are removed. Check vehicle owner’s manual to see if your car has the plastic safety coating. Connecting the Power The RLS2 detector is designed to operate on most DC 12V negative ground vehicle electrical systems. The power cord provided with the detector has a cigarette lighter socket plug at one end and a small connector at the other. 1. Insert the small connector into the jack on the side of the detector. 2. Insert the other end into the cigarette lighter socket of your vehicle. If the detector does not operate when you turn it on, remove the adapter from the cigarette lighter socket and carefully check the socket for debris. Also, check the fuse in the adapter and your vehicle's fuse box. Replacing the Fuse If the detector stops operating, the fuse in the cigarette lighter plug might be blown. If it has blown, follow these steps to replace it: 1. To replace the fuse, unscrew the top of the plug. 2. Remove the fuse and check the fuse to see if it has blown. If it has, replace it. - 4 - OPERATION 1) Power On & Volume Control Rotate the Power and Volume control wheel clockwise to turn the Power on/off. This wheel can adjust volume up/down also by moving back and forth. 2) Dim & Menu Button DIM MODE Dim mode reduces the illumination of the display. Press and release Dim/Menu button to change display brightness from Day - Dusk – Night-Auto and to off. On Auto mode, display keeps “Dusk” on standby and when alarm starts, it changes the brightness level in order of Day-Dusk-Night until the alarm stops. MENU MODE Press and hold Dim/Menu button for 3sec. to enter Menu Mode. On Menu Mode, press Dim/Menu button to scroll down on menu. Press City /Hwy button to scroll up on menu. Press Up(∧)/Down(∨) button to select from menu. Menu Options FEMALE MALE VOICE ON VOICE OFF WAKEUP_LONG WAKEUP_SHORT SPEED ON SPEED OFF COMPASS ON COMPASS OFF POP_ON POP OFF MPH KMPH X BAND ON X BAND OFF K BAND ON K BAND OFF KA BAND ON KA BAND OFF LASER ON LASER OFF FACTORY RESET EXIT To exit the menu, a. Press “UP” or “DOWN” button while “exit” is being displayed. - 5 - b. Press and hold Dim/Menu button for 3sec. c. Do nothing for 10sec. 3) Quiet Ride Button Press and release Quiet Ride button to enter Quite Ride Mode. Quiet Ride Mode allows you to set a minimum MPH or KPH detection speed that eliminates all audible alerts until the vehicle exceeds your selected speed. Use up(∧) and down(∨) button to select your choice of speed in range of 5~65MPH(by 5MPH) or 10~100KPH(by 10KPH). To save the selection and exit the menu, do nothing for 3sec. Display shows selected speed for Quiet Ride Mode along with voice announcement “Quiet Ride Set”. 4) MUTE Button a.MUTE MODE Press and release MUTE button to turn on/off Mute Mode. Mute Mode silences all beeping alerts for radar/laser alarms for 15sec. or the duration of the alert. Voice alerts stay active. b.EXTENDED MUTE MODE Press and hold Mute button for 3sec. to turn on/off Extended Mute Mode. Extended Mute Mode silences all beeping alerts for radar/laser alarms for 2minutes or the duration of the alert. Voice alerts stay active. 5) CITY/HWY Bu…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 November 07, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ATTOWAVE CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): RADAR DETECTOR / RLS2 (FCC ID: W75-RLS2) Sincerely, Hyun Joo, Cho / Director ATTOWAVE CO., LTD. 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 November 07, 2014 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W75-RLS2 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Ops Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyun Joo, Cho / Director ATTOWAVE CO., LTD. 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea

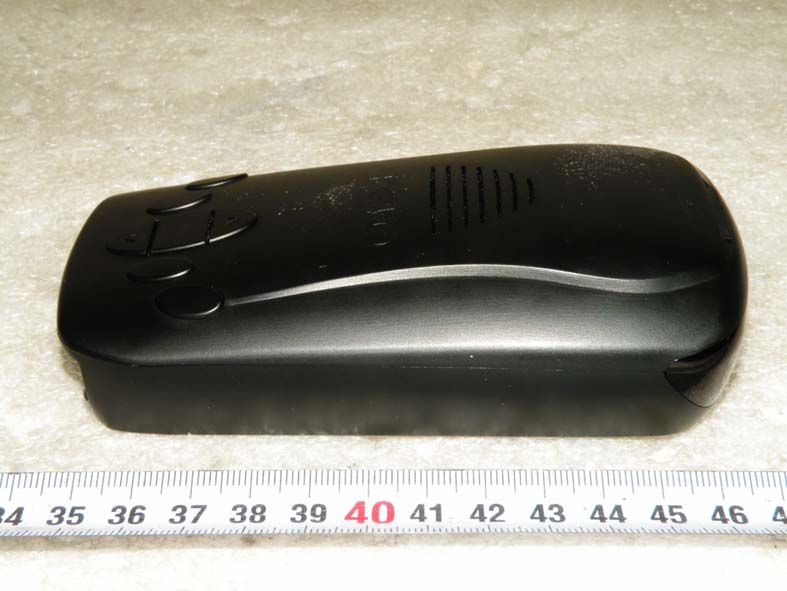

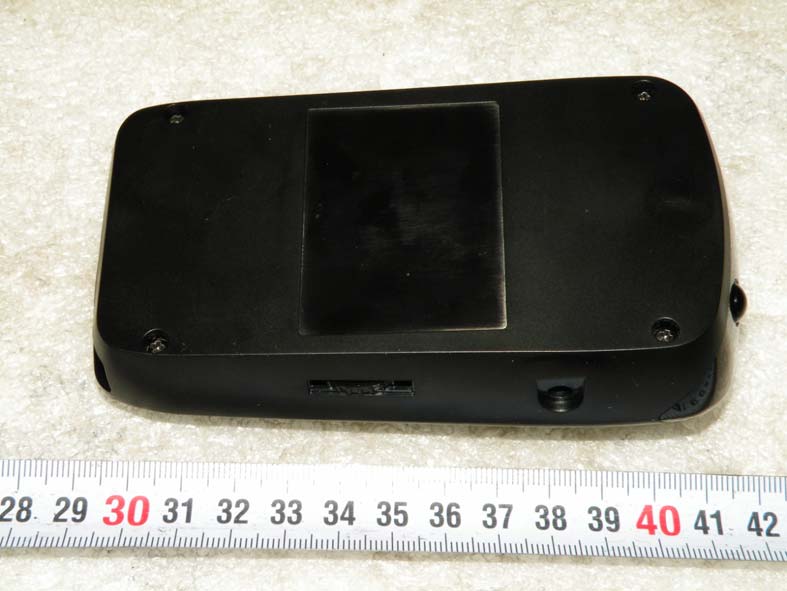

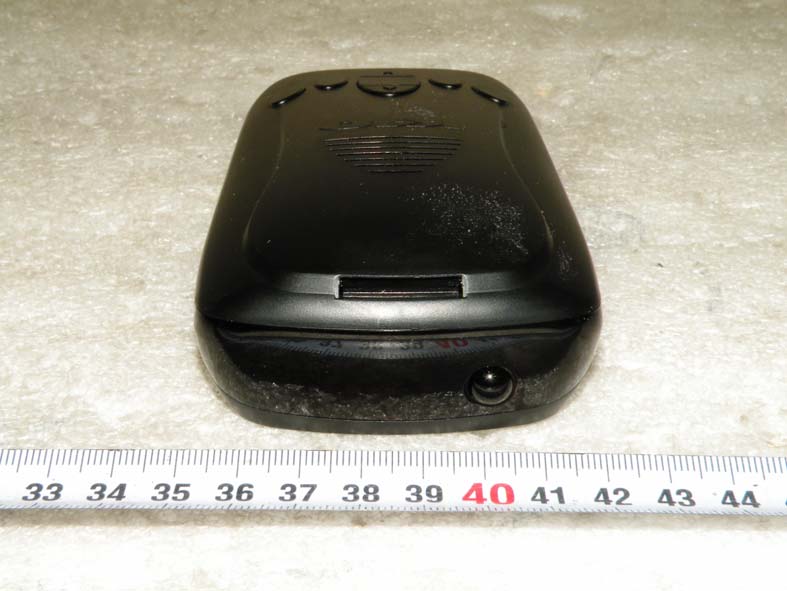

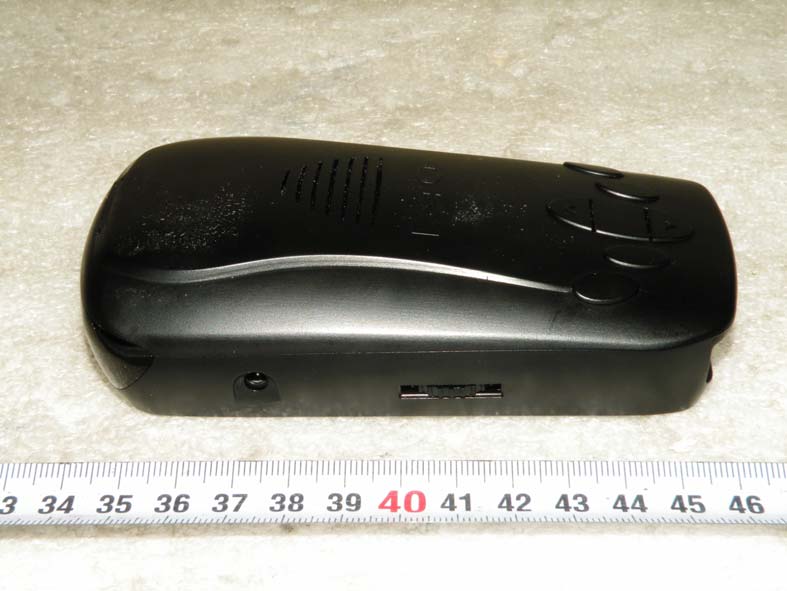

Appendix C. External Photographs Report no. ETLE141021.1540, Page C1 of C5 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 View of total construct Appendix C. External Photographs Report no. ETLE141021.1540, Page C2 of C5 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE141021.1540, Page C3 of C5 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Left side view of EUT Right side view of EUT Appendix C. External Photographs Report no. ETLE141021.1540, Page C4 of C5 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of EUT Bottom side view of EUT Appendix C. External Photographs Report no. ETLE141021.1540, Page C5 of C5 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 View of Cigar jack (power line)

Appendix A. FCC ID Label and Location Report no. ETLE141021.1540, Page A1 of A1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D1 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D2 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of main board #1 Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D3 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of main board #1-1 (without case) Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D4 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of main board #1-2 (without case and GPS board) Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D5 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D6 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of GPS board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D7 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Bottom side view of GPS board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D8 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of Antenna main board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D9 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Bottom side view of Antenna main board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D10 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Top side view of key board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D11 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Bottom side view of key board Appendix D. Internal Photographs Report no. ETLE141021.1540, Page D12 of D12 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 View of speaker

Report no. ETLE141021.1540, Page 2 of 13 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC ID:W75-RLS2 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Description Appendix G. User Manual Appendix H. Circuit Diagram Report no. ETLE141021.1540, Page 3 of 13 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC ID:W75-RLS2 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : RADAR DETECTOR  Model Number : RLS2  FCC ID : W75-RLS2  S/N : Proto-type  Rule Part(s) : FCC Part 15 Subpart B  Test Procedure : ANSI C63.4-2001 and FCC 02-211  FCC Classification : Unintentional Radiators CRD - Part 15 Radar Detector  Dates of Tests : October 28, 2014 Temperature: (19.0 ± 0.6) °C Humidity: (40 ± 1) % R.H.  Environmental of Tests: Atmospheric Pressure: (102.3 ± 0.0) kPa  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea  Test Report No. : ETLE141021.1540 Applicant Name : ATTOWAVE CO., LTD. Address : 1005, 10F Leader’s Tower, 60-15 Gasan-dong, Gumchun-gu, Seoul, 153-801 Korea Attention : Hyun Joo, Cho / Director Report no. ETLE141021.1540, Page 4 of 13 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC ID:W75-RLS2 1. INTRODUCTION The measurement tests for radiated and conducted emission test were conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2001) was used in determining radiated and conducted emissions from the ATTOWAVE CO., LTD., Model: RLS2. Report no. ETLE141021.1540, Page 5 of 13 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC ID:W75-RLS2 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the RADAR DETECTOR (model: RLS2). The model WSP-R350 is basic model that was tested. 2.2 General Specification Radar Receiver Type Dual conversion super-heterodyne Antenna Type Linear polarized, Self-contained Detector Type Scanning frequency discriminator X Band: (10.525 ± 0.050) GHz K Band: (24.150 ± 0.100) GHz Frequency Operation Ka Band (Super-wide): (34.700 ± 1.300) GHz Laser Receiver Type Pulse laser signal receiver Detector Type Digital signal processor pulse width discriminator Optical Sensor Dual convex condenser lens and high speed photo diode detector, (905 ± 50) nm (nanometers) General Operating Temperature Range (30 ± 40) °C Storage Temperature Range (30 ± 50) °C Power Requirement (13.5 ± 1.5) V DC, 250 mA, negative ground Dimensions 35.0 mm (H) x 72.5 mm (W) x 129.7 mm (L) High Internal Frequency MCU Clock  22 MHz Report no. ETLE141021.1540, Page 6 of 13 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC ID:W75-RLS2 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2001, FCC 02-211 and FCC CFR 47 15.109. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with section 12, “Measurement of unintentional radiators other than ITE" of ANSI C63.4-2001 and FCC 02-211. The measurements were performed over the frequency range of 11.7 GHz to 12.2 GHz using antenna as the input transducer to a spectrum analyzer. The measurements were made with the detector set for "Peak" within a bandwidth of 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determined the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from Above 1 GHz; linearly polarized double ridge horn antennas were used. Final measurements we…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE141021.1540, Page B1 of B1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F22-0 FCC ID:W75-RLS2 Radiated Emission Test Setup
