W89-RC-TOYS-49RRadio Control Toy Receiver

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 6 von 6 Page 6 of 6 User manual

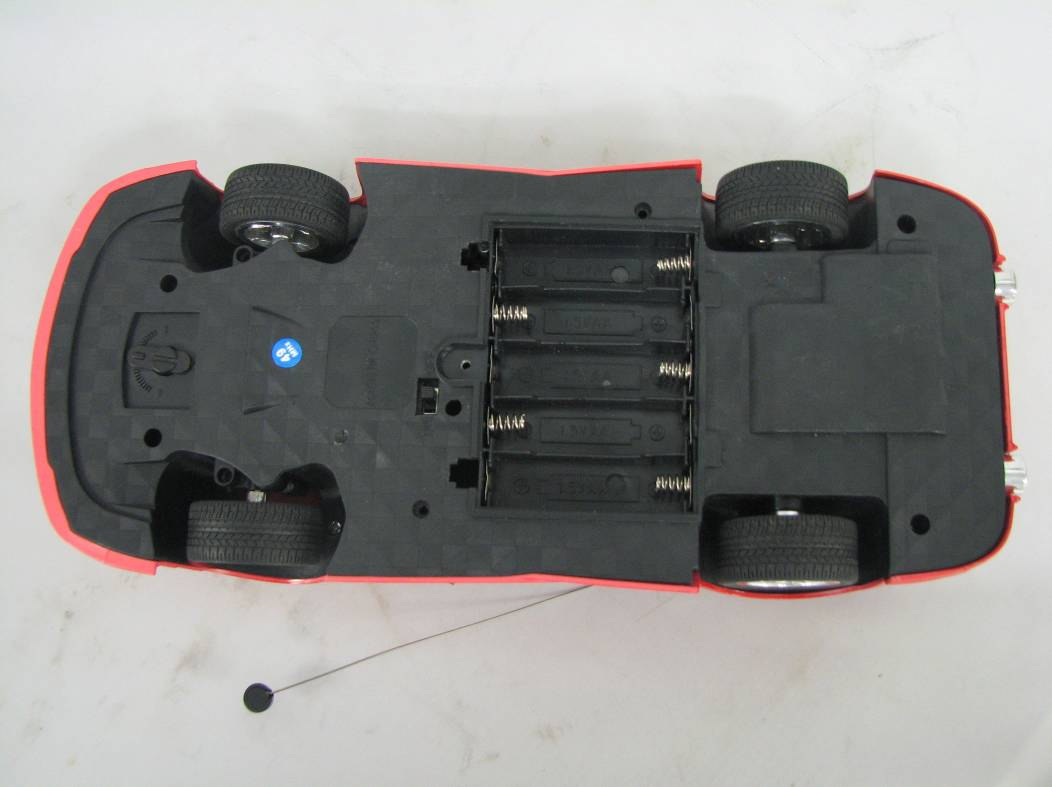

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 1 von 2 Page 1 of 2 Receiver (External view) Receiver (External view) www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 2 von 2 Page 2 of 2 Receiver (External view) Receiver (External view)

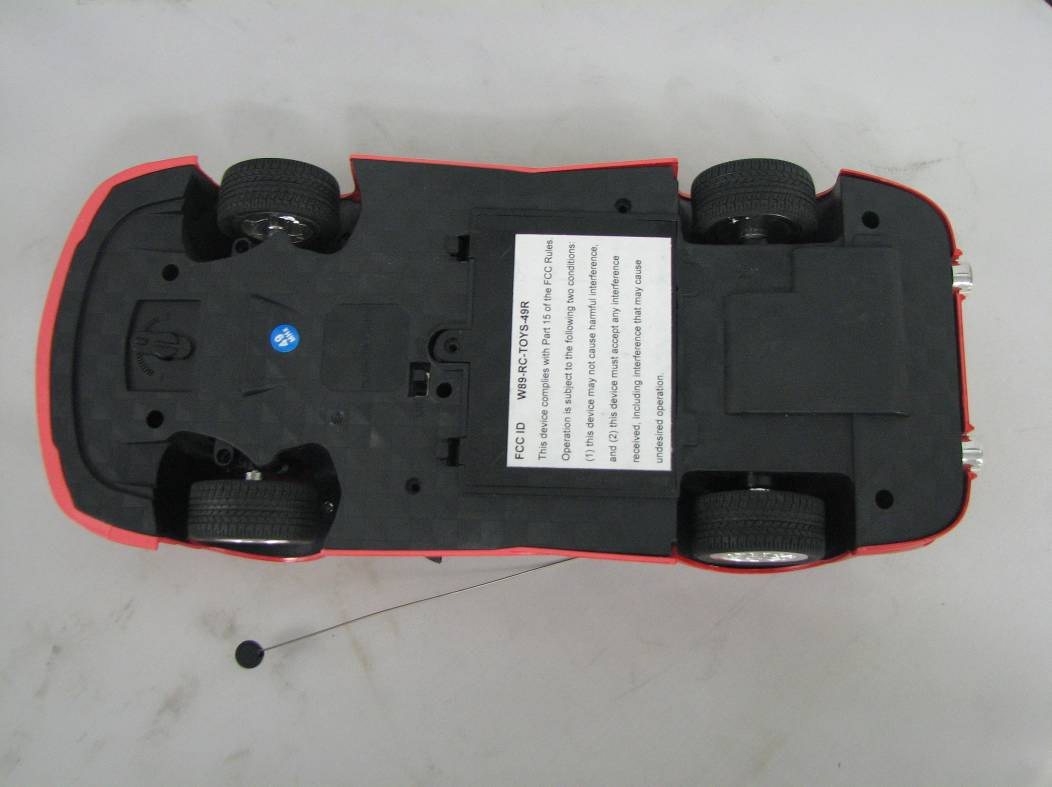

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 5 von 6 Page 5 of 6 FCC label and location 6.8 X 5CM FCC ID W89-RC-TOYS-49R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 1 von 3 Page 1 of 3 Receiver (Internal view) Receiver (Internal view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 2 von 3 Page 2 of 3 Receiver (Internal view) Receiver (Internal view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 3 von 3 Page 3 of 3 Receiver (Internal view) Receiver (Internal view)

www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 2 of 9 Test Summary Conducted Disturbance on AC power line Result: Pass Spurious Radiated Emissions Result: Pass www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 3 of 9 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details...........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ............................................................................7 Countermeasures to achieve EMC Compliance ..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission..........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Spurious Radiated Emissions Section 15.109..........................................................................9 Appendix 1: Test Setup Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 4 of 9 List of Test and Measurement Instruments TÜV Rheinland (Guangdong) Ltd. (Registration number: 833845) Kind of Equipment Manufacturer Type S/N Cal Due Date FSP30 Spectrum Analyzer Rohde & Schwarz FSP30 100286 16-Mar-11 EMI Test Receiver Rohde &Schwarz ESCI 100216 16-Mar-11 Trilog-Broadband Antenna Schwarzbeck VULB9168 209 21-Aug-11 Trilog-Broadband Antenna Schwarzbeck VULB9168 210 16-Mar-11 Double-Ridged Waveguide Horn Antenna Rohde &Schwarz HF 906 100385 24-Aug-11 Band Reject Filter Micro-Tronics BRM50702 023 16-Mar-11 Pre-Amplifier MITEQ AFS42-00101800- 25-S-42 1101599 16-Mar-11 Double-Ridged Waveguide Horn Antenna Rohde &Schwarz HF 906 100407 16-Mar-11 Horn Antenna EMCO 3160-09 21642 26-Jun-14 Pre-Amplifier MITEQ AFS33-18002650- 30-8P-44 1108282 16-Mar-11 Horn Antenna EMCO 3160-09 21645 24-Aug-14 Loop Antenna Rohde &Schwarz HFH2-Z2 100111 16-Mar-11 Triple-Loop Antenna Rohde &Schwarz HM020 100021 16-Mar-11 SAC Albatross Projects GmbH N/A 9460000.9 #REF! www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 5 of 9 General Product Information Product Function and Intended Use The equipment under test (EUT) is a RC toy car operating at 49.86MHz. The EUT moves forward, backward, left and right according to the command of the associate transmitter. FCCID: W89-RC-TOYS-49R Models Product description 606, 607, 608, 608B, 609, 610, 611, 612, 613, 614, 615, 616, 617, 618, 619, 0188, 0189, 8030, 8031, 8032, 8033, 8034, 8035, 8036, 8037, 8038, 8039, 8040, 8300, 8301, 8302, 8303, 8304, 8305, 8306, 8307, 8308, 8309, 8310, 8311, 8312, 8313, 8314, 8315, 8316, 8317, 8318, 8319, 8320, 8321, 8322, 8323, 8324, 8325, 8326, 8327, 8328, 9008, 9015, 9016, 9023, 9024, 9025, 9026, 9027, 9027N, 9028, 9038, 9048, 9069, 9069T, 9078, 9079, 9080, 9081, 9082, 9083, 9084, 9085, 9119, 9218, 9219, 9220, 9221, 9222, 9222N, 9223, 9224, 9225, 9226, 9227, 9228, 9238, 9338, 9481, 9491, 9501, 2201, 2211, 648G, 3392, 3393, 3881, 604, 621, 622, 623, 624, 625, 626, 627, 628, 629, 630, 635, 636, 637, 638, 639, 640, 649, 652, 661, 662, 663, 664, 692, 6425, 6410, 6411, 6412, 6413, 6414, 6415, 6416, 6417, 6418, 6419, 6420, 6421, 6422, 6423, 6424, 4000 ,4003, 4010, 4016, 4018, 4020, A3043, A3044, A3045, A3046, A3047, A3048, A3049, A3050, A3051, A3052, A3053, A3054, A3055, A3056, A3057, A3058, A3059, A3060 Radio Control Toy Car Ratings and System Details Receiver Frequency range : 49.86MHz Number of channels : 1 Type of antenna : Fixed External Antenna Power supply : 7.5VDC, 5 x AA size batteries Ports : none Protection Class : III www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 6 of 9 Independent Operation Modes The basic operation modes are: - Power: On and Off - Motor movement: left and right, forward and backward. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork Related Submittal(s) Grants This is a single application for certification of the Receiver. www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 7 of 9 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14022823 002 Date: 22.03.2010 Page 9 of 9 Test Results Spurious Radiated Emissions Section 15.109 RESULT: Pass Test Specification : FCC Part 15 Section 15.109 Test Method : ANSI 63.4-2003 Measurement Location : Semi Anechoic Chamber Measurement Distance : 3m Detector Function : Quasi Peak Measurement BW : 120 kHz Supply Voltage : 7.5VDC from batteries Measuring Frequency Range : 30-1000MHz Mode of operation : Standby Polarization: Vertical Polarization: Horizontal Remark: There is no spurious emission found between lowest oscillating frequency to 30 MHz. Limit Section 15.109 The field strength of radiated emissions from unintentional radiators at a distance of 3 meters: Frequency (MHz) Field strength (
V/m) Field strength (dB
V/m) Measurement distance (m) 30-88 100 20*log(100) = 40.0 3 88-216 150 20*log(150) = 43.5 3 216-960 200 20*log(200) = 46.0 3 Above 960 500 20*log(500) = 54.0 3 Frequency (MHz) Field strength at 3m (dB
V/m) Limit at 3m (dB
V/m) Delta to Limit (dB) 51.500 29.3 40.0 -10.7 55.100 23.8 40.0 -16.2 108.700 14.0 43.5 -29.5 147.900 16.4 43.5 -27.1 384.000 17.8 46.0 -28.2 781.800 23.4 46.0 -22.6 Frequency (MHz) Field strength at 3m (dB
V/m) Limit at 3m (dB
V/m) Delta to Limit (dB) 40.900 12.7 40.0 -27.3 51.400 15.2 40.0 -24.8 150.200 16.4 43.5 -27.1 296.400 20.3 46.0 -25.7 344.500 20.6 46.0 -25.4 759.600 22.7 46.0 -23.3

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14022823 002 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Receiver)
