W89-SMARTKID-49RR/C City Racer

BATTERY WARNING • Do not mix battery types. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel cadmium) batteries. • Do not mix old & new batteries. • The supply terminals are not to be short-circuited. • Batteries are to be inserted with the correct polarity. • Non-rechargeable batteries are not to be recharged. • Remove batteries when not in use. • Recycle or dispose of exhausted batteries according to federal, state or local Iaws. SAFETY PRECAUTIONS • Adult supervision is recommended at all times. • Do not operate during thunderstorms or rain. • Avoid water, sand and snow when operating your vehicle. • Do not submerge vehicle or transmitter in water. • Never operate your vehicle on the street or highway. • Do not use your vehicle near transmitter with the same frequency. • Avoid high-impact collisions with people and objects. • Keep this Instruction Manual for future reference as it contains important information. Operation 1. Extend the transmitter's antenna for better signal reception. Move the ON/OFF switch on the Racer to ON, and place it on the ground. ON/OFF SWITCH 2. The transmitter is full- function: (1) The signal indicator lights up when any button on the transmitter is pressed. (2) The Racer runs forward and lights up its headlights when the transmitter's forward button is pressed. The Racer reverses when the transmitter's reverse button is pressed. (3) Pressing the left/right button on the transmitter while the Racer is running forward or in reverse, the Racer will make a left/right turn. Signal Indicator Forward Left turn Reverse Right turn Directional Control 3. If the Racer veers too much to the left (L) or right (R), adjust the Directional Control toward the opposite direction. This will help the wheels align and your Racer to run more straight. Preparation Insert and tighten the antenna on the transmitter as illustrated. Slide the transmitter's battery compartment cover towards the direction shown to open it. Insert 2 x "AA" batteries with the correct polarity, then replace the battery compartment cover. Controls Overview Charging IndicatorSignal Indicator Forward Left turn Reverse Right turn Transmitter Directional guide ON/OFF Antenna Item No.8801 Radio Control Full Function Battery Operated Scale 1:64 Before operating your toy, please read this manual carefully, and keep this instruction manual for future reference as it contains important information. FEATURES: Have fun racing your City Racer for up to 6 minutes on just a 2 minute charge. Reaches speeds of 200 feet a minute with a transmitter control range of 20 feet. MADE IN CHINA Charger The City Racer Open the charger cove as illustrated and take out the charging plug. Insert the charging plug to the charging jack on the bottom of the Racer. Make sure the car's ON/OFF switch is set to OFF, otherwise the car will not charge ! The charging indicator lights up to indicate charging is in progress. Signal Indicator Charging Plug Charge for about 2 minutes. The Racer is fully charged when the charging indicator goes out. Play time is about 6 minutes. Charging Indicator y the party responsible for compliance its for a Class B digital device, pursuant se harmful interferenceto radio communications. ticular installation. If this equipment does lp. FCC INFORMATION Warning: Changes or modifications to this unit not expressly approved b could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the lim to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cau However, there is no guarantee that interference will not occur in a par cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for he

A B C D D C B A Title NumberRevisionSize B Date:17-Apr-2013Sheet of File:F:\xiaomai\伟力\2015系列\JB-WL2015-2A(最新).DDBDrawn By: Project name; 8801RX Date: Mar -28-13 Version:1 ANT Receive frequency:49.86Mhz 1.2V Battery Volt Techical description: -Modulating signal will be picked up and decoded by IC1 ,then the control signal will drive the motor M1&M2 49.86MHz Q6 2712 ReceiverDecoder & Motor control unit IC1 SCDRX2DS Motor driver M1 Motor driver M2 Q2 Q4 C8050 Q1 Q10 C8550 8801-49Mhz (RX) block diagram Q3 Q5 C8050 Q7 Q9 C8550 Item No. 8801 49Mhz Receiver block diagram APPLE TOYS DEVELOPMENT CO., LTD. Rm818, 8/F., Tower A, Peninsula Centre, 67 Mody Road, TsimShaTsui East, Kowloon, Hong Kong E-mail: [email protected] Website: http://www.appletoys.com.hk TEL: (852)23676128 FAX: (852)27604861

Jan 2013 Letter of Agency I, an officer of APPLE TOYS DEV authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 ofthe FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 27 day 6 of 2013 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. APPLE TOYS DEVELOPMENT CO LTD RM515-516, TOWER A, 5/F, PENINSULA CENTRE, 67 MODY RD, TST EAST, KOWLOON, HONG KONG TEL: (852)23676128 FAX: (852)27604861 Email: [email protected] Website: http://www.appletoys.com.hk ELOPMENT CO LTD do hereby Manager Elli Hung

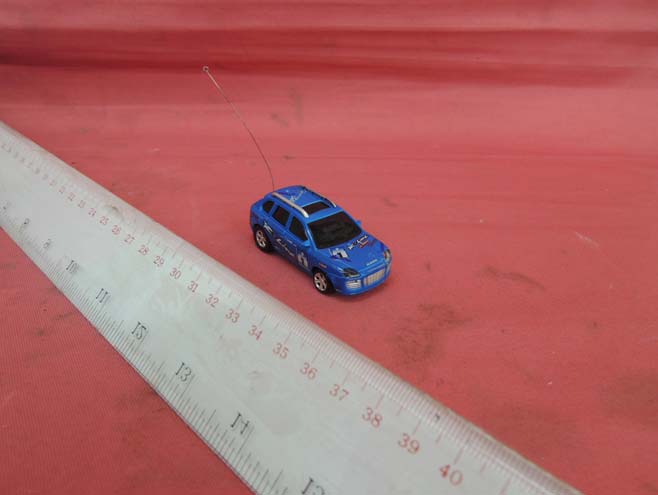

INTERTEK TESTING SERVICE Report No.: 13061009HKG-002 FCC ID: W89-SMARTKID-49R Equipment Photographs Model: 8801-1 (External)

Item No.8801 CITY RACER FCC label size: 3.5cm x 1.4cm FCC ID W89-SMARTKID-27This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 27 MHZ FCC ID : W89-SMARTKID-49T This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 49 MHZ FCC ID : W89-SMARTKID-49R 49 MHZ receiver FCC Label size :1.5 cm x 0.25cm FCC ID W89-SMARTKID-49R FCC ID W89-SMARTKID-27 27 MHZ receiver FCC Label size :1.5 cm x 0.25cm FCC ID W89-SMARTKID-27

INTERTEK TESTING SERVICE Report No.: 13061009HKG-002 FCC ID: W89-SMARTKID-49R Equipment Photographs Model: 8801-1 (Internal) INTERTEK TESTING SERVICE Report No.: 13061009HKG-002 FCC ID: W89-SMARTKID-49R Equipment Photographs Model: 8801-1 (Internal) INTERTEK TESTING SERVICE Report No.: 13061009HKG-002 FCC ID: W89-SMARTKID-49R Equipment Photographs Model: 8801-1 (Internal)

FCC ID: W89-SMARTKID-49R Model: 8801-1 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: L2, C2, C1, L1 ,Q6 2. Decoder Consisting: IC1 (SCDRX2DS) 3. Drive Motor Circuit Consisting: Q1, Q2, Q3, Q4, Q5, Q7, Q9, Q10 4. A Power Supply Consisting: 1 x 1.2V rechargeable batteries The receiver uses an internal and integral antenna.

Item No. 8801 -49Mhz Receiver Circuit Diagram APPLE TOYS DEVELOPMENT CO., LTD. Rm818, 8/F., Tower A, Peninsula Centre, 67 Mody Road, TsimShaTsui East, Kowloon, Hong Kong E-mail: [email protected] Website: http://www.appletoys.com.hk TEL: (852)23676128 FAX: (852)27604861 A B C D D C B A Title Numbe rR evi sionSize B Date:25- Jan-2013Sheet of File :F:\ 原理图\四通发射带充电SCH.DDB Drawn By: R1 560R R12 270K R14 3.9K R10 2.2M R2 2.2K R19 2.2M R9 2.2K R11 2.2K R5 2.2K R16 2.2K R3 270K R21 1K R7 220R R8 220R R17 100R R22 100R R6 2.2K C1 10P C4 222 C2 C11 500P C8 104 C5 C6 104 C3 4.7U F C15 220U F/10V LED1 LED2 Q 4 C8050 Q2 C8050 Q1 KEY Q 6 2712 Q10 C8550 A -+ L1 3.3U H L3 100U H L2 9.5T 1.2V VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LEF T 7 LX 8 MOD 9 BACK 10 FOR 11 TURBO 12 VDD 13 VI1 14 VO1 15 VI2 16 IC 1 SCDRX2DS C7 222 C9 393 C13 104 C10 104 D1 1N 5819 LX LX Q5 C8050 Q3 C8050 Q9 C8550 Q7 C8550 A -+ Q 1 C8550 BF R15 2.2K R25 100R R23 100R C12 104 LR D1 1N 4148 R8 220R LED3 8801 - 49Mhz RX Circuit Diagram 12P 39P

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061009HKG-002R1 i FCC ID: W89-SMARTKID-49R Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Apple Toys Development Co., Ltd. BRAND NAME: SMART KID, MODEL: 8801-1 8801-2, 8801-3, 8801-4 FCC ID: W89-SMARTKID-49R Grantee: Apple Toys Development Co., Ltd. Grantee Address: Room 515-516, Tower A, 5/F., Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Elli Hung Tel: (852) 2367 6128 Fax: (852) 2760 4861 e-mail: N/A Manufacturer: Apple Toys Development Co., Ltd. Manufacturer Address: Room 818, Tower A, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Buyer: RadioShack Brand Name: SMART KID Model: 8801-1 Additional Model: 8801-2, 8801-3, 8801-4 Asst. No.: 6000976 Type of EUT: Superregenerative Receiver Description of EUT: 1:64 Mini RC Racing Car Serial Number: N/A FCC ID : W89-SMARTKID-49R Date of Sample Submitted: June 20, 2013 Date of Test: July 02, 2013 Report No.: 13061009HKG-002R1 Report Date: September 2, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061009HKG-002R1 ii FCC ID: W89-SMARTKID-49R Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Apple Toys Development Co., Ltd. BRAND NAME: SMART KID, MODEL: 8801-1 8801-2, 8801-3, 8801-4 FCC ID: W89-SMARTKID-49R TEST SPECIFICATION REFERENCE RESULTS Receiver Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061009HKG-002R1 iii FCC ID: W89-SMARTKID-49R Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling ................................................................................................ 6 6.0 Technical Specifications.......................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13061009HKG-002 FCC ID: W89-SMARTKID-49R Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 8801-1 Radiated Emission 8801-1 13061009HKG-002 A  B  INTERTEK TESTING SERVICE Report No: 13061009HKG-002 FCC ID: W89-SMARTKID-49R Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 8801-1 Radiated Emission 8801-1 13061009HKG-002 A  B 
