W89-SMARTKID-27R/C City Racer

BATTERY WARNING • Do not mix battery types. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel cadmium) batteries. • Do not mix old & new batteries. • The supply terminals are not to be short-circuited. • Batteries are to be inserted with the correct polarity. • Non-rechargeable batteries are not to be recharged. • Remove batteries when not in use. • Recycle or dispose of exhausted batteries according to federal, state or local Iaws. SAFETY PRECAUTIONS • Adult supervision is recommended at all times. • Do not operate during thunderstorms or rain. • Avoid water, sand and snow when operating your vehicle. • Do not submerge vehicle or transmitter in water. • Never operate your vehicle on the street or highway. • Do not use your vehicle near transmitter with the same frequency. • Avoid high-impact collisions with people and objects. • Keep this Instruction Manual for future reference as it contains important information. Operation 1. Extend the transmitter's antenna for better signal reception. Move the ON/OFF switch on the Racer to ON, and place it on the ground. ON/OFF SWITCH 2. The transmitter is full- function: (1) The signal indicator lights up when any button on the transmitter is pressed. (2) The Racer runs forward and lights up its headlights when the transmitter's forward button is pressed. The Racer reverses when the transmitter's reverse button is pressed. (3) Pressing the left/right button on the transmitter while the Racer is running forward or in reverse, the Racer will make a left/right turn. Signal Indicator Forward Left turn Reverse Right turn Directional Control 3. If the Racer veers too much to the left (L) or right (R), adjust the Directional Control toward the opposite direction. This will help the wheels align and your Racer to run more straight. FCC INFORMATION Pr eparation Insert and tighten the antenna on the transmitter as illustrated. Slide the transmitter's battery compartment cover towards the direction shown to open it. Insert 2 x "AA" batteries with the correct polarity, then replace the battery compartment cover. Controls Over view Charging IndicatorSignal Indicator Forward Left turn Reverse Right turn Transmitter Directional guide ON/OFF Antenna Item No.8801 Radio Control Full Function Battery Operated Scale 1:64 Before operating your toy, please read this manual carefully, and keep this instruction manual for future reference as it contains important information. FEATURES: Have fun racing your City Racer for up to 6 minutes on just a 2 minute charge. Reaches speeds of 200 feet a minute with a transmitter control range of 20 feet. MADE IN CHINA Charger The City Racer Open the charger cove as illustrated and take out the charging plug. Insert the charging plug to the charging jack on the bottom of the Racer. Make sure the car's ON/OFF switch is set to OFF, otherwise the car will not charge ! The charging indicator lights up to indicate charging is in progress. Signal Indicator Charging Plug Charge for about 2 minutes. The Racer is fully charged when the charging indicator goes out. Play time is about 6 minutes. Charging Indicator War ning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help.

Jan 2013 Letter of Agency I, an officer of APPLE TOYS DEV authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 ofthe FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 27 day 6 of 2013 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. APPLE TOYS DEVELOPMENT CO LTD RM515-516, TOWER A, 5/F, PENINSULA CENTRE, 67 MODY RD, TST EAST, KOWLOON, HONG KONG TEL: (852)23676128 FAX: (852)27604861 Email: [email protected] Website: http://www.appletoys.com.hk ELOPMENT CO LTD do hereby Manager Elli Hung

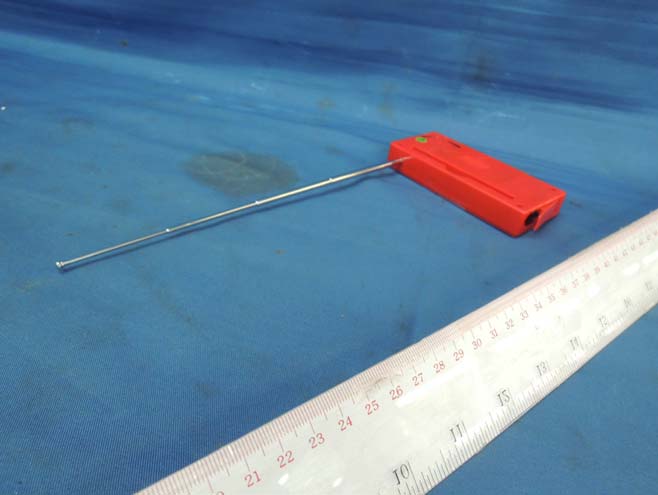

INTERTEK TESTING SERVICE Report No.: 13061008HKG-001 FCC ID: W89-SMARTKID-27 Equipment Photographs Model : 8801-1 (External)

Item No.8801 CITY RACER FCC label size: 3.5cm x 1.4cm FCC ID : W89-SMARTKID-27 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 27 MHZ FCC ID W89-SMARTKID-49TThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 49 MHZ

INTERTEK TESTING SERVICE Report No.: 13061008HKG-001 FCC ID: W89-SMARTKID-27 Equipment Photographs Model: 8801-1 (Internal) INTERTEK TESTING SERVICE Report No.: 13061008HKG-001 FCC ID: W89-SMARTKID-27 Equipment Photographs Model: 8801-1 (Internal) INTERTEK TESTING SERVICE Report No.: 13061008HKG-001 FCC ID: W89-SMARTKID-27 Equipment Photographs Model: 8801-1 (Internal)

FCC ID: W89-SMARTKID-27 Model: 8801-1 Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left turn and right turn. The circuit of the transmitter comprises of, 1. An RF Oscillator Consisting: Y1 (27.145MHz) 2. RF Amplifier and Modulator Consisting: Q1, Q2 3. Encoder Consisting: IC1 (SCTX2BS) 4. Filter Consisting: L1, C1 5. Power Supply Consisting: Two 1.5V “AA” batteries 6. Charging part Consisting: Q3, Q4, Q5 The transmitter uses an external, dedicated. The nominal rated field strength is 67.1dBuV/m @ 3m Production tolerance of field strength is +/- 3dB Antenna gain is 0dBi

Analysis Report Report No.: 13061008HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V “AA” batteries). The EUT has 4 control buttons to control the RC car left, right, forward and backward. And it has a charging port to charge the rechargeable battery for the RC car. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External, dedicated Antenna Gain: 0dBi Nominal rated field strength: 67.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 70.1dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0031mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0031mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

123456 A B C D 654321 D C B A Title NumberRevisionSize C Date:24-Jul-2012Sheet of File:F:\原理图\JB2019T SCH.DDBDrawn By: ANT 3V C1 100P C10 224P C2 220P C9 104P C6 103P C4 47P D1 1N4148 Q4 D882 Q1 . Q2 . Q3 LL6 Q5 KIY L2 3.3UH L3 2.2UH LED1 LED2 RFLB RIGHT 1 NC 2 GND 3 BACK 4 FORW 5 TURBO 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFT 14 TX-2 IC1 R4 68K R6 270K R5 100R R13 10K R11 4.7K R8 68K R2 10K R9 560R R15 560K R14 10K R12 100R R10 3.3K R3 10R L1 8.2UH Y1 27.145MHz C11 100U/16V CH+ CH- C8 104P C12 104P Port Port APPLE TOYS DEVELOPMENT CO., LTD. Rm818, 8/F., Tower A, Peninsula Centre, 67 Mody Road, TsimShaTsui East, Kowloon, Hong Kong E-mail: [email protected] Website: http://www.appletoys.com.hk TEL: (852)23676128 FAX: (852)27604861 Item No. 8801 - 27MHz Transmitter Circuit Diagram 8801 - 27M Hz TX Circuit Diagram

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061008HKG-001R1 i FCC ID: W89-SMARTKID-27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Apple Toys Development Co., Ltd. BRAND NAME: SMART KID, MODEL: 8801-5 8801-6, 8801-7, 8801-8 FCC ID: W89-SMARTKID-27 Grantee: Apple Toys Development Co., Ltd. Grantee Address: Room 515-516, Tower A, 5/F., Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Elli Hung Tel: (852) 2367 6128 Fax: (852) 2760 4861 e-mail: N/A Manufacturer: Apple toys development co., ltd. Manufacturer Address: Room 818, Tower A, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Buyer: RadioShack Brand Name: SMART KID Model: 8801-5 Additional Model: 8801-6, 8801-7, 8801-8 Asst. No.: 6000976 Type of EUT: Transmitter Description of EUT: 1:64 Mini RC Racing Car Serial Number: N/A FCC ID: W89-SMARTKID-27 Date of Sample Submitted: June 20, 2013 Date of Test: July 02, 2013 Report No.: 13061008HKG-001R1 Report Date: September 2, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061008HKG-001R1 ii FCC ID: W89-SMARTKID-27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Apple Toys Development Co., Ltd. BRAND NAME: SMART KID, MODEL: 8801-5 8801-6, 8801-7, 8801-8 FCC ID: W89-SMARTKID-27 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061008HKG-001R1 iii FCC ID: W89-SMARTKID-27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling ................................................................................................ 6 6.0 Technical Specifications..................................................................................... 6 7.0 In…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13061008HKG-001 FCC ID: W89-SMARTKID-27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 8801-1 Radiated Emission 8801-1 13061008HKG-001 A  B  INTERTEK TESTING SERVICE Report No: 13061008HKG-001 FCC ID: W89-SMARTKID-27 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 8801-1 Radiated Emission 8801-1 13061008HKG-001 A  B 
