W93-BSMAX250CBS 2.5GHz

Declaration of Authorization We Name: FRC INTERNET PRODUCTS, LLC Address: 4421 SW 85th Way City: Gainesville State: Florida Zip Code: 32608 Country: USA Declare that: Name Representative of agent: Neil Yeh Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: CBS 2.5GHz Type designation: BSMax-250 Trademark: FRC FCC ID: W93-BSMAX250 on our behalf. Date: 2012/ 02/ 09 City: Hsinchu Signature: Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W93-BSMAX250 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description Tune-Up Procedure Parts List (BOM) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

Attestation for FCC Declaration of Conformity FCC ID: W93-BSMAX250 Data: FEB. 09, 2012 Please be notified that we, the undersigned, FRC INTERNET PRODUCTS, LLC declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 11C277R- RFUSP24V02-A. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

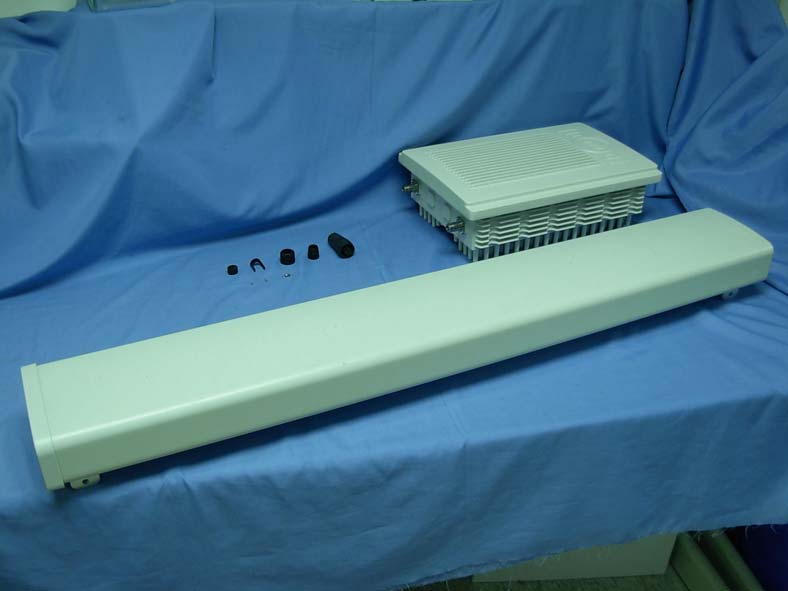

Report No：11C277R-RFUSP35V01 Page: 165 of 177 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FRC 4421 SW 85th Way, Gainesville, Florida 32608, USA FCC ID.: W93-BSMAX250 FCC ID AND DoC Label The FCC Label will be placed on the equipment as shown in the photograph below. CBS 2.5GHz Model No.: BSMax-250 FCC ID : W93-BSMAX250 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: FRC Model number.: BSMax-250

FRC 4421 SW 85th Way, Gainesville, Florida 32608, USA FCC ID.: W93-BSMAX250 FCC ID AND DoC Label The FCC Label will be placed on the equipment as shown in the photograph below. CBS 2.5GHz Model No.: BSMax-250 FCC ID : W93-BSMAX250 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: FRC Model number.: BSMax-250

Report No：11C277R-RFUSP35V01 Page: 166 of 177 (3) EUT Photo (4) EUT Photo Report No：11C277R-RFUSP35V01 Page: 167 of 177 (5) EUT Photo (6) EUT Photo Report No：11C277R-RFUSP35V01 Page: 168 of 177 (7) EUT Photo (8) EUT Photo Report No：11C277R-RFUSP35V01 Page: 169 of 177 (9) EUT Photo Report No：11C277R-RFUSP35V01 Page: 170 of 177 (10) EUT Photo (MB) Report No：11C277R-RFUSP35V01 Page: 171 of 177 (11) EUT Photo (12) EUT Photo Report No：11C277R-RFUSP35V01 Page: 172 of 177 (13) EUT Photo (14) EUT Photo Report No：11C277R-RFUSP35V01 Page: 173 of 177 (15) EUT Photo (16) EUT Photo Report No：11C277R-RFUSP35V01 Page: 174 of 177 (17) EUT Photo (18) EUT Photo Report No：11C277R-RFUSP35V01 Page: 175 of 177 (19) EUT Photo (20) EUT Photo Report No：11C277R-RFUSP35V01 Page: 176 of 177 (21) EUT Photo (22) EUT Photo-ANT Report No：11C277R-RFUSP35V01 Page: 177 of 177 (23) EUT Photo-ANT

Report No. 11C277R-RF-US-Exp Page: 1 of 8 RF Exposure Evaluation declaration Product Name ：CBS 2.5GHz Model No. ：BSMax-250 FCC ID. ：W93-BSMAX250 Applicant : FRC INTERNET PRODUCTS, LLC Address : 4421 SW 85th Way, Gainesville, Florida 32608, USA Date of Receipt : 2011/12/14 Date of Declaration : 2013/02/05 Report No. : 11C277R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 11C277R-RF-US-Exp Page: 2 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 11C277R-RF-US-Exp Page: 3 of 8 1.3. Test Result of RF Exposure Evaluation Product CBS 2.5GHz Test Mode Mode 1: Transmit_ANT0 Test Condition RF Exposure Evaluation Antenna Gain(ANT0) The maximum Gain measured in fully anechoic chamber is 16.5dB or 44.67 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: 3.5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2497.75 27.93 620.87 0.22 Middle 2593 28.12 648.63 0.23 High 2688.25 28.89 774.46 0.28 5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2498.5 28.33 680.77 0.24 Middle 2593 28.38 688.65 0.24 High 2687.5 28.93 781.63 0.28 7MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2499.5 26.67 464.52 0.17 Middle 2593 27.27 533.33 0.19 High 2686.5 28.44 698.23 0.25 Report No. 11C277R-RF-US-Exp Page: 4 of 8 10MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2499.5 28.03 635.33 0.23 Middle 2593 28.18 657.66 0.23 High 2686.5 29.25 841.40 0.30 The power density Pd (4th column) at a distance of 100 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 11C277R-RF-US-Exp Page: 5 of 8 Product CBS 2.5GHz Test Mode Mode 2: Transmit_ANT1 Test Condition RF Exposure Evaluation Antenna Gain(ANT1) The maximum Gain measured in fully anechoic chamber is 16.5dB or 44.67 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: 3.5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2497.75 28.05 638.26 0.23 Middle 2593 28.12 648.63 0.23 High 2688.25 28.91 778.04 0.28 5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm (mW/cm 2 ) Low 2498.5 27.99 629.51 0.22 Middle 2593 28.47 703.07 0.25 High 2687.5 29.27 845.28 0.30 7MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2499.5 28.61 726.11 0.26 Middle 2593 28.07 641.21 0.23 High 2686.5 28.04 636.80 0.23 Report No. 11C277R-RF-US-Exp Page: 6 of 8 10MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density at R = 100 cm(mW/cm 2 ) Low 2499.5 28.42 695.02 0.25 Middle 2593 27.88 613.76 0.22 High 2686.5 28.51 709.58 0.25 The power density Pd (4th column) at a distance of 100 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 11C277R-RF-US-Exp Page: 7 of 8 Product CBS 2.5GHz Test Mode Mode 3: Transmit_ANT0+ANT1 Test Condition RF Exposure Evaluation The total power density at 100cm distance: 3.5MHz Bandwidth Channel Channel Frequency (MHz) ANT0_ Power Density at R = 100 cm(mW/cm 2 ) ANT1_ Power Density at R = 100 cm(mW/cm 2 ) ANT0+ANT1_Power Density at R = 100 cm(mW/cm 2 ) Low 2497.75 0.22 0.23 0.45 Middle 2593 0.23 0.23 0.46 High 2688.25 0.28 0.28 0.56 5MHz Bandwidth Channel Channel Frequency (MHz) ANT0_ Power Density at R = 100 cm(mW/cm 2 ) ANT1_ Power Density at R = 100 cm(mW/cm 2 ) ANT0+ANT1_Power Density at R = 100 cm(mW/cm 2 ) Low 2498.5 0.24 0.22 0.46 Middle 2593 0.24 0.25 0.49 High 2687.5 0.28 0.30 0.58 7MHz Bandwidth Channel Channel Frequency (MHz) ANT0_ Power Density at R = 100 cm(mW/cm 2 ) ANT1_ Power Density at R = 100 cm(mW/cm 2 ) ANT0+ANT1_Power Density at R = 100 cm(mW/cm 2 ) Low 2499.5 0.17 0.26 0.43 Middle 2593 0.19 0.23 0.42 High 2686.5 0.25 0.23 0.48 Report No. 11C277R-RF-US-Exp Page: 8 of 8 10MHz Bandwidth Channel Channel Frequency (MHz) ANT0_ Power Density at R = 100 cm(mW/cm 2 ) ANT1_ Power Density at R = 100 cm(mW/cm 2 ) ANT0+ANT1_Power Density at R = 100 cm(mW/cm 2 ) Low 2499.5 0.23 0.25 0.48 Middle 2593 0.23 0.22 0.…

Text truncated - open the document above for the full version.

Report No：11C277R-RFUSP35V01 Page: 1 of 177 Test Report Product Name：CBS 2.5GHz Model No. ：BSMax-250 FCC ID. ：W93-BSMAX250 Applicant ： FRC INTERNET PRODUCTS, LLC Address ： 4421 SW 85th Way, Gainesville, Florida 32608, USA Date of Receipt：2011/12/14 Issued Date ：2013/02/05 Report No. ：11C277R-RFUSP35V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：11C277R-RFUSP35V01 Page: 2 of 177 Test Report Certification Issued Date : 2013/02/05 Report No. : 11C277R-RFUSP35V01 Product Name ： CBS 2.5GHz Applicant ： FRC INTERNET PRODUCTS, LLC Address ： 4421 SW 85th Way, Gainesville, Florida 32608, USA Model No. ： BSMax-250 FCC ID. ： W93-BSMAX250 EUT Voltage : AC 120V / 60Hz Trade Name ： FRC Applicable Standard ： FCC CFR Title 47 Part 2 and Part 27: 2010; ANSI/ TIA-603-C Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( JuBo Shen / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：11C277R-RFUSP35V01 Page: 3 of 177 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：11C277R-RFUSP35V01 Page: 4 of 177 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................6 1.1. EUT Description..........................................................................................................................6 1.2. Operational Description.............................................................................................................7 1.3. Test Mode....................................................................................................................................8 1.4. Tested System Details..............................................................................................................10 1.5. Configuration of tested System..............................................................................................10 1.6. EUT Exercise Software............................................................................................................10 1.7. Summary of Test Result...........................................................................................................11 2. Maximum EIRP........................................................................................................................12 2.1. Test Equipment.........................................................................................................................12 2.2. Test Setup..................................................................................................................................12 2.3. Limits...........................................................................................................................................12 2.4. Test Procedure..........................................................................................................................13 2.5. Uncertainty.................................................................................................................................13 2.6. Test Result.................................................................................................................................14 3. Occupied Bandwidth.............................................................................................................20 3.1. Test Equipment.........................................................................................................................20 3.2. Test Setup..................................................................................................................................20 3.3. Limits...........................................................................................................................................20 3.4. Test Procedure..........................................................................................................................20 3.5. Uncertainty.................................................................................................................................20 3.6. Test Result.................................................................................................................................21 4. Channel Edge..........................................................................................................................33 4.1. Test Equipment.............................................................................................…

Text truncated - open the document above for the full version.

Report No：11C277R-RFUSP35V01 Page: 33 of 177 4. Channel Edge 4.1. Test Equipment The following test equipments are used during the test: Channel Edge/ SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A US47140172 2013/07/31 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 4.2. Test Setup 4.3. Limits (1) For digital base stations, the attenuation shall be not less than 43 + 10log (P) dB. (2) For all fixed digital user stations, the attenuation factor shall be not less than 43 + 10 log(P) dB at the channel edge. (3) Mobile Digital Stations: not less than 43 + log (P) dB at the channel edge and 55 + log (P) dB at 5.5 MHz from the channel edges Example for Calculation: Assume the EUT Output Power is 2 Watt = 33 dBm 43 + 10log (P) dB; 43 + 10log (2) = 46 dB 33 dBm (2 Watt) – 46 dB = -13 dBm Report No：11C277R-RFUSP35V01 Page: 34 of 177 4.4. Test Procedure The EUT was tested according to KDB Publications 662911 D01 and 662911 D02 about MIMO test rules for compliance to FCC CFR Title 47 Part 27 requirements. The transmitter output was connected to spectrum analyzer through an attenuator and the test result was measured and recorded. Compliance with these rules is based on the use of measurement instrumentation employing a resolution bandwidth of 1 MHz or greater. However, in the 1 MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed All measurements were done at 3 channels: low, middle and high operational frequency. Record the max trace plot into the test report, and spectrum setting for different channel bandwidth as follows: a. For 3.5 MHz Channel bandwidth: The frequency span is 10MHz, RBW setting is 36kHz and VBW setting is 180kHz. b. For 5 MHz Channel bandwidth: The frequency span is 20MHz, RBW setting is 56kHz and VBW setting is 180kHz. c. For 7 MHz Channel bandwidth: The frequency span is 30MHz, RBW setting is 100kHz and VBW setting is 300kHz. d. For 10 MHz Channel bandwidth: The frequency span is 30MHz, RBW setting is 100kHz and VBW setting is 300kHz. According to KDB Publications 662911, the testing for compliance with absolute emission limits, emissions measured on individual channels must either be summed across the outputs or adjusted by 10log(N_ ANT) before comparison to the emission limit. N_ANT: Number of transmit antennas. The test results will be measured level by reading level add 10log(N_ ANT) as follow: Test Results= Measured Level= Reading Level + 10log(2)= Reading Level +3dB 4.5. Uncertainty The measurement uncertainty is defined as ±1.27dB. Report No：11C277R-RFUSP35V01 Page: 35 of 177 4.6. Test Result Product CBS 2.5GHz Test Item Channel Edge Test Mode Mode 1: Transmit (3.5MHz BW_64QAM-2/3) Date of Test 2013/01/16 Test Site SR7 3.5MHz 64QAM2/3- ANT0 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2497.75 -20.65 -17.65 -13 2593.00 -22.09 -19.09 -13 2688.25 -18.92 -15.92 -13 3.5MHz 64QAM2/3- ANT1 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2497.75 -21.80 -18.80 -13 2593.00 -24.87 -21.87 -13 2688.25 --22.94 25.94 -13 Report No：11C277R-RFUSP35V01 Page: 36 of 177 3.5MHz_2497.75 MHz_64QAM2/3-(ANT 0) 3.5MHz_2593.0MHz_64QAM2/3-(ANT 0) 3.5MHz_2688.25MHz_64QAM2/3-(ANT 0) Report No：11C277R-RFUSP35V01 Page: 37 of 177 3.5MHz_2497.75 MHz_64QAM2/3-(ANT 1) 3.5MHz_2593.00 MHz_64QAM2/3-(ANT 1) 3.5MHz_2688.25MHz_64QAM2/3-(ANT 1) Report No：11C277R-RFUSP35V01 Page: 38 of 177 Product CBS 2.5GHz Test Item Channel Edge Test Mode Mode 2: Transmit (5MHz BW_ QPSK-1/2) Date of Test 2013/01/16 Test Site SR7 5MHz QPSK1/2- ANT0 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2498.50 -24.74 -21.74 -13 2593.00 -18.19 -15.19 -13 2687.50 -18.86 -15.86 -13 5MHz QPSK1/2- ANT1 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2498.50 -22.66 -19.66 -13 2593.00 -19.94 -16.94 -13 2687.50 -20.36 -17.36 -13 Report No：11C277R-RFUSP35V01 Page: 39 of 177 5MHz_2498.5MHz_QPSK1/2-( ANT 0) 5MHz_2593.0MHz_QPSK1/2-( ANT 0) 5MHz_2686.5MHz_QPSK1/2-( ANT 0) Report No：11C277R-RFUSP35V01 Page: 40 of 177 5MHz_2498.5MHz_QPSK1/2-( ANT 1) 5MHz_2593.0MHz_QPSK1/2-( ANT 1) 5MHz_2686.5MHz_QPSK1/2-( ANT 1) Report No：11C277R-RFUSP35V01 Page: 41 of 177 Product CBS 2.5GHz Test Item Channel Edge Test Mode Mode 3: Transmit (7MHz BW_64QAM-2/3) Date of Test 2013/01/16 Test Site SR7 7MHz 64QAM2/3- ANT0 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2499.50 -20.46 -17.46 -13 2593.00 -19.37 -16.37 -13 2686.50 -19.04 -16.04 -13 7MHz 64QAM2/3- ANT1 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2499.50 -21.09 -18.09 -13 2593.00 -19.64 -16.64 -13 2686.50 -19.69 -16.69 -13 Report No：11C277R-RFUSP35V01 Page: 42 of 177 7MHz_2499.5MHz_64QAM2/3-(ANT 0) 7MHz_2953.0MHz_64QAM2/3-(ANT 0) 7MHz_2686.5MHz_64QAM2/3-(ANT 0) Report No：11C277R-RFUSP35V01 Page: 43 of 177 7MHz_2499.5MHz_64QAM2/3-(ANT 1) 7MHz_2953.0MHz_64QAM2/3-(ANT 1) 7MHz_2686.5MHz_64QAM2/3-(ANT 1) Report No：11C277R-RFUSP35V01 Page: 44 of 177 Product CBS 2.5GHz Test Item Channel Edge Test Mode Mode 4: Transmit (10MHz BW_64QAM-2/3) Date of Test 2013/01/16 Test Site SR7 10MHz 64QAM2/3- ANT0 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2501.00 -26.41 -23.41 -13 2593.00 -19.85 -16.85 -13 2685.00 -20.79 -17.79 -13 10MHz 64QAM2/3- ANT1 Frequency (MHz) Reading Level –Worst (dBm) Measured Level –Worst (dBm) Limit (dBm) 2501.00 -24.76 -21.76 -13 2593.00 -21.39 -18.39 -13 2685.00 -21.84 -17.79 -13 Report No：11C277R-RFUSP35V01 Page: 45 of 177 10MHz_2501.0MHz_64QAM2/3-(ANT 0) 10MHz_2593.0MHz_64QAM2/3-(ANT 0) 10MHz_2685.0MHz_64QAM2/3-(ANT 0) Report No：11C277R-RFUSP35V01 Page: 46 of 177 10MHz_2501.0MHz_64QAM2/3-(ANT 1) 10MHz_2593.0MHz_64QA…

Text truncated - open the document above for the full version.

Report No：11C277R-RFUSP35V01 Page: 59 of 177 Test Frequency: 2688.25MHz - ANT0 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 971.87 -33.62 -30.62 ≦-13 1000-6000 2770.00 -22.10 -19.10 ≦-13 6000-18000 17376.00 -29.58 -26.58 ≦-13 18000-26500 26270.50 -23.28 -20.28 ≦-13 Test Frequency: 2688.25MHz – ANT1 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 759.44 -33.85 -30.85 ≦-13 1000-6000 2770.00 -20.36 -17.36 ≦-13 6000-18000 17400.00 -29.94 -26.94 ≦-13 18000-26500 24723.50 -23.09 -20.09 ≦-13 Report No：11C277R-RFUSP35V01 Page: 60 of 177 30 – 1000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 61 of 177 6000 – 18000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 62 of 177 30 – 1000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 63 of 177 6000 – 18000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 64 of 177 Product CBS 2.5GHz Test Item Conducted Spurious Emission Test Mode Mode 2: Transmit (5MHz BW_ QPSK-1/2) Date of Test 2013/01/16 Test Site SR7 Test Frequency: 2498.5MHz - ANT0 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 836.07 -33.86 -30.86 ≦-13 1000-6000 2580.00 -20.27 -17.27 ≦-13 6000-18000 16872.00 -30.27 -27.27 ≦-13 18000-26500 25896.50 -22.75 -19.75 ≦-13 Test Frequency: 2498.5MHz – ANT1 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 746.83 -35.13 -32.13 ≦-13 1000-6000 2420.00 -17.93 -14.93 ≦-13 6000-18000 16656.00 -30.72 -27.72 ≦-13 18000-26500 26134.50 -23.52 -20.52 ≦-13 Report No：11C277R-RFUSP35V01 Page: 65 of 177 30 – 1000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 66 of 177 6000 – 18000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 67 of 177 30 – 1000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 68 of 177 6000 – 18000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 69 of 177 Test Frequency: 2593MHz - ANT0 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 872.93 -33.84 -30.84 ≦-13 1000-6000 2675.00 -16.78 -13.78 ≦-13 6000-18000 17568.00 -29.69 -26.69 ≦-13 18000-26500 26015.50 -22.80 -19.80 ≦-13 Test Frequency: 2593MHz – ANT1 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 888.45 -33.97 -30.97 ≦-13 1000-6000 2675.00 -23.00 -20.00 ≦-13 6000-18000 17484.00 -30.50 -27.50 ≦-13 18000-26500 25956.00 -23.83 -20.83 ≦-13 Report No：11C277R-RFUSP35V01 Page: 70 of 177 30 – 1000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 71 of 177 6000 – 18000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 72 of 177 30 – 1000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 73 of 177 6000 – 18000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 74 of 177 Test Frequency: 2687.5MHz - ANT0 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 897.18 -33.89 -30.89 ≦-13 1000-6000 2770.00 -23.12 -20.12 ≦-13 6000-18000 14748.00 -29.94 -26.94 ≦-13 18000-26500 25522.50 -23.48 -20.48 ≦-13 Test Frequency: 2687.5MHz – ANT1 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 785.63 -35.50 -32.50 ≦-13 1000-6000 2770.00 -17.85 -14.85 ≦-13 6000-18000 17400.00 -30.55 -27.55 ≦-13 18000-26500 25590.50 -23.20 -20.20 ≦-13 Report No：11C277R-RFUSP35V01…

Text truncated - open the document above for the full version.

Report No：11C277R-RFUSP35V01 Page: 89 of 177 Test Frequency: 2686.5MHz - ANT0 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 942.77 -34.56 -31.56 ≦-13 1000-6000 2765.00 -23.01 -20.01 ≦-13 6000-18000 16824.00 -30.10 -27.10 ≦-13 18000-26500 25633.00 -23.83 -20.83 ≦-13 Test Frequency: 2686.5MHz – ANT1 Frequency Band (MHz) Frequency (MHz) Reading Level (dBm) Measured Level (dBm) Limit (dBm) 30-1000 828.31 -34.56 -31.56 ≦-13 1000-6000 2765.00 -21.88 -18.88 ≦-13 6000-18000 16728.00 -30.55 -27.55 ≦-13 18000-26500 25165.50 -24.35 -21.35 ≦-13 Report No：11C277R-RFUSP35V01 Page: 90 of 177 30 – 1000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 91 of 177 6000 – 18000 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. 18000 – 26500 MHz-(ANT 0) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 92 of 177 30 – 1000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. 1000– 6000 MHz-(ANT 1) The search value is under the technical standard value, do not need to measure by measuring mode. Report No：11C277R-RFUSP35V01 Page: 93 of 177 6000 – 18000 MHz-(ANT 1) The search value is under the technical sta…
