W93-BSMAX365CBS 3.65 GHz

FRC Internet Products LLC

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: May 10, 2012
Application Purpose: Original Equipment
Date of Application: May 08, 2012
Equipment Note: CBS 3.65 GHz
Frequency Range: 3655.00000000 - 3670.00000000
Company: FRC Internet Products LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FRC BSMAX-365 WIMAX BASE STATION User Manual Rev 1.0 FRC Group Proprietary and Confidential FRC WiMAX Base Station BSMax-‐365 Operation and Configuration Manual FRC Group Proprietary and Confidential Bsmax365_manual – rev 1.0 Page 2 Legal Rights © Copyright 2011 FRC Internet Products, LLC. All rights reserved. The material contained herein is proprietary, privileged, and confidential and owned by FRC Internet Products, LLC (“FRC”), its affiliates or its third party licensors. No disclosure thereof shall be made to third parties without the express written permission of FRC. FRC reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. Trade Names FRC®, The Blue Zone®, The BlueZone™, CPEMax™, BSMax™ and/or other products and/or services referenced herein are either registered trademarks or service marks of FRC Group. All other names are or may be the trademarks of their respective owners. “WiMAX Forum” is a registered trademark of the WiMAX Forum. “WiMAX,” the WiMAX Forum logo, “WiMAX Forum Certified,” and the WiMAX Forum Certified logo are trademarks of the WiMAX Forum. Statement of Conditions The information contained in this manual is subject to change without notice. FRC shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranties and Disclaimers All FRC products purchased from FRC or through any of FRC's authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty (a) FRC warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of twelve (12) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). FRC will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with FRC' standard R&R procedure. (b) With respect to the Firmware, FRC warrants the correct functionality according to the attached documentation, for a period of twelve (12) month from invoice date (the "Warranty Period")". During the Warranty Period, FRC may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates. Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. FRC will be obligated to support solely the two (2) most recent Software major releases. FRC WiMAX Base Station BSMax-‐365 Operation and Configuration Manual FRC Group Proprietary and Confidential Bsmax365_manual – rev 1.0 Page 3 FRC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Disclaimer (a) The Software is sold on an "AS IS" basis. FRC, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION FRC SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-‐INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-‐TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-‐LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-‐SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. FRC SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. (b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT FRC'S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-‐INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED. FRC' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. FRC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) FRC SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE AND WHETHER BASED ON THIS AGREEMEN…

Text truncated - open the document above for the full version.

Attestation Statements

Attestation for FCC Declaration of Conformity FCC ID: W93-BSMAX365 Data: FEB. 09, 2012 Please be notified that we, the undersigned, FRC INTERNET PRODUCTS, LLC declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 11C274R- RFUSP24V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Attestation Statements

Date: 2012/2/10 To FCC , This is to declare that our product BSMax-365, FCC ID: W93-BSMAX365 compliances to restricted contention-based protocol. The use of a restricted contention-based protocol limits the frequency range to 3650-3675MHz per FCC part 90 subpart Z. Product information: Product name: CBS 3.65GHz Model name: BSMax-365 Grantee code: W93-BSMAX365 Thank you, Sincerely Yours, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W93-BSMAX365 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description Tune-Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Cover Letter(s)

Declaration of Authorization We Name: FRC INTERNET PRODUCTS, LLC Address: 4421 SW 85th Way City: Gainesville State: Florida Zip Code: 32608 Country: USA Declare that: Name Representative of agent: Neil Yeh Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: CBS 3.65GHz Type designation: BSMax-365 Trademark: FRC FCC ID: W93-BSMAX365 on our behalf. Date: 2012/ 02/ 09 City: Hsinchu Signature: Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

External Photos

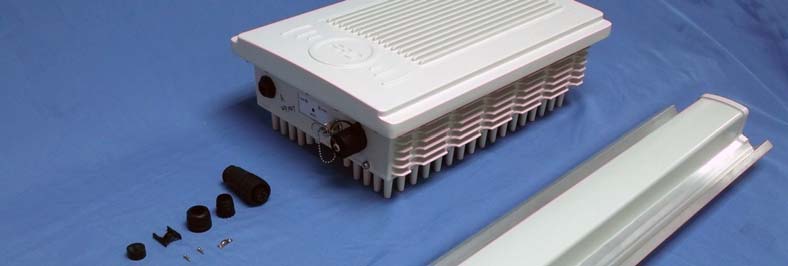

Report No：11C274R-RFUSP36V01 Page: 511 of 521 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

ID Label/Location Info

FCC ID.: W93-BSMAX365 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. CBS 3.65GHz Model No.: BSMax-365 F F C C C C I I D D : : W93-BSMAX365 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: FRC Model number.: BSMax-365

ID Label/Location Info

Internal Photos

Report No：11C274R-RFUSP36V01 Page: 512 of 521 (3) EUT Photo (4) EUT Photo Report No：11C274R-RFUSP36V01 Page: 513 of 521 (5) EUT Photo (6) EUT Photo Report No：11C274R-RFUSP36V01 Page: 514 of 521 (7) EUT Photo (8) EUT Photo Report No：11C274R-RFUSP36V01 Page: 515 of 521 (9) EUT Photo Report No：11C274R-RFUSP36V01 Page: 516 of 521 (10) EUT Photo (11) EUT Photo Report No：11C274R-RFUSP36V01 Page: 517 of 521 (12) EUT Photo (13) EUT Photo Report No：11C274R-RFUSP36V01 Page: 518 of 521 (14) EUT Photo (15) EUT Photo Report No：11C274R-RFUSP36V01 Page: 519 of 521 (16) EUT Photo (17) EUT Photo Report No：11C274R-RFUSP36V01 Page: 520 of 521 (18) EUT Photo (19) EUT Photo Report No：11C274R-RFUSP36V01 Page: 521 of 521 (20) EUT Photo (21) EUT Photo_Ant

RF Exposure Info

Report No. 11C274R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation declaration Product Name ：CBS 3.65GHz Model No. ：BSMax-365 FCC ID. ：W93-BSMAX365 Applicant : FRC INTERNET PRODUCTS, LCC Address : 4421 SW 85th Way, Gainseville, Florida 32608, USA Date of Receipt : 2011/12/14 Date of Declaration : 2012/02/21 Report No. : 11C274R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 11C274R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 11C274R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product CBS 3.65GHz Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain The maximum Gain measured in fully anechoic chamber is 16dBi or 39.81 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: 3.5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 100 cm (mW/cm 2 ) Low 3651.75 55.34 0.02 Middle 3662.50 49.77 0.02 High 3673.25 61.24 0.02 5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 100 cm (mW/cm 2 ) Low 3652.5 95.06 0.03 Middle 3662.5 90.16 0.03 High 3672.5 100.46 0.03 The power density Pd (4th column) at a distance of 100 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 11C274R-RF-US-Exp Page: 4 of 4 Product CBS 3.65GHz Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain The maximum Gain measured in fully anechoic chamber is 16dBi or 39.81 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: 7MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 100 cm (mW/cm 2 ) Low 3653.5 110.15 0.03 Middle 3662.5 98.17 0.03 High 3671.5 115.88 0.04 10MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 100 cm (mW/cm 2 ) Low 3655.0 188.36 0.06 Middle 3662.5 157.04 0.05 High 3670.0 180.30 0.06 The power density Pd (4th column) at a distance of 100 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Test Report

Report No：11C274R-RFUSP36V01 Page: 1 of 521 Test Report Product Name：CBS 3.65GHz Model No. ：BSMax-365 FCC ID. ：W93-BSMAX365 Applicant ：FRC INTERNET PRODUCTS, LCC Address ：4421 SW 85th Way, Gainesville, Florida 32608, USA Date of Receipt：2011/12/14 Issued Date ：2012/02/21 Report No. ：11C274R-RFUSP36V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：11C274R-RFUSP36V01 Page: 2 of 521 Test Report Certification Issued Date : 2012/02/21 Report No. : 11C274R-RFUSP36V01 Product Name ： CBS 3.65GHz Applicant ： FRC INTERNET PRODUCTS, LCC Address ： 4421 SW 85th Way, Gainesville, Florida 32608, USA Manufacturer ： TRANSYSTEM INC. Model No. ： BSMax-365 FCC ID. ： W93-BSMAX365 EUT Voltage : AC 120~230V/50~60Hz Trade Name ： FRC Applicable Standard ： FCC CFR Title 47 Part 2 and Part 90 Subpart Z TIA/EIA 603-C: 2004 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( JuBo Shen / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：11C274R-RFUSP36V01 Page: 3 of 521 TABLE OF CONTENTS Description Page 1. General Information ..................................................................................................... 5 1.1. EUT Description ............................................................................................................. 5 1.2. Test Mode .......................................................................................................................7 1.3. Operational Description ................................................................................................ 12 1.4. Tested System Details .................................................................................................. 14 1.5. Configuration of tested System .................................................................................... 14 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Equivalent isotropically radiated power (EIRP)....................................................... 17 2.1. Test Equipment............................................................................................................. 17 2.2. Test Setup .................................................................................................................... 17 2.3. Test Limit ......................................................................................................................17 2.4. Test Procedure ............................................................................................................. 18 2.5. Test Specification.......................................................................................................... 18 2.6. Uncertainty ................................................................................................................... 18 2.7. Test Result....................................................................................................................19 3. Peak EIRP Power density .......................................................................................... 67 3.1. Test Equipment............................................................................................................. 67 3.2. Test Setup .................................................................................................................... 67 3.3. Test Limit ......................................................................................................................67 3.4. Test Procedure ............................................................................................................. 68 3.5. Test Specification.......................................................................................................... 68 3.6. Uncertainty ................................................................................................................... 68 3.7. Test Result....................................................................................................................69 4. Occupied Bandwidth................................................................................................ 117 4.1. Test Equipment........................................................................................................... 117 4.2. Test Setup .................................................................................................................. 117 4.3. Limits ..........................................................................................................................117 4.4. Test Procedure ........................................................................................................... 117 4.5. Test Specification........................................................................................................ 117 4.6. Uncertainty ................................................................................................................. 117 4.7. Test Result.................................................................................................................. 118 5. Spectrum Emission Mask ........................................................................................ 166 5.1. Test Equipment........................................................................................................... 166 5.2. Test Setup .................................................................................................................. 166 5.3. Limits ......................................…

Text truncated - open the document above for the full version.

Test Report

Report No：11C274R-RFUSP36V01 Page: 43 of 521 Product CBS 3.65GHz Test Item Maximum EIRP Test Mode Mode 7: Transmit (7MHz BW_QPSK3/4) Date of Test 2011/12/11 Test Site SR7 7MHz Bandwidth, Antenna Gain: 16dBi Output Power (dBm/7MHz) Frequency (MHz) Modulation ANT 0 ANT1 Maximum Output Power (dBm/7MHz) EIRP (dBm/7MHz) Limit (dBm/7MHz) 3653.5 QPSK3/4 16.60 17.41 20.03 36.03 38.45 3662.5 QPSK3/4 16.10 16.50 19.31 35.31 38.45 3671.5 QPSK3/4 17.81 16.96 20.42 36.42 38.45 Maximum Output Power = Output Power (ANT 0 + ANT 1) E.I.R.P = Maximum Output Power + Antenna Gain 7MHz_3653.5MHz_ QPSK3/4 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 44 of 521 7MHz_3662.5MHz_ QPSK3/4 (ANT 0) 7MHz_3671.5MHz_QPSK3/4 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 45 of 521 7MHz_3653.5MHz_ QPSK3/4 (ANT 1) 7MHz_3662.5MHz_ QPSK3/4 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 46 of 521 7MHz_3671.5MHz_QPSK3/4 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 47 of 521 Product CBS 3.65GHz Test Item Maximum EIRP Test Mode Mode 8: Transmit (7MHz BW_16QAM1/2) Date of Test 2011/12/11 Test Site SR7 7MHz Bandwidth, Antenna Gain: 16dBi Output Power (dBm/7MHz) Frequency (MHz) Modulation ANT 0 ANT1 Maximum Output Power (dBm/7MHz) EIRP (dBm/7MHz) Limit (dBm/7MHz) 3653.5 16QAM1/2 16.77 17.59 20.21 36.21 38.45 3662.5 16QAM1/2 16.40 16.84 19.64 35.64 38.45 3671.5 16QAM1/2 17.96 17.02 20.53 36.53 38.45 Maximum Output Power = Output Power (ANT 0 + ANT 1) E.I.R.P = Maximum Output Power + Antenna Gain 7MHz_3653.5MHz_16QAM1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 48 of 521 7MHz_3662.5MHz_16QAM1/2 (ANT 0) 7MHz_3671.5MHz_16QAM1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 49 of 521 7MHz_3653.5MHz_16QAM1/2 (ANT 1) 7MHz_3662.5MHz_16QAM1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 50 of 521 7MHz_3671.5MHz_16QAM1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 51 of 521 Product CBS 3.65GHz Test Item Maximum EIRP Test Mode Mode 9: Transmit (7MHz BW_64QAM5/6) Date of Test 2011/12/11 Test Site SR7 7MHz Bandwidth, Antenna Gain: 16dBi Output Power (dBm/7MHz) Frequency (MHz) Modulation ANT 0 ANT1 Maximum Output Power (dBm/7MHz) EIRP (dBm/7MHz) Limit (dBm/7MHz) 3653.5 64QAM5/6 16.60 18.09 20.42 36.42 38.45 3662.5 64QAM5/6 16.51 17.27 19.92 35.92 38.45 3671.5 64QAM5/6 17.83 17.42 20.64 36.64 38.45 Maximum Output Power = Output Power (ANT 0 + ANT 1) E.I.R.P = Maximum Output Power + Antenna Gain 7MHz_3653.5MHz_64QAM5/6 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 52 of 521 7MHz_3662.5MHz_64QAM5/6 (ANT 0) 7MHz_3671.5MHz_64QAM5/6 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 53 of 521 7MHz_3653.5MHz_64QAM5/6 (ANT 1) 7MHz_3662.5MHz_64QAM5/6 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 54 of 521 7MHz_3671.5MHz_64QAM5/6 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 55 of 521 Product CBS 3.65GHz Test Item Maximum EIRP Test Mode Mode 10: Transmit (10MHz BW_QPSK3/4) Date of Test 2011/12/11 Test Site SR7 10MHz Bandwidth, Antenna Gain: 16dBi Output Power (dBm/10MHz) Frequency (MHz) Modulation ANT 0 ANT1 Maximum Output Power (dBm/10MHz) EIRP (dBm/10MHz) Limit (dBm/10MHz) 3655.0 QPSK3/4 19.33 20.11 22.75 38.75 40 3662.5 QPSK3/4 18.69 19.20 21.96 37.96 40 3670.0 QPSK3/4 19.91 19.16 22.56 38.56 40 Maximum Output Power = Output Power (ANT 0 + ANT 1) E.I.R.P = Maximum Output Power + Antenna Gain 10MHz_3655MHz_ QPSK3/4 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 56 of 521 10MHz_3662.5MHz_ QPSK3/4 (ANT 0) 10MHz_3670MHz_QPSK3/4 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 57 of 521 10MHz_3655MHz_ QPSK3/4 (ANT 1) 10MHz_3662.5MHz_ QPSK3/4 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 58 of 521 10MHz_3670MHz_QPSK3/4 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 59 of 521 Product CBS 3.65GHz Test Item Maximum EIRP Test Mode Mode 11: Transmit (10MHz BW_16QAM1/2) Date of Test 2011/12/11 Test Site SR7 10MHz Bandwidth, Antenna Gain: 16dBi Output Power (dBm/10MHz) Frequency (MHz) Modulation ANT 0 ANT1 Maximum Output Power (dBm/10MHz) EIRP (dBm/10MHz) Limit (dBm/10MHz) 3655.0 16QAM1/2 18.88 19.73 22.34 38.34 40 3662.5 16QAM1/2 18.32 18.83 21.59 37.59 40 3670.0 16QAM1/2 19.64 18.82 22.26 38.26 40 Maximum Output Power = Output Power (ANT 0 + ANT 1) E.I.R.P = Maximum Output Power + Antenna Gain 10MHz_3655MHz_16QAM1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 60 of 521 10MHz_3662.5MHz_16QAM1/2 (ANT 0) 10MHz_3670MHz_16QAM1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 61 of 521 10MHz_3655MHz_16QAM1/2 (ANT 1) 10MHz_3662.5MHz_16QAM1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 62 of 521 10MHz_3670MHz_16QAM1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 63 of 521 Product CBS 3.65GHz Test Item Maximum EIRP Test Mode Mode 12: Transmit (10MHz BW_64QAM5/6) Date of Test 2011/12/11 Test Site SR7 10MHz Bandwidth, Antenna Gain: 16dBi Output Power (dBm/10MHz) Frequency (MHz) Modulation ANT 0 ANT1 Maximum Output Power (dBm/10MHz) EIRP (dBm/10MHz) Limit (dBm/10MHz) 3655.0 64QAM5/6 19.02 19.76 22.42 38.42 40 3662.5 64QAM5/6 18.42 18.71 21.58 37.58 40 3670.0 64QAM5/6 19.70 18.75 22.26 38.26 40 Maximum Output Power = Output Power (ANT 0 + ANT 1) E.I.R.P = Maximum Output Power + Antenna Gain 10MHz_3655MHz_64QAM5/6 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 64 of 521 10MHz_3662.5MHz_64QAM5/6 (ANT 0) 10MHz_3670MHz_64QAM5/6 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 65 of 521 10MHz_3655MHz_64QAM5/6 (ANT 1) 10MHz_3662.5MHz_64QAM5/6 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 66 of 521 10MHz_3670MHz_64QAM5/6 (ANT 1)

Test Report

Report No：11C274R-RFUSP36V01 Page: 67 of 521 3. Peak EIRP Power density 3.1. Test Equipment The following test equipments are used during the test: Peak EIRP Power Density / SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A US47140172 2012/07/13 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 3.2. Test Setup 3.3. Test Limit Base and fixed stations are limited to 25 watts/25 MHz equivalent isotropically radiated power (EIRP). In any event, the peak EIRP power density shall not exceed 1 Watt in any onemegahertz slice of spectrum. EIRP limit EIRP power density Bandwidth (MHz) (W) (dBm) (W/MHz) (dBm/MHz) 3.5 3.5 35.44 5.0 5.0 36.99 7.0 7.0 38.45 10.0 10.0 40.00 1 30 Report No：11C274R-RFUSP36V01 Page: 68 of 521 3.4. Test Procedure 1. Connect the transmitter to the spectrum analyzer via coaxial cable. 2. Tune the analyzer to the nominal center frequency of the emission bandwidth (EBW). 3. Set the span to twice the nominal EBW (span = 2 x EBW). 4. Set the resolution bandwidth (RBW) to 1 MHz. 5. Set the video bandwidth (VBW) to ≥ 3 x RBW. 6. Select the average power (RMS) display detector. 7. Set the number of measurement points to ≥ 1001. 8. Use auto-coupled sweep time. 9. Perform the measurement over an interval of time when the transmission is continuous and at its maximum power level. 10. Utilize trace averaging over 100 traces in the power averaging mode. 11. Find the maximum trace amplitude (peak search) and record. 12. Adjust the recorded level by applying appropriate correction factors for the measurement set-up. 13. Determine the EIRP by adding the effective antenna gain to the adjusted power level. 3.5. Test Specification FCC CFR Title 47 Part 90 Subpart Z, KDB 965270 3.6. Uncertainty The measurement uncertainty is defined as ±1.27 dB Report No：11C274R-RFUSP36V01 Page: 69 of 521 3.7. Test Result Product CBS 3.65GHz Test Item Peak EIRP Power Density Test Mode Mode 1: Transmit (3.5MHz BW_QPSK1/2) 3.5MHz Bandwidth, Antenna Gain: 16dBi Power Density (dBm/MHz) Centre Frequency (MHz) Ant0 Ant1 Maximum Power Density (dBm/MHz) Maximum Radiated Power Density (dBm/MHz) Limit (dBm/MHz) 3651.75 9.26 10.57 12.97 28.97 ≦30 3662.50 8.46 9.30 11.91 27.91 ≦30 3673.25 10.25 9.93 13.10 29.10 ≦30 Maximum Power Density = Power Density (ANT 0 + ANT 1) Maximum Radiated Power Density = Maximum Power Density + Antenna Gain 3.5MHz_3651.75MHz_QPSK1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 70 of 521 3.5MHz_3662.5MHz_ QPSK1/2 (ANT 0) 3.5MHz_3673.25MHz_ QPSK1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 71 of 521 3.5MHz_3651.75MHz_QPSK1/2 (ANT 1) 3.5MHz_3662.5MHz_ QPSK1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 72 of 521 3.5MHz_3673.25MHz_ QPSK1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 73 of 521 Product CBS 3.65GHz Test Item Peak EIRP Power Density Test Mode Mode 2: Transmit (3.5MHz BW_16QAM1/2) 3.5MHz Bandwidth, Antenna Gain: 16dBi Power Density (dBm/MHz) Centre Frequency (MHz) Ant0 Ant1 Maximum Power Density (dBm/MHz) Maximum Radiated Power Density (dBm/MHz) Limit (dBm/MHz) 3651.75 8.94 11.17 13.21 29.21 ≦30 3662.50 8.69 9.91 12.35 28.35 ≦30 3673.25 10.96 10.55 13.77 29.77 ≦30 Maximum Power Density = Power Density (ANT 0 + ANT 1) Maximum Radiated Power Density = Maximum Power Density + Antenna Gain 3.5MHz_3651.75MHz_16QAM1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 74 of 521 3.5MHz_3662.5MHz_ 16QAM1/2 (ANT 0) 3.5MHz_3673.25MHz_ 16QAM1/2 (ANT 0) Report No：11C274R-RFUSP36V01 Page: 75 of 521 3.5MHz_3651.75MHz_16QAM1/2 (ANT 1) 3.5MHz_3662.5MHz_ 16QAM1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 76 of 521 3.5MHz_3673.25MHz_ 16QAM1/2 (ANT 1) Report No：11C274R-RFUSP36V01 Page: 77 of 521 Product CBS 3.65GHz Test Item Peak EIRP Power Density Test Mode Mode 3: Transmit (3.5MHz BW_64QAM2/3) 3.5MHz Bandwidth, Antenna Gain: 16dBi Power Density (dBm/MHz) Centre Frequency (MHz) Ant0 Ant1 Maximum Power Density (dBm/MHz) Maximum Radiated Power Density (dBm/MHz) Limit (dBm/MHz) 3651.75 9.16 9.82 12.51 28.51 ≦30 3662.50 8.83 9.56 12.22 28.22 ≦30 3673.25 10.61 9.64 13.16 29.16 ≦30 Maximum Power Density = Power Density (ANT 0 + ANT 1) Maximum Radiated Power Density = Maximum …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Susan Yen Raji(Executive Vice President)

[email protected]641-424-0370Fax: 641-424-1945

Technical Contact

QuieTek CorporationNeil Yeh

[email protected]886 3 5928858

No. 75-2, 3rd Lin, Wangye Keng · Hsinchu County · Taiwan

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD.Warren Lin

[email protected]+886-3-582-8001Fax: +886-3-582-8958

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	9	3.65 GHz - 3.67 GHz	7.5 W	9M65D7D	1.37 ppm

Confidentiality

Long Term

Grant Notes

Output Power listed is EIRP. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).
