W93-CPEMAXOD365CPE 3.65GHz Outdoor

1 WiMAX Outdoor CPE CPEMAX-OD500 User Manual Rev. 3 Legal Rights © Copyright 2010 FRC Internet Products, LLC. All rights reserved. 2 The material contained herein is proprietary, privileged, and confidential and owned by FRC Internet Products, LLC (“FRC”), its affiliates or its third party licensors. No disclosure thereof shall be made to third parties without the express written permission of FRC. FRC reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. Trade Names FRC®, The Blue Zone®, The BlueZone™, CPEMax™, BSMax™ and/or other products and/or services referenced here in are either registered trademarks or service marks of FRC Group. All other names are or may be the trademarks of their respective owners. “WiMAX Forum” is a registered trademark of the WiMAX Forum. “WiMAX,” the WiMAX Forum logo, “WiMAX Forum Certified,” and the WiMAX Forum Certified logo are trademarks of the WiMAX Forum. Statement of Conditions The information contained in this manual is subject to change without notice. FRC shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranties and Disclaimers All FRC products purchased from FRC or through any of FRC's authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty (a) FRC warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of twelve (12) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). FRC will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with FRC' standard R&R procedure. 3 (b) With respect to the Firmware, FRC warrants the correct functionality according to the attached documentation, for a period of twelve (12) month from invoice date (the "Warranty Period")". During the Warranty Period, FRC may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates. Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. FRC will be obligated to support solely the two (2) most recent Software major releases. FRC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Disclaimer (a) The Software is sold on an "AS IS" basis. FRC, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION FRC SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON- INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. FRC SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. 4 (b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT FRC'S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED. FRC' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. FRC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) FRC SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. (b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE LIABILITY FOR DAMAGES HEREUNDER OF FRC OR ITS EMPLOYEES OR AGENTS EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY PURCHASER, NOR SHALL THE AGGREGATE LIABILITY FOR DAMAGES TO ALL PARTIES R…

Text truncated - open the document above for the full version.

25 3.1 LOGGING IN To log in to the GUI, perform the following steps: 1. Ensure the installation described in Chapter 2 is complete. Check that the CPE has power and that the signal strength is good. 2. Launch an Internet browser on the administrator’s PC. 3. Enter the default IP address 192.168.0.21 in the browser address field and press Enter. The Login screen displays: 26 4. Enter user name <frcweb> and password <frcadmin> and click OK. Then CPE configuration homepage appears: NOTE: The CPE functions in Router or Bridge mode. 27 3.2 SYSTEM SETTINGS The System Settings is used to review, change and save all CPE system settings. Only the administrator can make changes to this screen. 3.2.1 CHANGING SYSTEM CONFIGURATION To change the CPE system configuration setting, perform the following steps: 1. Enter into the Admin Tab field. 2. Enter into setSystemConfiguration* field in the left side of Browser. 3. Click Apply Changes as shown in the screen below**. * False CPE-Wimax setting could damage the access to CPE or damage CPE itself. ** Changing system Configuration need to be saved by “SysSavedConfigutation” to keep the updated configuration parameters permanent on flash. 3.2.2 UPGRADE SYSTEM FIRMWARE To Upgrade the CPE Wimax firmware system, perform the following steps: 1. Enter into the Admin Tab field. 28 2. Enter into upgradeSw field in the left side of Browser. 3. Choose the Upgrade Changes as shown in the screen below. NOTE: Upgrade firmware need permission of system administrator to have successful upgrade. False Upgrade could damage the CPE. The following parameters should be set correctly in the CPE configurations for SW Upgrade: FTP Server IP address FTP user name FTP password File path File name 29 If any of the configuration parameters are not correct, the system will use the default values for configurations. If the system can’t find a newer version or fails to find the specified version the system will keep running with the old SW version. Other functionalities you can do with Admin Tab of the CPE Wimax are the following: 1. Web Configuration for Bridge. 2. Web Configuration for Router. 3. Web Configuration for Vlan. 4. Web Configuration for Operational Frequencies. 5. Web Configuration for SNMP. 6. Web Configuration security setup. 7. Web Configuration for CLI security setup. 8. security setup 9. Default settings reset. NOTE: Special Tutorial session needed for the web user, moreover, fully awareness of Wimax functionalities are required. 30 3.2.3 CPE CONFIGURATION PARAMETERS Configuration Parameter name Description Default Value CPE_ETH_IP_ADDR The CPE Ethernet IP address 192.168.0.21 CPE_ETH_SUBNET_MASK The CPE Ethernet subnet mask 255.255.255.0 CPE_ETH_DEFULT_GATEWAY The CPE Ethernet default gateway 192.168.0.1 CPE_WIMAX_IP_ADDR The CPE WiMAX IP address (used as static IP if the CPE fails to acquire IP using DHCP) 172.25.25.30 CPE_WIMAX_SUBNET_MASK The CPE WiMX subnet mask 255.255.255.0 CPE_WIMAX_DEFULT_GATEW AY The CPE WiMAX default gateway 172.25.25.1 FTP_IP_ADDR The IP address of the FTP server 192.168.0.220 FTP_USER_NAME The user name of the FTP server frcwimax FTP_USER_PASSWORD The password of the FTP user frcwimax FTP_PACKAGE_PATH The path of the upgrade packages /cpe_upgrade FTP_PACKAGE_NAME The base name of the upgrade packages FRC_WIMAX_CPE_.z TFTP_IP_ADDR The IP address of the TFTP server 192.168.0.10 CLI_USER_NAME The user name of the CLI frccli CLI_USER_PASSWORD The password of the CLI user frcadmin WEB_USER_NAME The user name of the web frcwb WEB_USER_PASSWORD the web user password frcadmin Configuration Parameter name Description Default Value READ_COMMUNITY The read community for the public 31 default SNMP manager WRITE_COMMUNITY The read community for the default SNMP manager private TRAP_SERVER_ADDR The address of the trap server 192.168.0.10 IS_AUTO_UPGRADE_ENABLE D If true automatic upgrade is enabled False AUTO_UPGRADE_TIME The interval between auto- upgrades 1 (days) CUSTOMER_NAME The name of the customer CUSTOMER_NAME CONFIGURATION_FILE_NAME The configuration file name config.xml SYSTEM_LOCATION The location of the CPE SYSTEM_LOCATION IS_WRITING_LOGS_ON_FTP_E NABLED Enables and disables transferring logs to the FTP server FALSE NETWORK_DEPLOYMENT A bitmap containing the current enabled network protocols. The bitmap contains the ORing of the different values. BRIDGE_ENBLED 1 ROUTER_ENBLED 2 DHCP_CLIENT_ENBLE D 4 DHCP_SERVER_ENBL ED 8 DHCP_RELAY_ENBLE D 16 PPPOE_CLIENT_ENBL ED 32 PPPOE_PROXY_ENBL ED 64 VLAN_ENBLED 128 Configuration Parameter name Description Default Value EAP_TTLS_USERNAME The full username required for TTLS inner authentication. [email protected] EAP_TTLS_PASSWORD The password required for TTLS inner authentication tbzuser 32 EAP_MODE Defines which EAP is used TLS or TTLS 1 -> TTLS DEVICE_CERTIFICATE_FILE_P ATH The full path on the FTP server on which to upload/download -> FTP root folder SUPP_WORKAROUND Enables and disables the supplicant workaround on the CPE False Configuration Structure Configuration Parameter name Description Default Value BRIDGE_CONFIG_STRUCT Contains the different configuration parameters related to the Bridge. basicIngressFilterEnabled Enables/Disables the Basic Ingress Filter. When enabled all packets coming from the WiMAX destined to a MAC address in the authenticated list will not pass through the bridge except the DHCP and ARP. 0 egressBroadcastFilterEna bled Enables/Disables the Egress Broadcast Filter. When enabled the bridge will not pass through any broadcast or multicast packets coming from the Ethernet. 0 ingressBroadcastFilterEna bled Enables/Disables the Egress Broadcast Filter. When enabled the bridge will not pass through any broadcast or multicast packets coming from the WiMAX. 0 33 Configuration Structure Configuration Parameter name Description Default Value ROUTER_CONFIG_ST RUCT Contains the NAT related configurations. The structure is formed of an argument which enables/ disables NAT suppo…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: W93-CPEMAXOD365 Data: FEB. 09, 2012 Please be notified that we, the undersigned, FRC INTERNET PRODUCTS, LLC declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 11C275R- RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Date: 2012/2/10 To FCC, This is to declare that our product CPEMax-OD365, FCC ID: W93-CPEMAXOD365 compliances to restricted contention-based protocol. The use of a restricted contention-based protocol limits the frequency range to 3650- 3675MHz per FCC part 90 subpart Z. This device is strictly a client only and does not support any repeater, bridge, WDS, mesh or any other functions which could potentially make the device both a client and a master at the same time. Product information: Product name: CPE 3.65GHz Outdoor Model name: CPEMax-OD365 Grantee code: W93-CPEMAXOD365 Thank you, Sincerely Yours, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W93-CPEMAXOD365 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description Tune-Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

Declaration of Authorization We Name: FRC INTERNET PRODUCTS, LLC Address: 4421 SW 85th Way City: Gainesville State: Florida Zip Code: 32608 Country: USA Declare that: Name Representative of agent: Neil Yeh Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: CPE 3.65GHz Outdoor Type designation: CPEMax-OD365 Trademark: FRC FCC ID: W93-CPEMAXOD365 on our behalf. Date: 2012/ 02/ 09 City: Hsinchu Signature: Susan Raji, Vice President/General Manager FRC INTERNET PRODUCTS, LLC Tel: 641-424-0370 ext. 280 Fax: 641-424-1945 E-mail: [email protected]

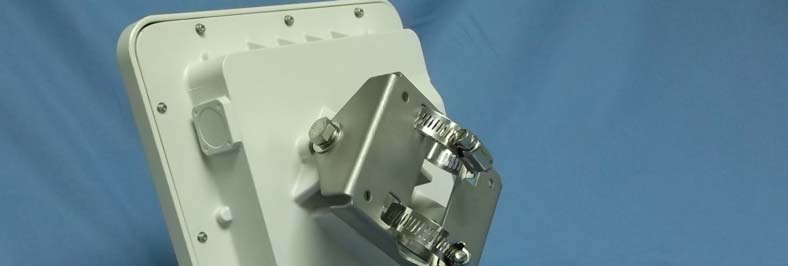

Report No： 11C275R-RFUSP36V01 Page: 250 of 258 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FRC 4421 SW 85th Way, Gainesville, Florida 32608, USA FCC ID.: W93-CPEMAXOD365 FCC ID AND DoC Label The FCC Label will be placed on the equipment as shown in the photograph below. CPE 3.65GHz Outdoor Model No.: CPEMax-OD365 FCC ID : W93-CPEMAXOD365 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: FRC Model number.: CPEMax-OD365

FRC 4421 SW 85th Way, Gainesville, Florida 32608, USA FCC ID.: W93-CPEMAXOD365 FCC ID AND DoC Label The FCC Label will be placed on the equipment as shown in the photograph below. CPE 3.65GHz Outdoor Model No.: CPEMax-OD365 FCC ID : W93-CPEMAXOD365 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: FRC Model number.: CPEMax-OD365

Report No： 11C275R-RFUSP36V01 Page: 251 of 258 (3) EUT Photo (4) EUT Photo Report No： 11C275R-RFUSP36V01 Page: 252 of 258 (5) EUT Photo (6) EUT Photo Report No： 11C275R-RFUSP36V01 Page: 253 of 258 (7) EUT Photo (8) EUT Photo Report No： 11C275R-RFUSP36V01 Page: 254 of 258 (9) EUT Photo (10) EUT Photo Report No： 11C275R-RFUSP36V01 Page: 255 of 258 (11) EUT Photo (MB) (12) EUT Photo Report No： 11C275R-RFUSP36V01 Page: 256 of 258 (13) EUT Photo (14) EUT Photo Report No： 11C275R-RFUSP36V01 Page: 257 of 258 (15) EUT Photo (16) EUT Photo (ANT) Report No： 11C275R-RFUSP36V01 Page: 258 of 258 (17) EUT Photo (ANT)

Report No. 11C275R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name ：CPE 3.65GHz Outdoor Model No. ：CPEMax-OD365 FCC ID. ：W93-CPEMAXOD365 Applicant : FRC INTERNET PRODUCTS, LCC Address : 4421 SW 85th Way, Gainesville, Florida 32608, USA Date of Receipt : 2011/12/14 Date of Declaration : 2012/03/22 Report No. : 11C275R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 11C275R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 11C275R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product CPE 3.65GHz Outdoor Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain The maximum Gain measured in fully anechoic chamber is 14dBi or 25.12 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: 5MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Low 3652.5 153.11 0.77 Middle 3662.5 139.00 0.69 High 3672.5 140.60 0.70 7MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Low 3653.5 130.62 0.65 Middle 3662.5 121.62 0.61 High 3671.5 155.60 0.78 10MHz Bandwidth Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Low 3655.0 135.83 0.68 Middle 3662.5 116.95 0.58 High 3670.0 118.03 0.59 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 11C275R-RFUSP36V01 Page: 1 of 258 Test Report Product Name：CPE 3.65GHz Outdoor Model No. ：CPEMax-OD365 FCC ID. ：W93-CPEMAXOD365 Applicant ：FRC INTERNET PRODUCTS, LLC Address ：4421 SW 85th Way, Gainesville, Florida 32608, USA Date of Receipt：2011/12/14 Issued Date ：2012/03/22 Report No. ：11C275R-RFUSP36V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 11C275R-RFUSP36V01 Page: 2 of 258 Test Report Certification Issued Date : 2012/03/22 Report No. : 11C275R-RFUSP36V01 Product Name ： CPE 3.65GHz Outdoor Applicant ： FRC INTERNET PRODUCTS, LLC Address ： 4421 SW 85th Way, Gainesville, Florida 32608, USA Model No. ： CPEMax-OD365 FCC ID. ： W93-CPEMAXOD365 Rated Voltage : AC 120~230V/50~60Hz Trade Name ： FRC Applicable Standard ： FCC CFR Title 47 Part 2 and Part 90 Subpart Z TIA/EIA 603-C: 2004 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( JuBo Shen / Assistant Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 11C275R-RFUSP36V01 Page: 3 of 258 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................6 1.1. EUT Description ............................................................................................................. 6 1.2. Test Mode .......................................................................................................................8 1.3. Operational Description ................................................................................................ 10 1.4. Tested System Details .................................................................................................. 10 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Equivalent isotropically radiated power (EIRP)..............................................................16 2.1. Test Equipment:............................................................................................................ 16 2.2. Test Setup: ................................................................................................................... 16 2.3. Test Limit: .....................................................................................................................16 2.4. Test Procedure: ............................................................................................................ 17 2.5. Test Specification:......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result:...................................................................................................................18 3. Peak EIRP Power density.....................................................................................................36 3.1. Test Equipment:............................................................................................................ 36 3.2. Test Setup: ................................................................................................................... 36 3.3. Test Limit: .....................................................................................................................36 3.4. Test Procedure: ............................................................................................................ 37 3.5. Test Specification:......................................................................................................... 37 3.6. Uncertainty ................................................................................................................... 37 3.7. Test Result:...................................................................................................................38 4. Occupied Bandwidth.............................................................................................................56 4.1. Test Equipment............................................................................................................. 56 4.2. Test Setup .................................................................................................................... 56 4.3. Limits ............................................................................................................................ 56 4.4. Test Procedure ............................................................................................................. 56 4.5. Test Specification:......................................................................................................... 56 4.6. Uncertainty ................................................................................................................... 56 4.7. Test Result....................................................................................................................57 5. Spectrum Emission Mask.....................................................................................................75 Report No： 11C275R-RFUSP36V01 Page: 4 of 258 5.1. Test Equipment............................................................................................................. 75 5.2. Test Setup ..........................................................…

Text truncated - open the document above for the full version.

Report No： 11C275R-RFUSP36V01 Page: 73 of 258 Product CPE 3.65GHz Outdoor Test Item Occupied Bandwidth Test Mode Mode 9: Transmit (10MHz BW_64QAM2/3) Date of Test 2011/12/29 Test Site SR7 10MHz Bandwidth, Antenna Gain: 14dBi 10MHz_3655MHz_64QAM2/3 Frequency (MHz) Modulation Measure Value (MHz) Limit (MHz) 3655.0 64QAM2/3 9.462 NA 3662.5 64QAM2/3 9.415 NA 3670.0 64QAM2/3 9.418 NA Report No： 11C275R-RFUSP36V01 Page: 74 of 258 10MHz_3662.5MHz_64QAM2/3 10MHz_3670MHz_64QAM2/3 Report No： 11C275R-RFUSP36V01 Page: 75 of 258 5. Spectrum Emission Mask 5.1. Test Equipment The following test equipments are used during the test: Spectrum Emission Mask / SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A US47140172 2012/07/13 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 5.2. Test Setup 5.3. Limits For transmitters that are equipped with an audio lowpass filter, the power of any emission must be attenuated below the unmodulated carrier power (P) as follows: (1) On any frequency removed from the assigned frequency by more than 50 percent, but not more than 100 percent of the authorized bandwidth: At least 25 dB. (2) On any frequency removed from the assigned frequency by more than 100 percent, but not more than 250 percent of the authorized bandwidth: At least 35 dB. (3) On any frequency removed from the assigned frequency by more than 250 percent of the authorized bandwidth: At least 43 + 10 log (P) dB. Report No： 11C275R-RFUSP36V01 Page: 76 of 258 5.4. Test Procedure The Spectrum Emission Mask is measured using Spectrum Analyzer with a resolution bandwidth of the instrumentation must be at least 1 MHz. The EUT was set up for the rated peak power under unmodulation mode and record the level as refer level. The standards required a Spectrum Emission Mask is the power of any emission must be attenuated below the refer level as limit under all modulation types and emission bandwidths. 5.5. Test Specification: FCC CFR Title 47 Part 90 Subpart Z 5.6. Uncertainty The measurement uncertainty is defined as ±1.27dB Report No： 11C275R-RFUSP36V01 Page: 77 of 258 5.7. Test Result Product CPE 3.65GHz Outdoor Test Item Spectrum Emission Mask Test Mode Mode 1: Transmit (5MHz BW_QPSK1/2) Mode 2: Transmit (5MHz BW_16QAM1/2) Mode 3: Transmit (5MHz BW_64QAM2/3) Date of Test 2011/11/17 Test Site SR7 5MHz Bandwidth, Antenna Gain: 14dBi Note: Set the RBW to 100kHz, and the mask limit was be reduced 10log(1MHz/100kHz)=10dB. Frequency (MHz) Modulation Test Result 3652.5 QPSK1/2 PASS 3662.5 QPSK1/2 PASS 3672.5 QPSK1/2 PASS Frequency (MHz) Modulation Test Result 3652.5 16QAM1/2 PASS 3662.5 16QAM1/2 PASS 3672.5 16QAM1/2 PASS Frequency (MHz) Modulation Test Result 3652.5 64QAM2/3 PASS 3662.5 64QAM2/3 PASS 3672.5 64QAM2/3 PASS Report No： 11C275R-RFUSP36V01 Page: 78 of 258 Reference Level: 5MHz_3652.5MHz Reference Level: 5MHz_3662.5MHz Report No： 11C275R-RFUSP36V01 Page: 79 of 258 Reference Level: 5MHz_3672.5MHz 5MHz_3652.5MHz_QPSK1/2 Report No： 11C275R-RFUSP36V01 Page: 80 of 258 5MHz_3662.5MHz_QPSK1/2 5MHz_3672.5MHz_QPSK1/2 Report No： 11C275R-RFUSP36V01 Page: 81 of 258 5MHz_3652.5MHz_16QAM1/2 5MHz_3662.5MHz_16QAM1/2 Report No： 11C275R-RFUSP36V01 Page: 82 of 258 5MHz_3672.5MHz_16QAM1/2 5MHz_3652.5MHz_64QAM2/3 Report No： 11C275R-RFUSP36V01 Page: 83 of 258 5MHz_3662.5MHz_64QAM2/3 5MHz_3672.5MHz_64QAM2/3 Report No： 11C275R-RFUSP36V01 Page: 84 of 258 Product CPE 3.65GHz Outdoor Test Item Spectrum Emission Mask Test Mode Mode 4: Transmit (7MHz BW_QPSK1/2) Mode 5: Transmit (7MHz BW_16QAM1/2) Mode 6: Transmit (7MHz BW_64QAM2/3) Date of Test 2011/11/17 Test Site SR7 7MHz Bandwidth, Antenna Gain: 14dBi Note: Set the RBW to 100kHz, and the mask limit was be reduced 10log(1MHz/100kHz)=10dB. Frequency (MHz) Modulation Test Result 3653.5 QPSK1/2 PASS 3662.5 QPSK1/2 PASS 3671.5 QPSK1/2 PASS Frequency (MHz) Modulation Test Result 3653.5 16QAM1/2 PASS 3662.5 16QAM…
