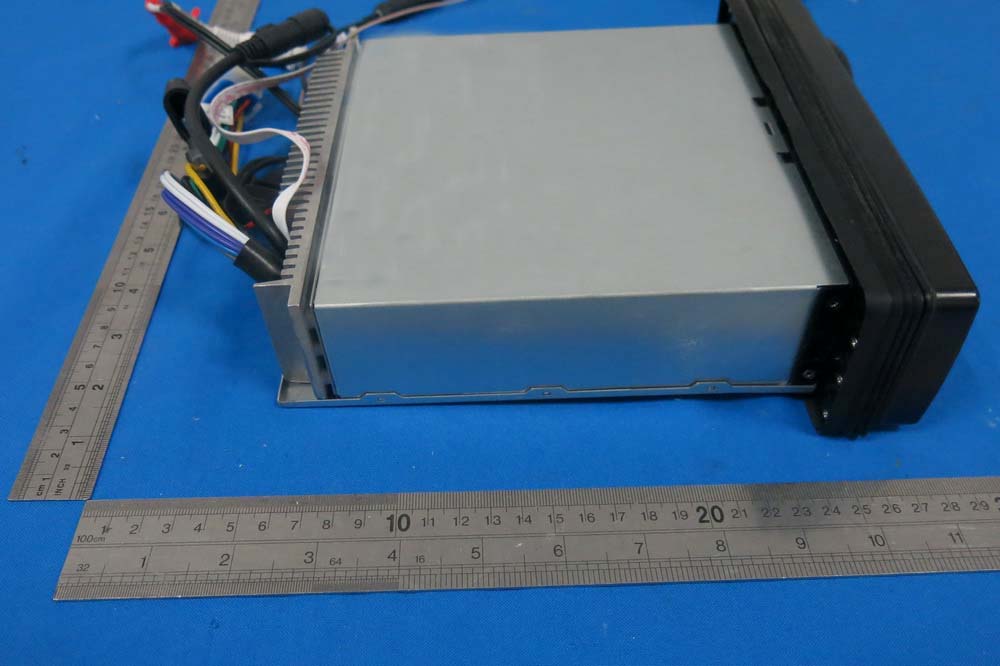

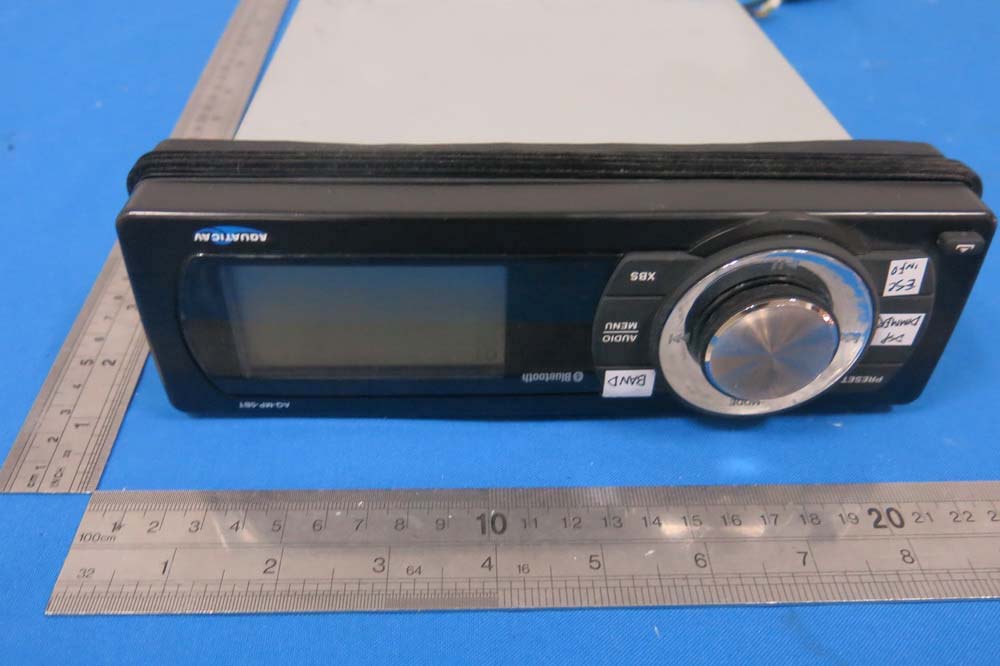

WBQ-SM78WATERPROOF MEDIA PLAYER

products with a watertight reputation ® OWNER MANUAL AQ-MP-5BT - W ATERPROOF MEDIA PLAYER for Bluetooth & MP3 devices W ATERPROOF MEDIA PLAYER E-mail: info@aquaticav .com US & Canada: 1 877 579 2782 International: +1 408 559 1668 Fax: +1 408 559 0125 www .aquaticav.com Aquatic A V 282 Kinney Drive San Jose, CA 95112, USA products with a watertight reputation ® PLEASE READ THIS INSTRUCTION MANUAL BEFORE INST ALLATION AND OPERATION Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: ETSI EN 301 489-1 V1.9.2: 2011 ETSI EN 301 489-17 V2.2.1: 2012 ETSI EN 300 328 V1.8.1: 2012 EN 62479: 2010 EN 60065: 2002+A1: 2006+A11: 2008+ A2: 2010+ A12: 2011 1 Getting Started......................................................................................................................... 1.1 Contents............................................................................................................................. 1.2 Connections........................................................................................................................ 1.3 12-pin Harness Connection................................................................................................. 1.4 Wiring Diagram................................................................................................................... 1.5 Mounting Precautions......................................................................................................... 1.6 Mounting the Media Player.................................................................................................. 1.7 Power On............................................................................................................................ 2 Location of Controls................................................................................................................. 2.1 Media Player Controls.......................................................................................................... 3 Listening to Devices.................................................................................................................. 3.1 Listening via Bluetooth....................................................................................................... 3.1.1 Pair with Bluetooth Device........................................................................................... 3.1.2 Listening via Bluetooth Device..................................................................................... 3.2 Listening via Auxiliary Input (3.5mm Jack)......................................................................... 3.3 Adjusting Volume Level....................................................................................................... 4 Listening to FM/AM Radio......................................................................................................... 4.1 Enter FM Radio Mode.......................................................................................................... 4.2 Scan or Seek FM Radio Channels........................................................................................ 4.3 Saving Radio Channel to Memory....................................................................................... 4.4 Listening to Saved Radio Memory....................................................................................... 4.5 Switch between U.S. and European FM Modes..................................................................... 5 Settings Menu........................................................................................................................... 5.1 Audio Menu......................................................................................................................... 5.2 Menu................................................................................................................................... 5.3 AS/PS (Auto Scan/Preset Scan)........................................................................................... 5.4 Local/Distant Tuning........................................................................................................... 5.5 Stereo/Mono........................................................................................................................ 5.6 FM Tuning Area................................................................................................................... 5.7 Beep Tone........................................................................................................................... 5.8 System Reset...................................................................................................................... 6 Specifications & Dimensions.................................................................................................... 4.1 Specifications..................................................................................................................... 4.2 Dimensions........................................................................................................................ 7 Warranty Information............................................................................................................... 3 3 3 4 4 5 6 8 9 9 10 10 10 10 10 10 11 11 11 11 11 11 12 12 12 12 12 12 12 12 12 13 13 13 14 Table of Contents Media Player AQ-MP-5BT 2www .aquaticav.com MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The equipment has been tested and found to comply with the limits for a Class…

Text truncated - open the document above for the full version.

AQUATIC AV FCC Authorization Letter We, (the approval holder) Company name AQUATIC AV Addresss 282 Kinney Drive San Jose, City California Country United States declare that the following representative (agent): Name (person) Sam Lv Company name DONGGUAN EMTEK CO., LTD. Addresss No.281, Guantai Road, Nancheng District, City Dongguan Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description: WATERPROOF MEDIA PLAYER Model Number: AQ-MP-5BT, AQ-MP-5BT-H, AQ-MP-5BTS, AQ-MP-5BT-HS, SM-78XB, SM-78XB-H, SM-78XBS, SM-78XB-HS Tradename: AQUATIC AV FCC ID: WBQ-SM78 City and Country Date Name Function Signature California, USA 2015-04-23 Robert L. Fils CEO

AQUATIC AV FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Sec{ion 0.459(a) & (b), we, (the applicant / grantee) Company name AQUATIC AV Addresss 282 Kinney Drive San Jose, City Califomia Country United States request non-diselosurc and confidential treatment for our certification under: FCC ID: Grantee Code Product Number WBQ .SM78 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section A.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(dxlXii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Operational Description Block Diagrams Schematics Diagrams City and Country Date Name FunctionSignalurg-7 ,' ,/ -/ California, USA 2A15-04-22 Robert L. FilscEo //*: /7

Label Location on EUT

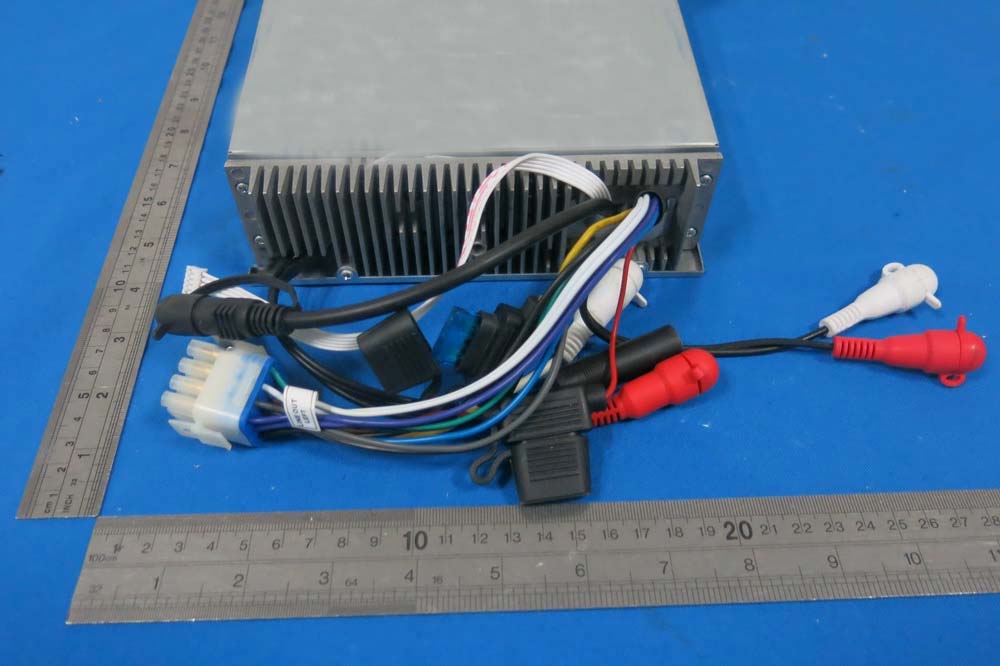

***PART NO: 706-XXX SM-78BT(AQUATICAV BRAND) ** SAMPLE/14 ** TOP LABEL For Model : DATE:2014-10-30 COLOR: SILVER BACKGROUND/BLACK LETTERING SIZE: 145X80MM SCALE:1/1 POWER SUPPLY: 14.4V DC NEGATIVE GROUND SPEAKER IMPEDANCE: 4 - 8 OHMS INTERFERENCE ABSORPTION CIRCUIT BLACK RED WHITE C O N N E C T I O N G R O U P AUDIO IN R-CH L-CH AQ-MP-5BT 1 ) REAR LEFT SPEAKER ( GREEN/BLACK 2 )FRONT RIGHT SPEAKER ( 6 WHITE/BLACK FRONT LEFT SPEAKER ( ) 9 REAR RIGHT SPEAKER ( ) VIOLET/BLACK 12 GROUND ( ) GREEN 4 YELLOW 10 BATTERY (BACK UP) 12V (+) BLUE 3 REAR LEFT SPEAKER (+) RED 7 ACCESSORY 14.4V (B+) WHITE 8 FRONT LEFT SPEAKER (+) GREY 5 FRONT RIGHT SPEAKER (+) POWER ANTENNA VIOLET 11 REAR RIGHT SPEAKER (+) USA/CANADA FM 87.5-107.9 MHz AM 530-1710 KHz EUR FM 87.5-108 MHz AM 522-1620 KHz THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 321 654 987 121110 BLACK ANTENNA JACK BLACK BLACK REAR LINE OUT (RIGHT) GREY/BLACK RED WHITE (R-CH) (L-CH) 8 DIN WIRED REMOTE REAR LINE OUT(LEFT) CONNECTION GROUP SW UPGRADE C ABLE White MADE IN CHINA SI US PATENT NO. 7,831,756 & 8,578,081 FCC ID: WBQ-SM78 0700

Antenna

TRF No. FCC 15.247/A Page 1 of 64 Report No.: KAD141125085E Ver.1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF WATERPROOF MEDIA PLAYER Model No.: AQ-MP-5BT, AQ-MP-5BT-H, AQ-MP-5BTS, AQ-MP-5BT-HS, SM-78XB, SM-78XB-H, SM-78XBS, SM-78XB-HS Trademark: AQUATIC AV FCC ID: WBQ-SM78 Report No.: KAD141125085E Issue Date: April 24, 2015 Prepared for AQUATIC AV 282 Kinney Drive San Jose, CA 95112. US Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 This report shall not be reproduced, except in full, without the written approval of DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 2 of 64 Report No.: KAD141125085E Ver.1.0 VERIFICATION OF COMPLIANCE Applicant: AQUATIC AV 282 Kinney Drive San Jose, CA 95112. US Manufacturer: AQUATIC AV 282 Kinney Drive San Jose, CA 95112. US Product Description: WATERPROOF MEDIA PLAYER Trademark: AQUATIC AV Model Number: AQ-MP-5BT, AQ-MP-5BT-H, AQ-MP-5BTS, AQ-MP-5BT-HS, SM-78XB, SM-78XB-H, SM-78XBS, SM-78XB-HS (Note: The samples are the same except appearance (for color and silk-screen only) and model number. So we prepared AQ-MP-5BT for full test. ) Kind of Device: Bluetooth Ver.2.1+EDR Date of Test: November 25, 2014 to April 22, 2015 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2014 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2014). Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 3 of 64 Report No.: KAD141125085E Ver.1.0 Modified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / KAD141125085E TRF No. FCC 15.247/A Page 4 of 64 Report No.: KAD141125085E Ver.1.0 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 6 1.1 PRODUCT DESCRIPTION ................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................ 6 1.3 TEST METHODOLOGY ....................................................................................................................... 6 1.4 SPECIAL ACCESSORIES .................................................................................................................... 6 1.5 EQUIPMENT MODIFICATIONS ............................................................................................................ 6 1.6 TEST FACILITY ................................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION .................................................................................... 8 2.1 EUT CONFIGURATION ...................................................................................................................... 8 2.2 EUT EXERCISE ................................................................................................................................ 8 2.3 TEST PROCEDURE ........................................................................................................................... 8 2.4 LIMITATION....................................................................................................................................... 8 2.5 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 12 3. SUMMARY OF TEST RESULTS ..................................................................................... 13 4. DESCRIPTION OF TEST MODES ................................................................................... 13 5. RADIATED EMISSION TEST ........................................................................................... 14 5.1 MEASUREMENT PROCEDURE ......................................................................................................... 14 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 15 5.3 MEASUREMENT EQUIPMENT USED: ................................................................................................ 16 5.4 MEASUREMENT RESULT ................................................................................................................. 16 5.5 RADIATED MEASUREMENT PHOTOS: .............................................................................................. 28 6. CHANNEL SEPARATION TEST ...................................................................................... 29 6.1 MEASUREMENT PROCEDURE ......................................................................................................... 29 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 29 6.3 MEASUREMENT EQUIPMENT USED: ................................................................................................ 29 6.4 MEASUREMENT RESULTS: .............................................................................................................. 29 7. 20DB BANDWIDTH TEST ............................................................................................... 36 7.1 MEASUREMENT PROCEDURE ......................................................................................................... 36 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 36 7.3 MEASUREMENT EQUIPMENT USED: .........................................…

Text truncated - open the document above for the full version.
