WBQCS9016RGB RF remote

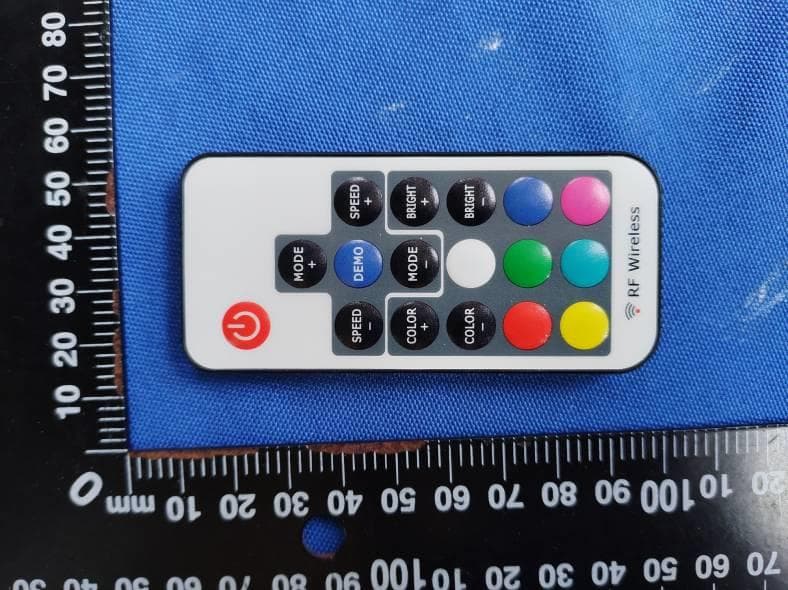

RF Wireless Remote Instructions RGBLED Controller 19 Dynamic Modes 20 Static Colors Speed Adjustable Brightness Adjustable Ultra Slim Design Card Type Remote Easy Remote Pairing Direct Color Select This unit accepts DC 5V to 24V power supply . The inner pole polarity is positive and sleeve is negative . Please select proper power supply according to the LED application. This unit support common anode connection LED products. The mark“”indicates the common connection node. The peak output current is 4A per channel, please reduce load if main unit is overheating. 11.Demo Mode 1.Power Supply 2.LED Output Press this key will switch to Demo mode. At demo mode, it will loop play 9 dynamic modes, each mode repeat 3 times. lnstalling 7/8.Brightness Adjust Adjust static color brightness. Press Bright+ to increase brightness and press Bright- to decrease. Unit will switch to static color mode lf press this key at dynamic mode. 3.Remote Controller Please pull out the insulate part before using . The RF wireless remote signal can pass through barrier , so it’s not necessary to aim at the main unit when operate . For proper receiving remote signal , do not install the main unit in closed metal parts. The remote battery is 3V CR2025 type , please only replace with same type battery. LED CONTROLLER With RF Remote Control :3*4APeak Output Current Common Node 1 2 Press this key to turn on unit or switch to standby mode. Unit will turn on and restore to previous status at powering on moment. Switch to dynamic mode from static color mode, or switch between dynamic modes. Adjust dynamic playing speed. Press Speed+ to increase speed and press Speed- to decrease speed. Unit will switch to dynamic mode lf press this key at static color mode. Switch to static color mode from dynamic mode, or switch between different static colors. 1.Turn on/Standby 2/9.Dynamic Modes Adjust 3/10.Dynamic Seed Adjust 4/5.Static Color Adjust 6.Direct Color Select Shortcut key to static colors. When press the specific color key.LED will play the same static color. The direct colors are included in‘COLOR+’and‘COLOR-’operation. Very Smooth Effects Demo Mode Specification Dynamic Mode Static Color Brightness Grade Speed Grade Working Voltage Output Current Remote Frepuency Remote Distance 19 modes 20 colors 5 levels 10 levels DC 5~24V 3-way, peak 4A per channel 433.92MHz 15m at open area PWM Grade 256 levels Demo mode Yes 70.00 mm CAUTION !Do not short circuit the LED output ,this may lead to permanent damage! Functions MODE + SPEED + SPEED - DEMO MODE - COLOR + COLOR - BRIGHT + BRIGHT - RF Wireless 1 2 3 4 5 11 10 8 7 9 6 CS9016 FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/11/21 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name WBQCS9016 CS9016 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Robert L. Fils Company: AQUATIC AV Address: 282 Kinney Drive, San Jose, CA 95112, United States Phone: 408-559-1668 Fax: 408-559-0125 E-Mail: [email protected]

AQUATIC AV 282 Kinney Drive, San Jose, CA 95112, United States Tel: 408-559-1668 Fax: 408-559-0125 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/21/2020 To whom it may concern: We, AQUATIC AV the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID:WBQCS9016 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Robert L. Fils Company: AQUATIC AV Address: 282 Kinney Drive, San Jose, CA 95112, United States Phone: 408-559-1668 Fax: 408-559-0125 E-Mail: [email protected]

FCC ID: WBQCS9016 FCC ID: WBQCS9016

FCC ID: WBQCS9016 FCC ID: WBQCS9016

FCC ID: WBQCS9016 Antenna

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : GTS20201121005-1-1 WBQCS9016 Compiled by ( position+printed name+signature) .. : File administrators Jimmy Wang Supervised by ( position+printed name+signature) .. : Test Engineer Aaron Tan Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Nov.12, 2020 Representative Laboratory Name .: Shenzhen Global Test Service Co., Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : AQUATIC AV Address ............................................ : 282 Kinney Drive, San Jose, CA 95112, United States Test specification ...........................: Standard ........................................... : FCC Part 15.231 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: RGB RF remote Trade Mark ....................................... : N/A Manufacturer ................................... : AQUATIC AV Model/Type reference....................... : CS9016 Listed Models .................................. : N/A Ratings ............................................. : DC 3.0V from battery Modulation ....................................... : ASK Hardware version ............................. : V1.0 Software version .............................. : V1.0 Frequency .......................................... 433.92MHz Result................................................ : PASS Report No.: GTS20201121005-1-1 Page 2 of 22 T E S T R E P O R T Test Report No. : GTS20201121005-1-1 Nov.12, 2020 ____________________________________________________________________________________ Date of issue Equipment under Test : RGB RF remote Model /Type : CS9016 Listed Models : N/A Applicant : AQUATIC AV Address : 282 Kinney Drive, San Jose, CA 95112, United States Manufacturer : AQUATIC AV Address : China Hui Zhou Shi Boluo Shi Wan Luan Gangbu Xiewu Industrial Zone Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20201121005-1-1 Page 3 of 22 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 6 2.6 Special Accessories 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 16 4.4 Deactivation Time 17 4.5 Antenna Requirement 18 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 19 6 P H O T O S O F T H E E U T ........................................................... 20 Report No.: GTS20201121005-1-1 Page 4 of 22 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: GTS20201121005-1-1 Page 5 of 22 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Nov. 06, 2020 Testing commenced on : Nov. 07, 2020 Testing concluded on : Nov. 11, 2020 2.2 Product Description Product Name: RGB RF remote Model/Type reference: CS9016 Power supply: DC 3.0V from battery Modulation: ASK Operation frequency: 433.92MHz Channel number: 1 Antenna type: PCB antenna Antenna gain: 0 dBi Test Sample ID: GTS20201103025-1-1# 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.00V from battery 2.4 Short description of the Equipment under Test (EUT) This is a RGB RF remote. For more details, refer to the user’s manual of the EUT. Report No.: GTS20201121005-1-1 Page 6 of 22 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / / / / / / / / / / / / / 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.23…

Text truncated - open the document above for the full version.

FCC ID: WBQCS9016
