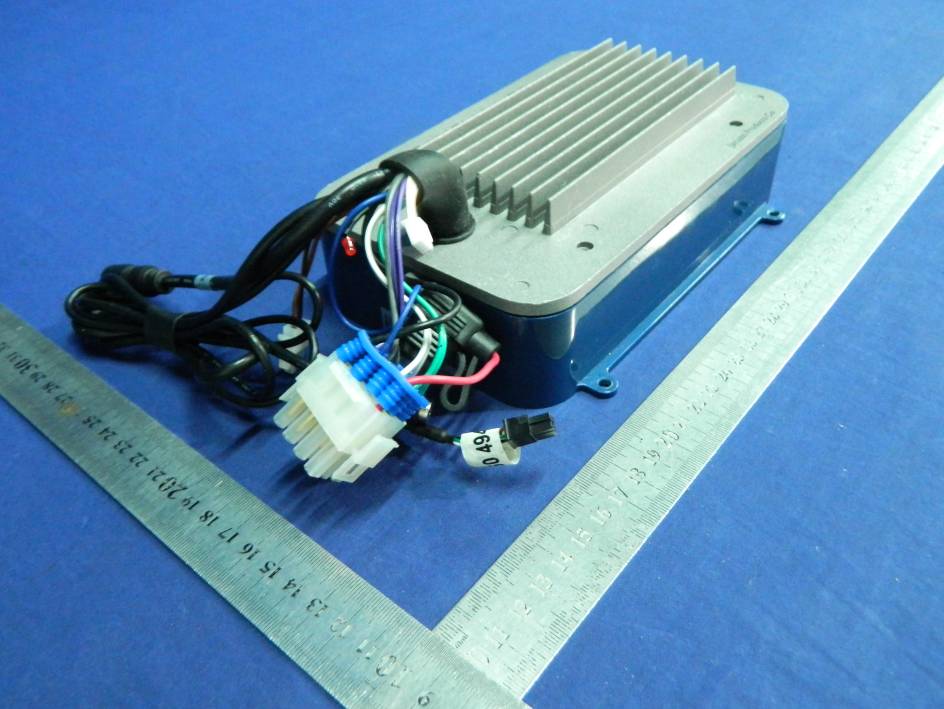

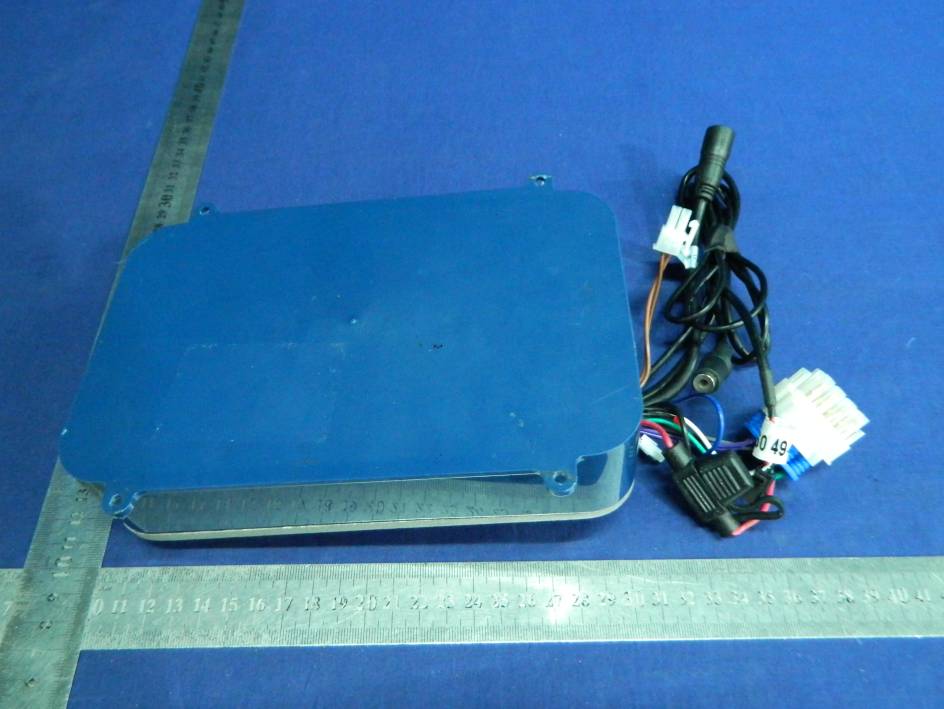

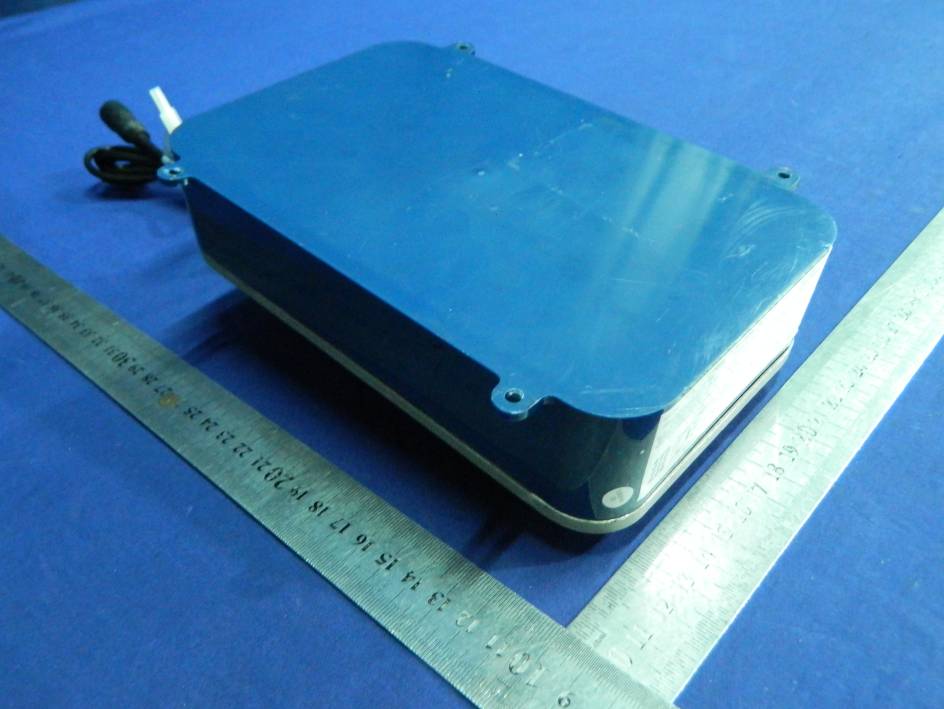

WBQ6500-915SPA Stereo System

1. Wire Remote 2. Power Supply 3. Stereo (6500-915 4. Sub-woofer Power Supply 12 V EUT(Stereo) Sub-woofer (brown , 2 pin socket) (Black , 8 pin socket) 12 pin socket SpeakerSpeakerSpeaker Red wire Speaker Black wire 5 pin socket Wiring diagram of 6500-915 Set up of the 6500-915 5. Speaker x 4 1 Getting Started........................................ 1.1 Contents.............................................. 1.2 Connections........................................... 1.3 12-pin Harness Connection............................. 1.4 Mounting the BlueCube Media Player.................... 2 Listening to Devices........................................... 2.1 Listening via Bluetooth............................... 2.1.1 Pair with Bluetooth Device......................... 2.1.2 Listening via Bluetooth Device..................... 2.2 Listening via Auxiliary Input......................... 2.3 Adjust Volume Level................................... 3 Specifcations & Dimensions..................................... 3.1 Specifcations........................................ 3.2 Dimensions............................................ 4 Warranty Information.......................................... 3 3 3 4 4 5 5 5 5 5 5 6 6 6 7 Media Player 6500-915 2 • 6500-915 Media Player • Wiring Harness (AQ-UNH-2) • Owner＇s Manual 1.1 Contents 1. 12-pin Watertight Harness The 12-pin harness supplies power and ground connections to the Media Player and four (4) speaker channel output connections from the Media Playe r. Do not cut or modify the 12-pin harness on the unit side or warranty will be void. 1.2 Connec tions Instruction Manual of 6500-915 Instruction Manual of 6500-915 3 2.4 Adjust Bass,Treble,Rock,Pop and Classic ............... 5 Media Player 6500-915 The 6500-915 rev.A includes the universal harness AQ-UNH-2 in order to connect the 6500-915 rev.A to power and speakers. All open wire connections should be soldered and protected agains t water and dust for best long term performance. 1.3 12-pin Harness Connection 1. Make sure the outside surface is clean and clear of debris. 2. The Media Player has four (4) front screws. Drive the screws using a screw driver. Make sure screws are snug and do not over tighten. 1.4 Mounting the Media Player 195mm 119mm 127mm 59mm46mm 4 5 1. Switch on your Bluetooth device. 2. Select｀BLUEWAVE＇from the list of available devices to pair (password is “0000＂. 2.1.1 Pair with Bluetooth Device Only one Bluetooth device can be paired with the Media Player at any time. 2.1 Listening via Bluetooth 2.3 Adjust Volume Level Adjust volume level with the phone 2.1.2 Listening via Bluetooth Device 1. Bluetooth mode will be activated once a Bluetooth device is paired. 2. Play the song from device and the sound will play through the device. 3. Press (PLAY/PAUSE) to play/pause the song. 2.2 Listening via 3.5 jack Input 1. Connect your MP3 device to the RCA inputs. Only one Auxiliary input (RCA) can be used at any one time. Listening to Devices Media Player 6500-915 5. Track and volume can be controlled directly from your Bluetooth device. or the touch panel 2.4 Adjust Bass ,Treble, Rock, Pop and Classic by the touch panel Media Player 6500-915 Media Supported media.................... Device control...................... Inputs Auxiliary........................... Outputs Power Output voltage @ 2 Ohm............... Output voltage @ 4 Ohm............... Operation voltage................... Max current draw.................... Standby current draw................ Multi-Environment Certi cations Waterproof / Dustproof............... Conformal PCB coating............... UV protection..................... Salt/Fog protection................. Stainless Steel mountings............ Bluetooth/MP3 ecived 3PM/htooteulB aiv 1x 3.5 jack input 4 channel speaker output in 12 pin harness sub-out for active sub-woofer 4x 72W 4x 32W @1mv,10kHz input 9.6V - 14.4V DC 7A 6mA Yes IP64 Yes 500 hours stable, ASTM D4329 compliant 500 hours stable, ASTM B117 compliant Yes 3.1 S pecifcations 4.2 D imensions 195mm 119mm 127mm 59mm46mm 6 Specications & Dimensions Media Player 6500-915 Aquatic AV offers a limited warranty of our products on the following terms: Length of warranty 2 years on audio systems, electronics, speakers, and accessories (r eceipt required). Coverage This warranty covers only the original purchaser of a Aquatic AV product purchased from an authorized Aquatic AV dealer in the United States. In order to receive service, the purchaser must provide Aquatic AV with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Defective products a htiw( decalper ro deriaper eb lliw doirep ytnarraw eht gnirud evitcefed eb ot dnuof stcudorP product deemed to be equivalent) at Aquatic AV＇s discretion. What is not covered Damage caused by accident, abuse, improper operations, theft. A ny cost or expense related to the removal or reinstallation of product. Service performed by anyone ot her than an authorized Aquatic AV service center. Any product with the serial number or tamper labels defaced, altered, or removed. Subsequent damage to other components. Any product not purchased from an au - thorized Aquatic AV dealer. Limit on implied warranties merchantability are limited in duration to the period of the express warranty set forth above. Some s tates do not allow limita - tions on the length of an implied warranty, so this limitation may not apply. No person is author - ized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV. You are responsible for shipping charges of returned products to Aquatic AV. Please record the model and serial number[s] of your equipment i n the space provided below as your permanent record and will assist us with your factory warrant y coverage. These numbers can be found on the rear of the Blue…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 AQUATIC AV. 2015-11-18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, AQUATIC AV. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product name: SPA Stereo System Model Number: 6500-915 REV A, 6500-915 REV B, 6500-916 REV A, 6500-916 REV B FCC ID: WBQ6500-915 Sincerely, signature Robert L. Fils / CEO E-mail: [email protected] Phone: 408-559-1668 Fax: 408-559-0125 Address: 282 Kinney Drive San Jose, California, United States

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 AQUATIC AV. 2015-11-18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: WBQ6500-915 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Robert L. Fils Contact information / address : 282 Kinney Drive San Jose, California, United States

AQUATIC AV. Family models declaration letter. 2015-11-18 We AQUATIC AV. Of 282 Kinney Drive San Jose, California, United States Product: SPA Stereo System FCC ID: WBQ6500-915 Model Name: 6500-915 REV A, 6500-915 REV B, 6500-916 REV A, 6500-916 REV B These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the silk-screen, color and model no., and not influential with the products' feature of safety and EMC for trading purpose. Thanks Sincerely, signature Robert L. Fils /CEO E-mail: [email protected] Phone: 408-559-1668 Fax: 408-559-0125 Address: 282 Kinney Drive San Jose, California, United States

Label Location Proposed Label Location on EUT

 BT Module

FCC ID : WBQ6500-915 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the followi ng table shall be used to evaluat e the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission form ula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Channel Freq. (GHz) modulation conducted power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2.402 GFSK -3.062 -3 ± 1 -2 1 0.000126 1 2.441 GFSK -3.986 -3 ± 1 -2 1 0.000126 1 2.480 GFSK -3.799 -3 ± 1 -2 1 0.000126 1 2.402 π /4-DQPSK -4.340 -4 ± 1 -3 1 0.000100 1 2.441 π /4-DQPSK -5.546 -5 ± 1 -4 1 0.000079 1 2.480 π /4-DQPSK --5.228 -5 ± 1 -4 1 0.000079 1 2.402 8-DPS K -4.106 -4 ± 1 -3 1 0.000100 1 2.441 8-DPSK -5.131 -5 ± 1 -4 1 0.000079 1 2.480 8-DPSK -4.935 -4 ± 1 -3 1 0.000100 1

TRF No.:FCC 15.247/A Page 1 of 63 Report No.: ES151023010E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For SPA Stereo System MODEL No.: 6500-915 REV A, 6500-915 REV B, 6500-916 REV A, 6500-916 REV B Trademark: JACUZZI FCC ID: WBQ6500-915 REPORT NO.: ES151023010E ISSUE DATE: November 10, 2015 Prepared for AQUATIC AV 282 Kinney Drive, San Jose, CA 95112 , United States. Prepared by Emtek (Shenzhen) Co., Ltd. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 63 Report No.: ES151023010E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................ 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 13 8.1 STANDARD APPLICABLE ........................................................................................................... 13 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................... 13 8.3 EQUAL HOPPING FREQUENCY USE ....................................................................................... 14 8.4 FREQUENCY HOPPING SYSTEM ............................................................................................. 14 9 TEST REQUIREMENTS ......................................................................................................................... 15 9.1 20DB BANDWIDTH ..................................................................................................................... 15 9.2 CARRIER FREQUENCY SEPARATION ..................................................................................... 21 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 27 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................... 29 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................. 32 9.6 CONDUCTED SUPRIOUS EMISSION ....................................................................................... 38 9.7 RADIATED SPURIOUS EMISSION ............................................................................................ 45 9.8 CONDUCTED EMISSION TEST ................................................................................................. 58 9.9 ANTENNA APPLICATION ............................................................................................................ 63 TRF No.:FCC 15.247/A Page 3 of 63 Report No.: ES151023010E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: AQUATIC AV 282 Kinney Drive, San Jose, CA 95112 , United States. Product Description: SPA Stereo System Model Number: 6500-915 REV A, 6500-915 REV B, 6500-916 REV A, 6500-916 REV B File Number: ES151023010E Date of Test: October 23, 2015 to November 10, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J, June 11, 2014 FCC 47 CFR Part 15, Subpart C, May 9, 2014 PASS The above equipment was tested by Emtek (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : October 23, 2015 to November 10, 2015 Test by : Andy Wei /Tester Prepared by : Joe Xia/Editor Approve & Authorized Signer : Lisa Wang/Manager TRF No.:FCC 15.247/A Page 4 of 63 Report No.: ES151023010E Ver.1.0 Access to the World 2 EUT TECHNICAL DESCRIPTION Characteristics Description Data Rate 1Mbps for BT V2.1 B…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Radiated Emission Test
