WBV-HIVEAP340DFS802.11a/b/g/n access point

1 Aerohive Deployment Guide For HiveAP and HiveManager Devices Aerohive Technical Publications Copyright Notice Copyright © 2009 Aerohive Networks, Inc. All rights reserved. Aerohive Networks, the Aerohive Networks logo, HiveOS, HiveAP, and HiveManager are trademarks of Aerohive Networks, Inc. All other trademarks and registered trademarks are the property of their respective companies. Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without receiving written permission from: Aerohive Networks, Inc. 3150-C Coronado Drive Santa Clara, CA 95054 P/N 330002-06, Rev. A HiveAP Compliance Information 2Aerohive HiveAP Compliance Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In compliance with FCC Part 15 regulations, the HiveAP automatically discontinues transmission if there is no valid information to transmit or if there is an operational failure. Important: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. Wireless 5 GHz Band Statements To comply with FCC and ETSI regulations when HiveAPs are deployed outdoors, do not use channels 36, 40, 44, and 48 in the 5.15-5.25 GHz band. Because military radar systems use some bands in the 5 GHz spectrum, WLAN devices operating in these bands must use DFS (Dynamic Frequency Selection) to detect radar activity and switch channels automatically to avoid interfering with radar operations. DFS is required for WLAN devices operating within the 5.25–5.35 GHz UNII-2 and the 5.47–5.725 GHz UNII Mid-Band spectrums in the FCC regions of North America and the ETSI regions in the European Community. DFS is not required for WLAN devices operating in the 5.725-5.850 GHz spectrum in FCC regions. (The 5.725-5.850 GHz spectrum is not available for wireless use in ETSI regions.) HiveAP 300 series models support DFS-FCC and DFS-ETSI and are permitted to operate in the 5.25–5.35 GHz and 5.47–5.725 GHz bands in outdoor deployments in the FCC and ETSI regions. Note: The term "IC" before the radio certification number signifies that Industry Canada technical specifications were met. Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques," NMB-003 édictée par l'Industrie. Wi-Fi Certification The Wi-Fi CERTIFIED™ Logo is a certification mark of the Wi-Fi Alliance ® . The Aerohive HiveAP 20 ag has been certified for WPA™, WPA2™, WMM ® (Wi-Fi Multimedia™), WMM Power Save, and the following types of EAP (Extensible Authentication Protocol): •EAP-TLS •EAP-TTLS/MSCHAPv2 • PEAPv0/EAP-MSCHAPv2 • PEAPv1/EAP-GTC •EAP-SIM EC Conformance Declaration Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/ EC). This equipment meets the following conformance standards: • EN 60950-1 (IEC 60950-1) - Product Safety • EN 301 893 - Technical requirements for 5 GHz radio equipment • EN 300 328 - Technical requirements for 2.4 GHz radio equipment • EN 301 489-1 / EN 301 489-17 - EMC requirements for radio equipment Countries of Operation and Conditions of Use in the European Community HiveAPs are intended to be operated in all countries of the European Community. Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below. • Before operating a HiveAP, the admin or installer must properly enter the current country of operation in the command line interface as described in "Appendix A Country Codes" on page 189. Note to U.S. model owners: To comply with U.S. FCC regulations, the country selection function has been completely removed from all U.S. models. The above function is for non-U.S. models o…

Text truncated - open the document above for the full version.

© 2010 Aerohive Networks, Inc. All rights reserved. 330033-03 Rev. A Aerohive HiveAP Compliance Information Federal Communication Commission Interference Statement Aerohive products that show an FCC identifier on the product label (FCC ID: WBV-<model_name>) comply with part 15 of the FCC Rules when operating under the following restrictions: (1) they do not cause harmful interference, and (2) they must accept any RF interference received, including interference that might cause an unwanted impact on their operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In compliance with FCC Part 15 regulations, the HiveAP automatically discontinues transmission if there is no valid information to transmit or if there is an operational failure. Important: FCC Regulatory Warnings Notice This equipment is restricted to indoor use due to its operation in 5 GHz frequencies, which are shared by mobile satellite systems and government radar systems. The FCC requires that this product only be used indoors to reduce the potential for harmful interference with co- channel radar that might be operating in the 5.25-5.35 or 5.47-5.725 GHz frequency ranges in the same area. The conflicting activity of radar stations and this device can cause interference or damage to each other. In addition, this device has a radar detection function that might interrupt normal operations when it detects a radar signal. To reduce the risk of interference even further, installing this device away from windows is recommended. This equipment complies with the FCC DFS (Dynamic Frequency Selection) rules documented in FCC 06-96 and KDB 443999. The 5 GHz radio uses channels 36 to 48 (5.180 to 5.240 GHz) and channels 149 to 165 (5.725 to 5.825 GHz), as well as channels within the DFS operating frequency ranges: 52 to 64 (5.25 to 5.35 GHz), 100 to 116 (5.47 to 5.59 GHz), and 132 to 140 (5.66 to 5.725 GHz). The frequency range 5.6 - 5.65 GHz is excluded from use. The maximum transmit power for channels from 36 to 48 is 15 dBm in the FCC region. Because this maximum is enforced by HiveOS, the HiveAP automatically limits the power to 15 dBm even if the setting is greater than that. The FCC region code is set in the device during the manufacturing process, the option to set it to any region other than FCC is disabled, and the country code selection function has been completely removed from all U.S. models. It is impossible for the end user to change the region to anything other than FCC. Only attach antennas that are certified for use with this device. Replacing antennas with unauthorized, high-gain antennas greatly increases the risk of interference and invalidates the FCC certification. The use of any devices not approved by the FCC is illegal. Industry Canada Note: The term "IC" before the radio certification number signifies that Industry Canada technical specifications were met. Products that show an Industry Canada identifier on the product label (IC: 7774A-<model_name>) can be operated in Canada under the following restrictions: • The device must not cause interference and must accept any interference, including that which might cause an unwanted impact on the operation of the device. • To reduce potential radio interference to other users, the antenna type and its gain must be chosen so that the EIRP (equivalent isotropically radiated power) is not more than that permitted for successful communication. • The use of the Unlicensed National Informational Infrastructure (UNII) band UNII-1 (5.15-5.25 GHz; channels 36-48) must be limited to indoor deployments to reduce the potential for harmful interference with co-channel mobile satellite systems. • The maximum permitted antenna gain for operation in the UNII-2 band (5.25-5.35 GHz; channels 52-64) and UNII-2 Extended band (5.47-5.725 GHz; channels 100-116, 132-140) must comply with the EIRP limit. • The maximum permitted antenna gain for operation in the UNII-3 band (5.725-5.825 GHz; channels 149-165) must comply with EIRP limits specified for point-to-point and non point-to-point operation as stated in the Industry Canada Radio Standards Specification RSS-210, section A9.2(3). • High-power radar systems are allocated as primary users for the 5.25-5.35 GHz bands (channels 52-64) and 5.65-5.85 GHz bands (channels 132-165) with priority to use them. These systems can cause interference to and possibly damage HiveAP devices. Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the inte…

Text truncated - open the document above for the full version.

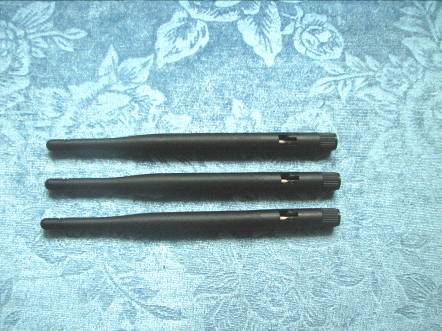

Wireless External Dual-Band Antenna for 5.15 GHz & 5.85 GHz Applications Pulse P art Number: W1028 Features - High frequency and hi gh gain antenna - For WLAN devices using WiFi (802.11a) and ISM 5.8 GHz band - Omni-directional radiation pattern provides broad 360° coverage - One-quarter wavelength dipole config uratio n - Connection and color options easily integrate with OEM design Color Options - Black* - Gray (Pantone cool gr ay 8C) Connector Options - R everse SMA (Male)* - SMA (Male) * Default Configuration – Please contact Pulse Applications Engineering for assistance in ordering colors and connectors Blac k Frequency [GHz] VSWRElec trical Length Impedance [Nom] Color 5.15 – 5.85 ≤ 1.91/4, dipole50 Ω Electrical Specifications @ 25 ºC Note: This part number is lead-f ree and RoHS compliant. No additional suffix or identifier is required. Gain [dBi] 2.0 Radia tion Omni Polarization Vertical Antenna Part N o. W1028 W1028 Datasheet Version 1.0. October 2006 Weight... ..........................................................12.9 grams Carton...... ............................... ....... ......2 0/bag; 500/carton Dimensions: Unless otherwise specified, all tolerances are ± Inches mm .010 0.25 Pulse Antennas Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax:+358 207 935 501 www.pulseeng.com/antennas External Antennas Sales Contacts USA858 674 8100 UK44 1483 401 700 France33 3 84 35 04 04 Singapore65 6287 8998 Shanghai86 21 32181071 China86 769 5538070 Taiwan886 2 26980228 © 2006 All Rig hts Reserved. Wireless External Dual-Band Antenna for 5.15 GHz & 5.85 GHz Applications Pulse P art Number: W1028 © 2006 All Rig hts Reserved. Vert ical Position Horizontal Position Gain Performance W1028 Application Notes Omni-dire ctional antennas provide a uniform, donut-shaped, 360° radiation pattern. The omni-directional pattern is suitable for point-to-multipoint broadcasting in all directions. This antenna is primarily used for WLAN applications. However, it can also be used for a variety of other applications within the specified frequency range. When used as an access point, the antenna is ideally located at the center of the coverage area. W1028 Datasheet Version 1.0. October 2006 Pulse Antennas Takatie 6 90440 K empele, Finland Tel: +358 207 935 500 Fax:+358 207 935 501 www.pulseeng.com/antennas External Antennas Sale s Contacts USA858 674 8100 UK44 1483 401 700 France33 3 84 35 04 04 Singapore65 6287 8998 Shanghai86 21 32181071 China86 769 5538070 Taiwan886 2 26980228

Aerohive Networks: 330 Gibraltar Drive Sunnyvale, CA United States Tel: 408.510.6100 Fax: 408.510.6199 www.aerohive.com February 9, 2011 FCC Dear Sir: DECLARATION OF DISABLED FREQUENCY RANGE – AEROHIVE HiveAP320, HiveAP340 We, Aerohive Networks, Inc., hereby declare that the product 802.11a/b/g/n access point, MODELs: HiveAP320 and HiveAP340, manufactured by Aerohive Networks, Inc., being submitted to you for DFS approval will be programmed to not operate in WLAN mode : 5600-5650 Mhz. Brand Name Model Name Disabled Frequency Range Aerohive HiveAP 320 ‐ 5600‐5650 Mhz Aerohive HiveAP 340 ‐ 5600‐5650 Mhz This specific frequency range will be disabled for operation in the products. Should you require further clarification, please do not hesitate to contact us. Sincerely, Aerohive Networks, Inc. Name : Serdar Ergene Title : Director, HW Engineering Email : [email protected] Phone : 408‐510‐6159 Fax : 408‐510‐6199

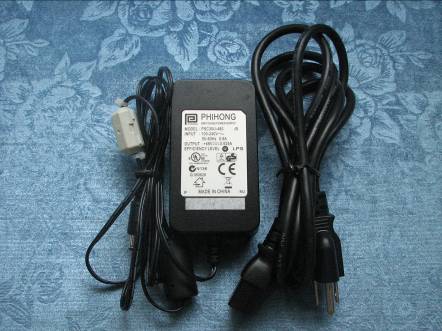

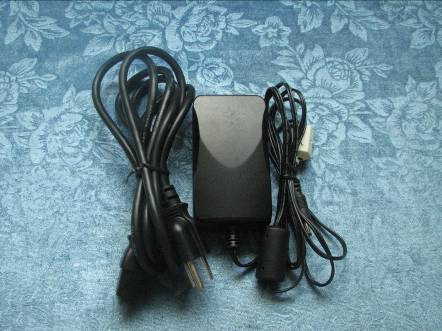

Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Power Supply PSC30U-480

LABEL LOCATION

Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Compliance Certification Services (Kunshan) Inc. Report No.: KS080927A01 FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008

Aerohive Networks: 330 Gibraltar Drive Sunnyvale, CA United States Tel: 408.510.6100 Fax: 408.510.6199 www.aerohive.com December 2, 2010 Subject: WBV-HIVEAP340DFS Response to Correspondance Reference Number: 39267 Dear Sir: Responses to your enquiry are below. User’s Manual for the device is submitted as separate document in e‐filing. 1) Does this device meet the requirements for operation in the 5400 – 5725 MHz band specified in KDB 443999? Answer: Yes it does. 2) Is this an indoor device, outdoor device, or multi‐use device? A multi‐use device can operate in both indoor and outdoor configurations; such device will have to meet all the requirements for outdoor device. Answer: It is an indoor device. 3) Verify that the 5600 – 5650 MHz band is notched. The test report should include 20 dB BW plots for the 5600 and 5650 MHz band edges and an attestation statement that the device does not transmit in the notched band. Answer: The 5600‐5650 is excluded from use. See User’s Manual that has the attestation of exclusion for the band. User’s Manual is submitted as separate document in e‐filing. 4) Verify that this application contains a complete User’s Manual and/or Professional Installers Manual. If the manual is not complete, upload an updated User’s Manual exhibit. Answer: User’s Manual for the product is submitted in e‐filing as separate document 5) Verify that this device meets the uniform channel spreading requirements on the remaining (non‐ notched) channels once the device is in operation. Answer: Operation of the device complies and is detailed in the User’s Manual. Repeated here for convenience: “This equipment complies with the FCC DFS (Dynamic Frequency Selection) rules documented in FCC 06-96 and KDB 443999. The 5 GHz radio uses channels 36 to 48 (5.180 to 5.240 GHz) and channels 149 to 165 (5.725 to 5.825 GHz), as well as channels within the DFS operating frequency ranges: 52 to 64 (5.25 to 5.35 GHz), 100 to 116 (5.47 to 5.59 GHz), and 132 to 140 (5.66 to 5.725 GHz). The frequency range 5.6 - 5.65 GHz is excluded from use. The maximum transmit power for channels from 36 to 48 is 15 dBm in the FCC region. Because this maximum is enforced by HiveOS, the HiveAP automatically limits the Aerohive Networks: 330 Gibraltar Drive Sunnyvale, CA United States Tel: 408.510.6100 Fax: 408.510.6199 www.aerohive.com power to 15 dBm even if the setting is greater than that.” 6) Explain how this device meets the Software Configuration Control requirements of KDB 594280 including country code selection – see draft KDB at (https://fjallfoss.fcc.gov/eas/comments/GetPublishedDocument.html?id=205&tn=511416). If there is any user permitted configuration control, please explain what controls are provided to the user and if any will take the device out of compliance; also explain what prevents the end user from downloading and operating non‐US software. Answer: Operation of the device complies and is detailed in the User’s Manual. Repeated here for convenience: “The FCC region code is set in the device during the manufacturing process, the option to set it to any region other than FCC is disabled, and the country code selection function has been completely removed from all U.S. models. It is impossible for the end user to change the region to anything other than FCC.” Additional questions for outdoor and multi‐use devices: 7) Submit a Letter Exhibit identify the specific expertise and the training required by the professional installers for installing these types of devices. 8) Explain how this device can meet the 30 MHz frequency separation from TDWR (i.e.: Manually blocking frequencies by the professional installer, device notches 5470 ‐5680 MHz, etc.) 9) Does the manual for the installers and operators contain the information on how to register the device with the voluntary industry data base if operating within 35 km of any TDWR site location? Answer: This device is not an outdoor nor multi‐use device and questions 7, 8, 9 do not apply. Best Regards, Serdar Ergene Company : Aerohive Networks, Inc. Name : Serdar Ergene Title : Director, HW Engineering Email : [email protected] Direct Phone : 408‐510‐6159 Main Phone : 408‐510‐6100 Fax : 408‐510‐6199 Address : 330 Gibraltar Avenue : Sunnyvale, CA 94089

Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 301 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 302 Rev. 00 5470~5725MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 303 Rev. 00 CH Mid Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 304 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 305 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 306 Rev. 00 Test mode: draft 802.11n Wide-40 MHz Channel mode / Chain 1: 5150~5250MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 307 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 308 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 309 Rev. 00 5250~5350MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 310 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 311 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 312 Rev. 00 5470~5725MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 313 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 314 Rev. 00 CH Mid Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 315 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 316 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 317 Rev. 00 Test mode: draft 802.11n Wide-40 MHz Channel mode / Chain 2: 5150~5250MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 318 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 319 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 320 Rev. 00 5250~5350MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 321 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 322 Rev. 00 5470~5725MHz Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 323 Rev. 00 CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 324 Rev. 00 CH Mid Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 325 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 326 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 327 Rev. 00 Test mode: draft 802.11n Standard-20 MHz Channel mode / Chain 0+ Chain 1+ Chain 2: 5150~5250MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 328 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 329 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 330 Rev. 00 5250~5350MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 331 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 332 Rev. 00 CH Mid Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 333 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 334 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 335 Rev. 00 5470~5725MHz CH Low Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 336 Rev. 00 CH Mid Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 337 Rev. 00 Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 338 Rev. 00 CH High Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 339 Rev. 00 Test mode: draft 802.11n Wide-40 MHz Channel mode / Chain 0…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 101 Rev. 00 Band Edges (draft 802.11n Standard-20 MHz Channel mode 5500MHz) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 102 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 103 Rev. 00 Band Edges (draft 802.11n Standard-20 MHz Channel mode / 5320MHz) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 104 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 105 Rev. 00 Band Edges (draft 802.11n Standard-20 MHz Channel mode / 5500MHz) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 106 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 107 Rev. 00 Band Edges (draft 802.11n Wide-40 MHz Channel mode / 5310) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 108 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 109 Rev. 00 Band Edges (draft 802.11n Standard-20 MHz Channel mode / 5510MHz) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15, 2008 Page 110 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: KS080927A01-RP FCC ID:WBV-HIVEAP340DFS Date of Issue:December 15,…

Text truncated - open the document above for the full version.
