WIBTZW011Wireless Thermostat

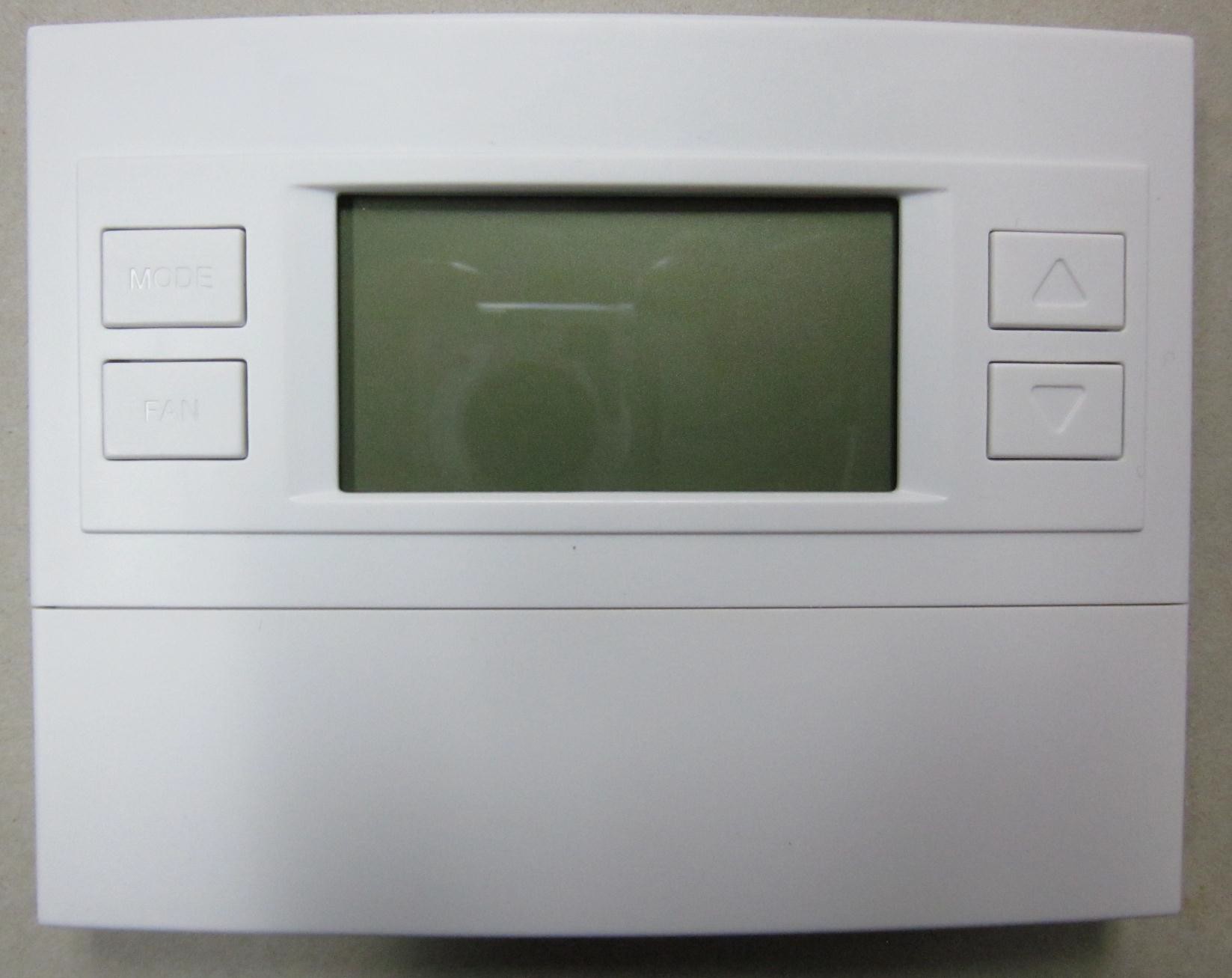

DCN: 141-02071-01 Page 1 Operation Guide Model TBZ48 Z-Wave Thermostat Temperature Setting Warmer Cooler Fan Mode Selection Heating/Cooling Mode Selection Battery Compartment Room Temperature Setpoints Backlite Display Main Thermostat Screen 72H 80C 72H 80C72H 80C 72H 80C RUN 74 OFF AUTO MODE FAN DCN: 141-02071-01 Page 2 Setting the heating or cooling temperature setpoint ! To change the Heat Setpoint you must be in the Heating mode, to change the Cool Setpoint you must be in the Cooling mode. Pressing the Mode button will switch between the Heat and Cool setpoints. Setpoint Push: Note that you cannot lower the cooling setpoint below the heating setpoint. The thermostat will “push” the heating setpoint lower if you try to lower the cooling setpoint below the heating setpoint. It maintains a 3 degree separation between the heating and cooling setpoint. The same is true for raising the heating setpoint above the cooling setpoint. Again the thermostat will “push” the cooling setpoint up to maintain the 3 degree separation. Lower Temperature Raise Temperature Press a button to go to the setpoint change screen Setpoint change screen Press “DONE” button to set the setpoint and exit back to the main thermostat screen or wait for the screen to automatically time out. Press the up or down arrow buttons to set the desired temperature setpoint Pressing the up or down buttons will increment the setpoint 1 degree. Press and hold the button to ramp the setpoint. 72H 80C 72H 80C72H 80C 72H 80C RUN 74 OFF AUTO MODE FAN Set to Set toSet to Set to 72 Heat Done MODE FAN Setpoint being changed DCN: 141-02071-01 Page 3 Setting the System Mode: Off, Heat, Cool, Auto System Modes • Off: System is off. No heating or cooling will come on. If system was on, it will turn off immediately. • Heat: Only heating will occur. • Cool: Only cooling will occur. • Auto: Heating or cooling will come on according to the heating and cooling setpoints. The system will automatically switch between heating and cooling modes as needed to maintain the setpoints. Special Heat Pump Mode: Emergency Heat • Heat-E: An additional system mode, “Heat-E” for Emergency Heat will be displayed if the HVAC system type is set to Heat Pump. If there is a compressor failure with the Heat Pump system, setting the mode to EHEAT will allow the supplemental Aux heat to come on first whenever there is a call for heating. It also disables the compressor output to prevent further damage to the HVAC system. Press Mode button to change system mode 72H 80C 72H 80C72H 80C 72H 80C RUN 74 Off Auto MODE FAN DCN: 141-02071-01 Page 4 Setting Fan Mode System Status Indicators System Operation mode indicator displayed > System is ON and heating displayed > System is ON and cooling blinking > System is ON and heating. Minimum Run Time (MRT) delay off is active. blinking > System is ON and cooling. Minimum Run Time (MRT) delay off is active. Staging display “1” > Stage 1 heating or cooling is ON “2” > Stage 2 heating or cooling is ON “3” > Stage 3 heating is ON For Heat Pump systems only: “Heat-E” > emergency heat mode active Run/Home/Away display Run scheduling feature is enabled Hold scheduling feature is disabled (current setpoints are being used) Away setback mode is active (setback setpoints are being used) Notes 1 and 2: See MOT and MRT descriptions on page 9 Press the Fan button to change the Fan mode • Auto: Fan automatically operated by the HVAC system. • On: Manual Fan mode. Fan stays on until mode is changed back to Auto. 72H 80C 72H 80C72H 80C 72H 80C RUN 74 Off Auto MODE FAN DCN: 141-02071-01 Page 5 Menu Selection Main Menu Items • Setup > Basic thermostat settings • System > Thermostat configuration settings • Time > Clock time • Info > Displays thermostat setup info • ZWave > ZWave installation Setup Menu Items Deg F/C Select which temperature display mode, Fahrenheit (F) or Celsius (C). SensCal Change the temperature calibration by +/- 7 degrees using the + and – buttons Baklite Sets the time from last button press that the backlite will timeout and turn off. The Backlite will turn OFF after the selected time expires. Press and hold Fan button to go to the main menu screen Use the UP/DOWN buttons to select the desired menu item Press SELECT to go to the menu item screen Press DONE to go back to the main thermostat screen 72H 80C 72H 80C72H 80C 72H 80C RUN 74 Off Auto MODE FAN SETUP SETUPSETUP SETUP Select Done MODE FAN DCN: 141-02071-01 Page 6 C Away Away setpoints are used when the thermostat is set to the setback or away mode. H Away Away setpoints are used when the thermostat is set to the setback or away mode. System Menu Items Systype Select the system type, HP for HeatPump, S for Standard (Gas/Elec) CO Select the ChangeOver type (HP systems only), changeover with Heat or Cool Fantype Select Fantype (Gas/Elec only), Gas or Electric ZWave Install This menu item allows you to install or uninstall the thermostat into the ZWave network. Follow the instructions in the ZWave Installation section. Thermostat Info The Thermostat Info screen displays the current configuration of the thermostat. This information is useful for quick check of firmware versions and HVAC system setup. It also shows the ZWave network settings. Thermostat information displayed is: • Version - Firmware version number. • Node ID – ZWave Node ID • Home ID –ZWave Home ID • System Type - Standard or Heat Pump HVAC system • Fan Type – if HVAC type = Standard: Gas or Elect OR • Changeover – if HVAC type = Heat Pump: Changeover with cool or changeover with heat. DCN: 141-02071-01 Page 7 Thermostat Operation Minimum Run Time (MRT) The thermostat has a Minimum Run Time after the start of any heating or cooling call. This minimum run time assures even heating and cooling cycles. The MRT delay will keep the system on even if reaches setpoint or you change the setpoint to a temperature that would satisfy the call, until the MRT expires. Changing the Mode to OFF will cancel the MRT and the sy…

Text truncated - open the document above for the full version.

RCS Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Re: Request of Confidentiality for FCC ID#: __WIBTZW011___ Pursuant to Sections 0.457(d)(I)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Parts List, Operating Description, Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(I)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Dated this _30__(day) of __May_____ (month) 2012 Sincerely, Michael Hoffman VP Engineering Residential Control Systems

RCS May 30, 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID: WIBTZW011 Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 2210 Faraday Ave, STE 150, Carlsbad, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc., still resides with Michael Hoffman, 11481 Sunrise Gold Circle Suite 1 Rancho Cordova, CA 95742 This appointment is in effect until November 30, 2012. Sincerely Michael Hoffman VP Engineering Residential Control Systems Inc.

RC S TBZ48 E x terior Photos Page 1 05/30/12 RC S TBZ48 E x terior Photos Page 2 05/30/12 RC S TBZ48 E x terior Photos Page 3 05/30/12

LABEL REQUIREMENTS RF IC & FCC LABEL LOCATION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement Model:TBZ48 FCC ID: WIBTZW011 IC: 9374A-TBZ48

RCS TBZ48 Product Photos Page 1 05/30/12 RCS TBZ48 Product Photos Page 2 05/30/12 RCS TBZ48 Product Photos Page 3 05/30/12 RCS TBZ48 Product Photos Page 4 05/30/12 RF Module Assembly

Nemko USA, Inc. 2210 Faraday Avenue, Suite 150 Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC Part 15 Subpart C, 15.247 : 05/06/2012 CERTIFICATION TEST REPORT Report Number: 2012 05208168 FCC Project Number: 208168 Nex Number: 208168 Applicant: R ESIDENTIAL CONTROL SYSTEMS 11481 SUNRISE GOLD CIRCLE, STE 1 Rancho Cordova, CA 95742 Equipment Under Test (EUT): WIRELESS THERMOSTAT Model: TBZ48 IC: 9374A-TBZ48 FCC ID: WIBTZW011 In Accordance With: FCC Part 15 Subpart C, 15.249 IC RSS-210 Issue 8 December 2010 IC RSS-Gen Issue 3 December 2010 Tested By: Nemko USA Inc. 2210 Faraday Avenue, Suite 150 Carlsbad, CA 92008 Date: M ONTH 29, 2012 Total Number of Pages: 41 Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: WIBTZW011 Report Number: 2012 05208168 FCC IC: 9374A-TBZ48 Specification: FCC Part 15 Subpart C, 15.249 Page 2 of 25 Applicant Affirmation Michael Hoffman representing Residential Control Systems hereby affirms: a) That he/she has reviewed and concurs that the test shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That all changes (in hardware and software/firmware) to the subject device will be reviewed. d) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving (certifying) the subject equipment. Michael Hoffman Printed name of official Signature of official 11481 Sunrise Gold Circle, Ste 1 Month 29, 2012 ________________________________ _______________________ Address Date 858-486-2331 [email protected] ________________________________ _______________________ Telephone number Email address of official NOTE—This affirmation must be signed by the responsible party before it is submitted to a regulatory body for approval. Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: WIBTZW011 Report Number: 2012 05208168 FCC IC: 9374A-TBZ48 Specification: FCC Part 15 Subpart C, 15.249 Page 3 of 25 Section1: Summary of Test Results 1.1 General All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15; Subpart C and IC RSS-210. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC and IC. The assessment summary is as follows: Apparatus Assessed: Wireless Thermostat Model: TBZ48 Specification: FCC Part 15 Subpart C, 15.249 IC RSS-210 Issue 8 December 2010 Date Received in Laboratory: May 24, 2012 Compliance Status: Complies Exclusions: None Non-compliances: None Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: WIBTZW011 Report Number: 2012 05208168 FCC IC: 9374A-TBZ48 Specification: FCC Part 15 Subpart C, 15.249 Page 4 of 25 1.2 Report Release History Revision Date Comments - Month 29, 2012 Prepared By: Andreas Gillmeier - Month 29, 2012 Initial Release: Alan Laudani Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. TESTED BY: _ _ Date: Month 29, 2012 ANDREAS GILLMEIER, EMC Test Engineer Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: WIBTZW011 Report Number: 2012 05208168 FCC IC: 9374A-TBZ48 Specification: FCC Part 15 Subpart C, 15.249 Page 5 of 25 TABLE OF CONTENTS Applicant Affirmation ................................................................................................. 2 Section1: Summary of Test Results ......................................................................... 3 1.1 General ................................................................................................................................ 3 1.2 Report Release History ........................................................................................................ 4 Section 2: Equipment Under Test ............................................................................. 6 2.1 Product Identification ........................................................................................................... 6 2.2 Theory of Operation ............................................................................................................. 6 2.3 Technical Specifications of the EUT .................................................................................... 6 2.5 Device Interconnection and I/O Cables ............................................................................... 7 Section 3: Test Conditions ........................................................................................ 8 3.1 Specifications ....................................................................................................................... 8 3.3 Test Environment ................................................................................................................. 8 3.4 Test Equipment .........................................…
