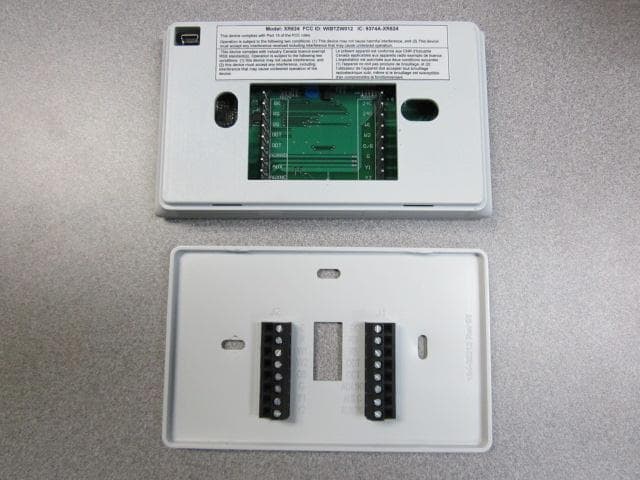

WIBTZW012Wireless Thermostat

Trane Z-Wave Thermostat TCONT624AZ32DAA Installation and Users Instructions DCN: 140-02089 Rev B 3/07/13 Installation This thermostat is compatible with most HVAC systems, including the following:  24VAC systems Note: requires both the R and C wires unless battery powered.  Standard gas/oil/electric heating systems o 1 stage heating and cooling o 2 stage heating and cooling  Heat Pump systems: o 1 stage heating and cooling o 2 stage heating and cooling o 2 nd or 3 rd stage Auxiliary heating (heat strips)  Do NOT use for line voltage controls (120/240VAC) 24VAC Power The thermostat requires both the 24VAC common wire ”C” (typically blue wire) and the 24VAC hot wire, “R” (typically red wire) to operate. If the C wire is not present, an external 24VAC transformer is required. Installation Steps  Remove old thermostat  Install TZ45H  Set up the thermostat for the HVAC system  Install into a Z-Wave network Remove old thermostat  Turn off power. Usually at the heating/cooling system or circuit- breaker panel.  Remove cover of old thermostat to expose the wiring terminals  Take a picture of the wiring terminals!  Mark the wires attached to the terminals with the wiring labels included  Use the terminal labels and not the wiring color to mark the wires  Remove the old thermostat base  Caution. Don’t let the wires slip into the wall. Taking a picture of the old thermostat wiring terminals before you disconnect them is a good idea. If troubleshooting is required, this information will be extremely useful for the technical support contact. If you need to reinstall the old thermostat, the picture will guide the proper reconnection of the wires. Wiring colors. While the wiring terminals markings are intended to match the wire color (R=red, G=green, W=white, Y=yellow), not all installations were correctly installed this way. Be sure to follow the terminal marking when marking the wires, even if the wire color doesn’t match. Mount the thermostat base Mount the thermostat base to the wall using the wall anchors and screws provided. Level as required. Connect the wires – most common connections A) Single Stage Gas Heating & Cooling System. Take a Picture! Typical thermostat connections. * Note: the C wire (24V common) may not be connected on the old thermostat. ** O or B for Heat Pump systems only Mark the wires according to the terminal markings. There may be additional wires. Mark these according to the terminal markings. Y1, Y2, W1, W2, RC, RH *C wire (24VAC common) must be installed. If no C wire is available, an external transformer is required. See page x R G Y 24C 24RH W1 O RS1 RS1 RSC H1 24RC G Y1 Y2 RS2 RS2 RSC HC W C* Y C R W G Y W G R C* O or B ** O/B B) Single Stage Heat Pump System If there are additional wires, see the wiring diagrams on page 4 and 5. Check connections  Check that the wires are screwed into the terminal blocks firmly.  Gently pull on the wires to confirm the connection.  Push all the excess wiring back into the wall. Mount the thermostat Install the thermostat on to the base. Turn on the power at the HVAC system or breaker panel. R G Y 24C 24RH W1 O RS1 RS1 RSC H1 24RC G Y1 Y2 RS2 RS2 RSC HC W C* O/B** Wiring Diagrams Standard Gas/Electric HVAC System Standard HVAC System Thermostat Connection W1 1 R W2 G O/B Y1 Y2 C 24VAC C 24VAC R Heating stage 1 Heating stage 2 Changeover Fan Compressor Stage 1 Compressor Stage 2 PWM Fan Speed Remote Temp Sensor Outdoor Temp Sensor Aux Relay NO Aux Relay NC Thermostat Back Remote Indoor Sensor RS ODT NO ODT C NC BK RS 24VAC C 24VAC R Heating stage 1 W1 Heating stage 2 W2 Fan G Compressor Stage 1 Y1 Compressor Stage 2 Y2 Outdoor Temp Sensor Remote Temp Sensor Aux Relay Com PWM Fan Speed BK Aux Relay Outputs Outdoor Temp Sensor Normally Closed Contact Normally Open Contact Common Wiring Diagrams Heat Pump HVAC System Heat Pump HVAC System Thermostat Connection W1 1 R W2 G O/B Y1 Y2 C 24VAC C 24VAC R Heating stage 1 Heating stage 2 Changeover Fan Compressor Stage 1 Compressor Stage 2 PWM Fan Speed Remote Temp Sensor Outdoor Temp Sensor Aux Relay NO Aux Relay NC Thermostat Back Remote Indoor Sensor RS ODT NO ODT C NC BK RS 24VAC C 24VAC R Heating stage 1 W1 Heating stage 2 W2 Changeover O/B Fan G Compressor Stage 1 Y1 Compressor Stage 2 Y2 Outdoor Temp Sensor Remote Temp Sensor Aux Relay Com PWM Fan Speed BK Aux Relay Outputs Outdoor Temp Sensor Normally Closed Contact Normally Open Contact Common Thermostat Setup The thermostat must be set up to match the HVAC System type and configuration for proper operation. Check the current configuration settings by pressing the Menu button to go to the Menu Selection Screen. Then select the Thermostat Info menu item. Thermostat Info Screen Check the HVAC System Type and Fan Type info displayed. If this matches the HVAC system, no further setup is required. If not, press the Setup button to go the HVAC Mechanical settings menu. Thermostat Setup Select the settings to match the HVAC system: 1. HVAC system type: Gas/Electric or Heat Pump 2. Fan type (for gas/elec systems only): Gas or Electric 3. C/O (changeover valve – for Heat pump systems only) type: w/Cool or w/Heat 4. 2 nd Stage Heat: N if no second stage, Y if yes. 5. Aux Heat (for Heat pump systems only): N if no Aux heat, Y if yes 6. 2 nd Stage Cool: N if no second stage cooling, Y if yes Done Setup TZ45H Ver: 1.02.02 ZVER: 02.16 ZNID: 000 ZHID: 00.00.00.00 System Type: Standard Fan Type: Gas Thermostat Info Status Press the Setup button to go to the HVAC System Mechanical Settings screen Done Type Gas/Elec Fan Type Gas C/O Type w/Cool 2 nd Stage Heat N Mechanical Settings + _ Advanced System Setup – Installer Settings The TZ45H has advanced system setup options. These settings are accessed in the Installer Settings screen on the thermostat. The Installer Settings is a hidden screen. To access it, press the MENU button to switch to the Menu Selection screen. Press and hold the middle two buttons for 5 seconds to switch to the In…
