Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Cover Letter FCC ID: WKZSFDY0502 Data: Nov 26, 2009 We Jiaxing Shufude Electric Bed Co., Ltd. declare that the product Remote Controller (M/N: SFD-Y-05-02) to which this declaration refers will be marked without battery installed. 2009.11.26 [Data] [Name and Signature of person responsible]
4.5VDC-5VDC Freq. Selection Switch Keys RF Module Antenna 2 402.399 - 2437.79 MHz MCU External Crystal 8MHz (or none) Crystal 26MHz Block Diagram
Authority to Act as Agent Date: _2009.11.19_ American Telecommunication Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Audix Technology (Shanghai) Co., Ltd. and 3 F 34 Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China, Mr BYRON KWO is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunication Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________________________ ______ Jinhua Xu _________ (Signature) (Print name) Title: _________ Engineer ___________ On behalf of: _____Jiaxing Shufude Electric Bed Co., Ltd.__ (Company Name) Telephone: _________0573-82572191________

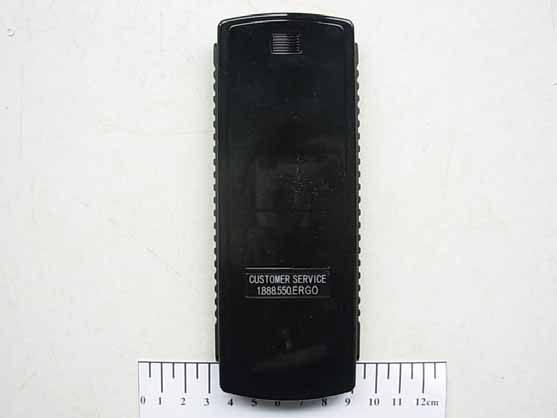

FIGURE 1 REMOTE CONTROLLER (M/N: SFD-Y-05-02) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 R EMOTE CONTROLLER (M/N: SFD-Y-05-02) GENERAL APPEARANCE (BACK VIEW)
SFD FCC ID: WKZSFDY0502 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 32 22 Label Location Information Refer to the below red arrow: (For example)
FIGURE 1 REMOTE CONTROLLER (M/N: SFD-Y-05-02) COVER REMOVED 1 F IGURE 2 REMOTE CONTROLLER (M/N: SFD-Y-05-02) L ABEL FIGURE 3 REMOTE CONTROLLER (M/N: SFD-Y-05-02) 12-DIP SW F IGURE 4 REMOTE CONTROLLER (M/N: SFD-Y-05-02) C OVER REMOVED 2 FIGURE 5 REMOTE CONTROLLER (M/N: SFD-Y-05-02) MAIN BOARD (COMPONENT SIDE) F IGURE 6 REMOTE CONTROLLER (M/N: SFD-Y-05-02) M AIN BOARD (SOLDERED SIDE) FIGURE 7 REMOTE CONTROLLER (M/N: SFD-Y-05-02) RF MODULE F IGURE 8 REMOTE CONTROLLER (M/N: SFD-Y-05-02) RF MODULE REMOVED
Operation Description of Transmitter Operation Frequency: 2402.399 MHz – 2437.79 MHz The above frequencies can be set through the 6-dip SW on the back of the Remote Control f = (26/2 16 ) * (6049476 + i *3 *504) MHz where i = 4, 5, 6, ..., 63 adjust through the 6-dip SW Frequency Channel: Total 60 Channels Modulation Type: MSK or QPSK 500Kbps GFSK or OOK 250Kbps The transmitter is formed by 3 parts: 1).MCU:PIC16F73 and its around circuit 2).RF Module: CC2500 3).Frequency channel selection circuit MCU PIC16F73 parameters of frequency channel, channel spacing and RF power according to frequency selection by users. data is sent to RFSDI,RFSDO,GDO2,GDO0, RFSCK, RFnSEL of RF module from the pins RC3,RB0~RB4 of PIC16F73, PIC1673F sent a control code to control its transmission, Pin XOSC-Q1 and XOSC-Q2 of CC2500 module output time baud rate. 2.4GHz is transmitted is transmitted by antenna. The transmission is stopped once key is released. PIC16F73 controls relevant red LEDs on. RA0 of PIC16F73 connects to the driver of LED indication. 3 red LEDs indicate the time of the 3 relevant vibration. RC4~RC7 connects to the frequency channel selection.
1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 16-Nov-2009 Sheet of File: E:\ 礼恩派 \ 按摩床 \ 电路图 \BedD esi gn\BedD esi gn.dd b Drawn By: R110K Ω K1K4K7 K11 K10 K2K5K8 K3K6K9K12 ROW1ROW2ROW3 COLUMN1COLUMN2COLUMN3 COLUMN1 COLUMN1 COLUMN2 COLUMN2 COLUMN3 COLUMN3 R210K Ω R310K Ω OSCI 9 RST 1 OSCO 10 PA0 2 PA1 3 PA2 4 PA3 5 PA4 6 PA5 7 PC2 13 PC3 14 PB0 21 PB1 22 PB2 23 PB3 24 PB4 25 PB5 26 PB6 27 PB7 28 PC4 15 PC5 16 PC6 17 PC7 18 VDD 20 VSS 19 VSS 8 PC1 12 PC0 11 U1 PIC16F73 VCC C10.1uF RST/VPP INPRO-CLKINPRO-DATLED3ROW1ROW2ROW3 COLUMN1COLUMN2COLUMN3COLUMN4 3X5 按键阵列 LED3 R14470 Ω R11 470 Ω R12 470 Ω R13 470 Ω TXRFSCKRFnSEL Q1 三极管 80 50 R9200 Ω VCC RST/VPPINPRO-DATINPRO-CLK 手控器及在线编程接口部分 床位选择电路 BEDSEL0BEDSEL1 R211M Ω R201M Ω R191M Ω VCC BEDSEL2RFSDIRFSDOGDO0BEDSEL0BEDSEL1 BEDSEL3 TXBEDSEL2 R181M Ω V1 1N4148 V2白光二极管 V3白光二极管 V4白光二极管 V5二极管(蓝)V6二极管(蓝)V7二极管(蓝) R410K Ω COLUMN4 COLUMN4 COLUMN4 R99200 Ω 在线编程 12345 XP4 5 脚单排插针( 2.54 mm 间距) VCCGND R100200K Ω C1000.1uF V8白光二极管 BEDSEL4 BEDSEL5 123456 121110987 S1SW DIP-6 BEDSEL4BEDSEL5 R221M Ω R231M Ω C3 22PF G18MHz C222PF 射频收发模块 RFSDIRFSDORFSCKRFnSEL SI 3 SCLK 4 SO 5 GDO2 6 GDO0 7 CSn 8 CC2500S GND 1 VDD1.9 2 JP1 CC25 00 S 小模块 ( 下帖绝缘纸 , 测试正确后点胶 ) Vin 2 GND 1 Vout 3 JP3 CYT6168CLG(2.5V)/BL8503(2.5V) VCC GDO0
Jiaxing SHUFUDE Electrics Bed Co., Ltd. FCC ID: WKZSFDY0502 Page 1 of 46 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F09105 Prepared For : Jiaxing SHUFUDE Electrics Bed Co., Ltd. East No.07 Provincial Road, Tengyun Village, Wangjiangjing Development Area, Jiaxing, Zhejiang, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3 F 34 Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F09105 Date of Test : Oct. 26 – Nov. 12, 2009 Date of Report : Nov. 13, 2009 Application for FCC Certificate On Behalf of Jiaxing SHUFUDE Electrics Bed Co., Ltd. Remote Controller Model No.: SFD-Y-05-02 Serial No.: E2009102201 FCC ID : WKZSFDY0502 Jiaxing SHUFUDE Electrics Bed Co., Ltd. FCC ID: WKZSFDY0502 Page 2 of 46 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F09105 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Description of Test Facility ........................................................................................................ 6 2.3 Measurement Uncertainty .......................................................................................................... 6 3 RADIATED EMISSION TEST ....................................................................................................... 7 3.1 Test Equipment ........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Radiated Emission Limit [FCC Part 15 Subpart C 15.209] ....................................................... 8 3.4 Test Configuration ...................................................................................................................... 8 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 9 3.7 Test Results .............................................................................................................................. 10 4 FUNDAMENTAL AND HARMONICS EMISSIONS TEST .................................................... 20 4.1 Test Equipment ......................................................................................................................... 20 4.2 Block Diagram of Test Setup ................................................................................................... 20 4.3 Fundamental and Harmonics Emission Limit [FCC Part 15 Subpart C 15.249(a)] ................. 20 4.4 Test Configuration .................................................................................................................... 20 4.5 Operating Condition of EUT .................................................................................................... 21 4.6 Test Procedures ........................................................................................................................ 21 4.7 Test Results .............................................................................................................................. 22 5 BANDWIDTH MEASUREMENT ................................................................................................ 32 5.1 Test Equipment ......................................................................................................................... 32 5.2 Bandwidth Limit [FCC Part 15 Subpart C 15.215(c)] ............................................................. 32 5.3 Test Results .............................................................................................................................. 32 6 BAND-EDGE MEASUREMENT ................................................................................................. 35 6.1 Test Equipment ......................................................................................................................... 35 6.2 Band-Edge Limit [FCC Part 15 Subpart C 15.249(d)] ............................................................. 35 6.3 Test Results .............................................................................................................................. 35 7 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 44 APPENDIX I P LOT OF DUTY CYCLE .................................................................................................... 45 Jiaxing SHUFUDE Electrics Bed Co., Ltd. FCC ID: WKZSFDY0502 Page 3 of 46 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F09105 TEST REPORT FOR FCC CERTIFICATION Applicant : Jiaxing SHUFUDE Electrics Bed Co., Ltd. Manufacturer : Jiaxing SHUFUDE Electrics Bed Co., Ltd.. EUT Description : Remote Controller (A) Model No. : SFD-Y-05-02 (B) Serial No. : E2009102201 (C) Power Supply : DC 4.5V (AAA Battery*3) Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C OCTOBER 2008 AND ANSI C63.4:2003 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits radiated emission. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full r…
Text truncated - open the document above for the full version.
3F 34Bldg 680 Guiping Rd., Caohejing Hi-Tech Park · Shanghai · China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.44 GHz | - |
