WL6-TA1BC30TA1Wireless Motherboard

ELITEGROUP COMPUTER SYSTEMS CO., LTD

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Apr 21, 2014
Application Purpose: Original Equipment
Date of Application: Apr 15, 2014
Equipment Note: Wireless Motherboard
Frequency Range: 2402.00000000 - 2480.00000000
Company: ELITEGROUP COMPUTER SYSTEMS CO., LTD
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

Report No.: 1430325R-RFUSP27V00 Page : 1 of 9 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

ELITEGROUP COMPUTER SYSTEMS CO., LTD. FCC ID.: WL6-TA1BC30TA1 No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan.Tel : 886-2-2299-5668 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Internal Photos

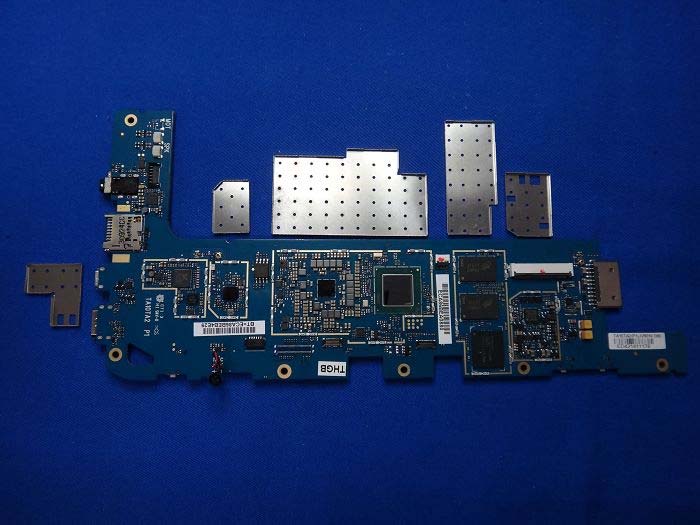

Report No.: 1430325R-RFUSP27V00 Page : 2 of 9 (3) EUT Photo (4) EUT Photo (WLAN+Bluetooth Chip) Report No.: 1430325R-RFUSP27V00 Page : 3 of 9 (5) EUT Photo (6) EUT Photo Report No.: 1430325R-RFUSP27V00 Page : 4 of 9 (7) EUT Photo (8) EUT Photo Report No.: 1430325R-RFUSP27V00 Page : 5 of 9 (9) EUT Photo (10) EUT Photo Report No.: 1430325R-RFUSP27V00 Page : 6 of 9 (11) EUT Photo (12) EUT Photo Report No.: 1430325R-RFUSP27V00 Page : 7 of 9 (13) EUT Photo (14) EUT Photo (Antenna / WGT) Report No.: 1430325R-RFUSP27V00 Page : 8 of 9 (15) EUT Photo (Antenna / WGT) (16) EUT Photo (Antenna / JEM) Report No.: 1430325R-RFUSP27V00 Page : 9 of 9 (17) EUT Photo (Antenna / JEM)

Test Report

Report No. 1430325R-RFUSP03V00-A Page: 1 of 64 FCC Test Report Product Name Wireless Motherboard Model No. TA10TA2 FCC ID. WL6-TA1BC30TA1 Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Date of Receipt Mar. 18, 2014 Issued Date Apr. 02, 2014 Report No. 1430325R-RFUSP03V00-A Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1430325R-RFUSP03V00-A Page: 2 of 64 Test Report Issued Date: Apr. 02, 2014 Report No.: 1430325R-RFUSP03V00-A Product Name Wireless Motherboard Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Manufacturer ELITEGROUP COMPUTER SYSTEMS CO., LTD. Model No. TA10TA2 FCC ID. WL6-TA1BC30TA1 EUT Rated Voltage DC 3.7V (Power by Battery) EUT Test Voltage AC 120V/ 60Hz Trade Name ECS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Documented By : ( Senior Adm. Specialist / Joanne Lin ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Director / Vincent Lin ) Report No. 1430325R-RFUSP03V00-A Page: 3 of 64 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit ......................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................17 4.1. Test Equipment ......................................................................................................................................17 4.2. Test Setup ..............................................................................................................................................17 4.3. Limits.....................................................................................................................................................18 4.4. Test Procedure .......................................................................................................................................19 4.5. Uncertainty ................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 1430325R-RFUSP27V00 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 1430325R-RFUSP27V00 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 1430325R-RFUSP27V00 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Contact Information

Applicant

Tommy Lee(Manager)

[email protected]886-2-2162-1177Fax: 886-2-2659-7568

Technical Contact

QuieTek CorporationMaggie Chen

[email protected]886-2-8601-3788

No.5-22, Rueishu Keng, Linkou Dist., · Taiwan

Non-Technical Contact

QuieTek CorporationMaggie Chen

[email protected]886-2-8601-3788

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD. LinKouMirenda Liao

[email protected]+886-2-2602-7968Fax: +886-2-2602-3286

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	3.90 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antenna's as listed in this application must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.
