Rockchip RK3399K TM M300-W LIVA M300-W COMPUTER USER MANUAL i Preface Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Rockchip is a registered trademark of Rockchip Electronics Co.,Ltd. Other product names used in this manual are the properties of their respective owners and are acknowledged. Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 ii LIVA M300-W COMPUTER USER MANUAL Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and the receiver •Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. LIVA M300-W COMPUTER USER MANUAL iii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: •This device may not cause harmful interference. •This device must accept any interference received, including interference that may cause undesired operation. Electromagnetic compatibility of multimedia equipment - Emission requirements EN 55032 EN 61000-3-2 Electromagnetic Compatibility(EMC) Part 3-2: Limits-Limits for harmonic current emissions (equipment input current 16A per phase) EN 61000-3-3 Electromagnetic Compatibility(EMC) Part 3-3: Limits-Limitation of voltage changes, voltage fluctuations and flicker in public low- voltage supply systems, for equipment with rated current 16A per phase and not subject to conditional connection EN 55024 Information technology equipment-Immunity characteristics-Limits and methods of measurement EN 60950 Safety for information technology equipment including electrical business equipment CE marking ‰ ‰ ‰ ‰ ‰ ‰ This device is in conformity with the following EC/EMC directives: EN 62368 Safety for information technology equipment including electrical business equipment ‰ iv LIVA M300-W COMPUTER USER MANUAL Safety Instructions Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system •Read and follow all instructions in the documentation before you operate your system. •Do not use this product near water or a heated source such as a radiator. •Set up the system on a stable surface. •Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings. •Use this product in environments with ambient temperatures between -10°C and +40°C. •If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating. Attention during use •Do not step on the power cord or let anything rest on top of it. •Do not spill water or any other liquid on your system. •When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system. LIVA M300-W COMPUTER USER MANUAL v •The power cord or plug is damaged. •Liquid has been spilled into the system. •The system does not function properly even if you follow the operating instructions. •The system was dropped or the cabinet is damaged. •The system performance changes. The warranty does not apply to products that have been disassembled by users. CAUTION: 1. To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. 2. Exposure to Radio Frequency Radiation: This equipment comlies with FCC radiation exposure lim- its set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. •If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer. vi LIVA M300-W COMPUTER USER MANUAL Product disposal notice 1. Do not pl…

Text truncated - open the document above for the full version.

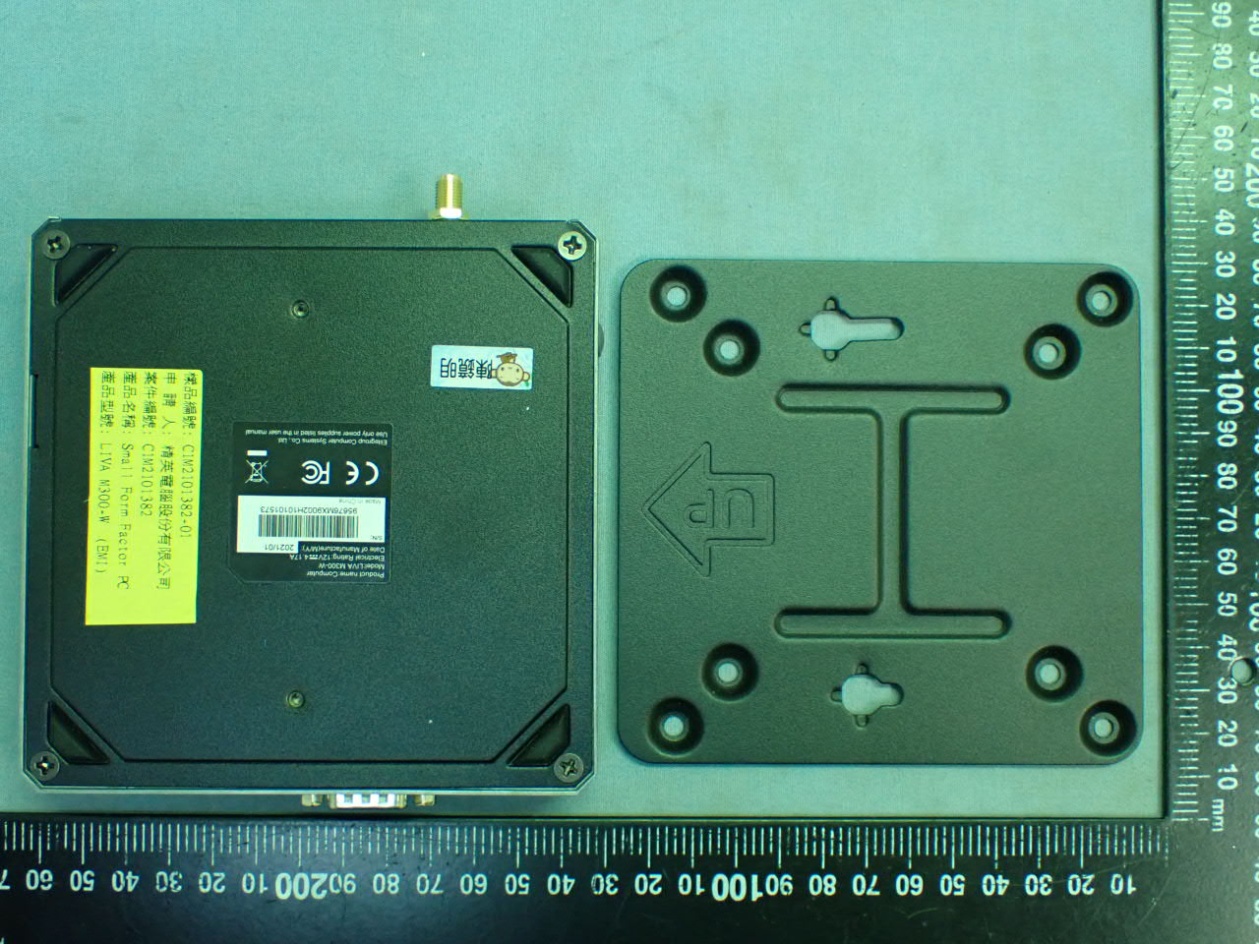

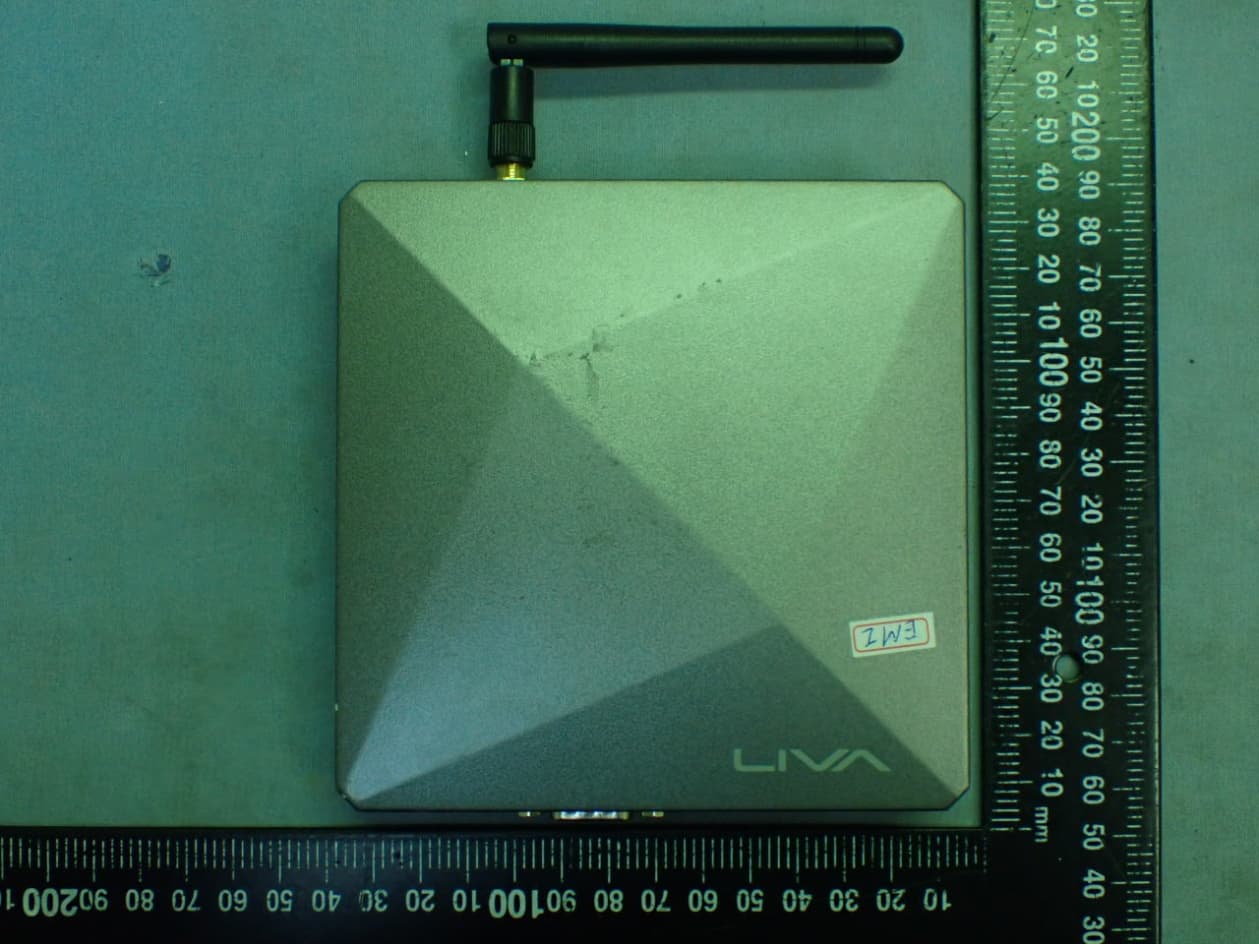

Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W EUT External Photos Figure 1 General Appearance (Top View) Figure 2 General Appearance (Bottom View) Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 3 General Appearance (Side View) Figure 4 General Appearance (Side View) Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 5 General Appearance (Side View) Figure 6 General Appearance (Side View) Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 7 General Appearance (Removed Antenna) Figure 8 General Appearance (Removed VESA Mount)

Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W FCC ID Label Location z FCC ID/IC Label Placement Location FCC ID Label Placement Location (EUT Bottom View) z FCC ID Label Format

Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W EUT Internal Photos Figure 9 Internal View (Removed Cover) Figure 10 Internal View (Removed Cover) Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 11 Mother Board, Front View Figure 12 Mother Board, Back View WLAN Combo Card Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 13 CPU View Figure 14 eMMC (Storage) View Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 15 DRAM View Figure 16 WLAN Combo Card View Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 17 WLAN Combo Card , Front View (Removed Cover) Figure 18 WLAN Combo Card , Back View Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 19 Dipole Antenna, Front View Figure 20 Dipole Antenna, Back View Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 21 AC Adapter, Front View Figure 22 AC Adapter, Back View Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 23 Adapter (Label View) Figure 24 Adapter (AC Inlet View) Elitegroup Computer Systems Co., Ltd. Computer FCC ID. : WL6LIVAM300-W Figure 25 AC Power coed

Maximum Permissive Exposure FCC ID: WL6LIVAM300-W Product Description: Computer Model No: LIVA M300-WXXXX (X=A to Z,a-z,0-9 or blank) 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation Elitegroup Computer Systems Co., Ltd. declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Mode Max Output Power (dBm) Tune-up factor Tune-up max power (dBm) WIFI 2.4G 24.48 1.042 25.5 BT 7.31 1.163 8.5 BLE 3.99 1.128 4.5 **The value presented in the MPE is the maximum tune-up power. 2.1. WIFI 2.4G MPE Based on safety distance (r) 20cm , the antenna gain (G) is 1.884 Numerical, and the highest power output (P) is 354.81mW , the power density (S) is 0.132986mW/cm 2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r) = 20cm Highest Power Output (P) = 25.5dBm = 354.81 mW Antenna Gain (G) = 2.75dBi = 1.884 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = (354.81*1.884)/(4*π*20 2 ) = 0.132986 mW/cm 2 2.2. BT MPE Based on safety distance (r) 20cm , the antenna gain (G) is 1.884 Numerical, and the highest power output (P) is 7.08mW , the power density (S) is 0.002654mW/cm 2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r) = 20cm Highest Power Output (P) = 8.5dBm = 7.08 mW Antenna Gain (G) = 2.75dBi = 1.884 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = (7.08*1.884)/(4*π*20 2 ) = 0.002654 mW/cm 2 2.3. BLE MPE Based on safety distance (r) 20cm , the antenna gain (G) is 1.884 Numerical, and the highest power output (P) is 2.82mW , the power density (S) is 0.001057mW/cm 2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r) = 20cm Highest Power Output (P) = 4.5dBm = 2.82 mW Antenna Gain (G) = 2.75dBi = 1.884 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = (2.82*1.884)/(4*π*20 2 ) = 0.001057 mW/cm 2 Sincerely Yours, Mr. Johnny Hsueh Section Manager AUDIX Technology Corporation

Page 1 of 28 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2101382 Report Number: EM-F210078 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. FCC 15.247 2.4GHz Test Report for Elitegroup Computer Systems Co., Ltd. No. 239, Sec. 2., TiDing Blvd., Taipei, Taiwan 11493 Product Name : Computer Model Name : LIVA M300-WXXXX (X=A to Z,a-z,0-9 or blank) Brand : LIVA FCC ID : WL6LIVAM300-W Prepared by: : AUDIX Technology Corporation, EMC Department The test report is based on a single evaluation of one sample of the above-mentioned products. It does notimply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Page 2 of 28 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2101382 Report Number: EM-F210078 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 4 1. REVISION RECORD OF TEST REPORT ............................................................................ 5 2. SUMMARY OF TEST RESULTS ........................................................................................... 6 3. GENERAL INFORMATION ................................................................................................... 7 3.1. Description of Application .............................................................................................................. 7 3.2. Description of EUT ......................................................................................................................... 7 3.3. Reference Test Guidance ................................................................................................................. 8 3.4. Antenna Information ....................................................................................................................... 8 3.5. EUT Specifications Assessed in Current Report ............................................................................. 8 3.6. Descriptions of Key Components .................................................................................................... 9 3.7. Test Configuration ......................................................................................................................... 10 3.8. Output Power Setting .................................................................................................................... 10 3.9. Tested Supporting System List ...................................................................................................... 11 3.10. Setup Configuration ....................................................................................................................... 11 3.11. Operating Condition of EUT ......................................................................................................... 11 3.12. Description of Test Facility ........................................................................................................... 12 3.13. Measurement Uncertainty ............................................................................................................. 13 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 14 4.1. Conducted Emission Measurement ............................................................................................... 14 4.2. Radiated Emission Measurement .................................................................................................. 14 4.3. RF Conducted Measurement ......................................................................................................... 15 5. CONDUCTED EMISSION ..................................................................................................... 16 5.1. Block Diagram of Test Setup ........................................................................................................ 16 5.2. Conducted Emission Limit ............................................................................................................ 16 5.3. Test Procedure ............................................................................................................................... 16 5.4. Test Results ................................................................................................................................... 16 6. RADIATED EMISSION ......................................................................................................... 17 6.1. Block Diagram of Test Setup ........................................................................................................ 17 6.2. Radiated Emission Limits .............................................................................................................. 19 6.3. Test Procedure ............................................................................................................................... 20 6.4. Measurement Result Explanation .................................................................................................. 21 6.5. Test Results ................................................................................................................................... 21 7. 20dB/OCCUPIED BANDWIDTH ...............................................…

Text truncated - open the document above for the full version.

APPENDIX B-Page 1 of 3 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2101382 Report Number: EM-F210077, EM-F210078 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.1 Conducted Emission Measurement FRONT VIEW BACK VIEW APPENDIX B-Page 2 of 3 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2101382 Report Number: EM-F210077, EM-F210078 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.2 Radiated Measurement at Chamber Frequency Below to 1GHz Frequency Above to 1GHz APPENDIX B-Page 3 of 3 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2101382 Report Number: EM-F210077, EM-F210078 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.3 RF Conducted Measurement
