WL6-TABC8TA1Wireless Motherboard

TA80TA1 Motherboard Guide 1 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encou raged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un desired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm 2 from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: WL6 -TABC8TA1” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This radio transmitter FCC ID: WL6 -TABC8TA1 has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna List No. Manufacturer Pa rt No. Antenna Type Peak Gain 1 JEM 13H130- JV8070 PCB Antenna 2.85 dBi for 2.4GHz 2 WGT 13H130- JV8050 PCB Antenna 1.77 dBi for 2.4GHz Note: The antenna connector is I-PEX type. 3 Motherboard layout Main components No. Name No. Name A Charger IC D WiF i/BT IC B CPU+PMIC+DDR+ EMMC+CODEC E Rear facing camera C GPS IC F Microphone 4 System connectors No. Name No. Name 1 Battery Connector 5 Speaker Connectors 2 LCD Connector 6 Side Key FPC Connector 3 GPS Antenna Connector 7 TP Connector 4 WiFi Antenna Connector I/O Ports 5 No. Name No. Name 1 Ultrastick Connector 4 T-Flash Connector 2 Micro USB Connector 5 Mini HDMI port 3 Audio Jack 6 Features Processor  IntelBayTrail-TZ3735E  Quad core  Base 1.33 GHz, Burst to 1.83GHz, 2MB L2 Cache Me mory  DDR3L-RS 1333, 1 x 32-bits  1GB (Default) / 2GB (Optional) Graphics  Intel HD Graphics (Gen 7 gfx)  Max resolution upto1280x800 Storage  Single eMMC v4.5.1  Default 16 GB Wireless  Wi -Fi 802.11 b/g/n  Bluetooth 3.0 w/o high speed supported Display  MIPI interface  Support 10-point multi-touch Cameras Control  FrontCamera:2.0M  Rear Camera:5.0M Antenna  802.11b/g,n, BT: 2.4GHz; GPS 7 Input/Output  1 x MicroUSB 2.0, OTG port (Type A/B)  1 x Mic/head phone jack combo (American type)  1 x Micro HDMI 1.4  1 x Micro SD card slot (Support 128M -32G TF Card)  1 x Analog MIC Speaker & Mic  Build -in Speaker x 2  Internal Analog MIC x 1

ELITEGROUP COMPUTER SYSTEMS CO., LTD. No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan TEL No: +886-2-2161-1177 FAX No: +886-2-2299-1694 Attestation for FCC Declaration of Conformity FCC ID: WL6-TABC8TA1 Data: Fed. 21, 2014 Please be notified that we, the undersigned, ELITEGROUP COMPUTER SYSTEMS CO., LTD. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 1420141R- ITUSP01V00. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Welan Chen / Manager ELITEGROUP COMPUTER SYSTEMS CO., LTD. TEL No: +886-2-2161-1177 FAX No.: +886-2-2299-1694 Email: [email protected]

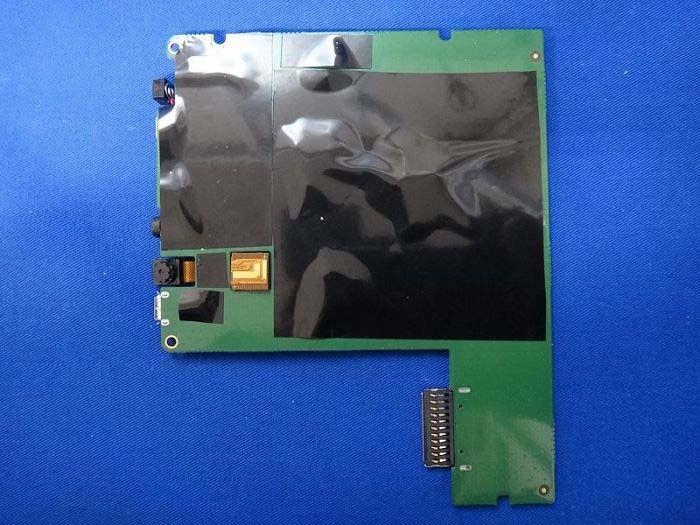

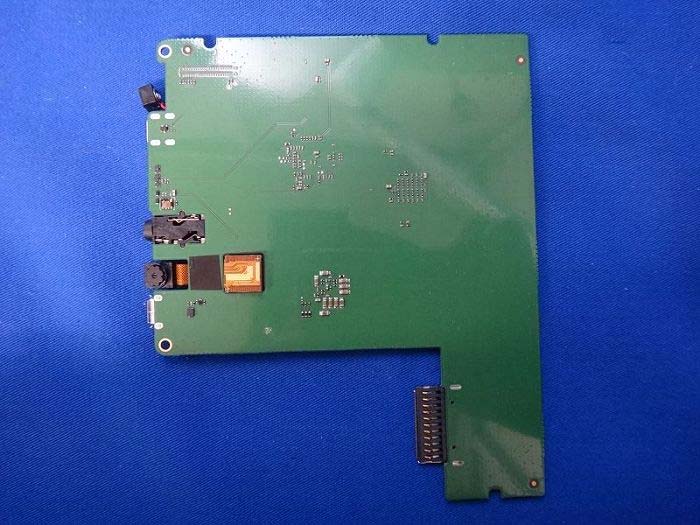

Report No.: 1420141R-RFUSP73V00 Page : 1 of 2 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1420141R-RFUSP73V00 Page : 2 of 2 (3) EUT Photo

ELITEGROUP COMPUTER SYSTEMS CO., LTD. FCC ID.: WL6-TABC8TA1 No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan.Tel : +886-2-2161-1177 FCC ID Label

ELITEGROUP COMPUTER SYSTEMS CO., LTD. FCC ID.: WL6-TABC8TA1 No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan.Tel : +886-2-2161-1177 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 1420141R-RFUSP73V00 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (4) EUT Photo (5) EUT Photo Report No.: 1420141R-RFUSP73V00 Page : 2 of 8 (6) EUT Photo (7) EUT Photo Report No.: 1420141R-RFUSP73V00 Page : 3 of 8 (8) EUT Photo (9) EUT Photo WLAN+Bluetooth IC GPS IC Report No.: 1420141R-RFUSP73V00 Page : 4 of 8 (10) EUT Photo (11) EUT Photo Report No.: 1420141R-RFUSP73V00 Page : 5 of 8 (12) EUT Photo (13) EUT Photo (GPS Antenna) (JEM) Report No.: 1420141R-RFUSP73V00 Page : 6 of 8 (14) EUT Photo (GPS Antenna) (JEM) (15) EUT Photo (WLAN+Bluetooth Antenna) (JEM) Report No.: 1420141R-RFUSP73V00 Page : 7 of 8 (16) EUT Photo (WLAN+Bluetooth Antenna) (JEM) (17) EUT Photo (WLAN+Bluetooth Antenna) (WGT) Report No.: 1420141R-RFUSP73V00 Page : 8 of 8 (18) EUT Photo (GPS Antenna) (WGT)

Report No. 1420141R-RFUSP73V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Wireless Motherboard Model No. TA80TA1 FCC ID WL6-TABC8TA1 Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Date of Receipt Feb. 12, 2014 Date of Declaration Feb. 26, 2014 Report No. 1420141R-RFUSP73V00 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF any agency of the U.S. Government Report No. 1420141R-RFUSP73V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1420141R-RFUSP73V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Wireless Motherboard Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 2412-2462MHz Maximum Conducted output power 24.36dBm Antenna gain 2.85dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 272.8978 0.104648 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 1420141R-RFUSP73V00 Page : 1 of 75 FCC Test Report Product Name Wireless Motherboard Model No TA80TA1 FCC ID. WL6-TABC8TA1 Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Date of Receipt Feb. 12, 2014 Issue Date Feb. 26, 2014 Report No. 1420141R-RFUSP73V00 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government. Report No. 1420141R-RFUSP73V00 Page : 2 of 75 Test Report Certification Issue Date: Feb. 26, 2014 Report No.: 1420141R-RFUSP73V00 Product Name Wireless Motherboard Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Manufacturer ELITEGROUP COMPUTER SYSTEMS CO., LTD. Model No. TA80TA1 FCC ID. WL6-TABC8TA1 EUT Rated Voltage DC 3.7V (Power by Battery) EUT Test Voltage AC 120V/60Hz Trade Name ECS Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.10: 2009, KDB 558074 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government. Documented By : ( Senior Adm. Specialist / Joanne Lin ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Director / Vincent Lin ) Report No. 1420141R-RFUSP73V00 Page : 3 of 75 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................34 5.1. Test Equipment............................................................................................................................34 5.2. Test Setup .....…
