FCC ID: WL6-TLBC1IE1 Report No.: RF131218D10 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 14, 2014 Dear Application Examiner, Elitegroup Computer Systems Co., Ltd, It’s a Wireless Motherboard, FCC ID: WL6-TLBC1IE1 would like to have your authorization as a modular approval for mobile and portable usage. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip SDIN8DE4. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BD2610GW. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Rex Lai / Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

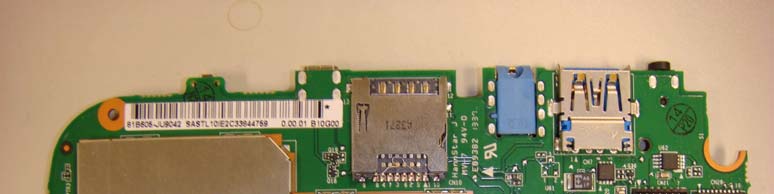

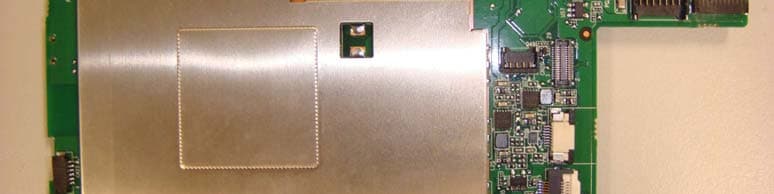

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 2

Report No.: SA131218D10 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131218D10 MODEL NO.: TL10IE1, TL10IE2, TL10Ixy FCC ID: WL6-TLBC1IE1 RECEIVED: Dec. 18, 2013 TESTED: Jan. 8 ~ 17, 2014 ISSUED: Jan. 27, 2014 APPLICANT: Elitegroup Computer Systems Co., Ltd ADDRESS: No. 239, Ti Ding Blvd., Sec. 2, Taipei, Taiwan 11493 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA131218D10 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION ........................................................................................... 4 2. RF EXPOSURE LIMIT .................................................................................. 5 3. MPE CALCULATION FORMULA .................................................................. 5 4. CLASSIFICATION ......................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ............... 6 Report No.: SA131218D10 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131218D10 Original release Jan. 27, 2014 Report No.: SA131218D10 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Wireless Motherboard BRAND NAME: ECS ELITEGROUP MODEL NO.: TL10IE1, TL10IE2, TL10Ixy (x=0~9, A~Z or blank or "-";y=0~9, A~Z or blank or "-") APPLICANT: Elitegroup Computer Systems Co., Ltd TESTED: Jan. 8 ~ 17, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment has (model no.: TL10IE2) been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Jan. 27, 2014 ( Annie Chang / Supervisor ) APPROVED BY : , DATE:Jan. 27, 2014 ( Rex Lai / Assistant Manager ) Report No.: SA131218D10 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131218D10 6 of 6 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 ~ 2462 22.89 2.51 20 0.0690 1.00 5180 ~ 5320 13.14 1.66 20 0.0060 1.00 5500 ~ 5700 12.86 1.66 20 0.0056 1.00 5745 ~ 5825 20.88 0.89 20 0.0299 1.00 2402 ~ 2480 (Bluetooth EDR) 5.39 2.51 20 0.0012 1.00 2402 ~ 2480 (Bluetooth LE4.0) 5.03 2.51 20 0.0011 1.00 CONCULSION: Both of the modules can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN (2.4G) + BLUETOOTH =0.0690/1 + 0.0012/1 = 0.0702 2. WLAN (5.0G) + BLUETOOTH = 0.0299/1 + 0.0012/1 = 0.0311 Therefore, the maximum calculation of this situation is 0.1013, which is less than the “1” limit. --- END ---

Report No.: RF131218D10-2 1 of 23 Report Format Version 5.0.0 DFS TEST REPORT REPORT NO.: RF131218D10-2 MODEL NO.: TL10IE1, TL10IE2, TL10Ixy FCC ID: WL6-TLBC1IE1 RECEIVED: Dec. 18, 2013 TESTED: Feb. 12, 2014 ISSUED: Feb. 13, 2014 APPLICANT: Elitegroup Computer Systems Co., Ltd ADDRESS: No. 239, Ti Ding Blvd., Sec. 2, Taipei, Taiwan 11493 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF131218D10-2 2 of 23 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................ 3 1 CERTIFICATION ...................................................................................... 4 2 EUT INFORMATION ................................................................................ 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT ..................... 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ....................................... 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT .................... 5 2.4 EUT MAXIMUM AND MINIMUM CONDUCTED POWER ........................ 6 2.5 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER ................................... 7 2.6 TRANSMIT POWER CONTROL (TPC) ................................................... 8 2.7 STATEMENT OF MAUNFACTURER ....................................................... 8 3 U-NII DFS RULE REQUIREMENTS ........................................................ 9 3.1 WORKING MODES AND REQUIRED TEST ITEMS ............................... 9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ............................ 10 4 TEST & SUPPORT EQUIPMENT LIST ................................................. 12 4.1 TEST INSTRUMENTS ........................................................................... 12 4.2 DESCRIPTION OF SUPPORT UNITS .................................................. 12 5 TEST PROCEDURE .............................................................................. 13 5.1 ADT DFS MEASUREMENT SYSTEM: .................................................. 13 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: ............... 14 5.3 DEVIATION FROM TEST STANDARD .................................................. 14 5.4 RADIATED TEST SETUP CONFIGURATION ....................................... 15 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .................................. 15 6 TEST RESULTS .................................................................................... 16 6.1 SUMMARY OF TEST RESULTS ........................................................... 16 6.2 TEST RESULTS .................................................................................... 17 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. .............................................................................. 17 6.2.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME . 18 6.2.3 NON- OCCUPANCY PERIOD ............................................................... 20 6.2.4 NON-ASSOCIATED TEST ..................................................................... 22 6.2.5 NON- CO-CHANNEL TEST ................................................................... 22 7 INFORMATION ON THE TESTING LABORATORIES ........................... 23 Report No.: RF131218D10-2 3 of 23 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF131218D10-2 Original release Feb. 13, 2014 Report No.: RF131218D10-2 4 of 23 Report Format Version 5.0.0 1 CERTIFICATION PRODUCT: Wireless Motherboard MODEL: TL10IE1, TL10IE2, TL10Ixy (x=0~9, A~Z or blank or "-";y=0~9, A~Z or blank or "-") BRAND: ECS ELITEGROUP APPLICANT: Elitegroup Computer Systems Co., Ltd TEST SAMPLE: ENGINEERING SAMPLE TESTED: Feb. 12, 2014 STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (Model: TL10IE2) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Feb. 13, 2014 ( Annie Chang / Supervisor ) APPROVED BY : , DATE:Feb. 13, 2014 ( Rex Lai / Assistant Manager ) Report No.: RF131218D10-2 5 of 2…

Text truncated - open the document above for the full version.

Report No.: RF131218D10-1 1 of 68 Report Format Version 5.2.0 FCC TEST REPORT (WLAN 15.407) REPORT NO.: RF131218D10-1 MODEL NO.: TL10IE1, TL10IE2, TL10Ixy FCC ID: WL6-TLBC1IE1 RECEIVED: Dec. 18, 2013 TESTED: Jan. 8 ~ 17, 2014 ISSUED: Jan. 27, 2014 APPLICANT: Elitegroup Computer Systems Co., Ltd ADDRESS: No. 239, Ti Ding Blvd., Sec. 2, Taipei, Taiwan 11493 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RF131218D10-1 2 of 68 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................. 4 1. CERTIFICATION ............................................................................................... 5 2. SUMMARY OF TEST RESULTS ....................................................................... 6 2.1 MEASUREMENT UNCERTAINTY .................................................................... 6 3. GENERAL INFORMATION ............................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ................................................................. 7 3.2 DESCRIPTION OF TEST MODES ................................................................... 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................. 10 3.3 DUTY CYCLE OF TEST SIGNAL ................................................................... 12 3.4 DESCRIPTION OF SUPPORT UNITS ............................................................ 15 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ............................................. 15 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................. 15 4. TEST TYPES AND RESULTS ......................................................................... 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................... 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ....... 17 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ... 17 4.1.3 TEST INSTRUMENTS .................................................................................... 18 4.1.4 TEST PROCEDURES ..................................................................................... 19 4.1.5 DEVIATION FROM TEST STANDARD ........................................................... 19 4.1.6 TEST SETUP .................................................................................................. 20 4.1.7 EUT OPERATING CONDITION ...................................................................... 20 4.1.8 TEST RESULTS .............................................................................................. 21 4.2 CONDUCTED EMISSION MEASUREMENT .................................................. 47 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................... 47 4.2.2 TEST INSTRUMENTS .................................................................................... 47 4.2.3 TEST PROCEDURES ..................................................................................... 48 4.2.4 DEVIATION FROM TEST STANDARD ........................................................... 48 4.2.5 TEST SETUP .................................................................................................. 48 4.2.6 EUT OPERATING CONDITIONS .................................................................... 48 4.2.7 TEST RESULTS .............................................................................................. 49 4.3 PEAK TRANSMIT POWER MEASUREMENT ................................................ 51 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ............................. 51 4.3.2 TEST SETUP .................................................................................................. 51 4.3.3 TEST INSTRUMENTS .................................................................................... 52 4.3.4 TEST PROCEDURE ....................................................................................... 52 4.3.5 DEVIATION FROM TEST STANDARD ........................................................... 52 4.3.6 EUT OPERATING CONDITIONS .................................................................... 52 4.3.7 TEST RESULTS .............................................................................................. 53 4.4 PEAK POWER SPECTRAL DENSITY MEASUREMENT ............................... 58 4.4.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT ............ 58 4.4.2 TEST SETUP ....…

Text truncated - open the document above for the full version.

1 of 4 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 of 4 RADIATED EMISSION TEST 3 of 4 RADIATED EMISSION TEST 4 of 4 DFS TEST Master UUT Receiver Antenna to S.A.
