WL6-TRBC41CD1Wireless Motherboard

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 2 CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. 3 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: WL6-TRBC41CD1 ” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This radio transmitter FCC ID: WL6-TRBC41CD1 has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. 4 Antenna List No. Manufacturer Part No. Antenna Type Peak Gain WGT 13H130-JV1050 PIFA Antenna(Main) 1.65 dBi For 2.4GHz 2.36 dBi For 5.15~5.35GHz 1.78 dBi For 5.47~5.725GHz 1.78 dBi For 5.725~5.850GHz 1 Pulse 02H475-006500 Chip Antenna (Aux) 3.2 dBi For 2.4GHz 4.2 dBi For 5.15~5.35GHz 4.2 dBi For 5.47~5.725GHz 4.2 dBi For 5.725~5.850GHz JEM 13H130-JV1070 PIFA Antenna (Main) 1.77 dBi For 2.4GHz 1.55 dBi For 5.15~5.35GHz -0.56 dBi For 5.47~5.725GHz -0.14 dBi For 5.725~5.850GHz 2 Pulse 02H475-006500 Chip Antenna (Aux) 3.2 dBi For 2.4GHz 4.2 dBi For 5.15~5.35GHz 4.2 dBi For 5.47~5.725GHz 4.2 dBi For 5.725~5.850GHz Note: The antenna connector is I-PEX type. 5 Motherboard Layout Main components No. Name No.Name A CPU+PMIC+DDR E TPM B EMMC+Audio Codec F Microphone C Microphone D Rear facing camera 6 System connectors No. Name No.Name 1 Power key connector5 LCD Connector 2 Front camera connector 6 Touch panel connector 3 Battery Connector 7 Speaker Connectors 4 Volumkey connector 7 I/O Ports No. Name No.Name 1 Micro USB port 4 Headphone plug 2 Mini HDMI port 5 DC-in jack 3 Micro SD card slot

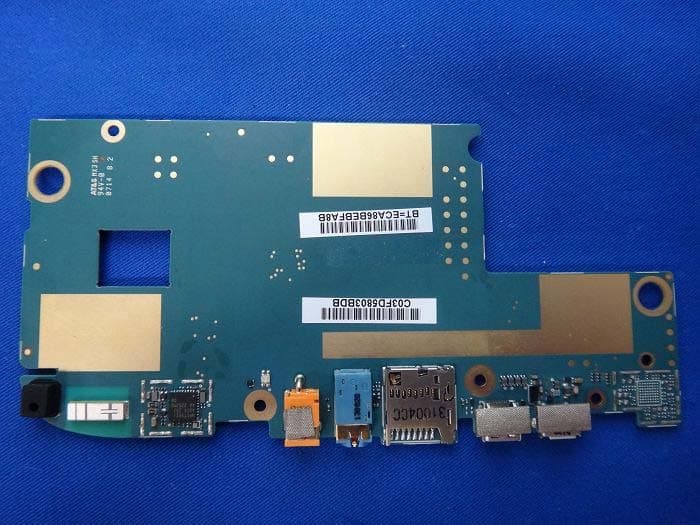

Report No.: 1430152R-RFUSP27V00 Page : 1 of 10 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ELITEGROUP COMPUTER SYSTEMS CO., LTD. FCC ID.: WL6-TRBC41CD1 No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan.Tel : 886-2-2299-5668 FCC ID Label

ELITEGROUP COMPUTER SYSTEMS CO., LTD. FCC ID.: WL6-TRBC41CD1 No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan.Tel : 886-2-2299-5668 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 1430152R-RFUSP27V00 Page : 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 1430152R-RFUSP27V00 Page : 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 1430152R-RFUSP27V00 Page : 4 of 10 (7) EUT Photo (8) EUT Photo (WLAN+BT IC) Main Port Aux Port Report No.: 1430152R-RFUSP27V00 Page : 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 1430152R-RFUSP27V00 Page : 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 1430152R-RFUSP27V00 Page : 7 of 10 (13) EUT Photo (14) EUT Photo (Aux Antenna-Chip) Report No.: 1430152R-RFUSP27V00 Page : 8 of 10 (15) EUT Photo (WGT / Main Antenna-PIFA) (16) EUT Photo (WGT / Main Antenna-PIFA) Report No.: 1430152R-RFUSP27V00 Page : 9 of 10 (17) EUT Photo (JEM / Main Antenna-PIFA) (18) EUT Photo (JEM / Main Antenna-PIFA) Report No.: 1430152R-RFUSP27V00 Page : 10 of 10 (19) EUT Photo

Report No. 1430152R-RFUSP27V00 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless Motherboard Model No. : TR10CD3 FCC ID : WL6-TRBC41CD1 Applicant : ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address : No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Date of Receipt : Mar. 07, 2014 Date of Declaration: Apr. 11, 2014 Report No. : 1430152R-RFUSP27V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1430152R-RFUSP27V00 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1430152R-RFUSP27V00 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless Motherboard Test Item : RF Exposure Evaluation Test Site : No.3 OATS WLAN: Operation Frequency 2412~2462MHz, 5180-5850MHz Maximum Conducted output power 25.91dBm Antenna gain 5.99dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 389.9420 0.308128 Power density in column 4 is much lower than the limit (1 mW/cm2). BT: Operation Frequency 2402-2480MHz Maximum Conducted output power 7.23dBm Antenna gain 3.2dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 5.2845 0.002196 Power density is lower than the limit (1 mW/cm2).

Report No. 1430152R-RFUSP03V00-B Page: 1 of 64 FCC Test Report Product Name Wireless Motherboard Model No. TR10CD3 FCC ID. WL6-TRBC41CD1 Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Date of Receipt Mar. 07, 2014 Issued Date Apr. 11, 2014 Report No. 1430152R-RFUSP03V00-B Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1430152R-RFUSP03V00-B Page: 2 of 64 Test Report Issued Date: Apr. 11, 2014 Report No.: 1430152R-RFUSP03V00-B Product Name Wireless Motherboard Applicant ELITEGROUP COMPUTER SYSTEMS CO., LTD. Address No.239, Sec. 2, Ti Ding Blvd., Taipei, Taiwan Manufacturer ELITEGROUP COMPUTER SYSTEMS CO., LTD. Model No. TR10CD3 FCC ID. WL6-TRBC41CD1 EUT Rated Voltage DC 3.7V (Power by Battery) EUT Test Voltage AC 120V/ 60Hz Trade Name ECS ELITEGROUP , J.P. SA Couto S.A. Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.10: 2009 Test Result Complied Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Director / Vincent Lin ) Report No. 1430152R-RFUSP03V00-B Page: 3 of 64 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit ......................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................17 4.1. Test Equipment ......................................................................................................................................17 4.2. Test Setup ..............................................................................................................................................17 4.3. Limits.....................................................................................................................................................18 4.4. Test Procedure .......................................................................................................................................19 4.5. Uncertainty ............................................................................................................................................19 4.6. Test Result of Radiated Emission ..........................................................................................................20 5. RF ANTENNA CONDUCTED TEST ............................................................................................…
