WM4734Bluetooth Low Energy Watch

Revision 1.1 July 10, 2013 1 Instruction Manual 1. Introduction This watch has basically 5 modes : (1) Real time clock mode (2) Workout mode i. Distance View ii. Pace View iii. Calorie view iv. Heart rate view (3) Chronograph mode (4) Count down timer mode (5) Alarm mode 2. Operation Procedures for accessory connection Press MODE key to toggle between different modes. RTC
Workout Mode (Distance
Pace
Calorie
Heart rate)
Count down timer
Alarm mode
RTC In figure 1 (on the left hand side), it shows the watch is at RTC mode. Press mode key 3 times to enter workout mode heart rate view. It should be similar to that in figure 2 ( on the right hand side). When entering workout view, the watch will start scanning when it stays at a view for 5 seconds. After that, it will start scanning for 30 seconds and look for a peer BLE device which contains a heart rate profile. As shown in figure 2, the heart symbol in the yellow circle will blink. After 30 seconds, it will stop scanning if no connection is made. Otherwise, the heart rate symbol in the yellow circle will stay on. Figure 1 Figure 2 Revision 1.1 July 10, 2013 2 To activate a heart rate chest strap, either wear it on or short the contact. Upon detection on the contact points, the heart rate sensor should start advertising. If the watch scans it, it will establish a connection with it. After a connection is made, the watch will start retrieving heart rate data every second. It is recommended to go to heart rate view to have heart rate value display on screen. As shown in figure 3, if one wants to wear it, it is better be moisturized so as to enhance detection. Then plug the heart rate sensor to the belt. Wear it on to the body and center the sensor to the central of one’s chest. Figure 3 Revision 1.1 July 10, 2013 3 3. Specifications Operating temperature : -10°C to +50°C *** CAUTION Battery Safety Information  Exhausted batteries are to be removed  Do not dispose of product or batteries in fire; batteries may explode or leak  If this product will not be used for an extended period of time, remove the batteries from the product  The supply terminals are not to be short-circuited  Batteries are to be inserted with correct polarity  Clean the battery contacts and also those of the product prior to battery installation  As always, dispose of batteries in an eco-friendly manner This product is compliant with Directives 1999/5/EC. Revision 1.1 July 10, 2013 4 4. FCC Compliance Statement  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.  WARNING: Changes or modifications to this watch not expressly approved by the party responsible for compliance could void the user’s right to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is recommended to reduce the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation space between the watch and the receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Revision 1.1 July 10, 2013 5

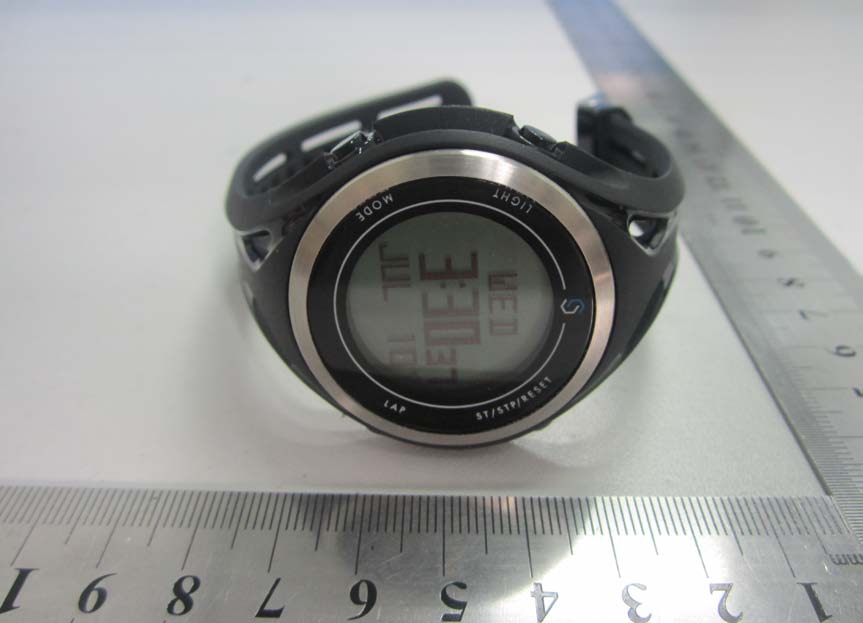

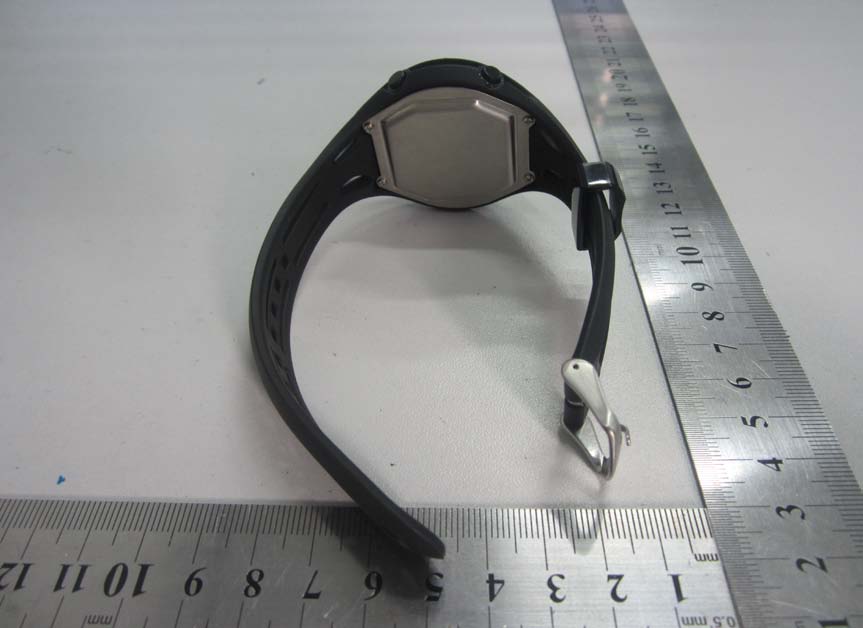

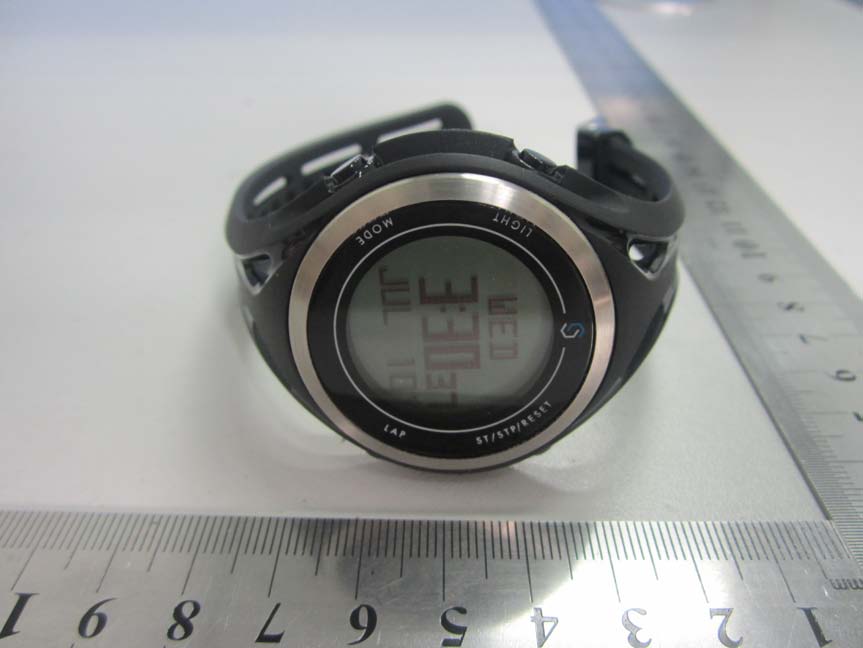

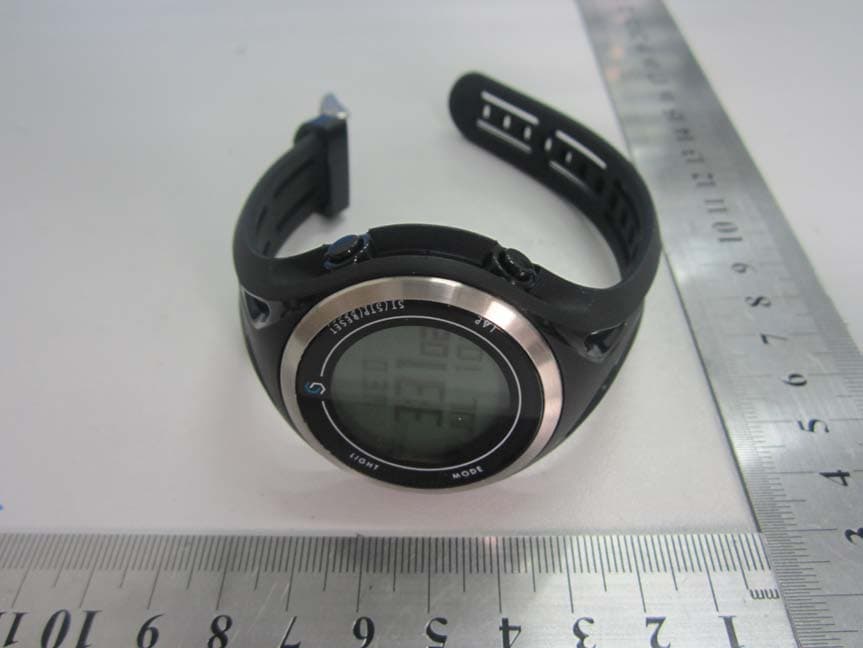

External Photos 1. EUT front view 2. EUT rear view 3. EUT side view 4. EUT top view 5. EUT bottom view
