WMPBL-BXC3XXBluetooth Access Controller

1 BAC31 Bluetooth Access Controller - EZSmart App User Manual (Version 2) Introduction and Features: BAC31, Bluetooth Low Energy (BLE) Controller, is a secure and convenient for Mobile App to access control your office, factory, warehouse or home entrance door, garage door . BAC31 has very wide operating voltages range (+12V - +24V, DC) to work with various electric locks and easy to install. Normally it only requires 5-6 wires (Ground / Vin / Sel_Vsource / DO/DI/SI_sensor) connection to work with most of the Electric Lock. You can easily upgrade your existing “Fail-Safe / Fail-Secure 2 / Electric Lock” to use “BAC31 Access Control System” from your smartphone for higher security and efficiency. The BAC31 and the powerful free stand-alone EZSmart App can issue and revoke up to 40 virtual keys to new users and review the access log to know who comes. Or ezSmartCloud App use cloud base service for smart lock application, the ezSmartCloud App has unlimited virtual key to share and manage by cloud server for instant access through your smart phone. But cloud base App may has additional service due to the Cloud Sever and Two-Factor Authentication message fee. The BAC31 does support BLE Key Fob (remote control, an alternative optional for smartphone is not present) for office manager to unlock the entrance door up to 10 meters distance after visitor ringing a doorbell. The BAC31 is not only let you to unlock your existing Electric lock by conventional Electric lock methods and provide digital access and monitoring capabilities, in other word, it is perfect add-on Item to most of the Electric Lock. The EZSmart App allows you to grant or revoke access to a third party’s smartphone by secure QR Code or email. This virtual ekey cannot be duplicated or transferred to other devices. With GPS function and correctly calibrating with the EZSmart App, the App can identify indoor and outdoor areas. This will prevent the possibility of accidentally unlock by "Near-Field unlock function". 3 (Or ezSmartCloud App, which will has separated user manual, only one of these App can be used for your access control system). BAC31 BLE Controller Specification: 1. Connectivity: Bluetooth 4.0/4.2 (Bluetooth Low Energy) • Effective Distance: 10 – 20 meters • Current: Start 8 mA, Standby 4 mA • App Support: iOS (10+; 64 bits OS) and Android (5.0 - 8.0+) • Compatible Devices: the current iPhone / iPads models • Popular Android Devices with OS 5.0+ 2. Dimensions: 62 x 44 x 30 mm 3. Weight: 30 g 4. Operation Voltage: +12V - +24V DC 5. Relay Out Pin current: 3 A maximum 6. One Relay Out Port (Dry Contact): NO; NC; Common 7. Exit Door Button Detection input. (For Unlock function) 8. Door position sensor input. (For Lock / Unlock State) 9. Battery Backup Input pin. 10. Auto Lock Timer will trigger when Door is in close position. (Default setting is 6 seconds) 11. Fail-Safe and Fail Secure compatibility: Software selectable. 12. Bluetooth Key Fob available. 13. Application: Any Electric Locks type (Included Fail- 4 Safe/Fail Secure). Garage door through Exit Button connection. 14. EZSmart App for Android / iOS are available (40 ekey/users). 15. ezLockCoud App has unlimited eKeys and users. LED Status Indicator: Red – Electric Lock/Strike/Bolt in Lock State. Green -- Electric Lock/Strike/Bolt in Unlock State. Orange – In registration mode or reset to Default State (“000000” passcode). Fig-1 - + LED Status Indicator (Red/Green/Orange) Reset Button (Confirm Press) Signal Pins connector External PWR Backup Input Mounting Holes 5 Signal pins assignment: Wiring Gage is 22 AWG. BAC31 module need to be near to Electric Strike or Push-Exit Button. Make sure you can have good Bluetooth signal when you standing in front of the door or gate. Pin Description Color 1 Ground : Input Brown 2 Vin : Input (+12V ~ +24V DC) Red 3 V+: Output Orange 4 Sel_Vsource: DO option. DO: V-, connect to Ground Pin 1. DO: V+, connect to V+ Pin 3. Yellow 5 DO: Output (V+ / V-) Green 6 DI-PB: Exit Door button input (Active Low, reference to ground) Blue 7 Sin_Sensor: Door position sensor input Violet 8 NO: NC: COM Extra Relay Output Port (Dry Contact) Grey 9 White 10 Black Note: Depends on target Electric Lock’s input requirement, “DO pin” could output “V+ or V- signal”. But most of Electric Strike/Bolt/Lock use “V-“as lock/unlock state trigger. External Backup power input terminal: 1 V+ Red (Right Side) 2 Ground Black (Left Side) 6 Output note: DO has max load 1 A / STD 250ms with 0.8A DC. NO / NC has max load 3 A. Fig-2A 7 Fig-2B 8 Fig-2C 9 Fig-2D 10 Note 2: Sin_Sensor pin could read Door Status. Fig-2E 11 Door is in close position: Sin = High. Door is in open position: Sin = Low. Note: If you have “EXIT Button”, BAC31 module can be connect to “Electric Strike/Bolt/Lock” or “Exit Button”. Whichever is easier and shorter distance to install. External Backup battery and Siren is optional. Bluetooth Key Fob Specification (Option item): Connectivity: Bluetooth 4.2, Require Paring with BAC31 Effective Distance: 5 -15 meters (depend on environments) Voltage: +3VDC Battery Type: CR2032 X 1 Battery Life: 9 - 12 Months Energy Saving Mode: Normal in deep sleep, press to wake up Current: Active 20 mA, Sleep 2 uA Dimensions: 62 X 36 X 11 mm Weight: 9 g Note 1: Key Fob has the same security requirement as smartphone. It requires the paring in front of the BAC31. Each Key Fob can only control one BAC31 BLE Controller and up to 10 meters remote 12 access range. You cannot duplicate this Key Fob without paring with BAC31. Owner’s App has full control over all eKey activities. Unlike the RF ID eKey, any RF ID reader can read it and duplicate its eKey code. In other words, Key Fob will be a better and safer option for security concern. Note 2: Fail-Save or Fail-Secure is software selectable during the installation. Note 3: "BAC31-N” has 6 seconds auto relock function when "Input pin" detect door is in closed position. (SI_sensor pin must connect to the lock door position senso…

Text truncated - open the document above for the full version.

RF_160, Issue 04 Declaration of Authorization We Name: Ardi Technology Corp. Address: 7F., No.786-1, ZhongZheng Rd., Zhonghe Dist., City: New Taipei City 23586, Country: Taiwan Declare that: Name Representative of agent: Rita Lin (1) Agent Company name: Worldwide Testing Services (Taiwan) Co., Ltd Address: 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu, City: Taipei 114 Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Bluetooth Access Controller Type designation: BAC31 Trademark: Ardi Validity/ expiry date on our behalf. Date: 2020/01/10 City: New Taipei City Name: Chino Chen (2) Function: President Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FEDERAL COMMUNICATIONS COMMISSION SUPPLIERS DECLARATION OF CONFORMITY (SDoC) Equipment: Bluetooth Access Controller Trademark(s) and Model(s): BAC31 Manufacturer: Ardi Technology Corp. FCC ID in case other parts of this equipment are subject to certification: WMPBL-BXC3XX T his device complies with Part 15C of the FCC Rules. Ope ration is subject to the following two conditions: (1 ) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: Issue date: W6M22001-19599-C-1 2020-01-10 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Ardi Technology Corp. Name/Title (legal representative): Chino Chen Address: 7F., No.786-1, ZhongZheng Rd., Zhonghe Dist., New Taipei City 23586, Phone: +886-2-2222-0019 Fax: +886-2-3234-6049 E-mail: [email protected] Date: 2020/01/10 Signature: FCC

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Ardi Technology Corp. Address : 7F., No.786-1, ZhongZheng Rd., Zhonghe Dist., City: New Taipei City 23586, Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: WMPBL-BXC3XX Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2020-01-10 Name and signature of applicant: Chino Chen Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

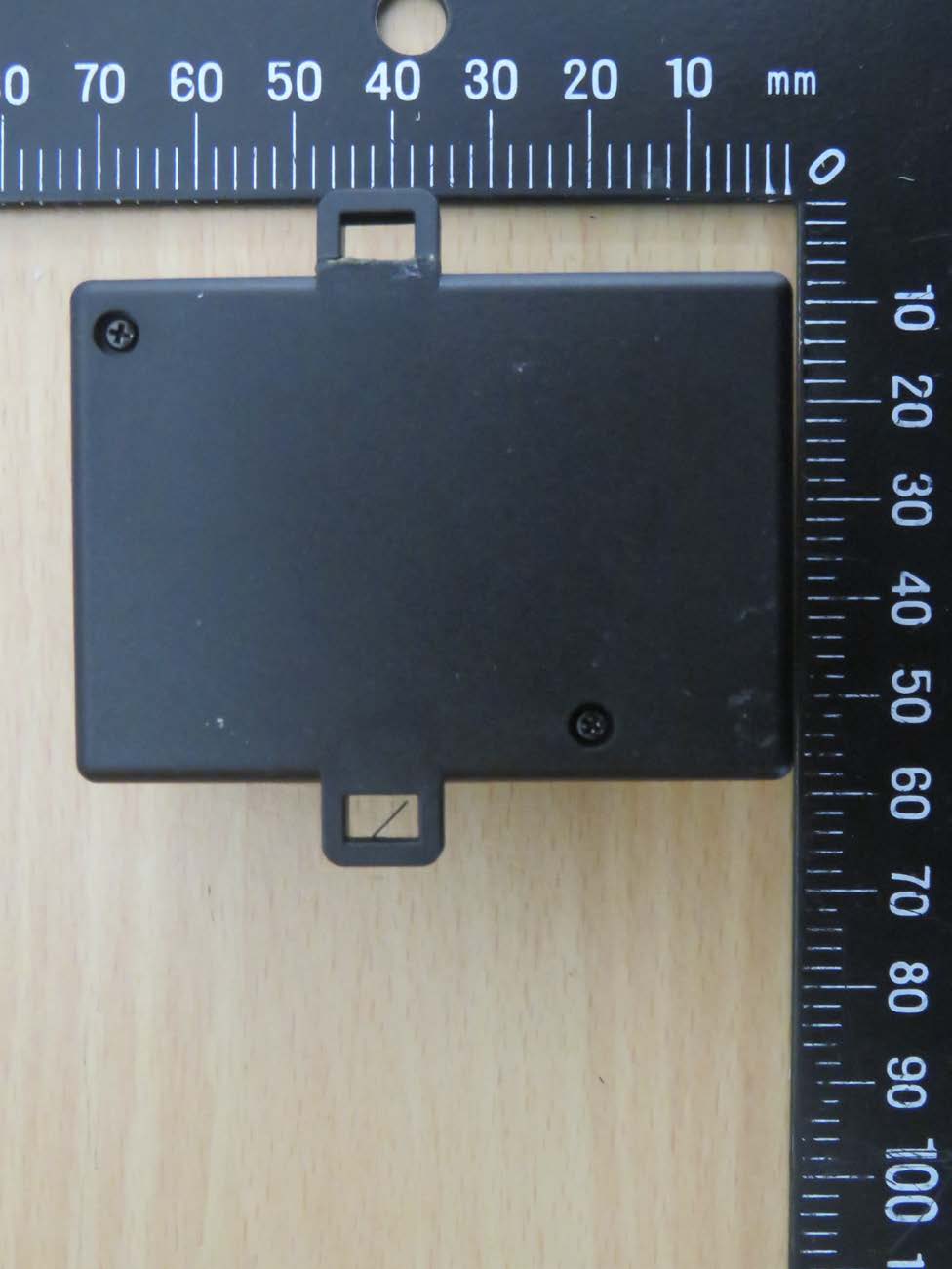

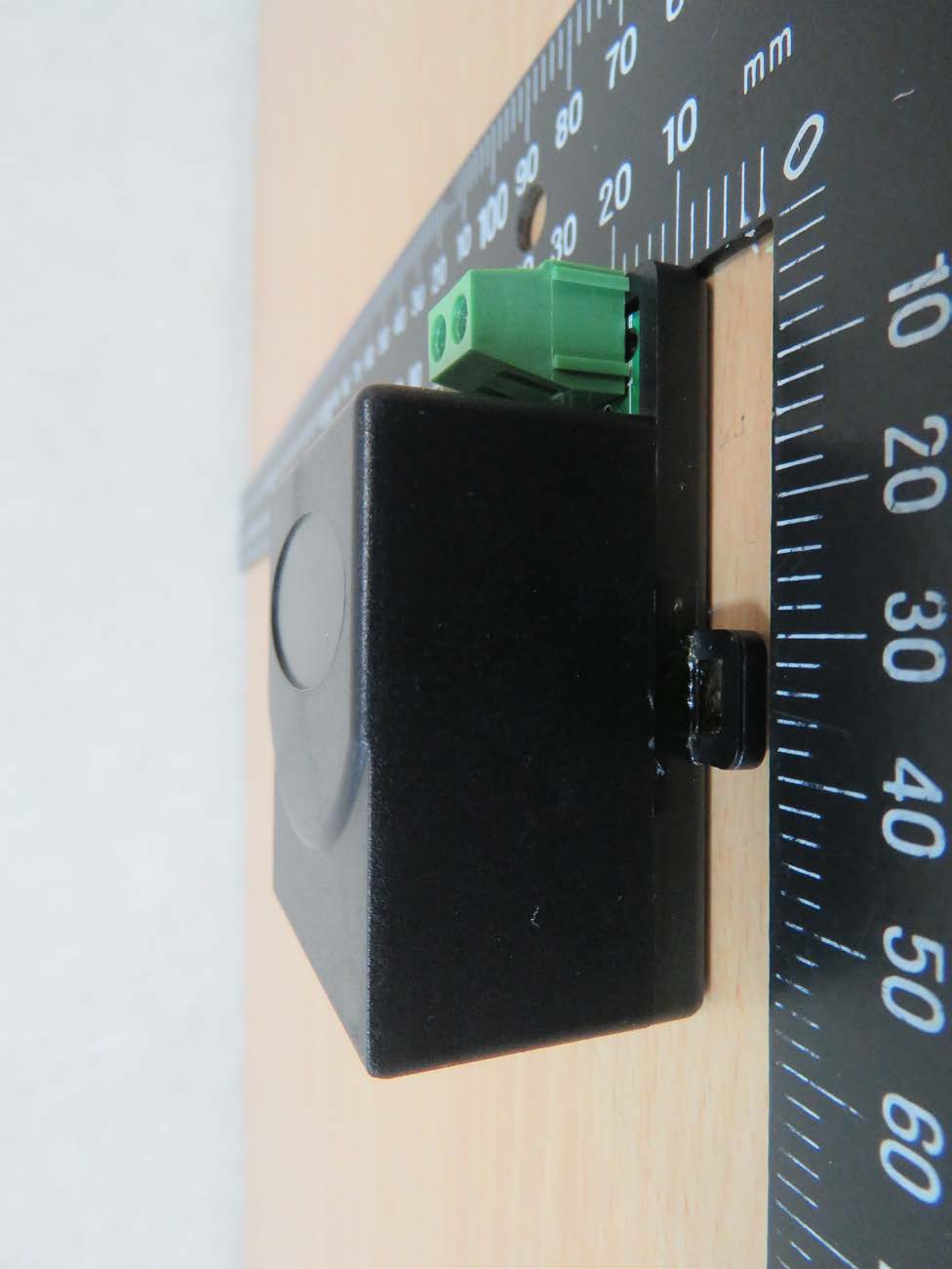

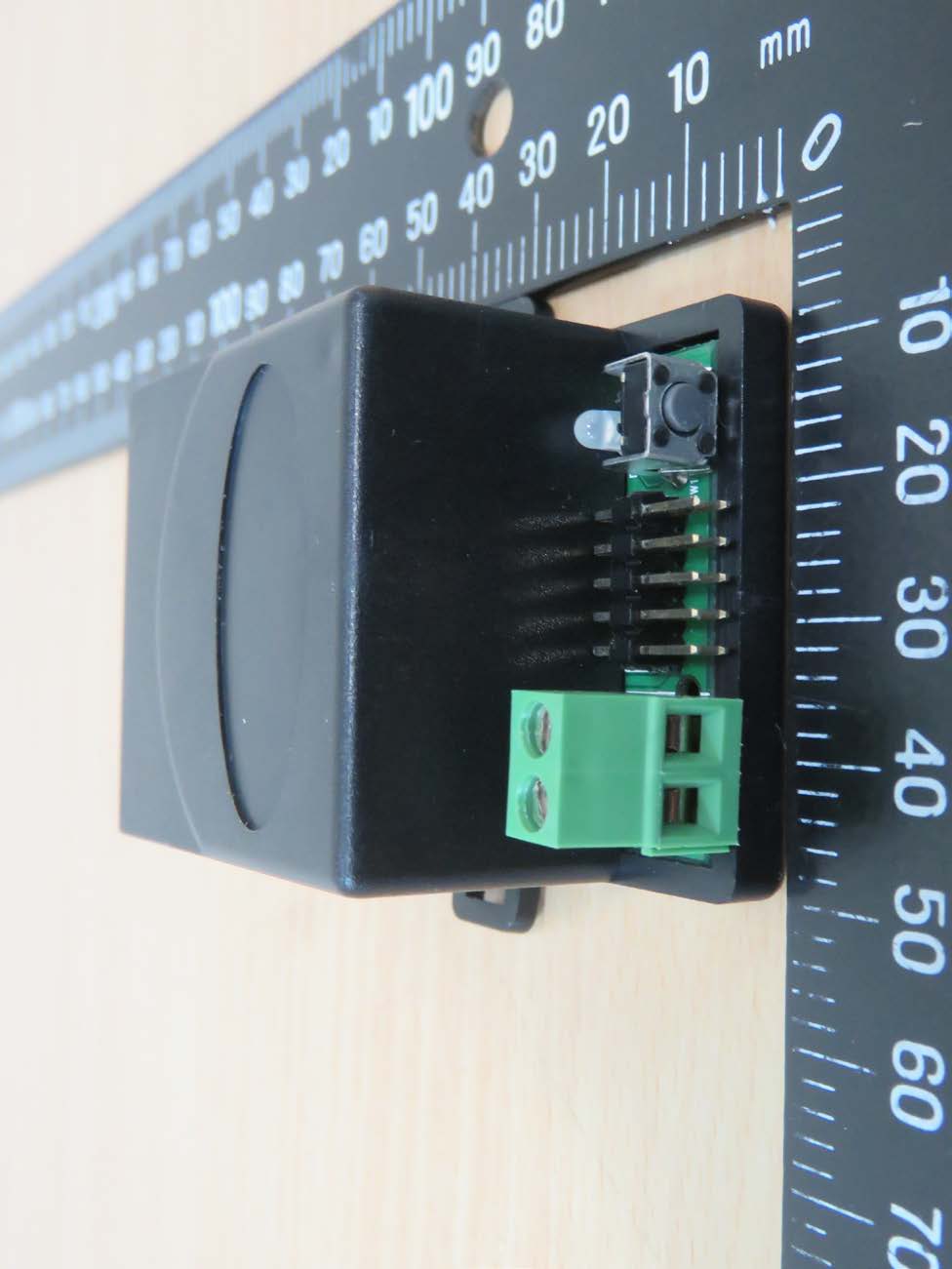

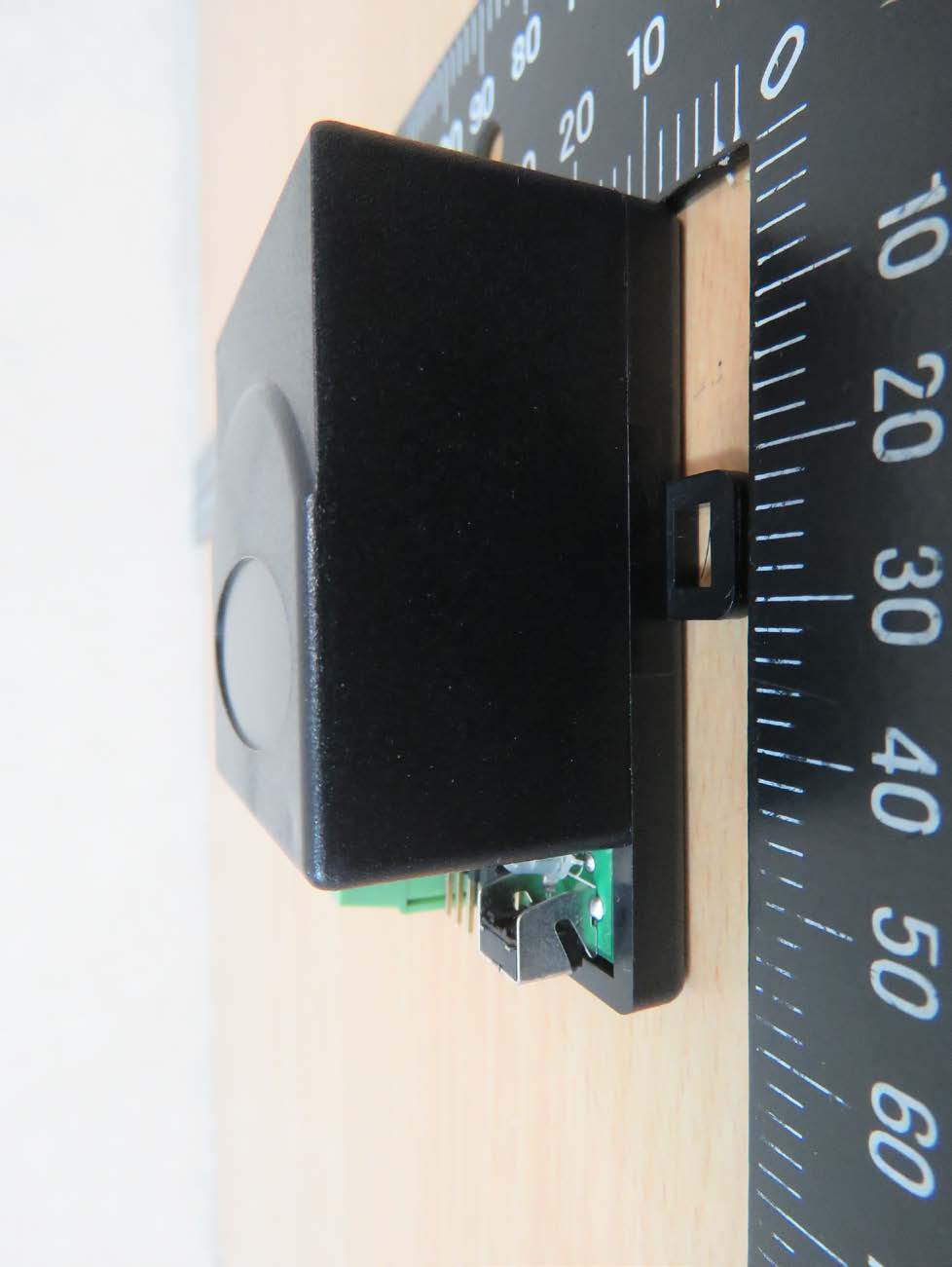

Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 13

Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX PCB antenna Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 13

Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP =0.81 dBm + (-6 dBi [antenna gain claimed by manufacturer]) = -5.19 dBm = 0.3027 mW 3.3 RF Exposure Compliance Requirements RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 According to 447498 D01 General RF Exposure Guidance v06: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2400-2483.5 MHz Maximum Power fed to Antenna: 0.3027 mW Separation distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2402 10.09 19.26 29.35 38.52 48.52 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2402 57.70 67.79 77.87 87.05 97.13 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 mm 2402 97.13 197.13 297.13 397.13 497.13 597.13 697.13 797.13 897.13 997.13 1097.13 1197.13 1297.13 1397.13 1497.13 mW Worldwide Testing Services(Taiwan) Co., Ltd. Page 16 of 30

of Applicant: Ardi Technology Corp. Address: 7F., No.786-1, ZhongZheng Rd., Zhonghe Dist., New Taipei City, Taiwan, 235 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M22001-19599-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Bluetooth Access Controller Model No.: BAC31 FCC ID: WMPBL-BXC3XX Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 N OTES .......................................................................................................................................... 2 1.2 T ESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .................................................................................................................................. 3 1.2.2 Details of accreditation status ................................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ................................................................................................... 3 1.4 APPLICATION DETAILS ................................................................................................................. 4 1.5 GENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.6 TEST STANDARDS ......................................................................................................................... 5 2 TECHNICAL TEST ......................................................................................................................... 6 2.1 SUMMARY OF TEST RESULTS ........................................................................................................ 6 2.2 T EST ENVIRONMENT .................................................................................................................... 6 2.3 TEST EQUIPMENT LIST ................................................................................................................. 7 2.4 G ENERAL TEST PROCEDURE ...................................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ...................................................................................... 13 3.2 E QUIVALENT ISOTROPIC RADIATED POWER (EIRP) .................................................................. 16 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS ............................................................................ 16 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS .................................................... 17 3.5 SPURIOUS EMISSIONS (TX) ......................................................................................................... 18 3.6 RADIATED EMISSION ON THE BAND EDGE .................................................................................. 20 3.7 M INIMUM 6 DB BANDWIDTH ..................................................................................................... 22 3.8 PEAK POWER SPECTRAL DENSITY ............................................................................................. 25 3.9 R ADIATED EMISSION FROM RECEIVER PART .............................................................................. 28 3.10 POWER LINE CONDUCTED EMISSION ......................................................................................... 29 APPENDIX.............................................................................................................30 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 30 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: February 04, 2020 Kent Lin Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 04, 2020 Kevin Wang Date WTS Name Signature Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 30 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) TEL:886-2- 6613-0228 FAX:886-2- 2791-5046 Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C.…

Text truncated - open the document above for the full version.

Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Set Up Photo of Radiated Emission Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 13 Registration number: W6M22001-19599-C-1 FCC ID: WMPBL-BXC3XX Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 13
