WMPSB1000iReminder

A) iReminder Unit B) Key Chain Link C) Battery (CR 2032) D) Manual(not shown) If any components are missing from the package, return the product to your dealer immediately. Package Components A Product Description 2 3 Key Chain Link Battery Cover Switch LED FindMe Button iReminder User Manual The iReminder SB10 is the most effective loss prevention solution for your BLE iPhone/iPad, ex. iPhone 4S/New iPad/iPhone5/iPad mini. It is an “electronic leash” that notifies you with an audible alarm whenever your iPhone/New iPad leaves your vicinity (Out-of-Range) or whenever you leave your BLE iPhone/iPad behind . The iReminder SB10 also assists you in locating your misplaced BLE iPhone/iPad within a 65’ radius (FindMe function). 1 Introduction Step 4 - Run App ”Prox BLE” program 4 Quick Setup Guide Notification of incoming calls 5 When you get a phone call, the iReminder SB10 will start beeping to remind you. Map Locate 6 Set Map Locate to “ON” will automatically drop pin on the map when tag is detected Link Loss. *You will have to remove the first pin for the next usage of the Map Locate.* ABC Open the battery cover by placing your thumb on the cover (as shown) and pulling it backwards until it clicks open; then lift off the cover. Insert the battery into the battery compartment with the ”+” sign on the battery facing up. Then replace the battery cover by sliding it up into compartment opening. Step 1 - Down load App ”Prox BLE” Down load free APP - ”Prox BLE” on Appstore. Step 2 - Enable Bluetooth on your iPhone/iPad Go to Setting General Enable bluetooth Step 3 - Place battery into iReminder Unit Notice : Once the battery is inserted, the power is on, and Green LED will blink per second to show on pairing mode. Step 5 - Pairing Process a. Press ”Pair” to start Step 6 - Test the iReminder system a. Press ”Find My Tag” button, the tag unit will beep to do find me function, and press ”Stop Find...” button to stop Find My Tag function. b. Turn ”Switch” to left to enable ”Find Me” function. c. Press ”Find Me” button over 3 seconds, it will enter sleeping mode and general ”Link Loss Alert” On your iPhone. d. Press and release ”Find Me” button to stop ”Link Loss Alert” e. Set alarm ”threshold level” depens on your need. b. Once the pairing process is completed. The iReminderer function is enable. a. Open App ”Prox BLE“ and press ”Connect” button to pair device. b. App ”Prox BLE” will show Bluetooth Pairing Request. Warning 7 Change batteries if audible alarm becomes weak. Comply with National, Int’l Flight safety regulations when using device on flight trips. This product’s operating temperatures are between 14 ̊F~140 ̊F (-10 ̊C~60 ̊C). Storage Temperatures should be between -4F ̊~185 ̊F(-20 ̊C~85 ̊C). Do not disassemble, repair, modify or replace the Reminder Unit or any of its components. Never dispose of the battery in public garbage disposal; it is unlawful under state and federal environmental laws and regulations. Dispose of your battery at your local battery-recycling center. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digita l device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interf erence in a reside ntial installation. This equipment generates, uses and can ra diate radio frequency energy and, if not inst alled and used in accordance with the ins tructions, may cause harmful interference to radio communications. However, ther e is no guarantee that interfer ence will not occur in a partic ular installation. If this equipment does cause harmful interferen ce to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct th e interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outl et on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution : To assure continued compliance, any cha nges or modifications not ex pressly approved by the party responsible for compliance could void the user's authority to operate th is equipment. (Example - use only shielded interface cables when connecting to com puter or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inte rference, and (2) This device must accept a ny interference received, including interf erence that may cause undesired operation.

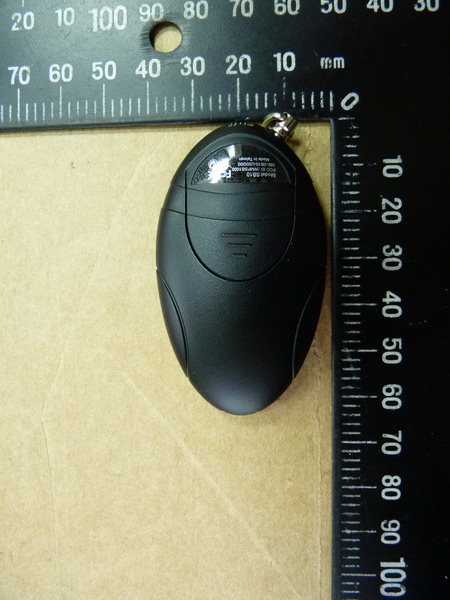

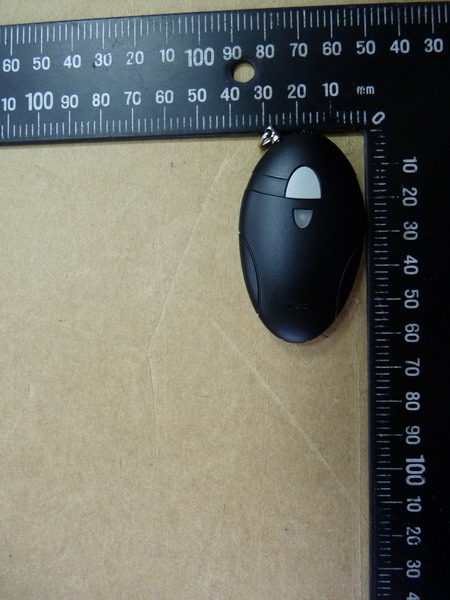

Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 11 External Photos Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 11 Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 11 Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 11

Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 11 Internal Photos Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 11 Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 11

Registration number: W6M21210-12805-C-1 FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 17 of 32 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -8.23 dBm + (-2.9 dBi) = -11.13 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements Conclusion: No Evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power -8.23 dBm (0.15 mW) EIRP Power - 11.13 dBm (0.077 mW) z The antenna is PCB antenna, antenna gain is -2.9 dBi. Threshold for no SAR evaluation is 24.58 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: Ardi Technology Corp., Address: 6F., No.136, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21210-12805-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for iReminder Model No.: SB10 FCC ID: WMPSB1000 Registration number: W6M21210-12805-C-1 FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 32 TABLE OF CONTENTS 1 General Information.........................................................................................................................2 1.1 Notes ...........................................................................................................................................2 1.2 Testing laboratory .......................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 Details of approval holder...........................................................................................................3 1.4 Application details ......................................................................................................................4 1.5 General information of Test item................................................................................................4 1.6 Test standards .............................................................................................................................5 2 Technical test .....................................................................................................................................6 2.1 Summary of test results...............................................................................................................6 2.2 Test environment ........................................................................................................................6 2.3 Test Equipment List ....................................................................................................................7 2.4 General Test Procedure.............................................................................................................11 3 Test results (enclosure) ...................................................................................................................13 3.1 Peak Output Power (transmitter) ..............................................................................................14 3.2 Equivalent isotropic radiated power .........................................................................................17 3.3 RF Exposure Compliance Requirements ..................................................................................17 3.4 Transmitter Radiated Emissions in Restricted Bands ...............................................................18 3.5 Spurious Emissions (tx) ............................................................................................................19 3.6 Radiated Emission on the band edge ........................................................................................23 3.7 Minimum 6 dB Bandwidth .......................................................................................................25 3.8 Peak Power Spectral Density ....................................................................................................28 3.9 Power Line Conducted Emission..............................................................................................31 APPENDIX.............................................................................................................32 Registration number: W6M21210-12805-C-1 FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 32 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: November 13, 2012 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: November 13, 2012 Danny Sung Date WTS Name Signature Registration number: W6M21210-12805-C-1 FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 32 1.2 Testing laboratory 1.2.1 Loc…

Text truncated - open the document above for the full version.

Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 11 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 11 Above 1GHz Registration number: W6M21210-12805-FCC FCC ID: WMPSB1000 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 11 RF
