WMPXX21XXWallet Reminder / Wallet Tag / Slim Remote Tag

A) Wallet Reminder Unit x 1 B) Battery (CR2016) x 1 C) User Manual x 1 If any components are missing from the package, please return the product to your dealer immediately. Product Description 3 Wallet Reminder User Manual Wallet Reminder is an effective Bluetooth Low Energy (BLE) loss preven- tion solution for your wallet, purse, passport or other valuable posses- sions. It is effectively an “electronic leash” that causes the tag and your connected iOS device to emit an audible alarm and places a GPS marker on a map whenever the devices become separated. The Wallet Reminder also assists you in locating your linked iOS devices using the ”Find Me” function. This product is compatible with iPhone (version 4S/5/5C/5S operating iOS6 and above) / iPad (versions 3/4 operating iOS6 and above) / iPad mini (all versions operating iOS6 and above) iPad Air and iPod Touch (version 4 operating iOS6 and above.) Quick Setup Guide Step 1 - Download the free ”HiProx Multi” application from the App Store (iTunes). Step 2 - Enable Bluetooth on your iPhone/iPad as follows: Go to Settings / Bluetooth and switch the Bluetooth capability ”On”. Step 3 - Place battery into Wallet Reminder as illustrated in Figure 1 below. IMPORTANT NOTE: BE SURE TO INSERT THE BATTERY BETWEEN THE UPPER AND LOWER CONTACTS. Placing the battery on top of the contact and closing the lid may cause damage to the battery terminal and invalidate your warranty. Specification Product Diagram 2 4 5 Quick setup guide Page 1 Package Includes Components 3 Communication Standard Bluetooth® 4.0 Low Energy Wireless Technology Compatibility Search Range 164ft/50m(*Distance will vary depending on terrain and other factors.) Alert Range Up to 50ft (15 meters) adjustable Battery Type CR2016x1 included Battery Life 6-12 months Working TemperatureTemperature: 5°C~40°C, humidity : 20%~80% Dimension/Weight 61.5x36x11.6mm (2.42x1.42x0.46inch) / 9.5g Step 6 - The settings for each connected device can be managed by selecting the device and pressing the corresponding setting button (Figure 4). The individual settings are shown on the “Device Setting Menu” (Figure 5). a. The Device Name text box displays the pre-determined device name. You can change this to assign names to your tags, helping you indicate what they are connected to (e.g. Wallet, Keys, etc). Click “Done” when you’ve entered your preferred name.(Figure 5) Item 6. b. LinkLossAlert: When enabled is an alarm condition with a preset audible tone which will alert you to any “alarm condition” which is not RangeAlarm related. (Figure 5) Item 8. c. RangeAlarm: Is an alarm condition which indicates an out of range item and is recognizable by the audio tone which is user selectable. (Figure 5) Item 9. d. To assign an individual alarm sound for the selected tag, tap the Bell symbol on the right side of the screen. A list of audible alerts will appear allowing you to select your preferred alarm. (Figure 5) Item 11. f. To set the alert distance, use the sliding Range Alarm Threshold bar towards the bottom of the menu to the desired sensitivity level - Near or Far, up to a maximum of 50ft (15m). All distances are approximate. (Figure 5) Item 10. Step 7 - Test the Range Alarm by placing the Wallet Reminder a stationary location. Then take the iOS device and walk away from the Wallet Reminder - when you reach the preset distance from the Wallet Reminder the iOS device will begin to beep. By moving back into the range, the alarm will cease. (Figure 8 below) Figure 8 Up to 50 Feet iPhone(version 4S/5/5C/5S operating iOS6 and above) / iPad (versions 3/4 operating iOS6 and above) / iPad mini (all versions operating iOS6 and above) iPad Air and iPod Touch (version 4 operating iOS6 and above.) Front Back Status LED Power Switch Battery cover FindMe Button Power off Power on a. Slide the battery cover open as shown in point 1 (above). b. Insert the battery with the negative sign (-) pointing upwards, as shown in point 2. c. Replace the battery cover as shown in point 3. Step 4 - Turn on the Wallet Reminder by sliding the ON / OFF switch to the ”ON” position as illustrated in the Product Diagram (Above). Once switched ”ON”, the tag will automatically enter ”pairing mode” and the LED will flash GREEN once every second indicating is searching for your iOS device. Step 5 - Run the HiProx Multi application on your iOS device by tapping the onscreen icon. a. Once the App has opened, tap the search button in the upper right corner to discover all available devices. (Figure 2) Item2 b. The App will present a Bluetooth Pairing Request. (Figure 3) c. Select ”Pair” for each device (up to a maximum of four). The device will then enter paired (connected) mode and the green LED will then blink once every 5 seconds. d. Once the pairing process is completed, the Wallet Reminder is enabled and the electronic leash function is active. Figure 4 Illustrates 4 separate connected devices. 1. Enter Help menu 2. Find new device 3. Setting button 4. Signal indicator 5. Remove tag button 6. Change device name 7. Battery status 8. On/Off link loss function 9. On/Off range alarm function 10. Set alarm range 11. Alarm sound setting 12. On/Off Map location function 13. Enter Map view menu 14. Enter Camera function 15. Enter airplane mode setting Figure 2Figure 3 Figure 5 Figure 4 Figure 6 2 15 1 Signal Indication 3 4 6 7 11 8 9 10 12 13 14 5 Introduction11 The side facing upwards 1 2 CR2016 3 Product Diagram Figure 1 Item Last Seen Warning 12 Do not disassemble, repair, modify or replace the Wallet Reminder or any of its components. Please comply with the national and international flight safety regulations when using this device. When storing rechargeable batteries for collection, keep in a vented, non-metal container. Operating temperatures for this product is between 40 ̊F~103 ̊F (5 ̊C~40 ̊C). Storage for this product is between -4F ̊~185 ̊F(-20 ̊C~85 ̊C). Do NOT dispose of the battery in any public trash / rubbish container; it is unlawful u…

Text truncated - open the document above for the full version.

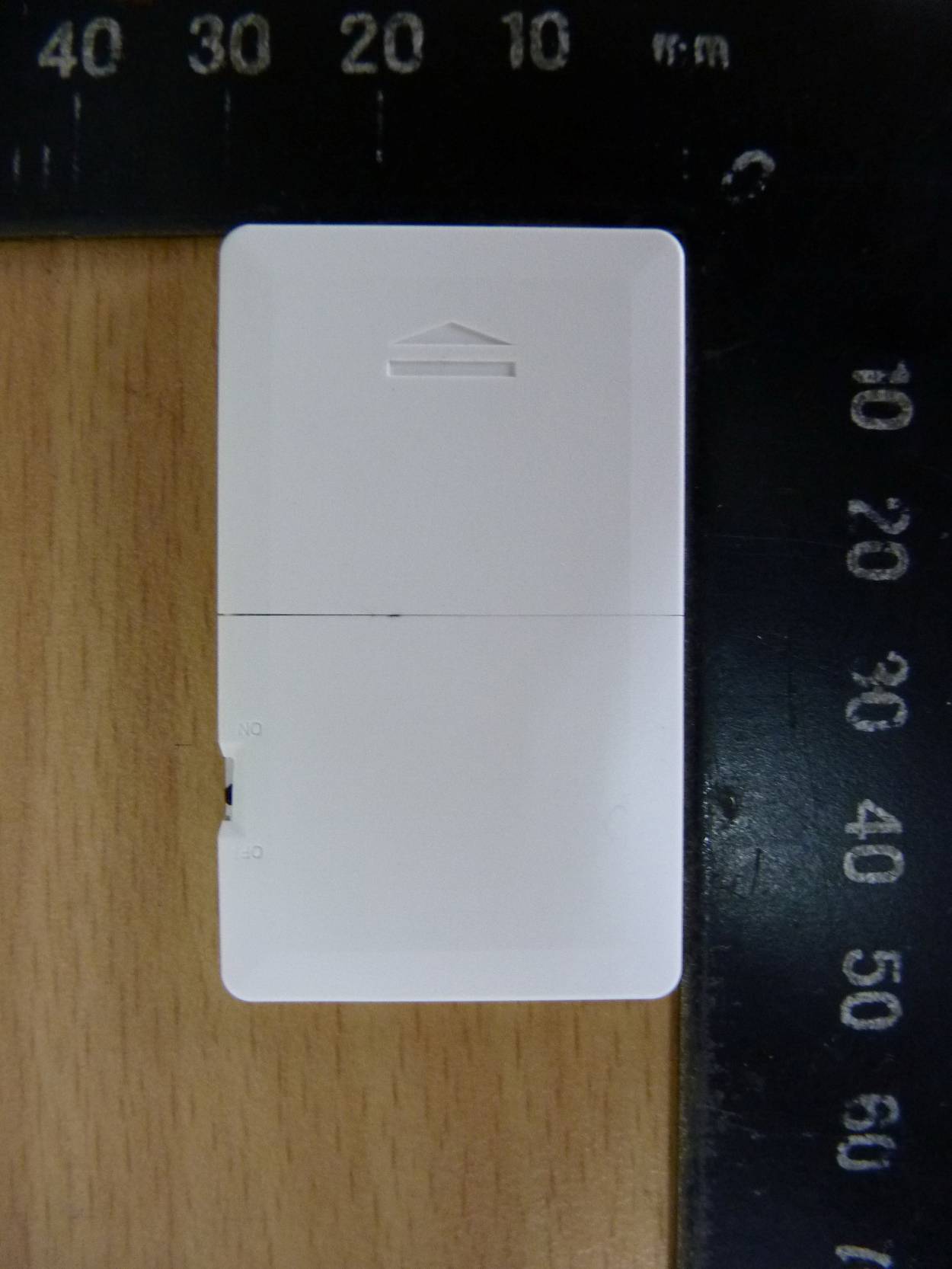

Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 12 External Photos Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 12 Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 12 Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 12

Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 12 Internal Photos Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 12 Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 12 Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 12

Registration number: W6M21402-13953-C-1 FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 30 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -9.11 dBm + (-2.9 dBi) = -12.01 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements Conclusion: No Evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power -9.11 dBm (0.12 mW) EIRP Power - 12.01 dBm (0.06 mW)  The antenna is PCB antenna, antenna gain is -2.9 dBi. Threshold for no SAR evaluation is 24.58 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: Ardi Technology Corp., Address: 6F., No.136, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21402-13953-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Wallet Reminder/Wallet Tag/ Slim Remote Tag Model No.: XX 21XX FCC ID: WMPXX21XX Registration number: W6M21402-13953-C-1 FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 30 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 NOTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 G ENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 SPURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................21 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................23 3.8 P EAK POWER SPECTRAL DENSITY.............................................................................................26 3.9 P OWER LINE CONDUCTED EMISSION.........................................................................................29 APPENDIX.............................................................................................................30 Registration number: W6M21402-13953-C-1 FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 30 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: March 31, 2014 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: March 31, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21402-13953-C-1 FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 30 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chambe…

Text truncated - open the document above for the full version.

Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 12 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 12 Above 1GHz Registration number: W6M21402-13953-FCC FCC ID: WMPXX21XX Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 12 RF
