WMPSB20Keyring Locator/Kid Tracker/Remote Controller

A) iReminder Unit x 1 B) Key Chain Hock x 1 C) Battery(CR 2032) x 1 D) User Manual x 1 If any components are missing from the package, please return the product to your dealer immediately. Product Description 3 Key Chain Hock Battery Cover Power Switch LED Multiple iReminder SB20 User Manual An electronic leash that will sound an alarm when your iPhone leaves your vicinity. You can also use your iPhone to find the lost iReminder thanks to the duplex communication protocol. A handy app called HiProx Multi, will show on Google Map the last time the iReminder and phone were connected. As a remote shutter release for self-portraits or to prevent blur by shaking camera. The app can control the alarm threshold distance, set the iReminder to start beeping when a call is incoming, and switch the proximity alarm on/off. HiProx Multi for use with multiple iReminder units and includes all of the mentioned features. Simple to use interface allows you to re-name each tag attached to your valuables, such as Keys, Wallet, etc. A brilliant little device that could save you a lot of trouble. 1 Introduction Quick Setup Guide Step 1 - Download App ”HiProx Multi” Download ”HiProx Multi” on App Store for free. (Please search for HiProx Multi on App store, or search for BLE and find the HiProx Multi application) Step 2 - Enable Bluetooth on your iPhone/iPad Go to Setting General Enable Bluetooth Step 3 - Place battery into iReminder Units a. Open the battery cover by placing your thumb on the cover (as shown) and pulling it backwards until it clicks open; then lift off the cover.(Figure 1) b. Insert the battery into the battery compartment with the the ”+” sign on the battery facing up. Then replace the battery cover by sliding it up into compartment opening.(Figure 2) Specification Product description 2 4 1 Introduction 5 Quick setup guide Front Back Step 4 - Turn on the iReminder Units Once turn on the iRminder units, and it will enter automatically to pairing mode. Green LED will blink per second to indicate device is ready to pair. Page 1 Package components 3 Communication Standard Bluetooth® 4.0 Low Energy Wireless Technology Compatibility iPhone 4S/5, iPad 4, New iPad, iPad Mini with iOS 6 or later Search Range 164ft/50m(*Distance will vary depending on terrain and other factors.) Alert Range 6~50ft/2~15m adjustable (Near: 16±10ft/5±3m, Far: 32±16ft/10±5m) Battery Type CR2032x1 Battery Life 6~12 months Dimension/Weight 61.5x36x11.6mm (2.42x1.42x0.46inch) / 9.5g Working Temperature Temperature: 5°C~40°C, humidity : 20%~80% Power Off Power On Step 5 - Run ”HiProx Multi” application a. Open ”HiProx Multi” and tap the button in the upper right corner to discover all available devices.(Figure 3) b. ”HiProx Multi” will pop up Bluetooth Pairing Request.(Figure 4) c. Select ”Pair” from ”Bluetooth Paring Request” for each device. The Green LED light will blink once every 5 seconds in the connecting mode. Step 6 - Test the iReminder system a. From MainView available devices table, you can tap desired item to select that device. Once device has been selected, button will appear in that row.(Figure 5) b. Press button, the iReminder unit will beep to do FindMe function. c. Press ”FindMe” button on the iReminder unit , and your BLE device will beep. d. Press and release ”Find Me” button to stop the FindMe function. e. To set different alarm sounds for each tag, press 'Alarm Button' (Figure 6)and go to Alarm Sound Selection View to choose your alert tone for that tag. f. Set alarm ”threshold level” depends on the alarm distance you like. Step: Range Alarm Threshold Move the threshold bar depends on the distance alarm you need.(Figure 6) g. Test your setup by placing the iPhone in a stationary location. Then take the Reminder and walk away from the iPhone - when you reach 6-50 feet from the iPhone, the Reminder will begin to beep. If you move back into the range, the alarm will cease. (Figure 8) Figure 1 Figure 2 Device FindMe Button 6-50 Feet a. To locate the missing item, tap green button from available device st. The missing device will continue beep for 5 seconds from each request. Re-tap green button again to continue searching function. b. Press and Release Device 'FindMe' button (hardware button under the LED) will gernerate ”FindMe Request” from that Device. Your iOS device (iPhone / iPad...) will issue Alert sound continuesly. Press and Release Device FindMe button to stop this request. c. Tap green button from iOS Device will Mute 'FindMe Request Alert Sound. d. Holding the device button for over 3 seconds will force the device to enter SLEEP mode and generate a linkLossAlert to the iOS device; to wake up and re-connect to the iOS device, ress and release device button. FindMe Function 6 Figure 8 1. Enter Help menu 2. Find new device 3. Find my tag 4. Setting button 5. Signal indicator 6. Remove tag button 7. Beep sound setting for tag 8. Change device name 9. Battery status 10. On/Off call alert function 11. On/Off link loss function 12. On/Off range alarm function 13. Set alarm range 14. Alarm sound setting 15. On/Off Map location function 16. Enter Map view menu 17. Enter Camera function 18. Enter airplane mode setting Figure 3Figure 4 Figure 6 Figure 5 Figure 7 2 18 1 Signal Indication 34 5 897 14 10 11 12 13 15 16 17 6 Beep SoundHigh Alert: 95±3db, Mid Alert: 90±3db (at 10cm/3.9inch) Notification of incoming calls Map Locate 9 Warning 13 Do not disassemble, repair, modify or replace the iReminder Unit or any of its components. Please comply with the national and international flight safety regulations when using device during your flight trip. When storing rechargeable batteries for collection, keep in a vented, non-metal container. Operating for this product is between 40 ̊F~103 ̊F (5 ̊C~40 ̊C). Storage for this product is between -4F ̊~185 ̊F(-20 ̊C~85 ̊C). Do NOT dispose of the battery in public trash; it is unlawful under state and federal environmental laws and regulations. Please dispose of the bat…

Text truncated - open the document above for the full version.

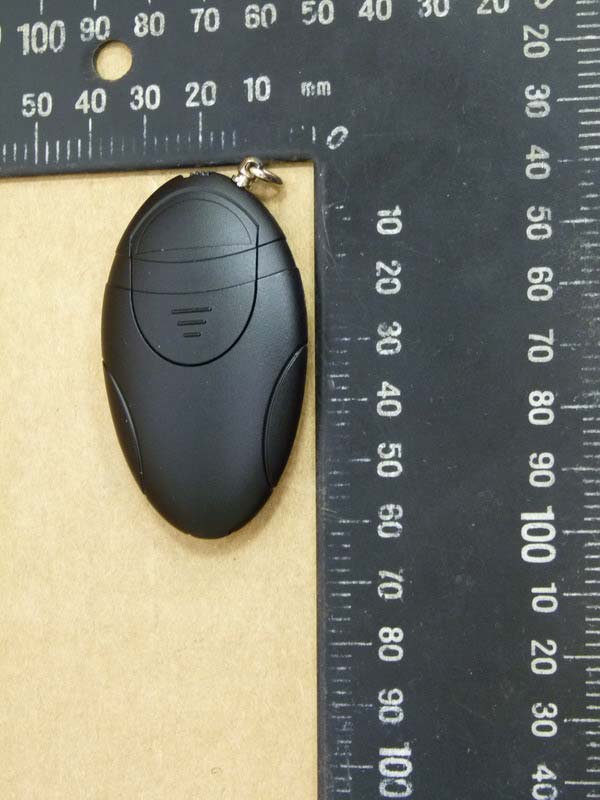

Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 11 External Photos Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 11

Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 11 Internal Photos Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 11 Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 11 Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 11 Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 11

Registration number: W6M21306-13304-C-1 FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 30 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -4.02 dBm + (-2.9 dBi) = -6.92 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements Conclusion: No Evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power -4.02 dBm (0.39 mW) EIRP Power - 6.92 dBm (0.20 mW) z The antenna is PCB antenna, antenna gain is -2.9 dBi. Threshold for no SAR evaluation is 24.58 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: Ardi Technology Corp., Address: 6F., No.136, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21306-13304-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Keyring Locator/Kid Tracker/Remote Controller Model No.: SB20 FCC ID: WMPSB20 Registration number: W6M21306-13304-C-1 FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 30 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 NOTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 G ENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 SPURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................21 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................23 3.8 P EAK POWER SPECTRAL DENSITY.............................................................................................26 3.9 P OWER LINE CONDUCTED EMISSION.........................................................................................29 APPENDIX.............................................................................................................30 Registration number: W6M21306-13304-C-1 FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 30 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: July 10, 2013 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 10, 2013 Danny Sung Date WTS Name Signature Registration number: W6M21306-13304-C-1 FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 30 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly…

Text truncated - open the document above for the full version.

Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 11 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 11 Above 1GHz Registration number: W6M21306-13304-FCC FCC ID: WMPSB20 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 11 RF
