WMPM05A01Mini Tracker

Mini Tracker 505 User Manual Master FrontBack Hanging hole for strap Signal indication Slave 1 FrontBack Search button LED light button (Mute distance melody button at search mode) Signal indication Distance indication Right direction Left direction Hanging hole for strap LED light Mode switch Mute Power on (Standby) Power off (Sleeping) Buzzer Clip Battery cover 0m100m Search 8~16m Alarm No Alarm Master Slave Slave Working Method Master Specification Slave Size: 19x28x7.5mm Frequency : 2.4GHz ISM Battery : LR1130 x 2pcs 2 Size: 39x48x6.8mm Frequency : 2.4GHz ISM Battery : LR1130 x 2pcs Switch: 3 sections Button: 2 buttons 8~16m Alarm Trident Direction Z Z Z Z Sleeping Mode Sleeping Mode The Battery Installment Master 1. Press the clip on battery cover then push backwardly. 2. Put 2pcs batteries into. ***Make sure the installment direction of positive (+) & negative (-) of battery are followed up the drawing showed on battery cover. 3. Set the battery cover back. 1 2 3 Slave 1 2 3 1. Open from the fillister on the bottom of housing or curve side by your nail, like open shell. 2. Put 2pcs batteries into. *** Make sure the installment direction of positive (+) & negative (-) of battery are followed up the drawing showed on the inside of back battery cover. 3. Set back the battery cover. 1 4 Switch to power on 2. 1. For the first time use, please set the battery into Master according to above battery installment . Getting Started Plastic isolation Pull out 3. Place two devices no more than 10 cm apart 4. 5 5. Signal indication Signal LED ON for re-linking. Beep Beep Distance indication 6. Re-link successful! Master shows the distance with Slave via LED and melody (beep). Important If Master can't link with Slave, it will beep once every few seconds. 6 Beep [Suggested setting place] Master Slave 7 Alarm Over 8~16 meter. Come with beep! Beep Beep Stop alarm (beep) if both devices comes within 8 meter again. Important Signal indication When Slave and Master are over 100 meter or lose signal Slave flashes half minute to wait for re-linking No linking then into sleeping modeand stop flash 8 Search Beep Beep Distance indication Press Search button 2~3 seconds 4 Distance indication LED and Right/Left direction LED lights up 1 second then release the Search button. Start to detect the location of Slave Display the intensity of signal on Master by 1.) LED light: more closer, more lights. 2.) Search melody: more closer, more rapid. 9 10 Flash signal LED by 3 seconds 1.) When Slave is on the back side. 2.) Go to wrong direction When Slave in the front of right side. Right direction indication When Slave in the front of left side. Left direction indication 0~100 m 1~2 m 0~100 m 0~100 m 0~100 m Near Far When Slave in the front side [Suggestion: Go to original direction or make a turn.] Important a.) Press Search button 2~3 seconds Stop searching Signal indication Signal LED flashes every second for re-linking 11 Back to Standby mode 90 Keep Master parallel Correct holding <90 Keep Master inclined or vertical Wrong holding b.) Error indication - whole direction LED goes off but signal LED lights up 3 seconds then displays new searched distance. b-1.) Search from correct direction to wrong direction b-2.) Over pass North Original searching (Right direction) Go the wrong direction East Distance LED goes out all lights suddenly and only flash Signal LED with beep sound 3 seconds later East 0~100 meter LED displays new searched distance North Go back to original search direction or location Signal indication LED Location: North [Suggestion] 12 c.)Mute searching melody from Master. Listen beep sound from Slave to assist short range searching. Press & hold the LED light button Beep Stop the melody and light up the torch LED Listen to the beep sound from Slave 13 Sleeping (No Need The Guard Service) Switch the button to section 0 Under Standby mode Stop signal to Slave a.)Switch to sleeping mode Slave flashes half minute to wait for re-linking No linking then into sleeping mode and stop flash 14 b.) Re-link / Wake up Switch the button to section 1 Available for distance within 100 meter Signal LED ON for re-linking Beep Beep Distance indication Re-link successful! Master shows the distance between Slave via LED and melody (beep) 15 Signal indication Important Beep Can't get signal from Slave. Signal LED flashes each second & comes with beep. (Slave maybe out off working range 100 meter, or no power.) 16 Mute(Mute At Search mode, Or No Need The Guard Service) Switch the button to section 2 Under Standby mode a.)Switch to mute mode Low Battery 1 beep sound every 20 seconds continuously. Important If this kit is under low battery stage, it may cause abnormal display to alarm, beeps or non-working to confuse actual working stage. Please change new battery as soon as possible. 17 b.)Press Search button Only Display the distance indication LED without searching melody Important Under mute mode, the Alarm function is disabled. Care and maintenance (a) Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, remove the battery, and allow the device to dry completely before replacing it. (b) Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. (c) Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics. (d) Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards. (e) Do not attempt to open the device other than instructed in this guide. (f) Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics. (g) Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. (h) Do no…

Text truncated - open the document above for the full version.

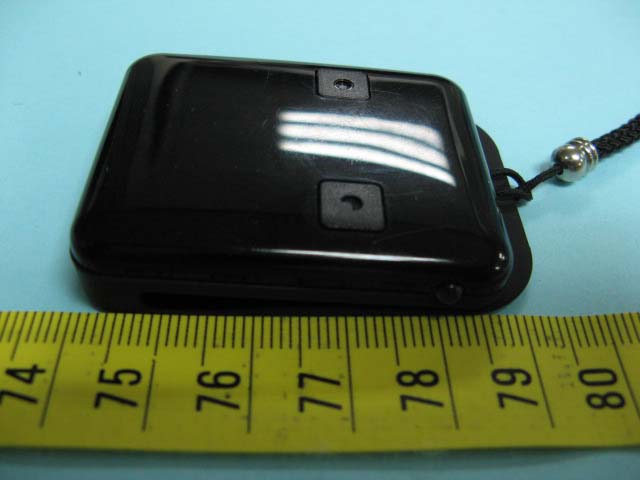

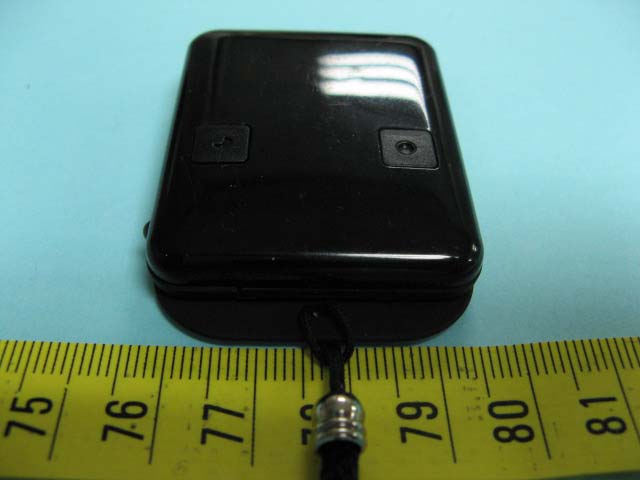

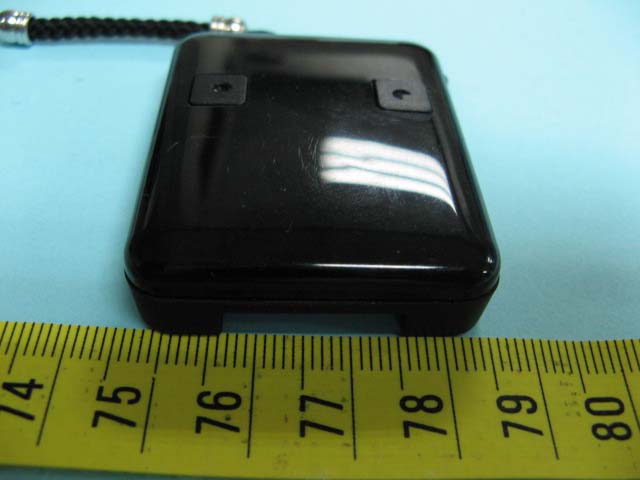

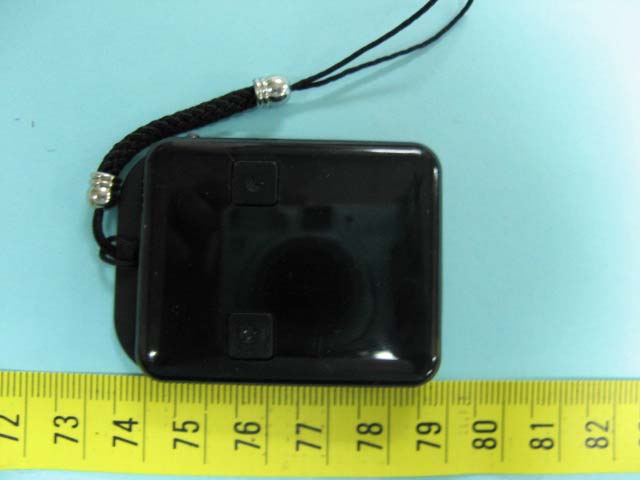

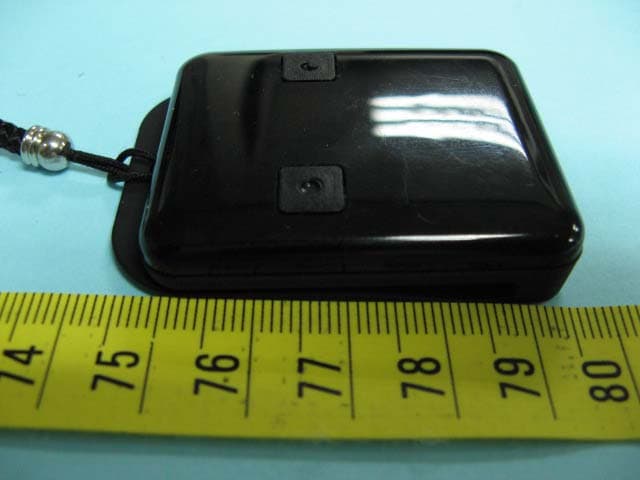

ETC Report No. : 09-06-RBF-097-01 FCC ID.: WMPM05A01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT ETC Report No. : 09-06-RBF-097-01 FCC ID.: WMPM05A01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT ETC Report No. : 09-06-RBF-097-01 FCC ID.: WMPM05A01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Front View of EUT

ETC Report No. : 09-06-RBF-097-01 FCC ID.: WMPM05A01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No. : 09-06-RBF-097-01 FCC ID.: WMPM05A01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. Mini Tracker FCC ID WMPM05A01 MODEL M05 for APPLICANT : Ardi Technology Corp., ADDRESS : 6F, No.136, Li-De Street, Chung-Ho City, Taipei, Taiwan, 235 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 09-06-RBF-097-01 ETC Report No. : 09-06-RBF-097-01 FCC ID. : WMPM05A01 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Ardi Technology Corp., 6F, No.136, Li-De Street, Chung-Ho City, Taipei, Taiwan, 235 Manufacturer : Artec Electronics (Jiangsu) Co., Ltd No. 1057, Yun Li Rd., Songling Town, Wujiang City Jiangsu, P.R.C Postcode:215200 Description of EUT : a) Type of EUT : Mini Tracker b) Trade Name : A rtec / Ardi c) Model No. : M05 d) Serial Model No. : 501, 502, 503, 504, 505, 506, 50X, 50X-XX e) Power Supply : LR1130 (DC1.5V) x 2pcs f) Frequency Range : 2404-2451 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2008) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003), and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 09-06-RBF-097-01 FCC ID. : WMPM05A01 Rev. No 1.0 Issued Date : Jul. 24, 2009 Test Engineer : ( Falcon Shi, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 09-06-RBF-097-01 FCC ID. : WMPM05A01 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device .............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 11 4.4 Radiated Emission Data ............................................................................................................. 12 4.5 Field Strength Calculation ......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 17 5.1 Description ................................................................................................................................. 17 6 ANTENNA REQUIREMENT ................................................................................................... 18 6.1 Standard Applicable ................................................................................................................... 18 6.2 Antenna Construction................................................................................................................. 18 7 BAND EDGES MEASUREMENT ............................................................................................ 19 7.1 Standard Applicable ................................................................................................................... 19 7.2 Measurement Procedure............................................................................................................. 19 7.3 Measurement Equipment ...............................................................................................…

Text truncated - open the document above for the full version.
