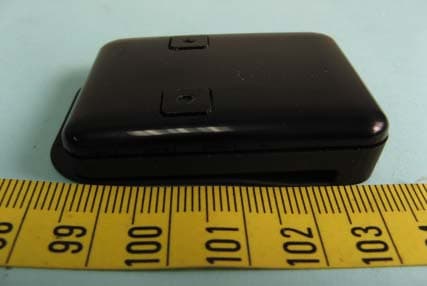

WMPM05A03GPDigital RF Tracker 105

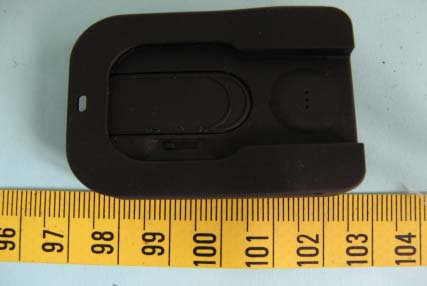

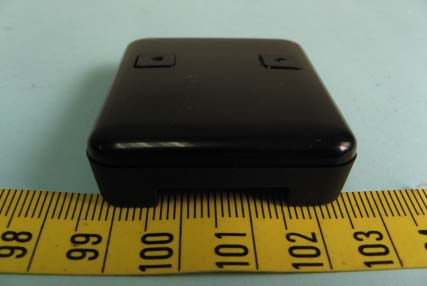

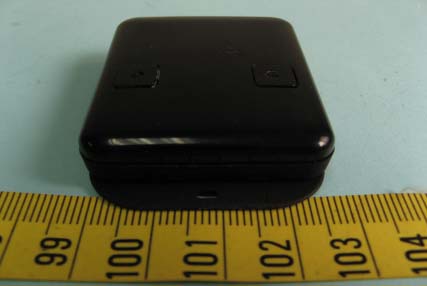

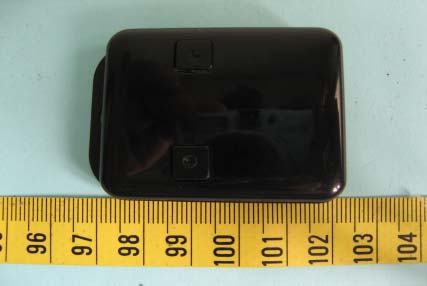

Front & Rear View Specifications Package Contents Front Back Search button 1Signal indicationDistance indication Short Distance Power off Buzzer Battery cover Hanging hole for strap Clip Holding Way *** Do not cover the top side of Master. CorrectHolding Wrong Holding During Search CorrectHolding Wrong Holding *** Do not sway Master. Master is always in front the body when take a turn. Search Luggage Tracker User Manual 2.Switch the power button of the Master and the Slave to “ON”, it will enter ”Search Mode”, please press search button to enter ”Standby mode”.3.Place the Slave to your kids, and take the Master with you or clip it on your belt. 3. Replace the battery cover. -Master Front Back Alarm If you hear a high beep alarm from the Master, it means that distance between the Master and Slave has been oversafe range (Set in short distance is 6~15m, and Long distance is 15~25m). The Master unit alarms and vibrates at this moment. . Suggested Setting place Long Distance 6~15m(short distance)15~25m(long distance) . Over Come with beep! Stop alarm (beep) if both devicescomes within safe range again. Search button 2for Slave 2 orMute for one Slave 1 1 3 3 2 1.For the first time use, please insert the batteries into the Master and the Slave sets according to the battery installation instruction as follows. 1. Slide out the battery cover. 2. Insert the batteries. Make sure that the polarity +/- of the battery follow the markings on the bottom of the battery compartment. the Master. Contrarily, if the distance between the Master and the Slave is farther, less LED light are lit and the melody on the Master becomes slower . Use the LED and the melody indication as guides to find the Slave unit. One Slave only: To search the Slave unit, please press the "Search button 1" on the Master unit once. Two Slaves: To search the Slave 1, please press the "Search button 1" on the Master unit once. To search the Slave 2, please press the "Search button 2" on the Master unit once. The closer the distance between the Master and the Slave, the more LED lights are lit and the rapider the melody on If the distance between the Master and the Slave is out of detectable range and you turn to the wrong direction making the distance farther, the Master plays the melody and beeps every second to remind you to go back to the correct direction and detectable distance. While searching, the Slave makes low beep sounds every second. This can assist you in finding its position by tracking the sound when the Master and the Slave are already close. (Suggestion: Press and hold the Mute button on the Master to turn of the melody temporarily. Once you release the Mute button, the searching melody resumes again.) Press the "Search button" on the Master unit again to stop searching. While searching, always place the Master in front of your body and turn around slowly to find the connect direction by following signal indicator and distance melody. If you point at the correct direction,the Master shows more LED light and plays the melody more rapidly. . for Slave 1 Slave 1 status Slave 2 status Alarm from Slave 1Alarm from Slave 2 working range 0~500m/1640ft (line of sight) (the distance may be short depends on theterrain environment ) Power & SignalindicationPower on/off ON OFF Battery cover 2 Search Range Alarm Distance Master/Slave Master (M05S)x1 Slave (S01)x1 Master (M05S)x1 Slave (S01)x1 Master (M05S)x1 Slave (S01)x2 Battery Type LR44x2 CR2016x2 LR44x2 CR2016x2 LR44x2 CR2016x4 Battery Life Time with Standby 50 days 60 days 50 days 60 days 30 days 60 days Battery Life Time with Sleep over 90 days over 90 days over 90 days over 90 days over 90 days over 90 days Beep Sound (at 10cm/3.9inch) 95 db 95 db 95 db 95 db 95 db 95 db Bulid-in None None Vibration Motor None Vibration Motor None Dimension (L/W/H) 52.8x39x13.2mm 2x1.6x0.52inch 80x50x2.8mm 3.1x1.9x0.11inch 52.8x39x13.2mm 2x1.6x0.52inch 80x50x2.8mm 3.1x1.9x0.11inch 52.8x39x13.2mm 2x1.6x0.52inch 80x50x2.8mm 3.1x1.9x0.11inch 105LM2 0~120m/328ft Short Distance : 6~15m/19~49ft Long Distance : 15~ 25m/49~82ft 0~120m/328ft Short Distance : 6~15m/19~49ft Long Distance : 15~ 25m/49~82ft 105L 105LM 0~120m/328ft Short Distance : 6~15m/19~49ft Long Distance : 15~ 25m/49~82ft Search, Alarm, 1 to 1 Search, Alarm with Vibration, 1 to 1 Search, Alarm with Vibration, 1 to 2 Model NameFunction Package Contents 105L 105LM 105LM2 Master(M05S) 1 set 1 set 1 set Slave(S01) 1 set 1 set 2 sets Nameplate of Barrtery 1 set 1 set 2 sets Batteries LR44x2 CR2016x2 LR44x2 CR2016x2 LR44x2 CR2016x4 User manual StrapLuggage tag


Search Tip: may Search, detection, and alarm range depend on the terrain environment. kit the the If the beep sound is not loud enough, the batteries may be low. Change with new batteries for louder alarm sound. use the device trips, batteries your batteries sources. It may cause danger or even explosion. Sleeping Low battery Mute For 1 master and 1 slave: Press the Mute button to mute searching melody from the Master unit. Listen to beep sound from the Slave unit to assist short range searching.For 1 master and 2 slaves: Keep pressing the Serach button to mute searching melody from the Master unit.List beep sound from the Slave unit to assist short range searching. 1. To avoid the pairing failure, please make sure the Slave 1, 2 and Master unit are under power off status.2. Press the "left" key on Master unit and turn on the Power at the same time. At the moment, two of the LEDs light. (As Graph 1) 3. Keep pressing "left" key and press the "right" key. Then release "left" key and LEDs start flashing, and then release "right" key.4. At this moment the Master unit is under code-setting status and awaiting to be paired. (As Graph 2) 5. Turn on the power of Slave unit and position it 5~10cm from Master unit to proceed the pairing. (As Graph 3) 6. While Master unit and Slave unit are paired, both units enter Search mode.The pairing process of additional Slave unit Graph 1 Graph 2 m…
