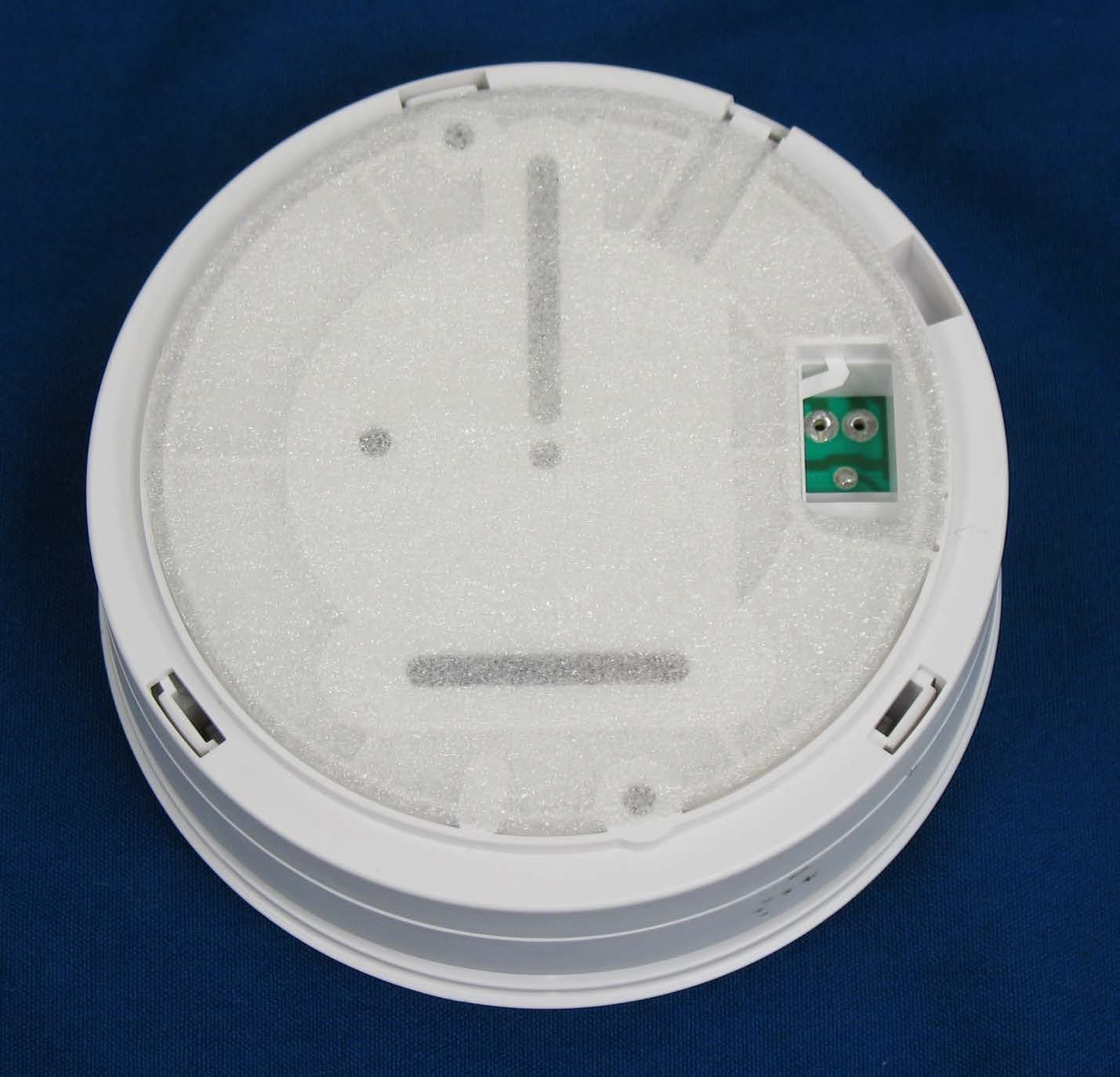

WMSBETXSA2BE1281 Optical Smoke Alarm Transmitter

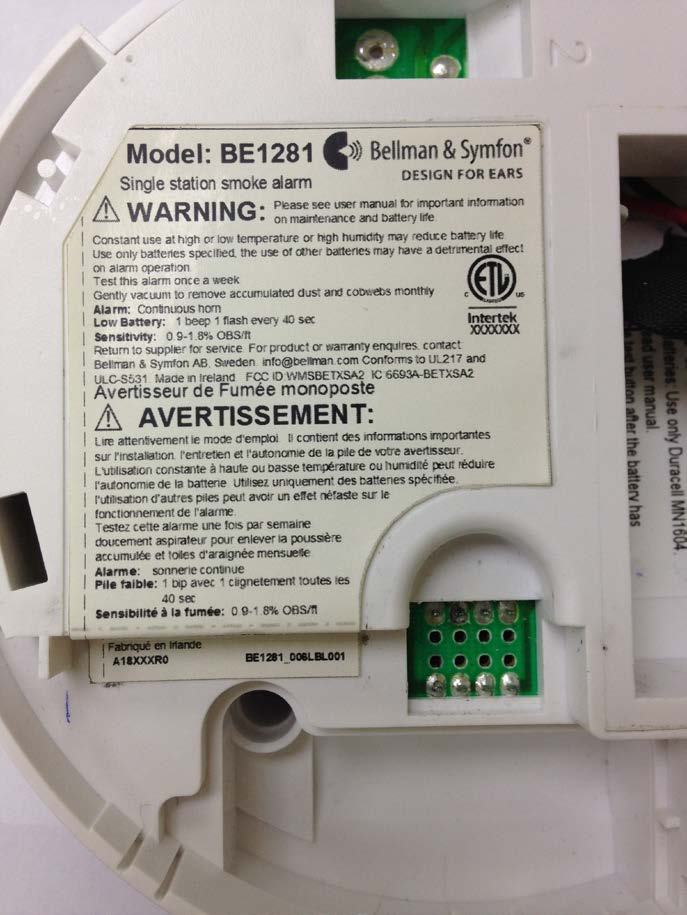

BE1281 User manual Quick start guide 5 Location and positioning 7 Installation 14 Testing, monitoring and maintenance 17 Fire safety advice 22 Alarm limitations 25 RF module features 26 Troubleshooting 28 Technical specifications 29 Warranty conditions 30 Contents 12 General instructions Read and retain this booklet for as long as the product is being used. It contains vital information on the operation and installation of your smoke alarm. The booklet should be regarded as part of the product. If you are just installing the unit, the booklet must be given to the householder. The booklet is to be given to any subsequent user. Please note This BE1281 Smoke alarm transmitter, hereafter referred to as the smoke alarm, is equipped with a BE9171 radio module from Bellman & Symfon, hereafter referred to as the RF module. The RF module transmits signals to supplementary Visit receivers from Bellman & Symfon. The supplementary Visit receivers are hereafter referred to as the Visit receivers. The Visit receivers are not included in the smoke alarm package. The complete func- tionality is explained in the products’ user manual. Indication summary Please note The indication summaries for the Visit receivers are found in the products’ user manuals. Smoke alarm Horn/sounder Smoke alarm Red LED Radio module Green LED Normal operation Power upOff1 blinkBlinking for 2 s StandbyOff1 blink every 45 s1 blink every 45 s Sensing fireFull soundRapid blinking (every 0.5 s) Rapid blinking Fault mode Low battery1 beep every 45 s1 blink every 45 sOff Faulty smoke sensor1 beep every 45 sOffOff Test mode Test smoke alarm (press button) Ramps to full soundRapid blinking (every 0.5 s) Rapid blinking Silence smoke alarm (press button) Off1 blink every 8 s for 10 min 1 blink every 8 s for 10 min 34 Green LEDRed LED Quick start guide 1 Mount the baseplate Fix the baseplate to the ceiling using a screwdriver. The smoke alarm should be mounted at least 305 mm (12") from walls and obstructions, ideally centrally in the room/area. 3 Attach the unit Place the smoke alarm unit on top of the baseplate and twist it clockwise to attach it. 4 Test the alarm A Press and hold the smoke alarm test button until the alarm sounds. B The Visit receiver lights up a fire symbol in red and alerts with sound, flashes or vibra- tions (depending on the Visit receiver). Please note: The smoke alarm will stop sounding shortly after the button is released and the Visit receiver will time out within ~40 s. 2 Connect the battery Connect the battery to the battery snaps to power the smoke alarm unit. Only use a Duracell MN1604 alkaline 9V battery. Minimum 305mm (12") Battery connectors Base 9 Volt battery 56 Minimum 305mm (12") Location and positioning Introduction Congratulations on purchasing your smoke alarm. You can easily install multiple alarms throughout the property on escape routes, on each story, in corridors and in closed rooms to give warning of fire. The smoke alarm can be wirelessly connected to a supple- mentary Visit receiver in order to provide an additional warning. NATIONAL FIRE PROTECTION ASSOCIATION REQUIRED PROTECTION Smoke detection. Where required by applicable laws, codes, or standards for the specified occupancy, approved single- and multiple-station smoke alarms shall be installed as follows: 1 In all sleeping rooms. Exception: Smoke alarms shall not be required in sleeping rooms in existing one- and two-family dwelling units. 2 Outside of each separate sleeping area, in immediate vicinity of the sleeping rooms. 3 On each level of the dwelling unit, including basements Exception: In existing one- and two-family dwelling units, approved smoke alarms powered by batteries are permitted. Are more smoke alarms desirable? The required number of smoke alarms might not provide reliable early warning protec- tion for those areas separated by a door from the areas protected by the required smoke alarms. For this reason, it is recommended that the householder consider the use of additional smoke alarms for those areas for increased protection. 87 The additional areas include the basement, bedrooms, dining room, furnace room, utility room, and hallways not protected by the required smoke alarms The installation of smoke alarms in kitchens, attics (finished or unfinished), or garages is not normally recommended, as these locations occasionally experience conditions that can result in improper operation. The equipment should be installed using wiring methods in accordance with the Na- tional Fire Protection Association’s Standard 72, Chapter 11. (National Fire Protection Association, Batterymarch Park, Quincy, MA 02269). IMPORTANT! Specific requirements for smoke alarm installation vary from state to state and from region to region. Check with your local fire department for current requirements in your area. SMOKE ALARM TRANSMITTER, BE1281 Sufficient smoke must enter your smoke alarm before it will respond. Your smoke alarm needs to be within 6.4 meters (21ft) of the fire to respond quickly. Your smoke alarms also need to be in positions where they can be heard throughout the property, so they can wake you and your family in time for everyone to escape. A single smoke alarm will give some protection if it is properly installed, but most homes will require two or more to ensure that a reliable early warning is given. For recommended protection you should put individual smoke alarms in all rooms where fire is most likely to break out (apart from the kitchen and bathroom). Minimum protection level - smoke alarm on each story - in each sleeping area - every 6.4 meters (21ft) of hallways and rooms - within 3 meters (10ft) of all bedroom doors Recommended protection level (In addition to the above): - smoke alarms in every room (except kitchens and bathrooms) - heat alarms located in kitchens, garages etc. within 5.3 meters (17ft) of potential fire sources Your first smoke alarm should be located between the sleeping area and the most likely…

Text truncated - open the document above for the full version.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Bellman & Symfon Europe AB on the Smoke Alarm Page 1 of 23 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 102133662LEX-001 Project Number: G102133662 Report Issue Date: 8/9/2015 Product Name: Smoke Alarm FCC Standards: Title 47 CFR Part 15 Subpart C Industry Canada Standards: RSS-210 Issue 8 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Bellman & Symfon Europe AB Sodra Langebergsgatan 30 421 32 Vastra Frolunda, Sweden Report prepared by Report reviewed by Bryan Taylor, Team Lead-Engineering Jason Centers, Staff Engineer Intertek Report Number: 102133662LEX-001 Issued: 8/9/2015 EMC Report for Bellman & Symfon Europe AB on the Smoke Alarm Page 2 of 23 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Transmission Timing ........................................................................................................................... 8 5 Duty Cycle Correction Factor ........................................................................................................... 10 6 Occupied Bandwidth ......................................................................................................................... 13 7 Radiated Spurious Emissions (Transmitter) ................................................................................... 16 8 Antenna Requirement per FCC Part 15.203 ..................................................................................... 21 9 Measurement Uncertainty ................................................................................................................. 22 10 Revision History ............................................................................................................................. 23 Intertek Report Number: 102133662LEX-001 Issued: 8/9/2015 EMC Report for Bellman & Symfon Europe AB on the Smoke Alarm Page 3 of 23 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4: 2009. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 8 Transmission Timing Measurements § 15.231(a) RSS-210 (A1.1.1) Pass 10 Duty Cycle Correction Factor ANSI C63.10: 2013 ANSI C63.10: 2013 --- 13 Occupied Bandwidth § 15.231(c) RSS-210 (A1.1.3) Pass 16 Radiated Spurious Emissions (Transmitter) § 15.231(b) RSS-210 (A1.1.2) Pass 21 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.2) Pass --- Conducted Emission Limits § 15.207 RSS-Gen (7.2.4) NA 1 1 This device is battery powered and will never connect to the AC mains. Intertek Report Number: 102133662LEX-001 Issued: 8/9/2015 EMC Report for Bellman & Symfon Europe AB on the Smoke Alarm Page 4 of 23 3 Description of Equipment Under Test Equipment Under Test Manufacturer Bellman & Symfon Europe AB Model Number BE1281 Serial Number Test Sample 1 Receive Date 5/26/2015 Test Start Date 5/26/2015 Test End Date 8/9/2015 Device Received Condition Good Test Sample Type Production Transmission Control Test Commands Transmit Frequencies 433.92MHz, 434.33MHz Antenna Type (15.203) PCB Antenna Operating Voltage 9V Battery Description of Equipment Under Test Optical Smoke Alarm Operating modes of the EUT: No. Descriptions of EUT Exercising 1 Transmitting on 433.92MHz or 434.33MHz. 2 Receive mode / idle mode Intertek Report Number: 102133662LEX-001 Issued: 8/9/2015 EMC Report for Bellman & Symfon Europ…

Text truncated - open the document above for the full version.
