WOQARRZ100BBBLUETOOTH WIRELESS DEVICE

Guide de configuration..........................................................................23 Déballage / Enregistrement pour le téléchargement de l’application / Collecte de renseignements sur vos appareils / Configuration du récepteur Zentral / Appariement avec le récepteur Zentral / Installation de l’application / Configuration de l’application pour vos appareils de technoloisir Utilisation de la télécommande audio/vidéo Zentral ..............................................................................35 Dépannage ...................................................................................................................................................................43 Guía de Configuración ..........................................................................44 Desempaque / Regístrese para poder descargar la aplicación / Organice la información sobre los dispositivos / Configure el Receptor Zentral / Sincronícelo con el Receptor Zentral / Instale la Aplicación / Configure la Aplicación con sus dispositivos del sistema de Entretenimiento en Casa Cómo Utilizar el Control Remoto para Audio y Video Zentral ...........................................................55 Resolución de Problemas ......................................................................................................................................63 Setup Guide ..................................................................................................2 Unpack / Register for App download / Gather info on your devices / Set up the Zentral Receiver / Pair with the Zentral Receiver / Install the App / Set up the App with your Home Entertainment devices Using the Zentral AV Remote ..............................................................................................................................14 Troubleshooting .........................................................................................................................................................22 AV Remote Control Télécommande audio/vidéo Control Remoto para Audio y Video To Be Updated 2 Congratulations! You’re just a few steps from unlocking the true potential of your BlackBerry® with the Zentral AV Remote Control. Just follow the directions in this Setup Guide—soon you’ll be in complete control of your home entertainment devices, all from the convenience of the Zentral App. Unpack Before you start, take everything out of the Zentral AV Remote Control package. Make sure you have the following parts: • the Zentral AV Remote Control receiver • a power adapter • a 6-emitter IR array 1 3 English 2 Set up the Zentral Receiver The Zentral AV Remote Control Receiver is the link between the Zentral App and your home entertainment devices. It translates the Bluetooth® commands from your BlackBerry into infrared (or “IR”) commands your devices can understand. There are three ways you can set up the Zentral Receiver to communicate with your home entertainment devices. Using the IR array: This works for hidden or out-of-sight devices. Using the Zentral Receiver’s built-in IR emitter: This works for devices facing the Zentral Receiver or directly above it. Using a combination of both methods: The IR array for hidden devices, and the Zentral Receiver’s built-in IR emitter for your TV. Zentral Receiver IR Array Zentral Receiver IR Commands Zentral Receiver IR Array IR Commands 4 If you are placing the Zentral Receiver beneath a device you want to control, put it slightly forward of the device’s front panel. This gives the Zentral Receiver a better angle to reach the device’s remote control sensor. Using the Zentral Receiver’s built-in IR emitters Zentral Receiver, Side View The Zentral Receiver blasts IR commands in four directions: up, forward, and to either side. When you place it, make sure there’s an unobstructed path between the Zentral Receiver and the devices you want to control. Zentral Receiver, Front View TV Zentral Receiver Using the IR array 1. Plug the IR array plug into the IR Out jack on the back of the Zentral Receiver. 2. Find the IR sensor on each of the devices you want to control using the IR array—it’s usually on the device’s front panel. Satellite receiver A/V receiver DVD player Remote sensors 5 English 3. Place a node from the IR array over each device’s IR sensor: • Remove the protective film from the node. • Stick the node directly on the device’s IR sensor. 4. Plug the Zentral Receiver’s power adapter into the DC Input jack on the back of the Zentral Receiver. Plug the other end into a standard wall outlet or surge protector. Satellite receiver A/V receiver DVD player Note: This power adapter should be plugged in so that it stays vertical or lies flat. The indicator light on the front of the Zentral Receiver flashes while the Zentral Receiver waits to pair with your BlackBerry. 6 1. From your BlackBerry home screen, press the menu button ( ) and select Setup ( ). 2. In the Setup menu, select Set Up Bluetooth ( ). 3. In the Add Device dialog box, select Search. (Make sure you’re within 15 feet of the AR Zentral AV Remote Receiver.) 4. When your BlackBerry is finished searching, it displays the Bluetooth devices found. Select AV (xxxx-xxxx) Zentral (“xxxx-xxxx” is the serial number) to connect to it. 5. The next screen requests a passkey to connect to the AR Zentral AV Remote Receiver. Enter “0000” as the passkey. 6. Once you’ve entered the passkey, your BlackBerry might ask if you want to connect to the AR Zentral AV Remote Receiver. Choose No (the Zentral App will take care of the connection later). The blue light on the front of the Zentral Receiver turns solid blue when the process is finished. 3 Pair with the Zentral Receiver Make sure Bluetooth is on... 1. From your BlackBerry home screen, press the menu button ( ) and select Manage Connections. 2. In the Connections menu, locate Bluetooth. If it isn’t already checked, press the select button to turn it on. 7 English 4 Download the App 1. On y…

Text truncated - open the document above for the full version.

August 25, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: WOQARRZ100BB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics CONF ARRZ100BB-Schematics.PDF Parts List CONF ARRZ100BB-Parts List.PDF Block diagrams CONF ARRZ100BB-Block Diagram.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________ Minh Doan

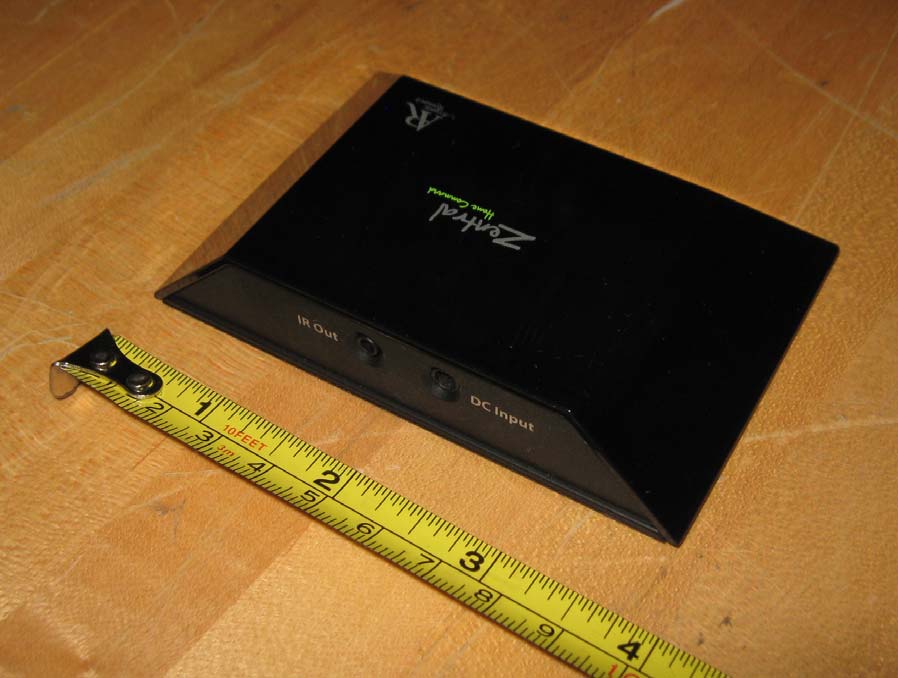

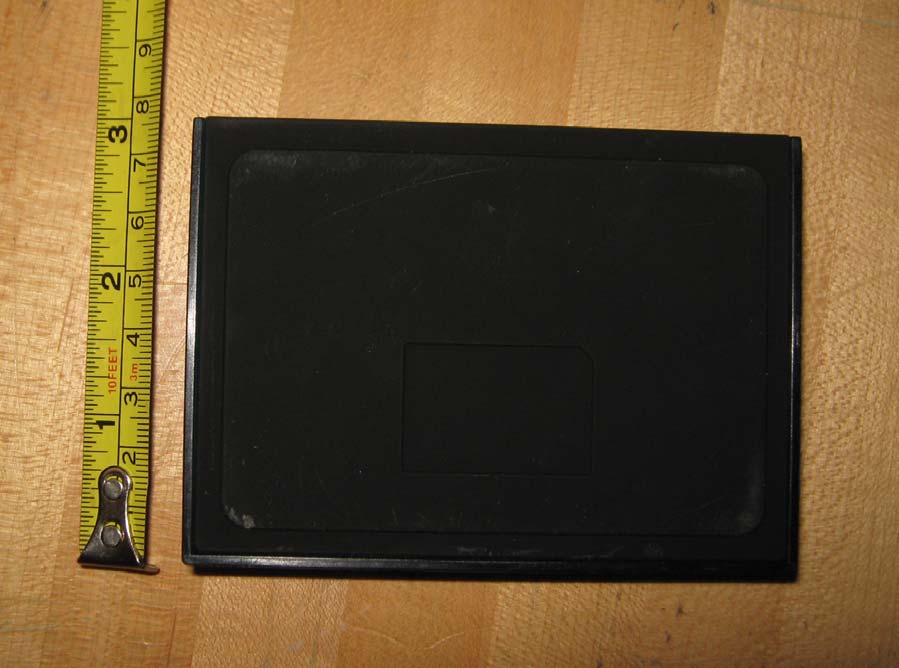

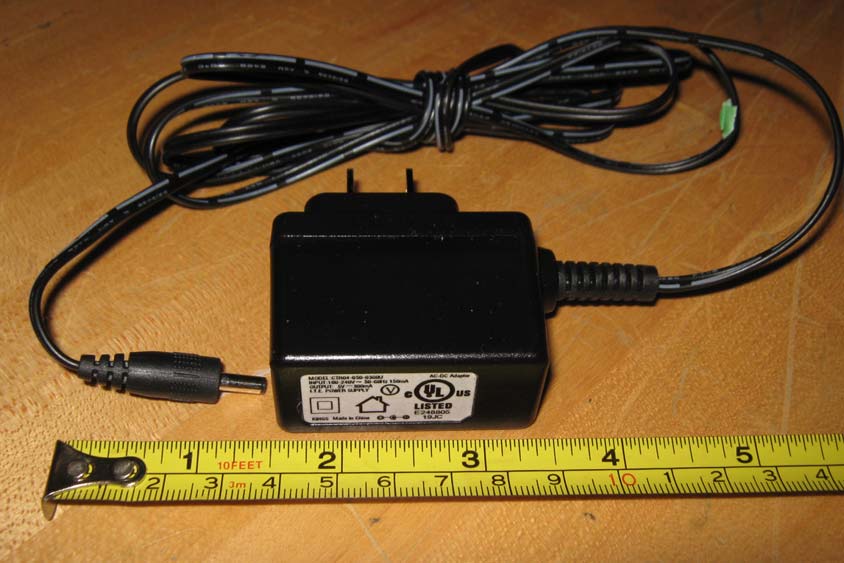

Operational Description Audiovox Remote September 7, 2010 1 Overview The Audiovox Remote is a Bluetooth enabled hardware capable of receiving Bluetooth packets from select models of Bluetooth enabled devices and converting it into IR waveform to control the operation of IR Devices environment. 2 Basic Blocks The AV Hub consists of the following building blocks:  Bluetooth Controller  IR Engine 3 Theory of Operation 3.1 Bluetooth Controller The Bluetooth controller is configured to receive Bluetooth packets through a 2.4GHz RF link being transmitted from a paired and connected device. The Bluetooth packets received by the Audiovox Remote contains either the equivalent IR data corresponding to a specific command. Once the Bluetooth packets are received and processed, the Audiovox Remote then communicates through an on board serial protocol to the IR engine and/or to the end device. 3.2 IR Engine Once the Audiovox Remote processes the Bluetooth packets, it then communicates with the IR engine through a UART protocol with the IR waveform code set. The IR Engine will then commence firing the IR LED’s with the appropriate IR waveform as per instructions from the Audiovox Remote.

Global EMC Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:-0.60(dBm) Maximum peak output power at antenna input terminal:0.87096359(mW) Antenna gain(typical):2.4(dBi) Maximum antenna gain:1.737800829(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:2480(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.000301(mW/cm^2) Margin of compliance:-35.2(dB) This equates to0.003011134W/m^2PASS For informationThis equates to1.065456559V/m Note: This device does not exceed the 60 / f (GHz) in mW limit as per FCC KDB 447498 2(a)(i), so it is allowable to be used in portable exposure conditions with no restrictions on host platforms 2 4R PG S  

Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 7:2007 & FCC Part 15 Subpart C:2010 Unlicensed Intentional Radiators on the Audiovox Remote model ARRZ100BB Raymond Lee Au Project Engineer Global EMC Inc. 180 Brodie Drive, Unit 2 Richmond Hill, ON, L4B 3K8 Canada Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details . LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Testing Laboratory Certificate #2555.01 Page 1 of 70 Report issue date: 8/31/2010 GEMC File #:GEMC-FCC-19762R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Client Unify4Life Product Audiovox Remote ARRZ100BB Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 2 of 70 Report issue date: 8/31/2010 GEMC File #: GEMC-FCC-19762R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Spurious Radiated Emissions ........................................................................................... 13 Channel Carrier Separation for Frequency Hopping Systems ......................................... 25 Maximum Peak Envelope Conducted Power .................................................................. 28 Spurious Conducted Emissions........................................................................................ 31 Frequency Occupancy for Frequency Hopping Systems ................................................. 37 Number of Channels for Frequency Hopping Systems ................................................... 41 Channel Carrier Bandwidth of Frequency Hopping Systems .......................................... 52 Maximum Permissible Exposure ..................................................................................... 55 Power Line Conducted Emissions ................................................................................... 57 Appendix A – EUT Summary.............................................................................................. 64 Appendix B – EUT and Test Setup Photographs................................................................. 65 Client Unify4Life Product Audiovox Remote ARRZ100BB Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 3 of 70 Report issue date: 8/31/2010 GEMC File #: GEMC-FCC-19762R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Audiovox Remote ,, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Unify4Life Product Audiovox Remote ARRZ100BB Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 4 of 70 Report issue date: 8/31/2010 GEMC File #: GEMC-FCC-19762R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: WOQARRZ100BB EUT Industry Canada Certification #, IC: 7987A-ARRZ100BB EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Raymond Lee Au Client Unify4Life Product Audiovox Remote ARRZ100BB Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 5 of 70 Report issue date: 8/31/2010 GEMC File #: GEMC-FCC-19762R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Descript…
