WOR-5115FWireless IP CAM

F5100 / F5105 / F5110 / F5115 User Manual ii F5100 / F5105 / F5110 / F5115 User Manual Contents CHAPTER 1. SAFETY INSTRUCTION ....................................................................................................................... 1 CHAPTER 2. MINIMUM SYSTEM REQUIREMENT & PRODUCT FEATURE .................................................. 3 2.1 S YSTEMREQUIREMENT.......................................................................................................................................... 3 2.2 P RODUCT FEATURES............................................................................................................................................... 4 CHAPTER 3. USING IP CAMERA VIA WEB BROWSER........................................................................................ 5 3.1 W INDOWSWEBBROWSER...................................................................................................................................... 5 3.2 M ACWEBBROWSER............................................................................................................................................... 6 CHAPTER 4. SETTING UP WIRELESS CONFIGURATION (ONLY FOR F5105 / F5115 ).................................. 8 CHAPTER 5. OPERATING IP CAMERA VIA MOBILE PHONE ......................................................................... 10 5.1 M OBILE PHONE VIEWING..................................................................................................................................... 10 5.2 U SING IP CAMERA VIA IPHONE............................................................................................................................. 11 CHAPTER 6. MSN MESSENGER ............................................................................................................................... 12 CHAPTER 7. CONFIGURATION OF MAIN MENU ................................................................................................ 15 7.1 L IVEVIEW............................................................................................................................................................. 16 7.2 S ETTING................................................................................................................................................................. 18 7.3 C LIENT SETTING................................................................................................................................................... 19 7.4 I MAGE SETUP......................................................................................................................................................... 20 CHAPTER 8. SETTING-BASIC................................................................................................................................... 21 8.1 S YSTEM.................................................................................................................................................................. 21 8.1.1 Information.................................................................................................................................................... 21 8.1.2 Date / Time..................................................................................................................................................... 21 8.1.3 Initialize......................................................................................................................................................... 23 8.1.4 Language....................................................................................................................................................... 24 8.2 C AMERA................................................................................................................................................................. 25 8.2.1 General.......................................................................................................................................................... 25 8.2.2 H.264.............................................................................................................................................................. 27 8.2.3 MPEG-4......................................................................................................................................................... 28 8.2.4 MJPEG.......................................................................................................................................................... 30 8.2.5 3GPP.............................................................................................................................................................. 31 8.2.6 Advanced........................................................................................................................................................ 32 8.2.7 Playback......................................................................................................................................................... 34 8.3 N ETWORK.............................................................................................................................................................. 35 8.3.1 Information.................................................................................................................................................... 35 8.3.2 PPPoE............................................................................................................................................................ 36 8.3.3 DDNS (Dynamic DNS)................................................................................................................................. 38 8.3.4 UPnP (Universal Plug and Play).................................................................................................................. 42 8.3.5 Bonjour.........................................................................................…

Text truncated - open the document above for the full version.

Date: 06/30/2010 Subject: Ad Hoc Mode Function Declaration FCC ID: WOR-5115F To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards,

Date: 06/30/2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: WOR-5115F , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards,

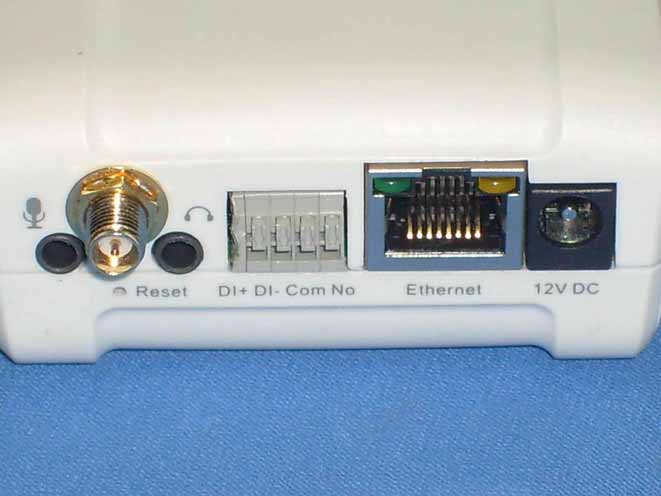

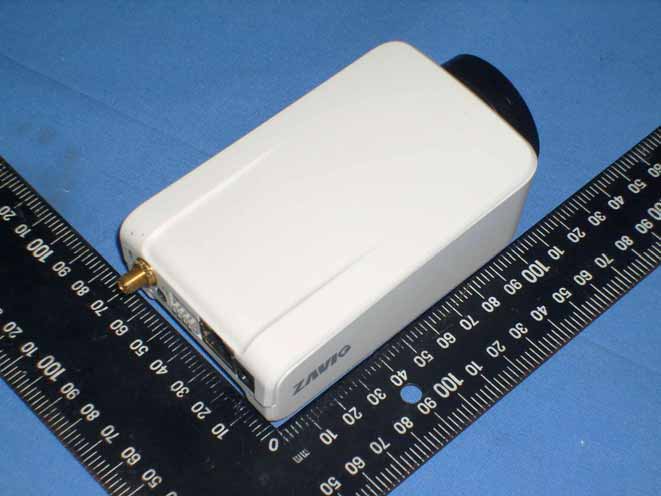

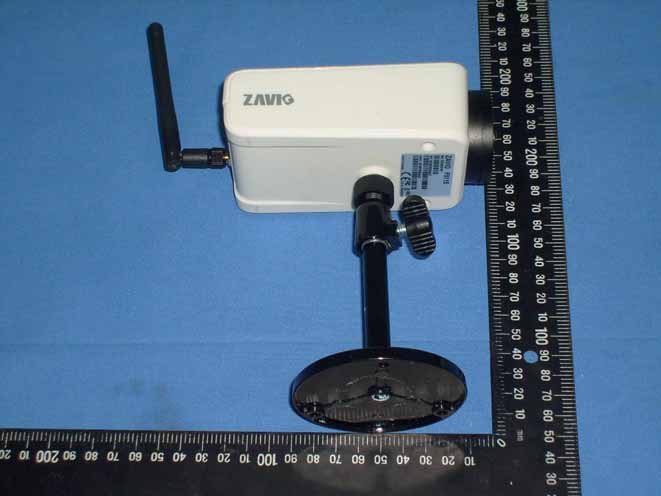

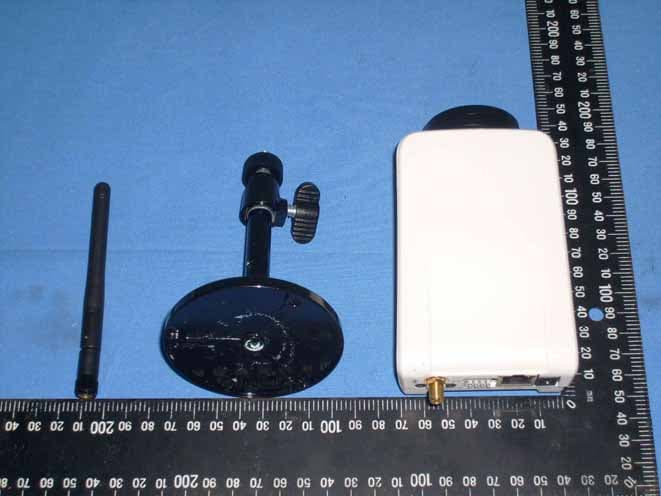

! Compliance Certification Services Inc. Report No.ΚT100525302 Page 1 of 22 !! External Photo ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 2of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 3 of 22 !!

Label Location

! Compliance Certification Services Inc. Report No.ΚT100525302 Page 4 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 5 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 6 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 7 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 8 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 9 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 10 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 11 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 12 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 13 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 14 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 15 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 16 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 17 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 18 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 19 of 22 !! ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 20 of 22 !! Antenna Photo ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 21 of 22 !! Power Adapter Photo (Model : WRG15F-120A) ! Compliance Certification Services Inc. Report No.ΚT100525302 Page 22 of 22 !!

TO: SPECIFICATION FOR APPROVAL DESCRIPTION : 2.4GHz Antenna SMA () CUSTOMER DWG. NO. /PART NO : KINSUN PROD. NO : 6602108083 DATE : 2008.04.18 PLEASE RETURN TO US ONE COPY OF “ SPECIFICATION FOR APPROVAL ” WITH YOUR APPROVED SIGNATURES APPROVED SIGNA TURES KINSUN INDUSTRIES INC. 21120 TEL : 886-3-4353551 FAX : 886-3-4353951 http://www.kinsun.com e-mail: [email protected] APPROVED CHECKED PREPARED NAME Yang Alan Roy Wu Stella Wang GP TECHNICAL DATA Electrical Properties Frequency Range: 2.4~2.5GHz Impedance: 50 Ohm nominal VSWR : 1.92Max. Radiation: Omni Return loss : -10dB Max. Electrical Wave : 1/2 wavelength dipole Gain : 2.0dBi (PEAK) Admitted power : 1W Polarization: Vertical Mechanical Properties Antenna Cover: PU Antenna Base : PC Color : WHITE Operation Temperature:-20°C~+60°C Storage Temperature:-30°C~+75°C Connector: SMA MALE RP http://www.kinsun.com TEL：(03) 4353551 FAX：(03) 4353951 Frequency(MHz)：2450.00 Pattern Field：E plane Average Gain(dB)：-2.46dB Maximum Gain(dB)：1.97dB Maximum Gain(degree)：-71.43 Minimum Gain(dB)：-26.29dB Minimum Gain(degree)：-180.00 Brand / Model：6602108083 Remark：2450MHz Tested by：Allen Yu --：Max. deg *Unit：dBi http://www.kinsun.com TEL：(03) 4353551 FAX：(03) 4353951 Frequency(MHz)：2450.00 Pattern Field：H plane Average Gain(dB)：1.78dB Maximum Gain(dB)：1.97dB Maximum Gain(degree)：85.50 Minimum Gain(dB)：1.54dB Minimum Gain(degree)：228.81 Brand / Model：6602108083 Remark：2450MHz Tested by：Allen Yu --：Max. deg *Unit：dBi 6602108083 S11 VSWR Elastollan ® SSeries Technical BulletinPolyester Type Elastollan ® S series of products are polyester-based thermoplastic polyurethanes that exhibit good hydrolytic stability. They also exhibit good oil, fuel and solvent resistance. These products can be injection molded, blow molded and extruded. All grades should be dried before processing. Elastollan ® products can be stored for up to 1 year in their original container. Containers should be stored in a cool, dry area. Extrusion grades: S90A Injection molding grades: S80A to S60D Physical Properties Units ASTM Method S80A 3 S85A 3 S90A 3 S95A 3 S98A 3 S60D 3 Specific gravitygr./cm 3 D-7921.211.221.231.231.241.25 HardnessShore A D-2240 80±285±292±296±298±2 - D- 41±248±254±260±2 Tensile strengthMPaD-41227.53439424243 psi400049005600610061006200 Tensile stressD-412 @100 % elongationMPa5.56.911141922 psi80010001550200027003200 @300 % elongationMPa9.61420263237 psi140019802900380047005300 Elongation @brk.%D-412650690540510425450 Tensile set @brk.%D-4124535557080110 Tear strengthN/mmD-624104128154185195 lb./in.DIE C59073087510501150 Abrasion resistancemgD-1044 2 252525305050 (Loss)(Taber) Test samples were cured 20 hours @ 1OO°C before testing. NOTE: 1 These products can only be ordered in minimum quantities. Please contact your sales representative for details. 2 H-18 wheel, 1000 gm weight and 1000 cycles. 3 Products with an N designation do not contain hydrolytic stabilizers. Contact Elastollan Technical Service Rep for further information Caution:Contact with product dusts from regrinding operations may cause temporary irritation of the eyes and the respiratory tract. Use with local exhaust. Under hot melt processing conditions (170-230°C), wear personal protective equipment to prevent thermal burns. First aid:Eyes-Flush eyes with flowing water at least 15 minutes. If irritation develops, consult a physician.Skin-Skin contact with hot melt may cause thermal burns. Call a physician immediately.Inhalation-If vapors generated from the hot melt process are inhaled, move to fresh air. Aid in breathing. If breathing difficulties develop, see a physician immediately. In case of fire:Use water fog, foam, CO 2 , or dry chemical extinguishing media. Firefighters should be equipped with self-contained breathing apparatus and turnout gear. Disposal:Waste material, unused contents and empty containers must be disposed of in accordance withapplicable local, state or federal regulations. Refer to our Material Safety Data Sheet for specific disposal instructions. In case of chemical emergency:Call CHEMTREC day or night for assistance and information concerning spilled material, fire, exposure and other chemical accidents. 800-424- 9300 Attention:This product is sold solely for use by industrial institutions. Refer to our Material Safety Data Sheet regarding safety, usage, applications, hazards, procedures and disposal of this product. Consult your supervisor for additional information. No warranties of any kind, either express or implied, including warranties of merchantability or fitness for a particular purpose, are made regarding products described or designs, data or information set forth or that the products designs, data or information may be used without infringing the intellectual property rights of others in no case shall the descriptions information, data or designs provided be considered a part of our terms and conditions of sale. Further, you expressly understand and agree that the descriptions, designs, data and information furnished byBASF hereunder are provided gratis and BASF assumes no obligation or liability for the description, designs data and information given or results obtained, all such being given and accepted at your risk. BASF Corporation, 1609 Biddle Avenue, Wyandotte, Michigan 48192 (800) 892-3111 x21, www.basf.com/elastollan ©BASF Corporation 2000 http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 Ꭽጥޗᔆᢞࣔ

Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 59 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 60 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2 20.0 21.75 1.58 1.00 0.047176 IEEE 802.11g 2 20.0 19.68 1.58 1.00 0.029290 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 1 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Wireless IP CAM Model : F5115 Data Applies To : F5105 Trade Name : ZAVIO Issued for ZAVIO Inc. B3, 1F, NO. 1, Lising 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 2 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/30/2010 Initial Issue All Page 66 Winnie Chen Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 3 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 6 5.1 FACILITIES ............................................................................................................ 6 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 8 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 10 7.1 6dB BANDWIDTH .................................................................................................. 10-15 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 16-21 7.3 AVERAGE POWER ............................................................................................... 22-23 7.4 POWER SPECTRAL DENSITY............................................................................. 24-29 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 30-34 7.6 RADIATED EMISSION........................................................................................... 35-53 7.7 CONDUCTED EMISSION ...................................................................................... 54-58 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 59-60 APPENDIX II SETUP PHOTOS ....................................................................................... 61-66 Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 4 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant ZAVIO Inc. Address B3, 1F, NO. 1, Lising 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan Equipment Under Test Wireless IP CAM Model F5115 Data Applies To F5105 Trade Name ZAVIO Tested Date May 25 ~ June 30, 2010 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 5 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless IP CAM Model Number F5115 Data Applies To F5105 Received Date May 25, 2010 Frequency Range IEEE 802.11b/g : 2412MHz ~ 2462MHz IEEE 802.11b : 21.75dBm (0.1496W) Transmit Power IEEE 802.11g : 19.68dBm (0.0929W) Channel Spacing IEEE 802.11b/g : 5MHz Channel Number IEEE 802.11b/g : 11 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps Transmit Data Rate IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) Type of Modulation IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Dipole Antenna , Antenna Gain 2dBi Connector : SMA Male RP DC Power Cord Type Unshielded cable 1.8 m (no detachable) Power Source 12VDC, 1.25A (From Power Adapter) I/O Port RJ-45 port × 1 , Audio In port × 1, Audio Out port × 1 , Power port × 1 , DI+DI-C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 61 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 62 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 63 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1 GHz Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 64 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 65 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Compliance Certification Services Inc. FCC IDWOR-5115F Report No.T100525302-RP1 Page 66 of 66 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. CONDUCTED EMISSION SETUP
