WOR-5115PWireless IP CAM

P5110 / P5115 User Manual i P5110 / P5115 User Manual i Contents CHAPTER 1. SAFETY INSTRUCTION ....................................................................................................................... 1 CHAPTER 2. MINIMUM SYSTEM REQUIREMENT &........................................................................................... 3 PRODUCT FEATURE..................................................................................................................................................... 3 2.1 S YSTEMREQUIREMENT.......................................................................................................................................... 3 2.2 P RODUCT FEATURES............................................................................................................................................... 4 CHAPTER 3. USING IP CAMERA VIA WEB BROWSER ........................................................................................ 5 3.1W INDOWSWEBBROWSER....................................................................................................................................... 5 3.2 M ACWEBBROWSER............................................................................................................................................... 5 3.2 M ACWEBBROWSER............................................................................................................................................... 6 CHAPTER 4. SETTING UP WIRELESS CONFIGURATION (ONLY FOR P5115 ) ............................................... 8 CHAPTER 5. OPERATING IP CAMERA VIA MOBILE PHONE ........................................................................... 9 CHAPTER 5. OPERATING IP CAMERA VIA MOBILE PHONE ......................................................................... 10 5.1 M OBILE PHONE VIEWING..................................................................................................................................... 10 5.2 U SING IP CAMERA VIA IPHONE............................................................................................................................. 11 CHAPTER 6. MSN MESSENGER ............................................................................................................................... 11 CHAPTER 6. MSN MESSENGER ............................................................................................................................... 12 CHAPTER 7. CONFIGURATION OF MAIN MENU ................................................................................................ 15 7.1 L IVEVIEW............................................................................................................................................................. 15 7.1 L IVEVIEW............................................................................................................................................................. 16 computer computer. ................................................................................................................................................. 16 7.2 S ETTING................................................................................................................................................................. 18 7.3 C LIENT SETTING................................................................................................................................................... 18 7.3 C LIENT SETTING................................................................................................................................................... 19 7.3.3 Protocol.......................................................................................................................................................... 19 7.4 I MAGE SETUP......................................................................................................................................................... 20 7.5 PT C ONTROL......................................................................................................................................................... 20 7.5 PT C ONTROL......................................................................................................................................................... 21 CHAPTER 8. SETTING-BASIC................................................................................................................................... 22 8.1 S YSTEM.................................................................................................................................................................. 22 8.1.1 Information.................................................................................................................................................... 22 8.1.2 Date / Time..................................................................................................................................................... 23 8.1.3 Initialize......................................................................................................................................................... 24 8.1.4 Language....................................................................................................................................................... 25 8.2 C AMERA................................................................................................................................................................. 26 8.2.1 General.......................................................................................................................................................... 26 8.2.2 H.264.............................................................................................................................................................. 28 8.2.3 MPEG-4.............................................................................................................................…

Text truncated - open the document above for the full version.

Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: WOR-5115P , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards,

Subject: Ad Hoc Mode Function Declaration FCC ID: WOR-5115P To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, ( Signature Here) Name: ZAVIO INC Title: Chief Technology Officer Tel: 886 3 5790275 E-mail: [email protected] Date: 2011.04.08

ZAVIO Inc. B3 Sec 1F, No.1, Lixing 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan January. 28, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID：WOR-5115P Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below : 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Minar Lin/ Chief Technology Officer Applicant: Minar Lin Company Name: ZAVIO Inc. ADDRESS: B3 Sec 1F, No.1, Lixing 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

ZAVIO Inc. B3 Sec 1F, No.1, Lixing 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan January 28, 2010 FCC ID：WOR-5115P Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712,Taiwan R.O.C. Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ZAVIO / P5115 FCC ID: WOR-5115P Product Name: Wireless IP CAM Signature FCC grantee contact person information : Name/Title: Minar Lin/ Chief Technology Officer Company Name: ZAVIO Inc. ADDRESS:B3 Sec 1F, No.1, Lixing 1st Rd. , Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

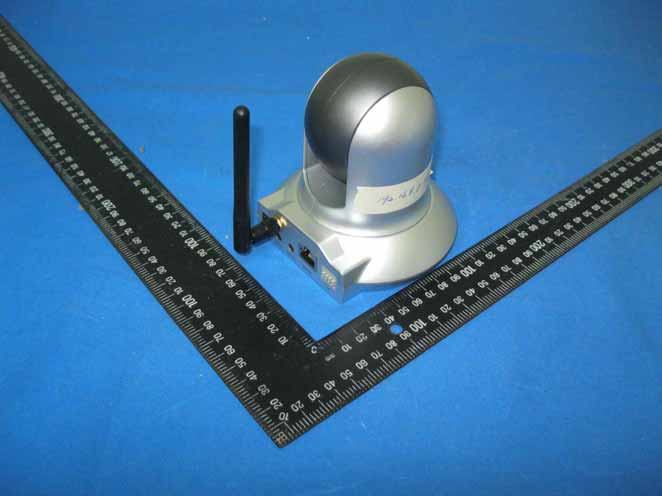

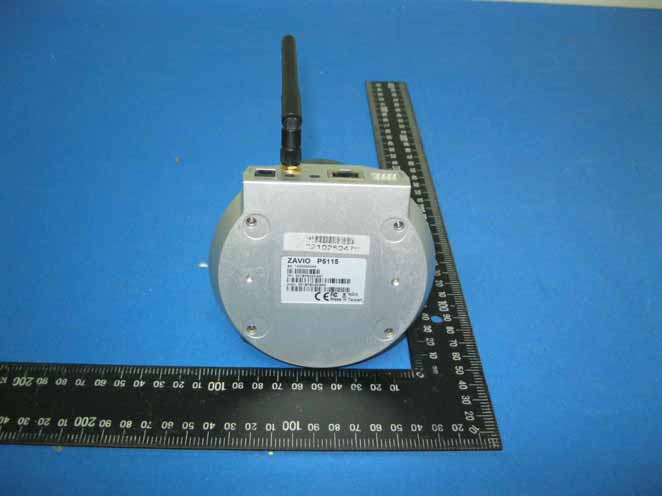

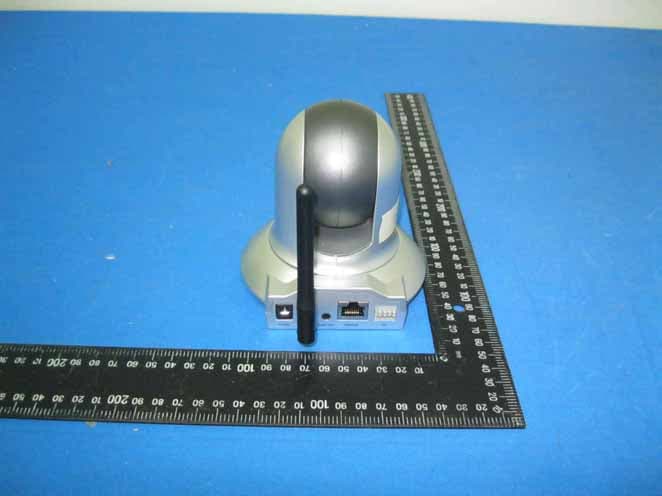

Report No.T101116301 Page 1 of 17 External Photo Report No.T101116301 Page 2 of 17 Report No.T101116301 Page 3 of 17

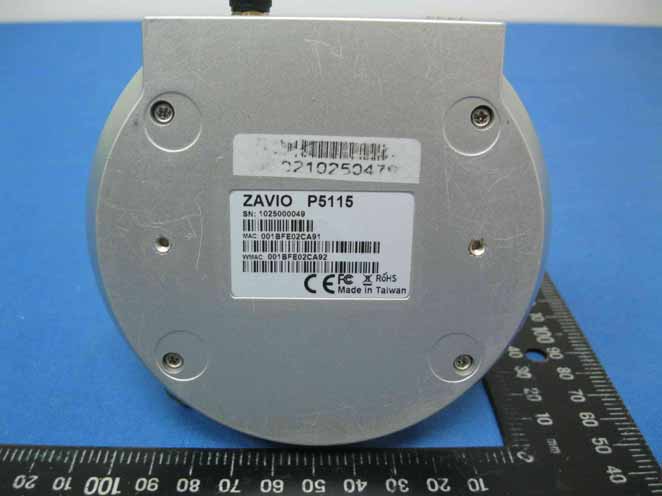

Label Location

Report No.T101116301 Page 4 of 17 Internal Photo Report No.T101116301 Page 5 of 17 Report No.T101116301 Page 6 of 17 Report No.T101116301 Page 7 of 17 Report No.T101116301 Page 8 of 17 Report No.T101116301 Page 9 of 17 Report No.T101116301 Page 10 of 17 Report No.T101116301 Page 11 of 17 Report No.T101116301 Page 12 of 17 Report No.T101116301 Page 13 of 17 Report No.T101116301 Page 14 of 17 Report No.T101116301 Page 15 of 17 Antenna Photo Report No.T101116301 Page 16 of 17 Power Adapter Photo (Model : DSA-12CA-12 120100) Report No.T101116301 Page 17 of 17

TO:ᘃછઝݾैٝڶૻֆ׹ SPECIFICATION FOR APPROVAL DESCRIPTION : 2.4G Antenna SMA BLACK CUSTOMER DWG. NO. /PART NO : KINSUN PROD. NO : 6602803081-000 DATE : 2007.12.07 PLEASE RETURN TO US ONE COPY OF “ SPECIFICATION FOR APPROVAL ” WITH YOUR APPROVED SIGNATURES APPROVED SIGNA TURES ᐜೊՠᄐैٝڶૻֆ׹ KINSUN INDUSTRIES INC. ௒Ⴜᗼխᡑؑཏ࢘ሁ 211 ৥ 20 ᇆ TEL : 886-3-4353551 FAX : 886-3-4353951 http://www.kinsun.com e-mail: [email protected] APPROVED CHECKED PREPARED NAME Yang Alan Roy Wu Stella Wang GP C:\Documents and Settings\user\Local Settings\Temporary Internet Files\Content.IE5\QX9OQM28\6602803081-000_25413[1].dwg 1 of 3 SFWJTJPO!OPUF ቼପ ೛ी -+0570 ܴҁᇥހ ਡ঑ ൂՏ კဦ Ӝࠔ ৒೚Ϧৡ ஭ኧٯК TDB MFTIFFU ҁހ 7713.3/5H .TN B 7713914192 2/602 B Nbsdp :5012014 شࠌCBMVO Kfssz :5012014 3C 1C Υ኱ຏ!!૶ဦ-ޣࣁࠔᆅᔠᡍβЁκ D Ɂ ELECTRICAL Frequency : 2.4GHz Connector : SMA-Male-RP 2C 7(&+1,&$/'$7$ (OHFWULFDO3URSHUWLHV )UHTXHQF\5DQJHa*+]  ,PSHGDQFH2KPQRPLQDO 96:50D[ 5DGLDWLRQ2PQL 5HWXUQORVVG%0D[ (OHFWULFDO:DYHZDYHOHQJWKGLSROH *DLQG%L 3($.  $GPLWWHGSRZHU: 3RODUL]DWLRQ9HUWLFDO  0HFKDQLFDO3URSHUWLHV $QWHQQD&RYHU38 $QWHQQD%DVH3& &RORU%/$&. 2SHUDWLRQ7HPSHUDWXUHദaദ 6WRUDJH7HPSHUDWXUHദaദ &RQQHFWRU60$0$/(53 http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 DateΚ2005/04/29 Time֑ΚՀ02Κ30 Brand / ModelΚ6602803081-000 RemarkΚ2450MHz Tested b yΚNick Dai --ΚMax. deg *UnitΚdBi Frequency(MHz)Κ2450.00Pattern FieldΚE planeAverage Gain(dB)Κ-2.06dB Maximum Gain(dB)Κ2.17dBMaximum Gain(degree)Κ88.57 Minimum Gain(dB)Κ-18.37dBMinimum Gain(degree)Κ0.00 http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 DateΚ2005/04/29 Time֑ΚՀ02Κ30 Brand / ModelΚ6602803081-000 RemarkΚ2450MHz Tested b yΚNick Dai --ΚMax. deg *UnitΚdBi Frequency(MHz)Κ2450.00Pattern FieldΚH planeAverage Gain(dB)Κ1.62dB Maximum Gain(dB)Κ2.17dBMaximum Gain(degree)Κ226.02 Minimum Gain(dB)Κ0.85dBMinimum Gain(degree)Κ318.10 http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 DateΚ2007/10/25PM 13:52 S11 Brand / ModelΚ6602803081-000 RemarkΚ2400 MHz – 2500 MHz Tested b yΚAllen Yu http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 DateΚ2007/10/25PM 13:52 VSWR Brand / ModelΚ6602803081-000 RemarkΚ2400 MHz – 2500 MHz Tested b yΚAllen Yu http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 DateΚ2007/10/25PM 13:52 PHASE Brand / ModelΚ6602803081-000 RemarkΚ2400 MHz – 2500 MHz Tested b yΚAllen Yu http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 DateΚ2007/10/25PM 13:52 SMITH Brand / ModelΚ6602803081-000 RemarkΚ2400 MHz – 2500 MHz Tested b yΚAllen Yu Elastollan ® SSeries Technical BulletinPolyester Type Elastollan ® S series of products are polyester-based thermoplastic polyurethanes that exhibit good hydrolytic stability. They also exhibit good oil, fuel and solvent resistance. These products can be injection molded, blow molded and extruded. All grades should be dried before processing. Elastollan ® products can be stored for up to 1 year in their original container. Containers should be stored in a cool, dry area. Extrusion grades: S90A Injection molding grades: S80A to S60D Physical Properties Units ASTM Method S80A 3 S85A 3 S90A 3 S95A 3 S98A 3 S60D 3 Specific gravitygr./cm 3 D-7921.211.221.231.231.241.25 HardnessShore A D-2240 80±285±292±296±298±2 - D- 41±248±254±260±2 Tensile strengthMPaD-41227.53439424243 psi400049005600610061006200 Tensile stressD-412 @100 % elongationMPa5.56.911141922 psi80010001550200027003200 @300 % elongationMPa9.61420263237 psi140019802900380047005300 Elongation @brk.%D-412650690540510425450 Tensile set @brk.%D-4124535557080110 Tear strengthN/mmD-624104128154185195 lb./in.DIE C59073087510501150 Abrasion resistancemgD-1044 2 252525305050 (Loss)(Taber) Test samples were cured 20 hours @ 1OO°C before testing. NOTE: 1 These products can only be ordered in minimum quantities. Please contact your sales representative for details. 2 H-18 wheel, 1000 gm weight and 1000 cycles. 3 Products with an N designation do not contain hydrolytic stabilizers. Contact Elastollan Technical Service Rep for further information Caution:Contact with product dusts from regrinding operations may cause temporary irritation of the eyes and the respiratory tract. Use with local exhaust. Under hot melt processing conditions (170-230°C), wear personal protective equipment to prevent thermal burns. First aid:Eyes-Flush eyes with flowing water at least 15 minutes. If irritation develops, consult a physician.Skin-Skin contact with hot melt may cause thermal burns. Call a physician immediately.Inhalation-If vapors generated from the hot melt process are inhaled, move to fresh air. Aid in breathing. If breathing difficulties develop, see a physician immediately. In case of fire:Use water fog, foam, CO 2 , or dry chemical extinguishing media. Firefighters should be equipped with self-contained breathing apparatus and turnout gear. Disposal:Waste material, unused contents and empty containers must be disposed of in accordance withapplicable local, state or federal regulations. Refer to our Material Safety Data Sheet for specific disposal instructions. In case of chemical emergency:Call CHEMTREC day or night for assistance and information concerning spilled material, fire, exposure and other chemical accidents. 800-424- 9300 Attention:This product is sold solely for use by industrial institutions. Refer to our Material Safety Data Sheet regarding safety, usage, applications, hazards, procedures and disposal of this product. Consult your supervisor for additional information. No warranties of any kind, either express or implied, including warranties of merchantability or fitness for a particular purpose, are made regarding products described or designs, data or information set forth or that the products designs, data or information may be used without infringing the intellectual property rights of others in no case shall the descriptions information, data or designs provided be considered a part of our terms a…

Text truncated - open the document above for the full version.

FCC IDWOR-5115P Report No.T101116301-RP1 Page 63 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDWOR-5115P Report No.T101116301-RP1 Page 64 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2.17 20.0 17.20 1.65 1.00 0.017208 IEEE 802.11g 2.17 20.0 20.49 1.65 1.00 0.036705 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDWOR-5115P Report No.T101116301-RP1 Page 1 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Wireless IP CAM Model : P5115 Trade Name : ZAVIO Issued for ZAVIO Inc. 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDWOR-5115P Report No.T101116301-RP1 Page 2 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 02/21/2011 Initial Issue All Page 69 Kate Shi FCC IDWOR-5115P Report No.T101116301-RP1 Page 3 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST......................................................................9-10 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1 6dB BANDWIDTH .................................................................................................. 11-16 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 17-22 7.3 AVERAGE POWER ............................................................................................... 23-24 7.4 POWER SPECTRAL DENSITY............................................................................. 25-30 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 31-37 7.6 RADIATED EMISSION........................................................................................... 38-57 7.7 CONDUCTED EMISSION ...................................................................................... 58-62 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 63-64 APPENDIX II SETUP PHOTOS ....................................................................................... 65-69 FCC IDWOR-5115P Report No.T101116301-RP1 Page 4 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZAVIO Inc. Address 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Equipment Under Test Wireless IP CAM Model P5115 Trade Name ZAVIO Tested Date November 16, 2010 ~ February 18, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Team Leader FCC IDWOR-5115P Report No.T101116301-RP1 Page 5 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless IP CAM Model Number P5115 Received Date November 16, 2010 Frequency Range IEEE 802.11b/g : 2412MHz ~ 2462MHz IEEE 802.11b : 17.20 dBm (0.0525W) Transmit Power IEEE 802.11g : 20.49 dBm (0.1119W) Channel Spacing IEEE 802.11b/g : 5MHz Channel Number IEEE 802.11b/g : 11 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps Transmit Data Rate IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) Type of Modulation IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Dipole Antenna ,Antenna Gain 2.17 dBi DC Power Cord Type Unshielded cable 1.5 m (no detachable) with a core Power Rating 12Vdc Test Voltage 120Vac, 60Hz RJ-45 port × 1, Audio In port × 1, Audio Out port × 1, I/O Port Power port × 1, DI+DI-Com No port × 1 Power Adapter : No. Manufacturer Model No. Power Input Power Output 1 DVE DSA-12CA-12 120100 100-240Vac, 0.3A, 50/60Hz 12Vdc, 1A Remark :…

Text truncated - open the document above for the full version.

FCC IDWOR-5115P Report No.T101116301-RP1 Page 65 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDWOR-5115P Report No.T101116301-RP1 Page 66 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDWOR-5115P Report No.T101116301-RP1 Page 67 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC IDWOR-5115P Report No.T101116301-RP1 Page 68 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDWOR-5115P Report No.T101116301-RP1 Page 69 of 69 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
