WS310KA2AC00LCD Projector

Multimedia Projector MODELPLC-XU4000 Owner’s Manual Network Supported ‰Wired LAN Refer to the Owner's Manual below for details about network function. ‰Network Set-up and Operation 2 Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ‹ Compact Design This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use. ‹ Simple Computer System Setting The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.29). Up to WUXGA resolution can be accepted. ‹ Useful Functions for Presentations - The digital zoom function allows you to focus on the crucial information during a presentation (p.36). - Blackboards* can be used as a projection screen. *The board color is limited to Green (pp.33, 41). ‹ Lamp Control Brightness of the projection lamp can be selected (pp.25, 54). ‹ Direct OFF Function With the Direct OFF function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection (p.20). ‹ Logo Function The Logo function allows you to customize the screen logo (pp.48-50). You can capture an image for the screen logo and use it for the starting-up display or between presentations. ‹ Multilanguage Menu Display Operation menu is available in 21 languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Czech, Russian, Turkish, Kazakh, Vietnamese, Chinese, Korean, Japanese and Thai (p.46). ‹ Switchable Interface Terminal The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently (p.51). 9 Note:  ‡7KH2Q6FUHHQ0HQXDQGILJXUHVLQWKLVPDQXDOPD\GLIIHUVOLJKWO\IURPWKHSURGXFW  ‡7KHFRQWHQWVRIWKLVPDQXDODUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH ‹ Security Function The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.55). PIN code lock function prevents unauthorized use of the projector (pp.19, 55–56). ‹ Helpful Maintenance Functions Lamp and filter maintenance functions provide for better and proper maintenance of the projector. ‹ LAN Network Function This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network. For details, refer to the owner’s manual “Network Set-up and Operation.” ‹ Auto Setup Function This function enables Input search, Auto Keystone correction and Auto PC adjustment by simple pressing the AUTO SETUP button on the top control (p.47). ‹ Colorboard Function At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. ‹ Power Management The Power management function reduces power consumption and maintains the lamp life (p.51). ‹ Closed caption Closed caption is a function that displays the audio portion of a TV program as text on the screen. The closed captioning service is available mainly in the U.S (p.53). 3 Table of Contents Trademarks Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation. Features and Design...................2 Table of Contents......................3 To the Owner..........................4 Safety Instructions.....................5 Air Circulation6 Installing the Projector in Proper 6 Position6 Moving the Projector6 Compliance...........................7 Part Names and Functions..............8 Front8 Back8 Bottom8 Rear Terminal 9 Top Control10 Remote Control11 Remote Control Battery Installation12 Remote Control Operating Range12 Remote Control Code12 Installation...........................13 Positioning the Projector13 Adjustable Feet13 Connecting to a Computer14 Connecting to Video Equipment15 Connecting to Component Video Equipment16 Connecting the AC Power Cord17 Basic Operation......................18 Turning On the Projector18 Turning Off the Projector20 How to Operate the On-Screen Menu21 Menu Bar22 Zoom and Focus Adjustment23 Auto Setup Function23 Keystone Correction23 Sound Adjustment24 Remote Control Operation25 Computer Input ......................27 Input Source Selection (Computer 1: RGB )27 Input Source Selection (Computer 2: RGB)28 Computer System Selection29 Auto PC Adjustment30 Manual PC Adjustment31 Image Mode Selection 33 Image Adjustment34 Screen Size Adjustment35 Video Input..........................38 Input Source Selection (Video, S-video)38 Input Source Selection (Component, RGB Scart)39 Video System Selection40 Image Mode Selection 41 Image Adjustment42 Screen Size Adjustment44 Setting..............................46 Setting46 Information..........................59 Input Source Information Display59 Maintenance and Cleaning.............60 WARNING indicator60 Replacing the Filters61 Resetting the Filter Counter61 Attaching the Lens Cap62 Cleaning the Projection Lens62 Cleaning the Projector Cabinet62 Lamp Replacement63 Appendix...........................65 Troubleshooting65 Menu Tree68 Indicators and Projector Condition70 Compatible Computer Specifications71 Technical Specifications72 Optional Parts73 PJ Link Notice74 Attaching the Filter Cover to the projector74 Configurations of Terminals75 PIN Code Number Memo76 Dimensions77 4 To the Owner CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT. THIS SYMBOL INDICATES THAT TH…

Text truncated - open the document above for the full version.

26 black out ĺ the captured image ĺnormalĺ ‡‡‡‡‡ Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p. 48), the screen changes each time you press the NO SHOW button as follows. NO SHOW button Press the P-TIMER button on the remote control to operate the Count up/Count down function. See page 52 for details of Setting for the P-timer function. To stop the countdown, press the P-TIMER button. To cancel the P-Timer function, press and hold the P-TIMER button for a few seconds. P-TIMER button Press the IMAGE button on the remote control to select a desired image mode of the screen. See pages 33, 41 for details. IMAGE button No show disappears after 4 seconds. P-Timer display 3Note: See the previous page for the description of other buttons. IMAGE button NO SHOW button P-TIMER button SCREEN button Select the screen size (See pages 35-37, 44-45 for details). SCREEN button Basic Operation 002:02 P-timer 27 ChooseComputer 1(RGB) or Computer 1(Scart) by pressing the INPUT button on the top control or press the COMPUTER 1 button on the remote control. Before using INPUT button, correct input source should be selected through Menu operation as described below. 1 Input Menu 2 3 Input Source Selection (Computer 1: RGB ) Computer Input COMPUTER 1 button 3Note: When the Input Search function is set to On1 or On2 in the Auto setup function, the input signal will be searched automatically (p.47). Computer 1 Top Control Remote Control Press the MENU button to display the On-Screen Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button. Use the Point Ÿź buttons to select Computer 1 and then press the Point Ź button. Use the Point Ÿź buttons to select RGB and then press the SELECT button. Computer 1(RGB) Computer 1(Scart) Video Computer 2(RGB) S-video INPUT button Computer 1(RGB) / (Component) / (Scart) Direct Operation Menu Operation 28 ChooseComputer 2(RGB) by pressing the INPUT button on the top control or press the COMPUTER 2 button on the remote control. Input Source Selection (Computer 2: RGB) 3Note: ‡When the Input Search function is set to On1 or On2, the input signal will be searched automatically (p.47). ‡COMPUTER 2 can not be selected when using the COMPUTER IN 2/ MONITOR OUT terminal as MONITOR OUT output. COMPUTER 2 button Top ControlRemote Control 1 2 Press the MENU button to display the On-Screen Menu. Use the Point Ÿźbuttons to select Input and then press the Point Ź or the SELECT button. Use the Point Ÿź buttons to select Computer 2 and then press the SELECT button. Input Menu Computer 2(RGB) 3 WhenComputer 2 is selected, analog RGB input source will be selected directly. INPUT button Computer Input Video Computer 2(RGB) S-video Computer 1(RGB) / (Component) / (Scart) Direct Operation Menu Operation 29 PC System Menu PC System Menu Computer System Selection This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 71.) One of the following messages may appear when: The projector cannot recognize the connected signal conforming to the provided PC Systems. Auto is displayed on the System Menu box and the Auto PC Adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required (pp.31-32). There is no signal input from the computer. Check the connection between your computer and the projector. (See “Troubleshooting” on pages 65-66.) Auto ----- The preset system is manually adjusted in the PC Adjust Menu. The adjusted data can be stored in Mode 1–10 (pp.31-32). Mode 1 PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it. SVGA 1 *Mode 1 and SVGA 1 are examples. 1 2 PC system can also be selected manually. Selecting Computer System Manually Press the MENU button to display the On-Screen Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button. Use the Point Ÿź buttons to select System and then press the Point Źor the SELECT button. Use the Point Ÿź buttons to select the desired system and then press the SELECT button. 3 The PC System Menu Selected system is displayed. Systems in this dialog box can be selected. CustomizedMode (1–10) set in the PC Adjust Menu (pp.31-32). Computer Input Selecting Computer System Manually 30 Auto PC Adjustment function is provided to automatically adjust Fine sync,Total dots,Horizontal and Vertical to conform to your computer. PC adjust Menu Auto PC Adjustment To store adjustment parameters The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–10) in the PC System Menu (see page 29). See also “Store” on page 32. 3Note: ‡Fine sync,Total dots,Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.31-32).  ‡7KH$XWR3&$GMXVWPHQWFDQQRWEHRSHUDWHGZKHQ480i, 575i,480p,575p,720p,1035i or 1080i is selected in the PC System Menu (p.29). Press the MENU button to display the On-Screen Menu. Use the Point Ÿź buttons to select PC adjust and then press the Point Ź button. 1 2 Use the Point Ÿź buttons to select Auto PC adj. and then press the SELECT button. Auto PC adj. Use Point Ÿź buttons to select Auto PC adj.and press the SELECT button. Please wait... appears while the Auto PC adjustment is in process. Computer Input Menu Oper…

Text truncated - open the document above for the full version.

51 Terminal The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point Ÿźbuttons. Computer 2. . computer input Monitor Out. . monitor out Terminal function is not available when Computer 2 is selected to the input source. Change the input source to the others (Computer 1, Video or S-video) so that the Terminal function will be available. (pp.25, 27, 38, 39) Power management Time left before Lamp is off. Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Select one of the following options: Ready..................When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control is pressed. Shut down..........When the lamp has been fully cooled down, the power will be turned off. Off....................... Power management function is off. Timer................... If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with No signal appears. It starts the countdown until the lamp is turned off. Use the Point Ÿź buttons to set the Timer(1~30min.). 3Note: Factory default is Ready: 5 Min. Direct on When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to a wall outlet. 3Note: Be sure to turn off the projector properly (see “Turning Off the Projector” on page 20). If the projector is turned off in the incorrect sequence, the Direct on function does not work properly. Setting 52 Standby mode This function is available when operating the projector via network. Eco............ SelectEco when you do not use the projector via network. The projector’s network function will stop when turning off the projector. Network.... Supply the power to the network function even after turning off the projector. You can turn on/ off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off. Refer to the owner’s manual of “Network Set-up and Operation”. 3Note: ‡)DFWRU\GHIDXOWLVNetwork. ‡ When selecting Network, the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off. Setting X: disabled O: enabled *1 When Eco is selected, it is only possible to turn on the projector while using the RS-232C serial port. *2 When switch the Standby MIC out function On and in Standby mode status, only MIC volume can be output. Monitor Out Audio Out Di rect on Serial command Network *1 *2 This function allows you to change the setting of the P-timer and execute it. Select one of the following options: Count up... The P-timer display 000:00 appears on the screen and the count starts (000:00–180:00) Count down.. The time set in the Timer setting appears on the screen and the countdown starts. Timer.........8VHWKH3RLQWŸźEXWWRQVWRVHWWKH Timer (1–180 Min). Timer is available in Count down only. Factory default velue is 10 Min. Start.......... It executes the count up or count down function. Press the SELECT button at Start and the indication changes into Stop. To stop Count up or Count down, press the SELECT button at Stop on the screen menu, then the indication changes into Restart. Press the SELECT button at Restart to resume Count up or Count down. Reset......... Reset the P-timer values. Press the SELECT button at Reset to return to the following value; Count up ... "000:00" Count down ... Timer that you set Exit............ To exit the P-timer operation. P-timer P-timer P-timer display 0 Stop or Cancel the P-timer via Remote Control To stop the P-timer function, press the P-TIMER button. To cancel the P-timer, press and hold the P-TIMER button for a few seconds. 53 Closed caption Closed caption is a function that displays the audio portion of a TV program as text on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point Ÿź buttons to select Off,CC1,CC2,CC3 or CC4. If the closed caption is not clear, you can change the text fromColor to White. Closed Caption 3Note: The Closed caption is available only under the situation below. ‡:KHQWKHLQSXWVLJQDOLV176&RIFRPSRVLWHDQG S-video, and the system is set according to the signal or set on Auto.   ‡7KHV\VWHPPXVWEHVHWRQNTSC or Auto in Video System Selection. (p.40)   ‡7KHLFRQRI&ORVHGFDSWLRQLVGLVSOD\HGLQJUD\ZKLOHLW is not available. ‡The Closed caption is unavailable when On-Screen menu and P-Timer are displayed. Press the Point Ÿź buttons to selectOff,CC1,CC2,CC3 or CC4, and then Press SELECT button. Setting 54 Remote control This function allows you to change brightness of the screen. Lamp control Remote control Lamp life control This projector provides two different remote control codes: the factory-set initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. When operating the projector in "Code 2", both the projector and the remote control must be switched to "Code 2". To change the code for the projector: Select either "Code 1" or "Code 2" in this Setting Menu. To change the code for the remote control: Press and hold both the MENU and IMAGE buttons together for 5 seconds or more. After changing the code, make sure the remote control operates properly. Lamp control Select the lamp operation when the total lighting time of a lamp exceeds the recommended total hours of use. Mode 1.............. The lamp can be turned on even after exceeding the recommended total…

Text truncated - open the document above for the full version.

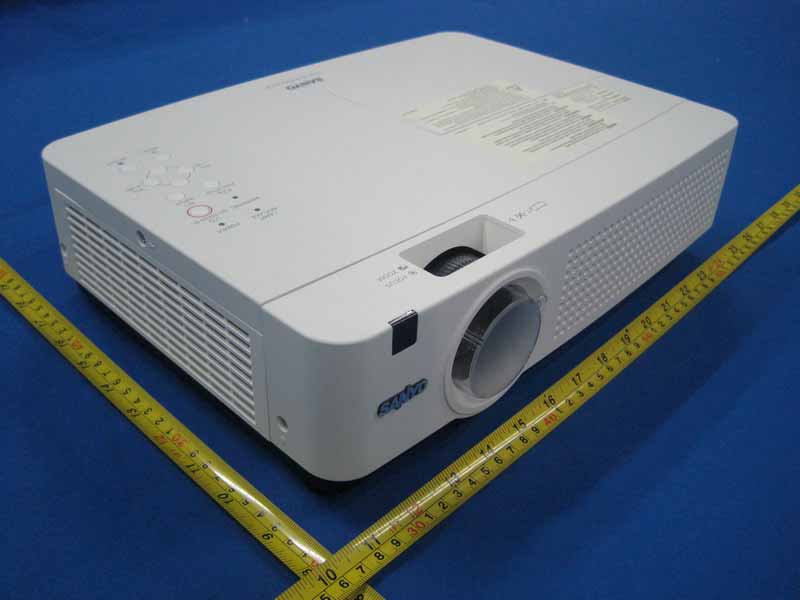

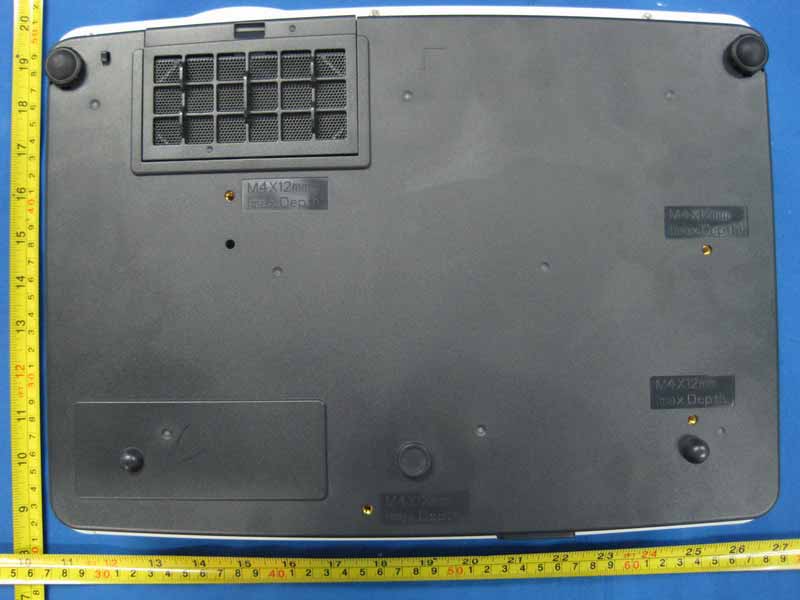

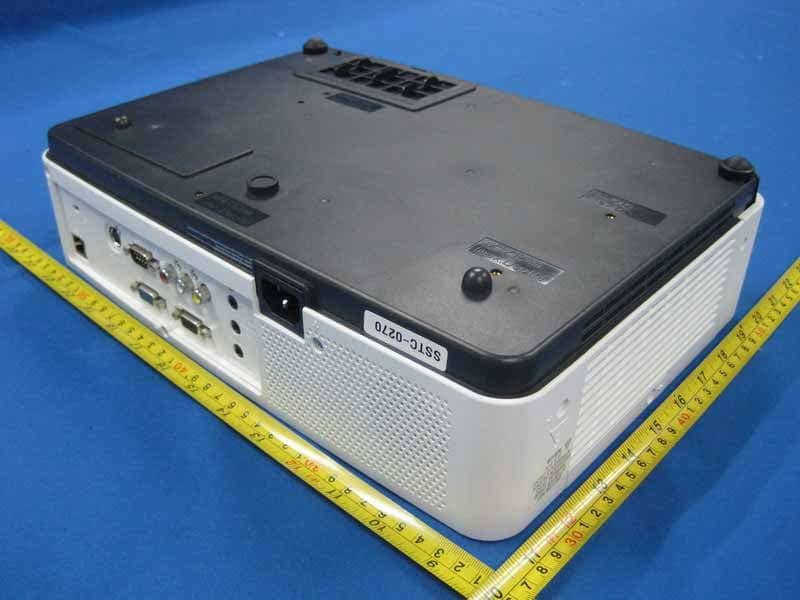

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-1 7. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

DECLARATION OF RATING LABEL Label Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-6 Figure 11 Inside of the EUT Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-7 Figure 13 Inside of the EUT Figure 14 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-8 Figure 15 Inside of the EUT Figure 16 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-9 Figure 17 Inside of the EUT Figure 18 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-10 Figure 19 Inside of the EUT Figure 20 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-11 Figure 21 Inside of the EUT Figure 22 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-12 Figure 23 Inside of the EUT Figure 24 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-13 Figure 25 Inside of the EUT Figure 26 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-14 Figure 27 Inside of the EUT Figure 28 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-15 Figure 29 Inside of the EUT Figure 30 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-16 Figure 31 Component Side of the PCB Figure 32 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-17 Figure 33 Component Side of the PCB Figure 34 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-18 Figure 35 Component Side of the PCB Figure 36 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-19 Figure 37 Component Side of the PCB Figure 38 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-20 Figure 39 Component Side of the PCB Figure 40 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-21 Figure 41 Component Side of the PCB Figure 42 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-22 Figure 43 Remote Figure 44 Inside of the Remote R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 7-23 Figure 45 Inside of the Remote

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10303 APPLICATION FOR CERTIFICATION On Behalf of SANYO Electronics (DONG GUAN) CO.,LTD. LCD Projector Model No.: PLC-XU4000, PLC-XU4000K, PLC-XK4000K, PLC-XU4010C, PLC-XU4050C, LP-XU4000 FCC ID: WS310KA2AC00 Prepared for : SANYO Electronics (DONG GUAN) CO.,LTD. Hong Ye Industry Area, TangXia Town, DongGuan City, Guangdong Prov., China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number Κ ACS-F10303 Date of Test Κ Nov.03, 2010 Date of Report Κ Nov.10, 2010 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10303 TABLE OF CONTENTS Description Page 1.SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1.Description of Standards and Results ............................................................................................. 1-1 2.GENERAL INFORMATION .................................................................................................. 2-1 2.1.Description of Device (EUT) ......................................................................................................... 2-1 2.2.Tested Supporting System Details ................................................................................................. 2-2 2.3.Block Diagram of connection between EUT and simulators ......................................................... 2-3 2.4.Test Facility .................................................................................................................................... 2-4 2.5.Test Uncertainty (95% confidence levels, k=2) ............................................................................. 2-4 3.POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1.Test Equipments ............................................................................................................................. 3-1 3.2.Block Diagram of Test Setup ......................................................................................................... 3-1 3.3.Power Line Conducted Emission Test Limits ................................................................................ 3-1 3.4.Configuration of EUT on Test ....................................................................................................... 3-2 3.5.Operating Condition of EUT .......................................................................................................... 3-2 3.6.Test Procedure ................................................................................................................................ 3-2 3.7.Power Line Conducted Emission Test Results............................................................................... 3-3 4.RADIATED EMISSION TEST ............................................................................................... 4-1 4.1.Test Equipment .............................................................................................................................. 4-1 4.2.Block Diagram of Test Setup ......................................................................................................... 4-1 4.3.Radiated Emission Limit ................................................................................................................ 4-2 4.4.EUT Configuration on Test ............................................................................................................ 4-2 4.5.Operating Condition of EUT .......................................................................................................... 4-2 4.6.Test Procedure ................................................................................................................................ 4-3 4.7.Radiated Emission Test Results ..................................................................................................... 4-3 5.DEVIATION TO TEST SPECIFICATIONS ........................................................................ 5-1 6.PHOTOGRAPH OF TEST ...................................................................................................... 6-1 6.1.Photos of Power Line Conducted Emission Test ........................................................................... 6-1 6.2.Photos of Radiated Emission Test for 30~1000MHz ..................................................................... 6-2 6.3.Photos of Radiated Emission Test for above 1GHz ....................................................................... 6-3 7.PHOTOGRAPH OF EUT ........................................................................................................ 7-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10303 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1.Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item StandardLimitsResults Power Line Conducted Emission Test FCC Part 15: 2008 ANSI C63.4: 2009 Class B PASS Radiated Emission Test FCC Part 15: 2008 ANSI C63.4: 2009 Class B PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 2-1 2.GENERAL INFORMATION 2.1.Description of Device (EUT) Description : LCD Projector Model Number : PLC-XU4000, PLC-XU4000K, PLC-XK4000K, PLC-XU4010C, PLC-XU4050C, LP-XU4000 Original model is PLC-XU4000, and PLC-XU4000K, PLC-XK4000K, PLC-XU4010C, PLC-XU4050C, LP-XU4000 are same as original model .The deference is just the model name. Applicant : SANYO Electronics (DONG GUAN) CO.,LTD. Hong Ye Industry …

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Page 6-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 6. PHOTOGRAPH OF TEST 6.1. Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Page 6-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 6.2. Photos of Radiated Emission Test for 30~1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS310KA2AC00 Page 6-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10297 6.3. Photos of Radiated Emission Test for above 1GHz
