WS312WB2BC00Multimedia Projector

Multimedia Projector MODEL LC-WB200A Network Supported  Wired LAN Refer to the Owner's Manuals below for details about network function.  Network Set-up and Operation  PJ Network Manager Owner's Manual 2 Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦ Compact Design This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use. ♦ Simple Computer System Setting The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.28). Up to WUXGA resolution can be accepted. ♦ Useful Functions for Presentations - The digital zoom function allows you to focus on the crucial information during a presentation (p.35) - The MIC function and 10W audio output allows you to make a presentation without any external audio equipment (p.24). ♦ Lamp control Brightness of the projection lamp can be selected (pp.25, 54). ♦ Direct Off Function With the Direct Off function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection (p.20). ♦ Logo Function The Logo function allows you to customize the screen logo (pp.46-48). You can capture an image for the screen logo and use it for the starting-up display or between presentations. ♦ Picture in Picture Function This projector is capable of projecting two images simultaneously by using either built-in P in P mode or P by P mode. (pp.26, 50) ♦ Multilanguage Menu Display Operation menu is available in 22 languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Czech, Russian, Turkish, Arabic, Kazakh, Vietnamese, Chinese, Korean, Japanese and Thai (p.44). ♦ Security Function The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.55). PIN code lock function prevents unauthorized use of the projector (pp.19, 55-56). ♦ Helpful Maintenance Functions Lamp and filter maintenance functions provide for better and proper maintenance of the projector. ♦ LAN Network Function This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network. For details, refer to the owner's manual of “Network Set- up and Operation.” ♦ Auto Setup Function This function enables Input search, Auto Keystone correction and Auto PC adjustment by simple pressing the AUTO SETUP button on the top control (p.45). ♦ Colorboard Function At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. ♦ Switchable Interface Terminal The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently (p.49). ♦ Power Management The Power management function reduces power consumption and maintains the lamp life (p.51). ♦ Closed caption Closed Caption is a function that displays the audio portion of a TV program as text on the screen. You can turn on the feature and switch the channels. (p.53) 3 Table of Contents Trademarks Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation. Features and Design . . . . . . . . . . . . . .2 Table of Contents . . . . . . . . . . . . . . . . .3 To the Owner . . . . . . . . . . . . . . . . . . . . .4 Safety Instructions . . . . . . . . . . . . . . . .5 Air Circulation 6 Installing the Projector in Proper Position 6 Moving the Projector 6 Compliance . . . . . . . . . . . . . . . . . . . . . .7 Part Names and Functions . . . . . . . . .8 Front 8 Back 8 Bottom 8 Rear Terminal 9 Top Control 10 Remote control 11 Remote control Battery Installation 12 Remote control Operating Range 12 Remote Control Code 12 Installation . . . . . . . . . . . . . . . . . . . . . .13 Positioning the Projector 13 Adjustable Feet 13 Connecting to a Computer 14 Connecting to Video Equipment 15 Connecting to Component Video and RGB (Scart) Equipment 16 Connecting the AC Power Cord 17 Basic Operation . . . . . . . . . . . . . . . . .18 Turning On the Projector 18 Turning Off the Projector 20 How to Operate the On-Screen Menu 21 Main Menu 22 Zoom and Focus Adjustment 23 Auto Setup Function 23 Keystone Correction 23 Sound Adjustment 24 Remote control Operation 25 Computer Input . . . . . . . . . . . . . . . . .27 Input Source Selection (RGB: Computer 1/Computer 2) 27 Computer System Selection 28 Auto PC Adjustment 29 Manual PC Adjustment 30 Image Mode Selection 32 Image Adjustment 33 Screen Setting 34 Video Input . . . . . . . . . . . . . . . . . . . . .36 Input Source Selection (Video, S-video) 36 Input Source Selection (Component, Scart, HDMI) 37 Video System Selection 38 Image Mode Selection 39 Image Adjustment 40 Screen Setting 42 Setting . . . . . . . . . . . . . . . . . . . . . . . . .44 Setting 44 Information . . . . . . . . . . . . . . . . . . . . .59 Input Source Information Display 59 Maintenance and Cleaning . . . . . . . .60 WARNING indicator 60 Replacing the Filters 61 Resetting the Filter Counter 61 Attaching the Lens Cap 62 Cleaning the Projection Lens 62 Cleaning the Projector Cabinet 62 Lamp Replacement 63 Appendix . . . . . . . . . . . . . . . . . . . . . . .65 Troubleshooting 65 Menu Tree 68 Indicators and Projector Condition 70 Compatible Computer Specifications 71 Technical Specifications 73 Optional Parts 74 PJ Link Notice 75 Attaching the Filter Cover to the Projector 75 Configurations of Terminals 76 List of Picture in Picture 77 PIN code Number Memo 78 Dimensions 79 4 To the Owner CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, D…

Text truncated - open the document above for the full version.

38 Video Input Video System Selection 1 AV System Menu (Video or S-video) AV System Menu (Component) 2 If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M and PAL-N. PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i. Auto COMPONENT VIDEO SIGNAL FORMAT Video or S-video Component The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually. Auto Note: The AV System Menu cannot be selected when selecting RGB(Scart) or HDMI. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► button or the SELECT button. Use the Point ▲▼ buttons to select Video, S-video or Computer 1(Component) and then press the SELECT button. 3 Use the Point ▲▼ buttons to select System and then press the Point ► button or the SELECT button. Use the Point ▲▼ buttons to select the desired system and then press the SELECT button. Video Input 39 Video Input Image select Menu Image Mode Selection Remote control IMAGE button Standard Picture mode with improved halftone for graphics. Blackboard (Green) For the image projected on a blackboard. This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board. Direct Operation For viewing pictures in a bright room. Normal picture mode preset on the projector. For viewing with the user preset image mode in the Image Adjust Menu (p. 41). 1 2 Menu Operation Colorboard At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ► button or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button. Picture mode adjusted with fine tone. Cinema IMAGE button Dynamic Real Image 1 Image 2 Image 3 Image 4 Blackboard (Green) Standard Select the desired image mode among Dynamic, Standard, Real, Cinema, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3 and Image 4 by pressing the IMAGE button on the remote control. Real Image 1-4 Dynamic Colorboard Cinema 40 Video Input Image Adjustment 1 2 Press the Point ◄ button to decrease the contrast, press the Point ► button to increase the contrast (from 0 to 63). Press the Point ◄ button to decrease the brightness, press the Point ► button to increase the brightness (from 0 to 63). Contrast Brightness Press the Point ◄ button to lighten R/G/B tone, press the Point ► button to deepen R/G/B tone (from 0 to 63). White balance (Red / Green / Blue) Use the Point ◄► buttons to select the desired Color temp. level (XLow, Low, Mid or High). Color temp . Press the Point ◄ button decrease the intensity of the color, press the Point ► button increase the intensity of the color (from 0 to 63). Press the Point ◄► buttons to adjust the tint value to get a proper color balance (from 0 to 63). Color Tint Note: • When the White balance Red, Green or Blue is adjusted, the Color temp. will change to User. • Tint cannot be selected when the video system is PAL, SECAM, PAL-M or PAL-N (p. 38). • When Blackboard (Green) or Colorboard is selected in Image select, Color temp . will change to Blackboard or Colorboard. Image Adjust Menu Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value. Selected Image mode Use the Point ◄► buttons to adjust the setting value. Press the Point ◄ button to decrease the sharpness of the image, press the Point ► button to increase the sharpness of the image (from 0 to 15). Sharpness Use the Point ◄► buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15). Gamma Video Input 41 Video Input An interlaced video signal can be displayed in progressive mode. Select one of the following options. Off ........ Disabled. L 1 ........ For an active picture. L 2 ........ For a still picture. Film ..... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality. Progressive Noise reduction Noise interference on the screen can be reduced. Select one of the following options to get smoother images. Off ........ Disabled. L 1 ........ Lower reduction L 2 ........ Higher reduction Note: Progressive can not be selected when the input signal is 480p, 575p or 720p (p.38). To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures. Reset Store To store the adjusted data, select Store and press the Point ► button or the SELECT button. Use the Point ▲▼ buttons to select one from Image 1 to Image 4 and press the SELECT button. A confirmation box appears and then select Yes. Stored data can be called up by selecting an Image (1-4) in the Image Mode Selection on page 39. Store A confirmation box appears and then select Yes. 42 Video Input Screen Setting This projector has the picture screen resize function, which enables you to customize the image size. Normal Screen Menu 1 2 Provide the image to fit the screen size while maintaining the aspect ratio of the input signal. Custom adj . Note: …

Text truncated - open the document above for the full version.

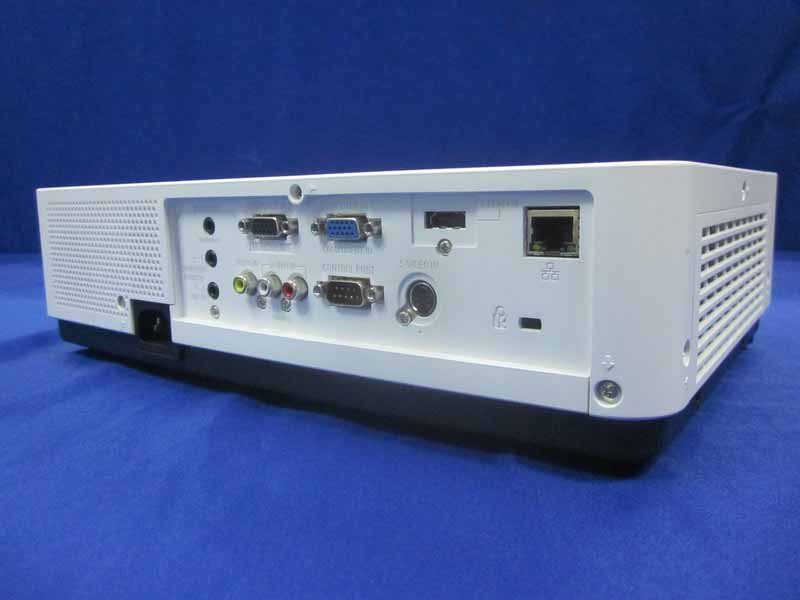

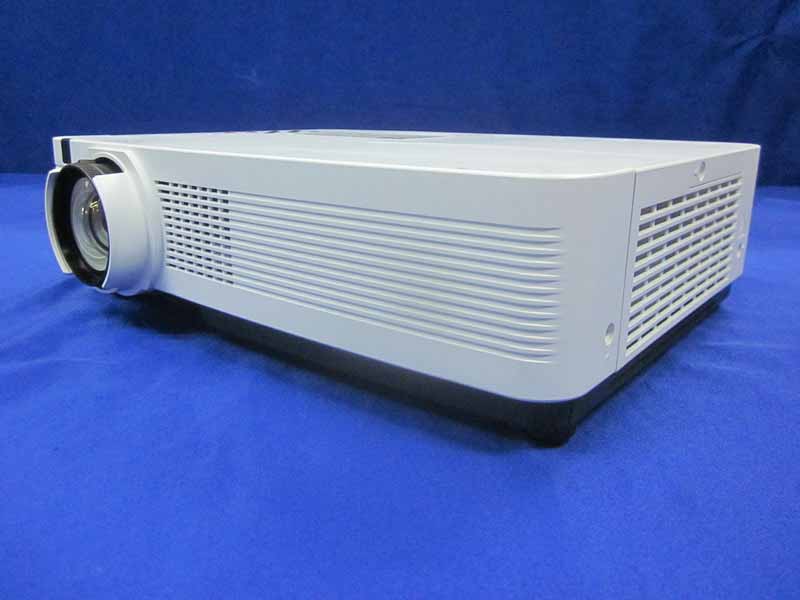

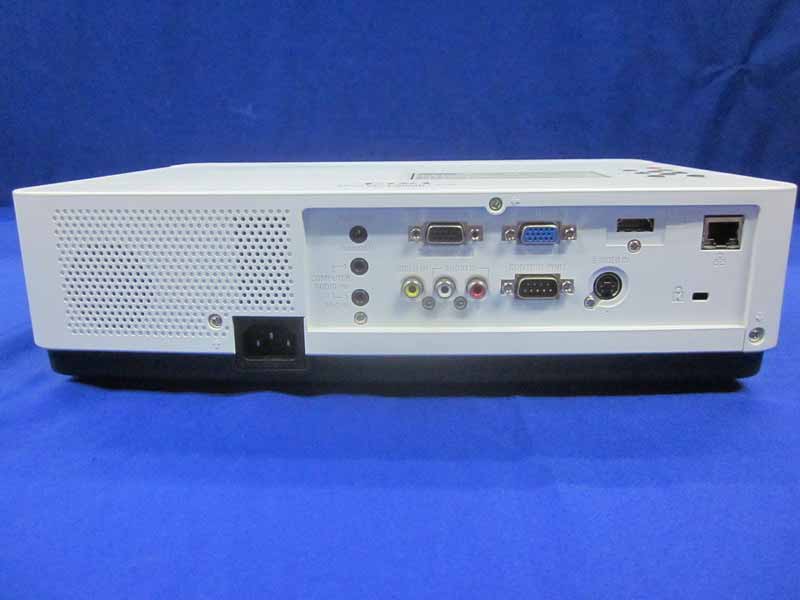

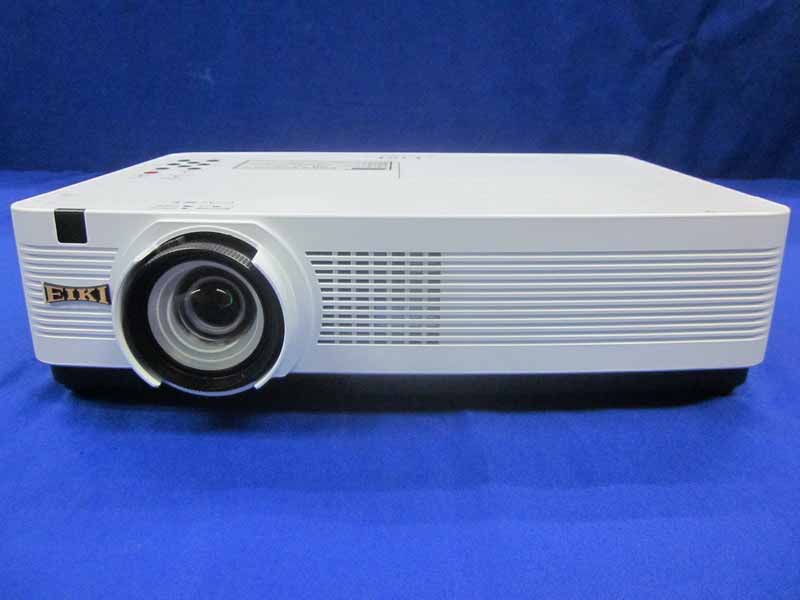

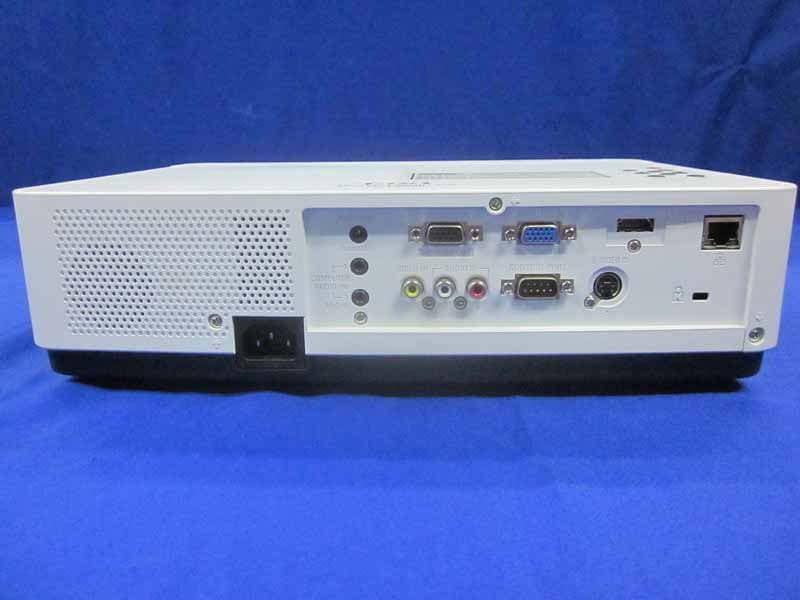

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-1 7. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-3 Figure 5 General Appearance of the EUT Figure 6 Inside of the EUT

Label Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-6 Figure 11 Inside of the EUT Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-7 Figure 13 Inside of the EUT Figure 14 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-8 Figure 15 Inside of the EUT Figure 16 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-9 Figure 17 Components Side of the PCB Figure 18 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-10 Figure 19 Components Side of the PCB Figure 20 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-11 Figure 21 Components Side of the PCB Figure 22 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-12 Figure 23 Components Side of the PCB Figure 24 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-13 Figure 25 Components Side of the PCB Figure 26 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-14 Figure 27 Components Side of the PCB Figure 28 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-15 Figure 29 Components Side of the PCB Figure 30 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-16 Figure 31 Components Side of the PCB Figure 32 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-17 Figure 33 Fan Figure 34 Fan R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-18 Figure 35 Fan Figure 36 Fan R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-19 Figure 37 Speaker Figure 38 Speaker R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 7-20 Figure 39 Remoter Figure 40 VGA Cable

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 Page 6-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 6. PHOTOGRAPH OF TEST 6.1. Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 Page 6-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 6.2. Photos of Radiated Emission Test for 30~1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 Page 6-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WS312WB2BC00 Page 6-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12258 6.3. Photos of Radiated Emission Test for above 1GHz
