WS310KR8JC00Multimedia Projector

1 Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual. Use the Point ▲▼ buttons to highlight or select a main menu item. Press the Point ► or the SELECT button to access the submenu items. (The selected item is highlighted in orange.) Use the Point ▲▼ buttons to select the desired submenu item and press the SELECT button to set or access the selected item. Press the MENU button on the top control or the remote control to display the On-Screen Menu. 1   On-Screen Menu Top Control MENU button POINT buttons (arrowhead) Remote Control SELECT button MENU button SELECT button POINT buttons (arrowhead) Point ► or SELECT button Use the Point ▲▼◄► buttons to adjust the setting or switch between each option and press the SELECT button to activate it and return to the submenu. 4 Press the Point ◄ button to return to the main menu. Press the MENU button to exit the On-Screen Menu. 5 Dynamic Standard Real Blackboard(Green) Red Colorboard Image 1 Image 2 Image 3 Image 4 ► Dynamic Standard Real Blackboard(Green) Red Colorboard Image 1 Image 2 Image 3 Image 4 ► The currently set item is check marked. The selected item is highlighted in orange.  Computer 1 RGB Computer 2 RGB Video ► ƘƘƘ Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 68-69. Basic Operation ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Main MenuSub-Menu ⑨ ⑩ ③ Image select For computer source, used to select an image mode from among Dynamic, Standard, Real, Blackboard(Green), Colorboard and image 1 - 4 (p.32). For Video source, used to select an image mode among Dynamic, Standard, Cinema, Blackboard(Green), Colorboard and Image 1- 4 (p.39). ④ Image adjust For computer source, used to adjust computer image [Contrast, Brightness, Color temp., white balance (R/G/B), Sharpness and Gamma] (pp.33-34). For Video source, used to adjust picture image [Contrast, Brightness, Color, Tint, Color temp., white balance (R/G/ B), Sharpness, Gamma, Noise reduction and Progressive] (pp.40-41). ② PC adjust Select Auto PC adj., Fine sync, Total dots, Horizontal, Vertical, Current mode, Clamp, Display area-H and Display area-V to adjust the parameters to match with the PC input signal format (pp.29-31). ⑤ Screen For computer source, used to adjust size of the image [ Normal, True, wide, Full, Custom, Custom adj. and Digital zoom +/– ] (pp.34-35). For Video source, used to set size of image [Normal, wide, Custom and Custom adj.] (p.42). ① Input Used to select an input source from Computer 1, Computer  or Video (pp.27, 36-37). ⑥ Sound Used to adjust the volume or mute the sound (p.24). ⑧ Information Display the input source information: Input , H-sync freq., V-sync freq., Screen, Language, Lamp status, Lamp counter , Power management, Key lock, PIN code lock and Remote control (p.58). ⑩ Guide The key operation is displayed. ⑦ Setting Used to set the projector’s operating configurations (pp.43-57). ⑨ Network See the owner’s manual of “Network Set-up and Operation”.  Basic Operation Rotate the Zoom Ring to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Zoom and Focus Adjustment If a projected picture still has keystone distortion after pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control, correct the image manually as follows: Press the KEYSTONE button on the remote control. The Keystone dialog box appears. Use the Point ▲▼ buttons to correct keystone distortion. The keystone adjustment can be stored (see page 45). Reduce the upper width with the Point ▲ button. Reduce the lower width with the Point ▼ button. • The white arrows indicate that there is no correction. • A red arrow indicates the direction of correction. • An arrow disappears at the maximum correction. • If you press the KEYSTONE button on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled. • The adjustable range is limited depending on the input signal. Keystone Correction Remote Control Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu by just pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Refer to page 44 for the setting of the Auto setup function. ✔Notes: • Auto Keystone corrects vertical distortion only; it does not correct horizontal distortion. • Auto Keystone cannot work when Ceiling feature is set to On in the Setting menu (p.49). • Perfect correction of the image distortion cannot be ensured with the Auto setup function. If the distortion cannot be corrected properly by pressing the AUTO SETUP or AUTO SET button, adjust manually by pressing the KEYSTONE button on the remote control or selecting Keystone in the Setting menu (p.45). • Fine sync, Total dots, Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.30-31). AUTO SET button Auto Setup Function POINT ▲▼ buttons KEySTONE button Top Control AUTO SETUP button POINT ▲▼ buttons Zoom Ring Focus Ring 4 Sound Adjustment 1  Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Sound. Press the Point ► or the SELECT button to access the submenu items. Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Press the MUTE button on the remote control to select On to temporarily turn off the sound. To turn the sound back on, press the MUTE button again to select Off or press the VOL…

Text truncated - open the document above for the full version.

46 Setting Logo (Logo and Logo PIN code lock settings) Logo select This function allows you to customize the screen logo with Logo select, capture, Logo PIN code lock and Logo PIN code change functions. ✔Note: When On is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected. Logo select This function decides on the starting-up display from among following options. User ........ Show the image you captured. Default .... Show the factory-set logo. Off ........... Show the countdown display only. Network English Store Blue Off On Off Off Off Computer 2 Direct on ► ► 1/2 Off ► Off Default 47 Setting Capture Capture This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select yes to capture the projected image. After capturing the projected image, go to the Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector or when you press the NO SHOW button. (see page 26) To cancel the capture function, select yes in the "Quit?" confirmation box. ✔Note: • Before capturing an image, select Standard in the Image select Menu to capture a proper image (pp.32, 39). • A signal from a computer can be captured up to XGA (1024 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i. • When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction. • When Logo PIN code lock is set to On, capture cannot be selected. • When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing. • When there is no captured image or it is interrupted while capturing an image, User cannot be selected, you can only switch between Default and Off. Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ........... The screen logo can be changed freely from the Logo Menu (p.46). On ........... The screen logo cannot be changed without a Logo PIN code. If you want to change the Logo PIN code lock setting, press the SELECT button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to “4321” at the factory. Logo PIN code lock Off ► Off Move Start Quit? Off ► Off Quit? 48 Setting Enter a Logo PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ◄► buttons to fix the number and move the red frame pointer to the next box. The number changes to ✳. If you fixed an incorrect number, use the Point ◄► buttons to move the pointer to the number you want to correct, and then enter the correct number. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to Set. Press the SELECT button so that you can start to operate the projector. If you entered an incorrect Logo PIN code, Logo PIN code and the number (✳✳✳✳) will turn red for a moment. Enter the correct Logo PIN code all over again. Logo PIN code change Logo PIN code can be changed to your desired four- digit number. Press the SELECT button to select Logo PIN code change. Current Logo PIN code dialog box appears, use the Point ▲▼buttons to enter the correct code. The New Logo PIN code input dialog box appears. Set a new Logo PIN code, confirmation box appears, choose yes to set the new Logo PIN code. Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting. Use the Point ▲▼ buttons to switch On or Off, and then press the SELECT button to make a chioce. Change the Logo PIN code lock setting Enter a Logo PIN code After a correct Logo PIN code is entered, the following dialog box appears. CAUTION: wHEN yOU HAVE CHANGED THE LOGO PIN CODE, wRITE DOwN THE NEw PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 76 , AND KEEP IT SECURELy. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING CAN NO LONGER BE CHANGED. Change the Logo PIN code lock setting Change the Logo PIN code Logo PIN code Next ► Off ---- Exit ► Off Select Current Logo PIN code 49 Setting Ceiling Rear Ceiling When this function is set to On, the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen. Terminal Terminal The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer  or Monitor Out with the Point ▲▼ buttons. Computer . . computer input Monitor Out. . monitor out Terminal function is not available when selecting Computer  to the input source. Change the input source to the others (Computer 1, and so on) so that the Terminal function will be available. (p.25, 36, 37) 50 Setting Time left before Lamp is off. Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Select one of the following options: Ready ............... When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control is pressed. Shut down ....... When the lamp has been fully cooled down, the power will be turned off. Off .................... Power management function is off. Timer ................ If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with…

Text truncated - open the document above for the full version.

61 Maintenance and Cleaning Cleaning the Projector Cabinet Cleaning the Projection Lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the lens. Unplug the AC power cord before cleaning. Gently wipe the projector body with a soft dry cleaning cloth. When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet. When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches. When moving this projector or while not using it over an extended period of time, replace the lens cap. Attach the lens cap according to the following procedures. Attaching the Lens Cap 1 2 Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place. To pass the other end of the string into the hole on the bottom of the projector and pull at it. Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In addition, there is a risk that the internal parts may be damaged not only by the flammable air spray but also by the cold air. CAUTION 6 Maintenance and Cleaning When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode. Follow these steps to replace the lamp. For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury. Allow a projector to cool for at least 45 minutes before you open the Lamp Cover. The inside of the projector can become very hot. CAUTION Unplug the AC power cord. Let the projector cool for at least 45 minutes. Loosen the three (3) screws that secure the lamp. Lift the lamp out of the projector by using the handles. 1  Replace the lamp with a new one and secure the three (3) screws. Make sure that the lamp is set properly. Close the lamp cover and secure the screw. 4 Loosen the screw and open the lamp cover.  Connect the AC power cord to the projector and turn on the projector. 5 Lamp Replacement CAUTION Top Control LAMP REPLACE indicator Lamp Screw Handles Screw Lamp Cover Screw Screw CAUTION When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately. ✔Note: • The Lamp replacement icon will not appear when the Display function is set to Off (p.45), during Freeze (p.25), or No show (p.26). Lamp replacement icon Reset the lamp replacement counter. See "Lamp Counter" on page 56. 6 6 Maintenance and Cleaning This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. ● Lamp life ma��differ from lamp to lamp and according to the en�ironment of use. There is no guarantee Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps. ● �f the pro�ector indicates that the lamp should be replaced, i.e., if the L��P�EPL�CE indicator lights If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion. ● � Lamp ma��e�plode as a result of�ibration, shock or degradation as a result of hours of use as its A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used. IF A LAMP EXPLODES, THE FOLLOwING SAFETy PRECAUTIONS SHOULD BE TAKEN. If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service center for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass. LAMP HANDLING PRECAUTIONS ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the …

Text truncated - open the document above for the full version.

CRP-221 CRP-261 Classroom Projector Owner’s Manual Please read this owner's manual carefully before using this product and keep it for future reference. Network Supported Refer to the Owner's Manuals below for details about network function. ❏ Network Set-up and Operation ❏ PJ Network Manager  Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦ Compact Design This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use. ♦ Simple Computer System Setting The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.28). Up to WUXGA resolution can be accepted. ♦ Useful Functions for Presentations - The digital zoom function allows you to focus on the crucial information during a presentation (p.35). - Blackboards* can be used as a projection screen. *The board color is limited to Green (pp.32, 39). ♦ Lamp Control Brightness of the projection lamp can be selected (pp.25, 53). ♦ Direct OFF Function With the Direct OFF function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection (p.20). ♦ Logo Function The Logo function allows you to customize the screen logo (pp.46-48). You can capture an image for the screen logo and use it for the starting-up display or between presentations. ♦ Multilanguage Menu Display Operation menu is available in 20 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Turkish, Kazakh, Vietnamese, Chinese, Korean, Japanese and Thai.(p.43) ✔Note: • The On-Screen Menu and figures in this manual may differ slightly from the product. • The contents of this manual are subject to change without notice. ♦ Security Function The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.54). PIN code lock function prevents unauthorized use of the projector (pp.19, 54–55). ♦ Helpful Maintenance Functions Lamp and filter maintenance functions provide for better and proper maintenance of the projector. ♦ LAN Network Function This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network. For details, refer to the owner’s manual of “Network Set-up and Operation.” ♦ Auto Setup Function This function enables Input search, Auto Keystone correction and Auto PC adjustment by simple pressing the AUTO SETUP button on the top control (p.44). ♦ Colorboard Function At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. ♦ Switchable Interface Terminal The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (p.49) ♦ Power Management The Power management function reduces power consumption and maintains the lamp life (p.50). ♦ Closed Caption This is a printed version of the program sound or other information displayed on the screen. You can turn on the feature and switch the channels. (p.52)  Table of Contents Trademarks Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation. Table of contents_a Features and Design . . . . . . . . . . . . . . . . . . . Table of Contents. . . . . . . . . . . . . . . . . . . . . . To the Owner. . . . . . . . . . . . . . . . . . . . . . . . . .4 Safety Instructions. . . . . . . . . . . . . . . . . . . . .5 Air Circulation 6 Installing the Projector in Proper Position 6 Moving the Projector 6 Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . .7 Part Names and Functions . . . . . . . . . . . . . .8 Front 8 Back 8 Bottom 8 Rear Terminal 9 Top Control 10 Remote Control 11 Remote Control Battery Installation 12 Remote Control Operating Range 12 Remote Control Code 12 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . .1 Positioning the Projector 13 Adjustable Foot 13 Connecting to a Computer 14 Connecting to Video Equipment 15 Connecting to Component Video and RGB (Scart) Equipment 16 Connecting the AC Power Cord 17 Basic Operation . . . . . . . . . . . . . . . . . . . . . .18 Turning On the Projector 18 Turning Off the Projector 20 How to Operate the On-Screen Menu 21 Menu Bar 22 Zoom and Focus Adjustment 23 Auto Setup Function 23 Keystone Correction 23 Sound Adjustment 24 Remote Control Operation 25 Computer Input . . . . . . . . . . . . . . . . . . . . . .7 I n p u t S o u r c e S e l e c t i o n ( R G B : C o m p u t e r 1 / Computer 2) 27 Computer System Selection 28 Auto PC Adjustment 29 Manual PC Adjustment 30 Image Mode Selection 32 Image Adjustment 33 Screen Size Adjustment 34 Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .6 Input Source Selection (Video, S-video) 36 Input Source Selection (Component, RGB Scart 21-pin) 37 Video System Selection 38 Image Mode Selection 39 Image Adjustment 40 Screen Size Adjustment 42 Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Setting 43 Information . . . . . . . . . . . . . . . . . . . . . . . . . .58 Input Source Information Display 58 Maintenance and Cleaning . . . . . . . . . . . . .59 WARNING indicator 59 Cleaning the Filters 60 Resetting the Filter Counter 60 Attaching the Lens Cap 61 Cleaning the Projection Lens 61 Cleaning the Projector Cabinet 61 Lamp Replacement 62 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .64 Troubleshooting 64 Menu Tree 68 Indicators and Projector Condition 70 Compatible Computer Specifications 71 Technical Specifications…

Text truncated - open the document above for the full version.

... ... ... PC2 IN Monitor Out Composite Video RS232C PC/ Video Audio in Audioout IC301<PW190> CPU SCALER A/D Converter VIDEO Decoder R-PANEL G-PANEL B-PANEL D7 IC5001 Audio POWERBOARD IC401 <L3E7111K> DIGITAL ENHANCER FAN*5pcs IC4001 OUT BUFFER A901 LAMP BALLAST PC1 IN RGB/ YCbCr/ SCART Flash IC8811/21/31 TEMP.SENSOR EEPROM IC8801 LAN Driver X8802 25MHz NX5032GA,25.0M 10/50 X1331 27MHz 1A(R/J/4)2700002DJA IC3801 232C DRIVER RJ45 IC561 RQL3E0617 0P0AM IC531 RQL3E0617 0P0AM IC501 RQL3E0617 0P0AM FN001 FN002 FN003FN004 FN005 Speaker K8F IC5031 12V Output IC01 DC-DC Camera_12v_sw IC9885 LC87F2G08AM X9885 8MHz CSTCE8M00G52-RO

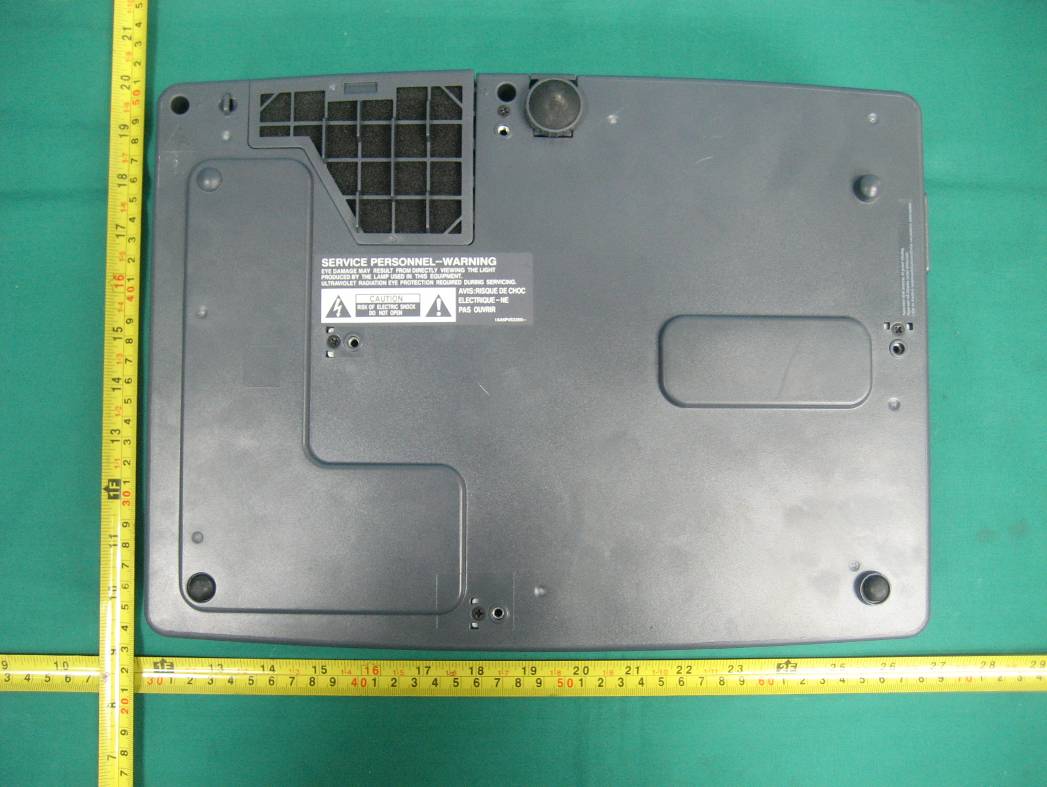

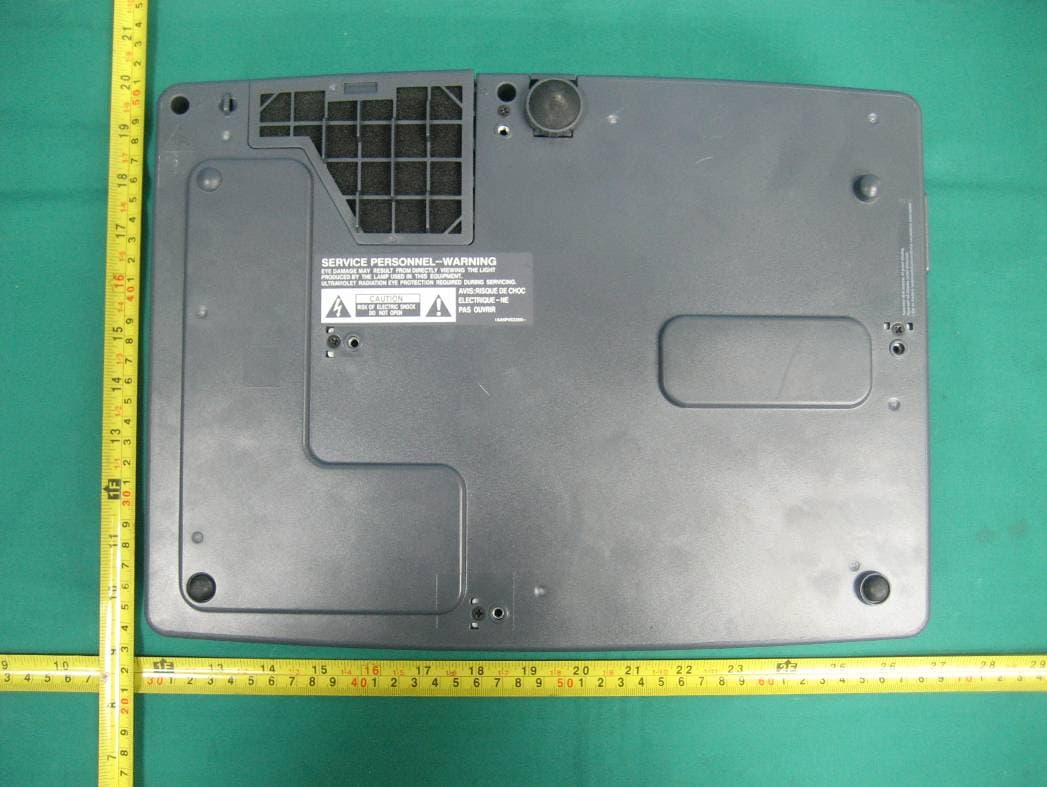

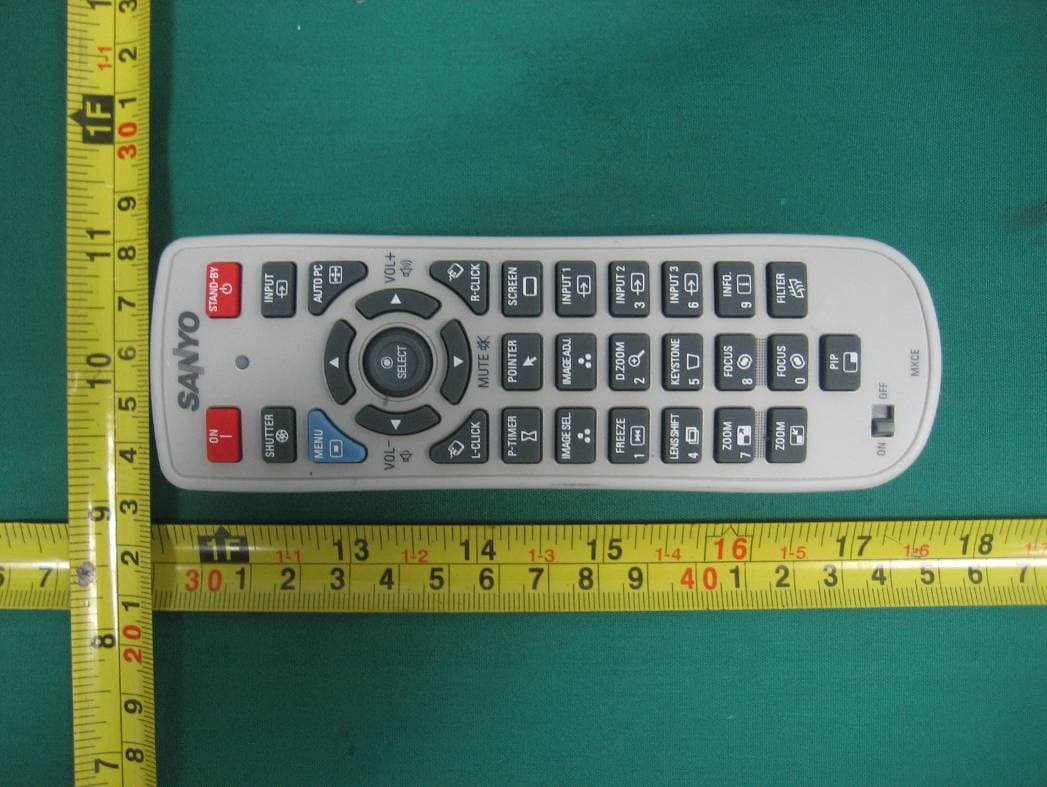

Report No. SZEE100806298701 Page 29 of 43 APPENDIX 2 EXTERNAL PHOTOS OF EUT View of EUT-1 View of EUT-2 Report No. SZEE100806298701 Page 30 of 43 View of EUT-3 View of EUT-4 Report No. SZEE100806298701 Page 31 of 43 View of EUT-5 View of EUT-6 Report No. SZEE100806298701 Page 32 of 43 View of EUT-7 View of EUT-8

2010/08/05 秦萍作成_4 追加ID号 CRITICAL SPECIFICATIONS （ 製 造 仕様书 ） SAFETY-MARK REVISIO N （改正） SECTION (部署) HST FACTORY-No. (仮称) C/S TITLE LABEL STICKING KR8JC/KS8JC （英文） C/S TITLE 贴片的粘贴仕样书 MODEL-No. (機種名） （中文） CHKD (検印) CHRGD (担当) DRWN (作図) YS.HUANG XL.ZHANG P.QIN CONTENTS （内容） SIUK SEI HSE HST MK DATE REV No. BY DESTINATION JPN SMC MEX C/S COD E /HG3400 PAGE 1/1 CRP-221/261 S ANYO ELECTRIC CO. , LTD. 2010-6-18 2010-6-18 2010-6-18 DATE ☆ LABEL STICKING-KR8 J C/KS8 J C 贴 片 粘贴仕样 距离边缘约3mm3mm tothe edge LABEL CAUTION EARTH1AA6P4S3218-A位置要求正 对 着 侧 面的AC插座。 It is required to face directly to theside AC outlet 。 LABEL RATING定格 铭牌 KR8JC：1AA6P4S3858M-KS8JC/LS8JC：1AA6P4S3858MA 注意：贴片不能盖到这个天吊钣金安装用螺孔caution:the label shall not coverthis mounting sheetmetal-installedscrew hole. 说明：本页对应ELMO殴美向，亚洲向机种的贴片的粘贴仕样说明。Description:This page is for Euro-American and Asia model label sticking description。

Report No. SZEE100806298701 Page 33 of 43 APPENDIX 3 INTERNAL PHOTOS OF EUT View of EUT-1 View of EUT-2 Report No. SZEE100806298701 Page 34 of 43 View of EUT-3 View of EUT-4 Report No. SZEE100806298701 Page 35 of 43 View of EUT-5 View of EUT-6 Report No. SZEE100806298701 Page 36 of 43 View of EUT-7 View of EUT-8 Report No. SZEE100806298701 Page 37 of 43 View of EUT-9 View of EUT-10 Report No. SZEE100806298701 Page 38 of 43 View of EUT-11 View of EUT-12 Report No. SZEE100806298701 Page 39 of 43 View of EUT-13 View of EUT-14 Report No. SZEE100806298701 Page 40 of 43 View of EUT-15 View of EUT-16 Report No. SZEE100806298701 Page 41 of 43 View of EUT-17 View of EUT-18 Report No. SZEE100806298701 Page 42 of 43 View of EUT-19 View of EUT-20 Report No. SZEE100806298701 Page 43 of 43 View of EUT-21 ------- End of report -------

Report No. SZEE100806298701-1 Page 1 of 43 FCC CLASS B CONFORMITY REPORT Product Name : Multimedia Projector Model Number : CRP221,CRP261 Trade Name : ELMO FCC ID : WS310KR8JC00 Report Number : SZEE100806298701-1 Date : Aug. 17, 2010 Prepared for: Dongguan Huaqiang SANYO Electronics Co., Ltd Hong Ye Industry Area, Tang Xia Town, Dongguan, Guangdong TEL: +86-769-8791 0998-3120 FAX: +86-769-8791 0946 Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3666 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results FCC Part 15: 2009 PASS Report No. SZEE100806298701-1 Page 2 of 43 TABLE OF CONTENTS Description Page 1. CERTIFICATION OF CONFORMITY ..............................................................................3 2. TEST SUMMARY ............................................................................................................4 3. MEASUREMENT UNCERTAINTY ..................................................................................4 4. FACILITIES AND ACCREDITATIONS.............................................................................4 5. SETUP OF EQUIPMENT UNDER TEST .........................................................................5 6. AC POWER LINE CONDUCTED EMISSIONS MEASUREMENT ..................................6 6.1 LIMITS........................................................................................................................6 6.2 BLOCK DIAGRAM OF TEST SETUP .........................................................................6 6.3 TEST PROCEDURE...................................................................................................6 6.4 TEST RESULT ...........................................................................................................7 7. RADIATED EMISSION TEST ........................................................................................13 7.1 LIMITS......................................................................................................................13 7.2 BLOCK DIAGRAM OF TEST SETUP.......................................................................13 7.3 PROCEDURE ..........................................................................................................14 7.4 TEST RESULT OF RADIATED EMISSION TEST.....................................................14 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................27 APPENDIX 2 EXTERNAL PHOTOS OF EUT ...................................................................29 APPENDIX 3 INTERNAL PHOTOS OF EUT ....................................................................33 (Note: N/A means not applicable) Report No. SZEE100806298701-1 Page 4 of 43 2. TEST SUMMARY The EUT has been tested according to the following specifications: EMISSION Standard Test Type ResultRemark Conducted emission at AC power port PASS See clause 6 in this report FCC Part 15 Radiated emission PASS See clause 7 in this report The models of Multimedia Projector are CRP221 and CRP261, The electrical circuit design, layout, comp…
