1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 FCC ID: WUI-BT530025 IC: 7297A-BT530025 RSS-102 Issue 5 March 2015, section 2.5.2  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 v06 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) From the maximum conducted output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain, the RF power density can be calculated as below: S(mW/cm2)= PG/4πR2 a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Measured Power (dBm) Antenna Gain (dBi) Measured e.i.r.p (dBm) S(mW/cm 2 )= PG/4πR 2 Limit (mW/cm 2 ) 2.4GHz band Wi-Fi 11.82 1.5 13.32 0.004 1.0  IC requirements: The EUT shall comply with the requirement of RSS-102 section 4 Exposure Limits. a) EUT RF Exposure Evaluation standalone operations, Worst Case mode Test Mode Maximum e.i.r.p (dBm) Maximum e.i.r.p (W) Limit (W) 2.4GHz band Wi-Fi 13.32 0.02148 2.68 “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

30mm 45mm Model: BT530025 Input: 12V 팂 Output: 5V 팂 Made in China Hua Chuang Electronics Plastic (Shenzhen) Ltd. Cigarette Charger Cable PL-530025C_V3 12mm 16mm Laser Mark - 12V Charger Cable PL-530025A_V3 Made in China Rating Label - 2K 360 Dash Cam Pro 27mm 50mm Laser Mark - Hardwire Cable PL-530025B_V3 Made in China Input: 12V 팂 only Output: 5V 팂 Model:BT530025 2K 360 Dash Cam Pro Hardwire Cable Model:BT530025 2K 360 Dash Cam Pro FCC ID: WUI-BT530025 IC: 7297A-BT530025 SSID: TYPE_S_360_Cam_XXXXXX Password: 12345678 Input: 5V 팂 / 900mA

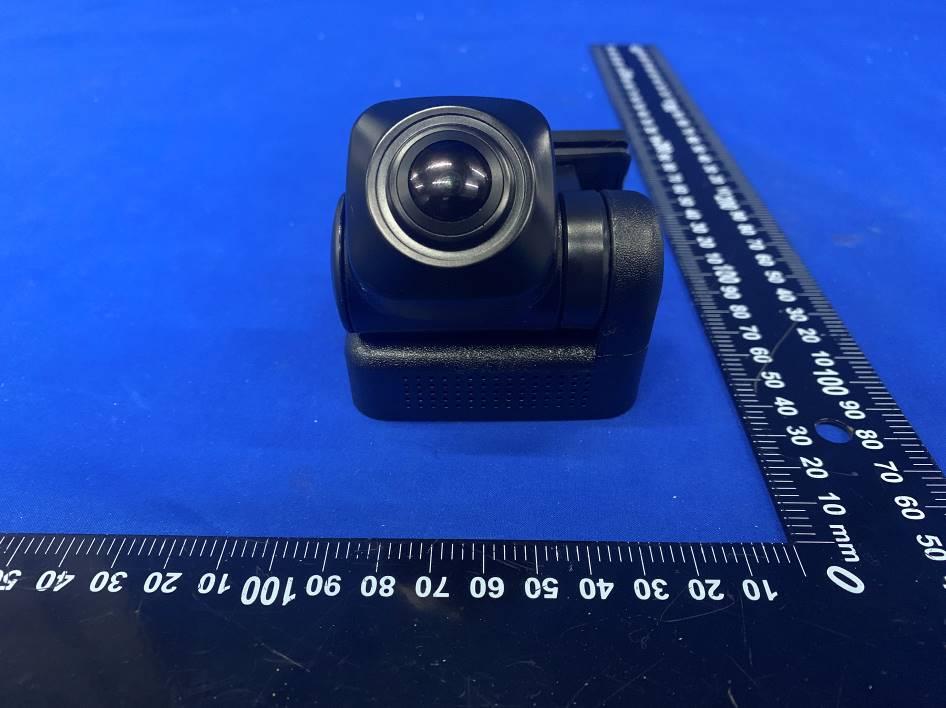

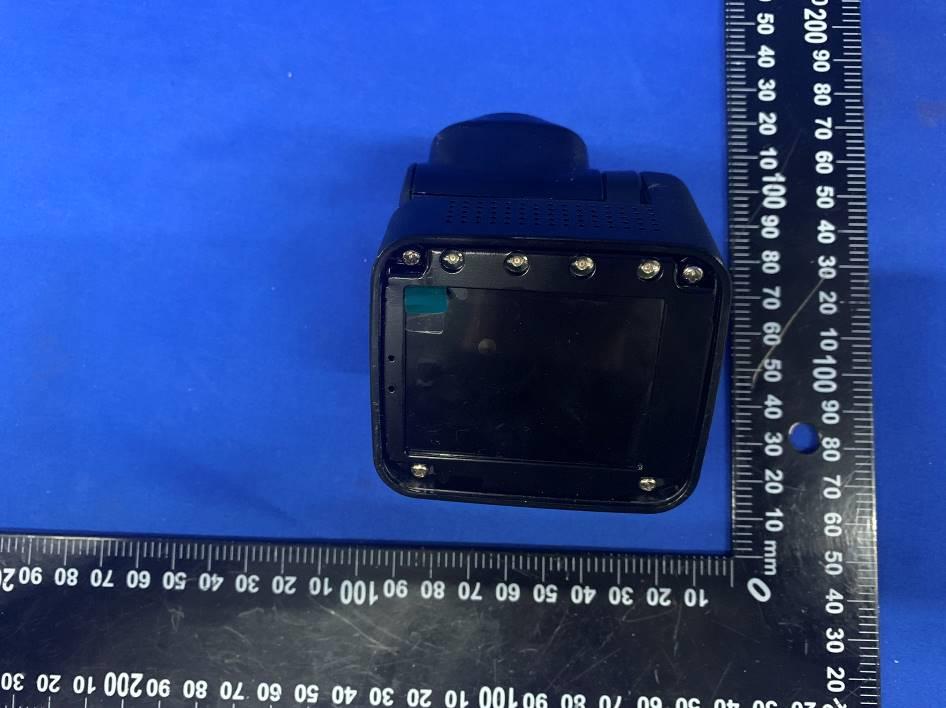

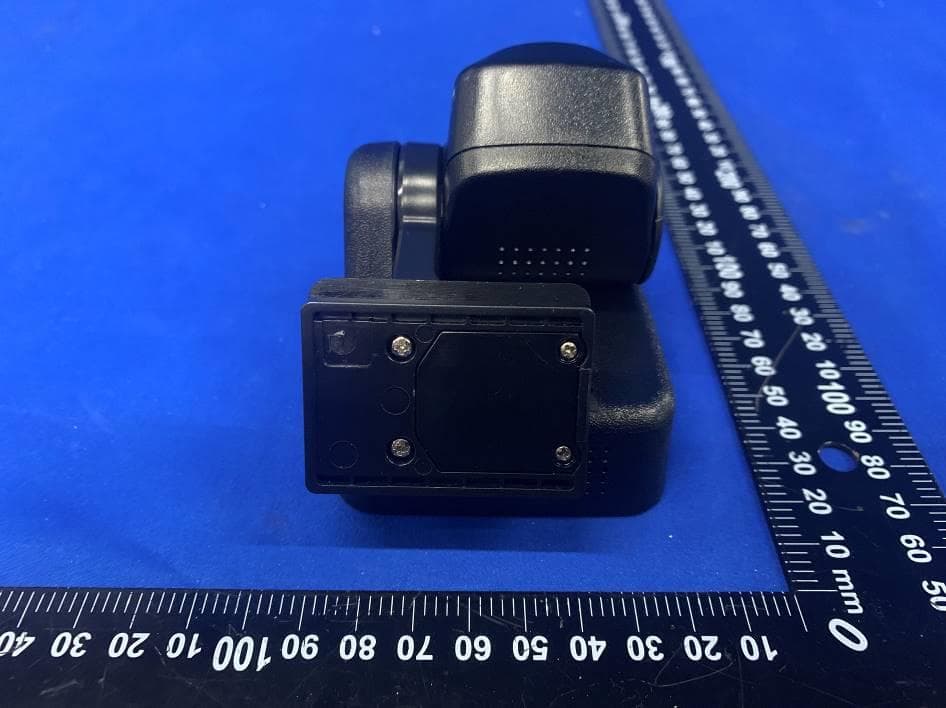

Page 1 of 29 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&IC Compliance Test Report for Product name: 360 2K Dash Cam Pro with HDR Live Streaming, Record the Road & Interior Model name: BT530025 FCC ID: WUI-BT530025 IC: 7297A-BT530025 Test Report Number: EFGX22050161-IE-01-E01 The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial information and technical documents. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, Fax: +86-0755-82910749 No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China Page 2 of 29 Content 1 General Information 4 1.1 Notes 4 1.2 Testing laboratory 5 1.3 Details of applicant 5 1.4 Details of manufacturer 5 1.5 Application details 6 1.6 Test item 6 1.7 Test standards 7 2 Technical test 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Measurement uncertainty 8 2.4 Test mode 9 2.5 Test equipment utilized 10 2.6 Auxiliary equipment used during test 11 2.7 Test software information 11 2.8 Test setup 12 2.9 Test results 14 3 Technical Requirement 15 3.1 Conducted emission AC power port 15 3.2 Duty cycle 16 3.3 6dB bandwidth 17 3.4 99% Occupied Bandwidth 18 3.5 DTS fundamental emission output power 19 3.6 Power spectral density 22 3.7 Conducted Band Edge & Conducted Spurious Emissions 25 3.8 Spurious emissions & Restricted Band 26 4 Test Setup Photos 29 5 External Photos 29 6 Internal Photos 29 Test Report No.: EFGX22050161-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 29 7 Appendix 29 Test Report No.: EFGX22050161-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 29 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. perator 2022-06-06 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2022-06-06 Tom Tian / Supervisor Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX22050161-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 29 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Winplus Co., Ltd. Address : Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : ADC Solutions Auto, LLC Address : 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA Telephone : ./. Fax : ./. Test Report No.: EFGX22050161-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 29 1.5 Application details Date of receipt of application : 2022-05-13 Date of receipt of test item : 2022-05-13 Date of test : 2022-05-13 to 2022-05-26 Date of issue : 2022-06-06 1.6 Test item Product type : 360 2K Dash Cam Pro with HDR Live Streaming, Record the Road & Interior Test Model : BT530025 Sample ID : 220513-34-001 Model name : BT530025 Serial number : N/A Hardware Version : DVR36C Software / Firmware Version : 780-360X00C-03 Ratings : Hardwire - DC 12V only, Cigarette Charger - DC 12V / DC 5V (USB-A) Test voltage : DC 12V FCC ID : WUI-BT530025 IC : 7297A-BT530025 PMN : 360 2K Dash Cam Pro with HDR Live Streaming, Record the Road & Interior HVIN : BT530025 Additional information : ./. RadioTechnical data Radio Tech. : WLAN 2.4G Modulation : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Antenna type : FPC Maximum antenna gain : 1.5 dBi Test Report No.: EFGX22050161-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-…

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.080 2407.480 2416.560 0.5 PASS 2437 9.080 2432.480 2441.560 0.5 PASS 2462 9.080 2457.480 2466.560 0.5 PASS 11G Ant1 2412 16.520 2403.760 2420.280 0.5 PASS 2437 16.520 2428.760 2445.280 0.5 PASS 2462 16.520 2453.760 2470.280 0.5 PASS 11N20SISO Ant1 2412 17.720 2403.160 2420.880 0.5 PASS 2437 17.720 2428.160 2445.880 0.5 PASS 2462 17.680 2453.160 2470.840 0.5 PASS 11N40SISO Ant1 2422 36.480 2403.760 2440.240 0.5 PASS 2437 36.480 2418.760 2455.240 0.5 PASS 2452 36.480 2433.760 2470.240 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.366 2405.302 2418.668 --- --- 2437 13.345 2430.300 2443.645 --- --- 2462 13.373 2455.273 2468.646 --- --- 11G Ant1 2412 16.875 2403.541 2420.416 --- --- 2437 16.938 2428.476 2445.414 --- --- 2462 16.907 2453.493 2470.400 --- --- 11N20SISO Ant1 2412 17.911 2403.057 2420.968 --- --- 2437 17.853 2428.073 2445.926 --- --- 2462 17.922 2453.058 2470.980 --- --- 11N40SISO Ant1 2422 36.352 2403.844 2440.196 --- --- 2437 36.368 2418.873 2455.241 --- --- 2452 36.336 2433.802 2470.138 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Conducted output power Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 11.82 ≤30.00 PASS 2437 10.06 ≤30.00 PASS 2462 8.63 ≤30.00 PASS 11G Ant1 2412 8.39 ≤30.00 PASS 2437 7.63 ≤30.00 PASS 2462 6.35 ≤30.00 PASS 11N20SISO Ant1 2412 7.22 ≤30.00 PASS 2437 6.51 ≤30.00 PASS 2462 5.29 ≤30.00 PASS 11N40SISO Ant1 2422 7.04 ≤30.00 PASS 2437 6.53 ≤30.00 PASS 2452 5.89 ≤30.00 PASS TestMode Antenna Channel E.I.R.P Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 13.32 ≤36.00 PASS 2437 11.56 ≤36.00 PASS 2462 10.13 ≤36.00 PASS 11G Ant1 2412 9.89 ≤36.00 PASS 2437 9.13 ≤36.00 PASS 2462 7.85 ≤36.00 PASS 11N20SISO Ant1 2412 8.72 ≤36.00 PASS 2437 8.01 ≤36.00 PASS 2462 6.79 ≤36.00 PASS 11N40SISO Ant1 2422 8.54 ≤36.00 PASS 2437 8.03 ≤36.00 PASS 2452 7.39 ≤36.00 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -20.44 ≤8.00 PASS 2437 -22.22 ≤8.00 PASS 2462 -23.61 ≤8.00 PASS 11G Ant1 2412 -26.5 ≤8.00 PASS 2437 -27.19 ≤8.00 PASS 2462 -28.25 ≤8.00 PASS 11N20SISO Ant1 2412 -27.82 ≤8.00 PASS 2437 -28.32 ≤8.00 PASS 2462 -29.81 ≤8.00 PASS 11N40SISO Ant1 2422 -30.85 ≤8.00 PASS 2437 -31.8 ≤8.00 PASS 2452 -32.48 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] 11B Ant1 2412 2411.51 2.55 2437 2436.51 0.84 2462 2461.54 -0.61 11G Ant1 2412 2409.52 -5.83 2437 2434.52 -6.57 2462 2459.55 -7.99 11N20SISO Ant1 2412 2406.66 -6.81 2437 2434.16 -7.27 2462 2456.64 -8.62 11N40SISO Ant1 2422 2414.28 -10.27 2437 2432.29 -10.78 2452 2439.52 -11.24

Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 2.55 -46.94 ≤-27.45 PASS High 2462 -0.61 -49.14 ≤-30.61 PASS 11G Ant1 Low 2412 -5.83 -41.65 ≤-35.83 PASS High 2462 -7.99 -49.36 ≤-37.99 PASS 11N20SISO Ant1 Low 2412 -6.81 -42.31 ≤-36.81 PASS High 2462 -8.62 -49 ≤-38.62 PASS 11N40SISO Ant1 Low 2422 -10.27 -40.6 ≤-40.27 PASS High 2452 -11.24 -48.72 ≤-41.24 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~1000 2.55 -61.06 ≤-27.45 PASS 1000~26500 2.55 -52.82 ≤-27.45 PASS 2437 30~1000 0.84 -61.26 ≤-29.16 PASS 1000~26500 0.84 -52.44 ≤-29.16 PASS 2462 30~1000 -0.61 -61.02 ≤-30.61 PASS 1000~26500 -0.61 -52.61 ≤-30.61 PASS 11G Ant1 2412 30~1000 -5.83 -61.26 ≤-35.83 PASS 1000~26500 -5.83 -53.07 ≤-35.83 PASS 2437 30~1000 -6.57 -61.41 ≤-36.57 PASS 1000~26500 -6.57 -52.76 ≤-36.57 PASS 2462 30~1000 -7.99 -61.78 ≤-37.99 PASS 1000~26500 -7.99 -52.35 ≤-37.99 PASS 11N20SISO Ant1 2412 30~1000 -6.81 -60.56 ≤-36.81 PASS 1000~26500 -6.81 -52.67 ≤-36.81 PASS 2437 30~1000 -7.27 -61.56 ≤-37.27 PASS 1000~26500 -7.27 -52.07 ≤-37.27 PASS 2462 30~1000 -8.62 -61.07 ≤-38.62 PASS 1000~26500 -8.62 -52.79 ≤-38.62 PASS 11N40SISO Ant1 2422 30~1000 -10.27 -60.31 ≤-40.27 PASS 1000~26500 -10.27 -52.43 ≤-40.27 PASS 2437 30~1000 -10.78 -60.53 ≤-40.78 PASS 1000~26500 -10.78 -52.37 ≤-40.78 PASS 2452 30~1000 -11.24 -61.36 ≤-41.24 PASS 1000~26500 -11.24 -52.29 ≤-41.24 PASS Test Graphs 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500

11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 20.00 20.00 100.00 --- --- 2437 20.00 20.00 100.00 --- --- 2462 20.00 20.00 100.00 --- --- 11G Ant1 2412 20.00 20.00 100.00 --- --- 2437 20.00 20.00 100.00 --- --- 2462 20.00 20.00 100.00 --- --- 11N20SISO Ant1 2412 20.00 20.00 100.00 --- --- 2437 20.00 20.00 100.00 --- --- 2462 20.00 20.00 100.00 --- --- 11N40SISO Ant1 2422 20.00 20.00 100.00 --- --- 2437 20.00 20.00 100.00 --- --- 2452 20.00 20.00 100.00 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix H: Emissions in Restricted Bands Test Result Antenna-port conducted measurements TestMode Antenna ChName Channel Detector Freq [MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 AV 2310.000 -48.84 ≤-41.20 PASS AV 2363.700 -46.86 ≤-41.20 PASS AV 2390.000 -47.85 ≤-41.20 PASS Peak 2310.000 -39.32 ≤-21.20 PASS Peak 2364.090 -36.74 ≤-21.20 PASS Peak 2390.000 -38.29 ≤-21.20 PASS High 2462 AV 2483.500 -49.77 ≤-41.20 PASS AV 2496.320 -47.5 ≤-41.20 PASS AV 2500.000 -49.92 ≤-41.20 PASS Peak 2483.500 -39.45 ≤-21.20 PASS Peak 2488.620 -36.51 ≤-21.20 PASS Peak 2500.000 -38.99 ≤-21.20 PASS 11G Ant1 Low 2412 AV 2310.000 -48.85 ≤-41.20 PASS AV 2372.020 -47.29 ≤-41.20 PASS AV 2390.000 -48.15 ≤-41.20 PASS Peak 2310.000 -38.93 ≤-21.20 PASS Peak 2339.000 -36.66 ≤-21.20 PASS Peak 2390.000 -37.16 ≤-21.20 PASS High 2462 AV 2483.500 -48.56 ≤-41.20 PASS AV 2490.710 -47.35 ≤-41.20 PASS AV 2500.000 -48.31 ≤-41.20 PASS Peak 2483.500 -36 ≤-21.20 PASS Peak 2492.250 -36.65 ≤-21.20 PASS Peak 2500.000 -38.76 ≤-21.20 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -49.49 ≤-41.20 PASS AV 2389.440 -47.19 ≤-41.20 PASS AV 2390.000 -49.22 ≤-41.20 PASS Peak 2310.000 -39.7 ≤-21.20 PASS Peak 2389.570 -36.82 ≤-21.20 PASS Peak 2390.000 -38.19 ≤-21.20 PASS High 2462 AV 2483.500 -49.36 ≤-41.20 PASS AV 2488.290 -47.59 ≤-41.20 PASS AV 2500.000 -47.88 ≤-41.20 PASS Peak 2483.500 -36.57 ≤-21.20 PASS Peak 2497.420 -36.19 ≤-21.20 PASS Peak 2500.000 -38.8 ≤-21.20 PASS 11N40SI SO Ant1 Low 2422 AV 2310.000 -49.65 ≤-41.20 PASS AV 2389.830 -46.68 ≤-41.20 PASS AV 2390.000 -46.98 ≤-41.20 PASS Peak 2310.000 -38.69 ≤-21.20 PASS Peak 2385.800 -33.34 ≤-21.20 PASS Peak 2390.000 -36.26 ≤-21.20 PASS High 2452 AV 2483.500 -48.75 ≤-41.20 PASS AV 2483.560 -46.41 ≤-41.20 PASS AV 2500.000 -49.36 ≤-41.20 PASS Peak 2483.500 -37.58 ≤-21.20 PASS Peak 2487.520 -36.44 ≤-21.20 PASS Peak 2500.000 -38.77 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 11N40SISO_Ant1_High_2452_Peak Radiated emission measurements Mode: 11B-2412 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2310.00063.53 43.74 -19.79 74.00 30.26 Horizontal PASS 2 2330.26065.91 46.15 -19.76 74.00 27.85 Horizontal PASS 3 2338.66865.18 45.44 -19.74 74.00 28.56 Horizontal PASS 4 2353.88365.59 46.08 -19.51 74.00 27.92 Horizontal PASS 5 2372.78265.97 47.47 -18.50 74.00 26.53 Horizontal PASS 6 2390.00063.79 46.22 -17.57 74.00 27.78 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2310.00063.55 43.76 -19.79 74.00 30.24 Vertical PASS 2 2328.41865.13 45.37 -19.76 74.00 28.63 Vertical PASS 3 2342.67264.67 44.94 -19.73 74.00 29.06 Vertical PASS 4 2354.68465.17 45.70 -19.47 74.00 28.30 Vertical PASS 5 2376.30665.65 47.34 -18.31 74.00 26.66 Vertical PASS 6 2390.00064.04 46.47 -17.57 74.00 27.53 Vertical PASS Mode: 11B-2462 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2483.50063.67 45.65 -18.02 74.00 28.35 Horizontal PASS 2 2484.79765.54 47.19 -18.35 74.00 26.81 Horizontal PASS 3 2488.16365.91 47.14 -18.77 74.00 26.86 Horizontal PASS 4 2494.42467.01 48.08 -18.93 74.00 25.92 Horizontal PASS 5 2494.42467.01 48.08 -18.93 74.00 25.92 Horizontal PASS 6 2500.00063.36 44.51 -18.85 74.00 29.49 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2483.50062.74 44.72 -18.02 74.00 29.28 Vertical PASS 2 2489.72669.40 50.46 -18.94 74.00 23.54 Vertical PASS 3 2489.72669.40 50.46 -18.94 74.00 23.54 Vertical PASS 4 2494.24471.09 52.16 -18.93 74.00 21.84 Vertical PASS 5 2498.98370.07 51.21 -18.86 74.00 22.79 Vertical PASS 6 2500.00063.53 44.68 -18.85 74.00 29.32 Vertical PASS Mode: 11G-2412 PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2310.00064.36 44.57 -19.79 74.00 29.43 Horizontal PASS 2 2329.45965.58 45.82 -19.76 74.00 28.18 Horizontal PASS 3 2344.91465.26 45.53 -19.73 74.00 28.47 Horizontal PASS 4 2369.17967.57 48.88 -18.69 74.00 25.12 Horizontal PASS 5 2383.27367.39 49.46 -17.93 74.00 24.54 Horizontal PASS 6 2390.00069.44 51.87 -17.57 74.00 22.13 Horizontal PASS PK F…
