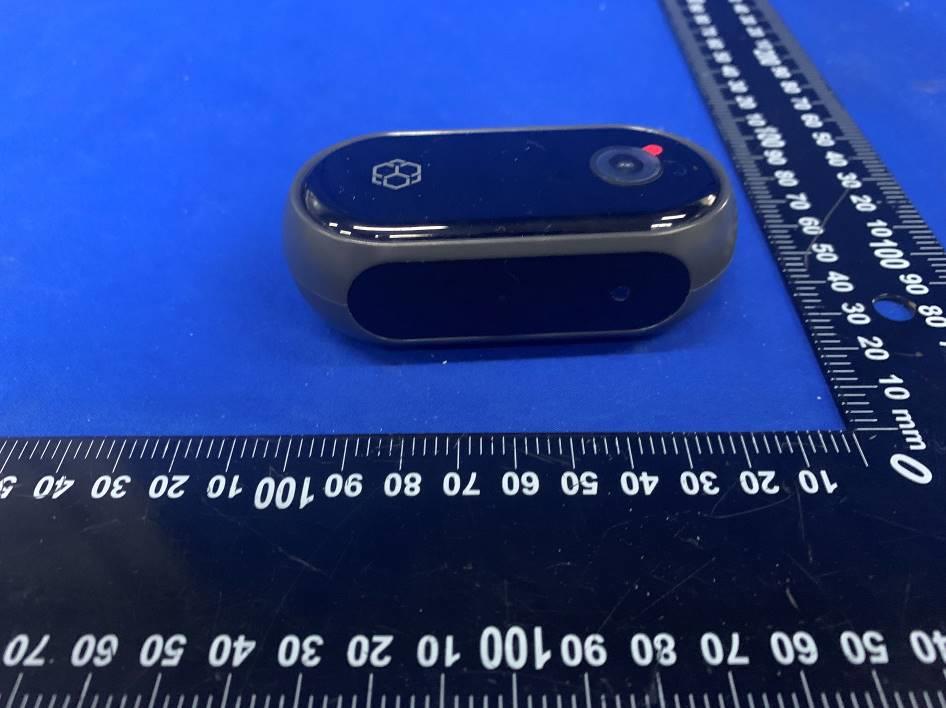

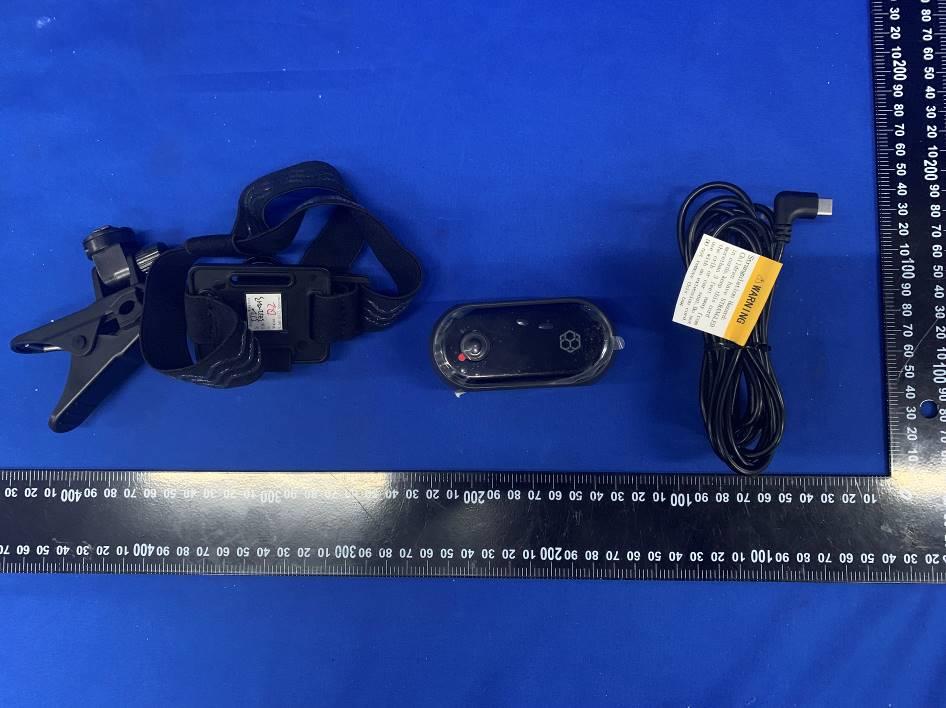

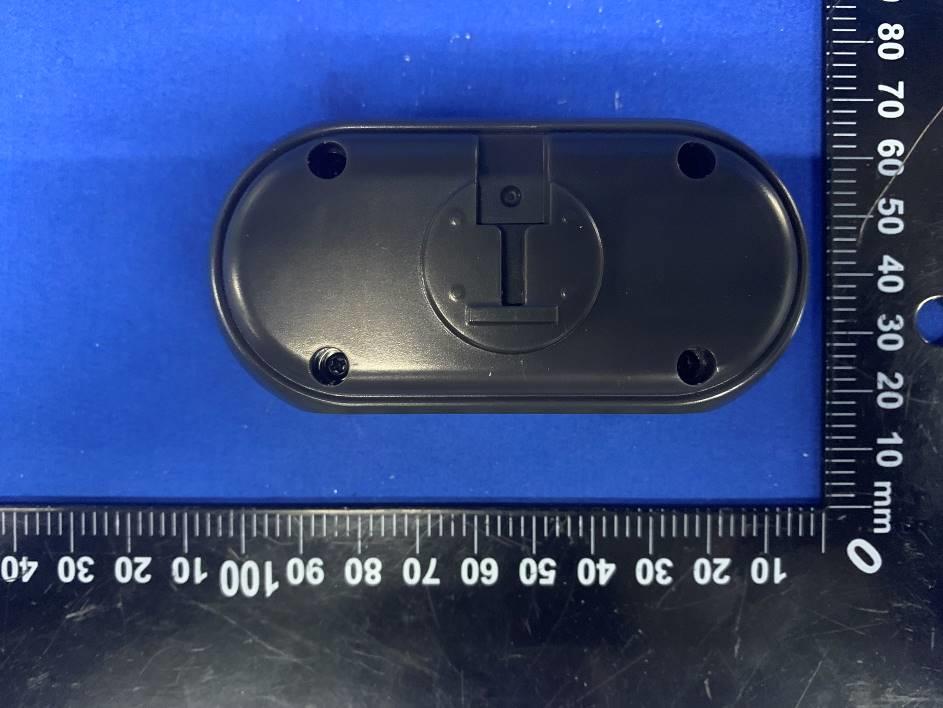

WUI-BT532925In Car Baby Monitor Camera

User Manual Important, retain for future reference: Read carefully BT532925 CAR BABY CAMERA WITH APP CONTROLLED 2 QUICK INSTALLATION GUIDE 1. Mount the Car Baby Camera Before you begin... Gather these items. Option 1Option 2 1234 1 1 3 4 3 2. Connect to Power 2 1 4 PRODUCT SPECIFICATIONS 2.4 GHz FHD 1080P FOV(H) 137.4° 14°F~122°F (-10°C~50°C) DC 5V (USB-C) 33 Feet / 10 Meters (without interference or obstruction) Frequency: Camera Resolution: Camera Viewing Angle: Operating Temperature: Operating Voltage: Maximum Signal Range: Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. Consult an experienced technician if you are not comfortable installing the product. You can also contact YA DA at 1.866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the Car Baby Camera with APP Controlled. BEFORE using the Car Baby Camera with APP Controlled, please read the safety information provided in this user manual. ALWAYS use the product as outlined in this user manual. Please make sure to read and understand all local laws and regulations regarding cameras and their use in a vehicle. Laws vary by state. INTRODUCTION 5 1. 1 x Car Baby Camera 2. 1 x 9.8 feet / 3 meters USB-C Cable 3. 1 x Spring Loaded Clamp 4. 1 x Headrest Mount with Straps 5. 1 x User Manual & Quick Installation Guide PACKAGE CONTENTS 21 345 6 PRODUCT OVERVIEW 1. Light Sensor 2. LED Indicator 3. Camera Lens 4. USB-C Power Port 1 3 2 4 7 CAMERA DIMENSIONS INSTALLATION 3.56” / 90.6 mm1.23” / 31.45 mm 1.65” / 42.1 mm We recommend placing the camera at a spot where it can capture your baby’s entire car seat so you can monitor him/her at all times. However, for safety measures, please make sure that the camera is not placed anywhere near the airbag. Please see next page for some installation options: 8 Option 1: Headrest Mount with Straps Attach the camera mount to the headrest of your seat using Headrest Mount with Straps. Secure the mount by pulling both the vertical and the horizontal straps until they are tight and stable. The rotating knob on the mount can be used to adjust the angle of the mount. 9 Option 2: Spring Loaded Clamp Attach the Spring Loaded Clamp mount onto the metal pole under your headrest, and then attach the camera to the mount. The rotating knob on the mount can be used to adjust the angle of the mount. 10 CONNECT TO POWER Connect the camera to any USB port on your vehicle using the USB-C Power Cable included in the box. To ensure maximum safety, we recommend tucking the cable under the seat lining, the floor mat, or anything that’ll prevent the cable from getting into your way. The camera will power on automatically every time you start your vehicle. NOTES: If your vehicle does not come with a USB port, you may use the 12/24V power socket (“cigarette lighter”) as power source. (Adapter need to be purchased separately) In order to make sure the camera can function properly, please make sure the USB port on your vehicle can provide at least 1A power supply. 11 USAGE PRECAUTIONS Many vehicles provide constant power to the 12/24V outlet. In case the camera does not automatically power off when you shut down your vehicle, please unplug the camera from the power source so that it does not drain the power of your vehicle’s battery. DOWNLOADING THE APP With the YADA Drive APP, you’ll be able to control the Car Baby Camera and record media files using your iOS or Android smart device. Scan the QR code to the right or search for “YADA Drive” via App Store/Google Play to download and install the APP. YADA Drive Compatible with phones with Android™ 5.0 or higher. Compatible with iPhone 4s and higher, iPad3, iPad Mini, iPad Air and higher, and iPod touch 5th Generation and higher. Requires iOS 9.0 or higher. 12 WiFi SSID: YADA_BBC01_1080P_XXXXXX Note 1: Default password is 0000, please set your new password. Note 2: You can reset Baby Cam back to default password 0000. Note 3: If after App prompt password reset but power still maintain over 1mins, The Password will be no changed. Step1 : Select Reset Password, App will show “Please unplug and plug the Baby Cam again within 1 min.” Step2: Unplug and plug the Baby Cam within 1mins after APP prompt. The WiFi Password will reset to Default “0000”c on next power on. 4. Click the icon and then select the Pair Camera Icon. 5. When the APP finds “YADA_ BBC01_1080P_XXXXXX”, click Connect. 6. During first time use, you will be prompted to set up a PIN. Please keep the PIN handy for future use. To reset the PIN, please refer to the APP’s Info icon. 1. Power on the Car Baby Camera, it will enter WiFi pairing mode automatically. 2. Launch the YADA Drive APP and click BABY MONITOR. 3. Select Car Baby Camera and click Set Up Device. Android device Auto-sync the Car Baby Camera with your smart device 3 4 5 6 2 APP SETUP Car Baby Camera List 13 4. Click the icon and then select the Pair Camera Icon. 5. Click Settings on the APP permissions setting page. Scroll to the top, and press to enter the WiFi setting page. 6. Connect to “YADA_BBC01_1080P_ XXXXXX” 7. Return to the YADA Drive APP. 8. You should now be able to see the live view of the Car Baby Camera. 8 iOS device (Follow steps 1-3 from previous page’s instructions) 7 5 6 4 YADA_BBC01_1080P_XXXXXX 14 IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose Car Baby Camera to rain, moisture, or snow. 4. Use of an attachment not recommended or sold by the product manufacturer may result in a risk of fire, electric shock, or injury to persons. 5. To reduce risk of damage to Car Baby Camera and cable, pull by …

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.040 2407.000 2417.040 0.5 PASS 2437 10.040 2432.000 2442.040 0.5 PASS 2462 10.080 2457.000 2467.080 0.5 PASS 11G Ant1 2412 16.360 2403.840 2420.200 0.5 PASS 2437 16.360 2428.840 2445.200 0.5 PASS 2462 16.360 2453.840 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.600 2403.240 2420.840 0.5 PASS 2437 17.600 2428.240 2445.840 0.5 PASS 2462 17.640 2453.200 2470.840 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 15.409 2404.379 2419.788 --- --- 2437 15.142 2429.442 2444.584 --- --- 2462 15.196 2454.419 2469.615 --- --- 11G Ant1 2412 17.379 2403.342 2420.721 --- --- 2437 17.352 2428.342 2445.694 --- --- 2462 17.401 2453.327 2470.728 --- --- 11N20SISO Ant1 2412 18.255 2402.893 2421.148 --- --- 2437 18.209 2427.930 2446.139 --- --- 2462 18.240 2452.914 2471.154 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Frequen cy[MHz] Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 17.10 ≤30.00 PASS 2437 16.86 ≤30.00 PASS 2462 16.42 ≤30.00 PASS 11G Ant1 2412 12.67 ≤30.00 PASS 2437 12.61 ≤30.00 PASS 2462 12.08 ≤30.00 PASS 11N20SIS O Ant1 2412 12.73 ≤30.00 PASS 2437 12.57 ≤30.00 PASS 2462 12.06 ≤30.00 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -15.42 ≤8.00 PASS 2437 -15.83 ≤8.00 PASS 2462 -15.96 ≤8.00 PASS 11G Ant1 2412 -21.97 ≤8.00 PASS 2437 -22.13 ≤8.00 PASS 2462 -22.76 ≤8.00 PASS 11N20SISO Ant1 2412 -22.49 ≤8.00 PASS 2437 -22.21 ≤8.00 PASS 2462 -22.46 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 7.41 -24.09 ≤-22.59 PASS High 2462 6.73 -43.03 ≤-23.27 PASS 11G Ant1 Low 2412 1.53 -34.44 ≤-28.47 PASS High 2462 0.78 -45.45 ≤-29.22 PASS 11N20SIS O Ant1 Low 2412 1.39 -33.36 ≤-28.61 PASS High 2462 0.66 -42.88 ≤-29.34 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462

Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~1000 7.41 -61.06 ≤-22.59 PASS 1000~26500 7.41 -46.82 ≤-22.59 PASS 2437 30~1000 7.20 -61.11 ≤-22.8 PASS 1000~26500 7.20 -47.6 ≤-22.8 PASS 2462 30~1000 6.73 -51.36 ≤-23.27 PASS 1000~26500 6.73 -47.26 ≤-23.27 PASS 11G Ant1 2412 30~1000 1.53 -61.19 ≤-28.47 PASS 1000~26500 1.53 -51.83 ≤-28.47 PASS 2437 30~1000 1.39 -60.92 ≤-28.61 PASS 1000~26500 1.39 -52.06 ≤-28.61 PASS 2462 30~1000 0.78 -60.79 ≤-29.22 PASS 1000~26500 0.78 -52.39 ≤-29.22 PASS 11N20SISO Ant1 2412 30~1000 1.39 -60.93 ≤-28.61 PASS 1000~26500 1.39 -53.03 ≤-28.61 PASS 2437 30~1000 0.79 -60.57 ≤-29.21 PASS 1000~26500 0.79 -52.01 ≤-29.21 PASS 2462 30~1000 0.66 -61.07 ≤-29.34 PASS 1000~26500 0.66 -52.15 ≤-29.34 PASS Test Graphs 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 1.39 1.41 98.58 2437 1.39 1.41 98.58 2462 1.39 1.41 98.58 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 5.08 5.10 99.61 2462 20.00 20.00 100.00 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix I: Emissions in Restricted Bands Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak Radiated emission measurements Mode: 11B-2412 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 61.01 -19.79 41.22 74.00 32.78 Horizontal PASS 2 2390.0000 80.91 -17.57 63.34 74.00 10.66 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 61.45 -19.79 41.66 74.00 32.34 Vertical PASS 2 2388.9590 81.83 -17.63 64.20 74.00 9.80 Vertical PASS 3 2390.0000 73.79 -17.57 56.22 74.00 17.78 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 58.19 -19.79 38.40 54.00 15.60 Horizontal PASS 2 2390.0000 59.3 -17.57 41.73 54.00 12.27 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 57.14 -19.79 37.35 54.00 16.65 Vertical PASS 2 2388.9590 60 -17.63 42.37 54.00 11.63 Vertical PASS 3 2390.0000 65.51 -17.57 47.94 54.00 6.06 Vertical PASS

Mode: 11B-2462 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 61.6 -18.02 43.58 74.00 30.42 Horizontal PASS 2 2484.0363 82.00 -18.16 63.84 74.00 10.16 Horizontal PASS 3 2500.0000 60.75 -18.85 41.90 74.00 32.10 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 72.76 -18.02 54.74 74.00 19.26 Vertical PASS 2 2484.5825 80.91 -18.30 62.61 74.00 11.39 Vertical PASS 3 2500.0000 60.89 -18.85 42.04 74.00 31.96 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2483.5000 61.43 -18.02 43.41 54.00 10.59 Horizontal PASS 2 2484.0363 60.16 -18.16 42.00 54.00 12.00 Horizontal PASS 3 2500.0000 60.65 -18.85 41.80 54.00 12.20 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2483.5000 71.86 -18.02 53.84 54.00 0.16 Vertical PASS 2 2484.5825 59.27 -18.30 40.97 54.00 13.03 Vertical PASS 3 2500.0000 60.89 -18.85 42.04 54.00 11.96 Vertical PASS Mode: 11G-2412 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 62.73 -19.79 42.94 74.00 31.06 Horizontal PASS 2 2385.6757 79.05 -17.81 61.24 74.00 12.76 Horizontal PASS 3 2389.4394 79.55 -17.60 61.95 74.00 12.05 Horizontal PASS 4 2390.0000 74.37 -17.57 56.80 74.00 17.20 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 60.63 -19.79 40.84 74.00 33.16 Vertical PASS 2 2385.0350 73.55 -17.84 55.71 74.00 18.29 Vertical PASS 3 2389.3594 74.42 -17.61 56.81 74.00 17.19 Vertical PASS 4 2390.0000 73.9 -17.57 56.33 74.00 17.67 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 59.64 -19.79 39.85 54.00 14.15 Horizontal PASS 2 2385.6757 60.77 -17.81 42.96 54.00 11.04 Horizontal PASS 3 2389.4394 62.13 -17.60 44.53 54.00 9.47 Horizontal PASS 4 2390.0000 69.03 -17.57 51.46 54.00 2.54 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 57.42 -19.79 37.63 54.00 16.37 Vertical PASS 2 2385.0350 68.69 -17.84 50.85 54.00 3.15 Vertical PASS 3 2389.3594 65.60 -17.61 47.99 54.00 6.01 Vertical PASS 4 2390.0000 69.52 -17.57 51.95 54.00 2.05 Vertical PASS Mode: 11G-2462 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 78.50 -18.02 60.48 74.00 13.52 Horizontal PASS 2 2484.5759 78.70 -18.30 60.40 74.00 13.60 Horizontal PASS 3 2500.0000 66.19 -18.85 47.34 74.00 26.66 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 79.30 -18.02 61.28 74.00 12.72 Vertical PASS 2 2484.3020 79.27 -18.23 61.04 74.00 12.96 Vertical PASS 3 2500.0000 61.12 -18.85 42.27 74.00 31.73 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2483.5000 63.12 -18.02 45.10 54.00 8.90 Horizontal PASS 2 2484.5759 61.53 -18.30 43.23 54.00 10.77 Horizontal PASS 3 2500.0000 65.21 -18.85 46.36 54.00 7.64 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2483.5000 63.38 -18.02 45.36 54.00 8.64 Vertical PASS 2 2484.3020 62.21 -18.23 43.98 54.00 10.02 Vertical PASS 3 2500.0000 60.92 -18.85 42.07 54.00 11.93 Vertical PASS Mode: 11N-2412 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 62.07 -19.79 42.28 74.00 31.72 Horizontal PASS 2 2383.8338 81.86 -17.91 63.95 74.00 10.05 Horizontal PASS 3 2389.4394 83.39 -17.60 65.79 74.00 8.21 Horizontal PASS 4 2390.0000 78.27 -17.57 60.70 74.00 13.30 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2310.0000 61.63 -19.79 41.84 74.00 32.16 Vertical PASS 2 2388.6386 81.06 -17.64 63.42 74.00 10.58 Vertical PASS 3 2390.0000 75.86 -17.57 58.29 74.00 15.71 Vertical PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 57.57 -19.79 37.78 54.00 16.22 Horizontal PASS 2 2383.8338 60.47 -17.91 42.56 54.00 11.44 Horizontal PASS 3 2389.4394 63.39 -17.60 45.79 54.00 8.21 Horizontal PASS 4 2390.0000 66.96 -17.57 49.39 54.00 4.61 Horizontal PASS AV Final Data List NO. Freq. [MHz] AV Reading [dBμV/m] Factor [dB/m] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Polarity Verdict 1 2310.0000 58.24 -19.79 38.45 54.00 15.55 Vertical PASS 2 2388.6386 61.19 -17.64 43.55 54.00 10.45 Vertical PASS 3 2390.0000 67.68 -17.57 50.11 54.00 3.89 Vertical PASS Mode: 11N-2462 Test Graph PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 83.85 -18.02 65.83 74.00 8.17 Horizontal PASS 2 2486.6337 81.73 -18.60 63.13 74.00 10.87 Horizontal PASS 3 2500.0000 67.98 -18.85 49.13 74.00 24.87 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] Polarity Verdict 1 2483.5000 82.97 -18.02 64.95 74.00 9.05 Vertical PASS 2 2483.8762 82.44 -18.12 64.32 74.00 9.68 Vertical PA…

Text truncated - open the document above for the full version.

Date: 5/31/2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (In Car Baby Monitor Camera / BT532925 / WUI-BT532925 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Signature: Name: Benson Leung Applicant: Winplus Co., Ltd. Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong TEL: 852 2798 8932

date: 5/31/2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Eurofins Electrical Testing Service (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Benson Leung Applicant: Winplus Co., Ltd. Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong TEL: 852 2798 8932

5/31/2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For(In Car Baby Monitor Camera / BT532925 # FCC ID:WUI-BT532925#) To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Winplus Co., Ltd >. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Winplus Co., Ltd.> considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Winplus Co., Ltd.> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Benson Leung Applicant: Winplus Co., Ltd. Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong TEL: 852 2798 8932

PL-532925_V1PL-532925_V1 Label - Camera PL-532925_V1 Input: 5V DC 1.5A FCC ID: WUI-BT532925 Model: BT532925 Car Baby Camera Ver: 1000US1 Made in China

Page 1 of 28 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&IC Compliance Test Report for Product name: In Car Baby Monitor Camera Model name: BT532925 FCC ID: WUI- BT532925 Test Report Number: EFGX22050266-IE-01-E01 The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial information and technical documents. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, Fax: +86-0755-82910749 No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China Page 2 of 28 Content 1 General Information 4 1.1 Notes 4 1.2 Testing laboratory 5 1.3 Details of applicant 5 1.4 Details of manufacturer 5 1.5 Application details 6 1.6 Test item 6 1.7 Test standards 7 2 Technical test 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Measurement uncertainty 8 2.4 Test mode 9 2.5 Test equipment utilized 10 2.6 Auxiliary equipment used during test 11 2.7 Test software information 11 2.8 Test setup 12 2.9 Test results 14 3 Technical Requirement 15 3.1 Conducted emission AC power port 15 3.2 Duty cycle 16 3.3 6dB bandwidth 17 3.4 99% Occupied Bandwidth 18 3.5 DTS fundamental emission output power 19 3.6 Power spectral density 22 3.7 Conducted Band Edge & Conducted Spurious Emissions 25 3.8 Spurious emissions & Restricted Band 26 4 Test Setup Photos 28 5 External Photos 28 6 Internal Photos 28 Test Report No.: EFGX22050266-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 28 7 Appendix 28 Test Report No.: EFGX22050266-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 28 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. perator 2022-06-06 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2022-06-06 Tom Tian / Supervisor Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX22050266-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 28 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Winplus Co., Ltd. Address : Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : ADC Solutions Auto, LLC Address : 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA Telephone : ./. Fax : ./. Test Report No.: EFGX22050266-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 28 1.5 Application details Date of receipt of application : 2022-05-20 Date of receipt of test item : 2022-05-20 Date of test : 2022-05-20 to 2022-05-31 Date of issue : 2022-06-06 1.6 Test item Product type : In Car Baby Monitor Camera Test Model : BT532925 Sample ID : 220520-74-001 Model name : BT532925 Serial number : N/A Hardware Version : TBC53A Software / Firmware Version : 780-405X00A-02 Ratings : DC 5V, 1.5A Test voltage : DC 5V FCC ID : WUI- BT532925 PMN : In Car Baby Monitor Camera Additional information : ./. RadioTechnical data Radio Tech. : WLAN 2.4G Modulation : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Antenna type : PCB antenna Maximum antenna gain : 1.5 dBi Test Report No.: EFGX22050266-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 7 of 28 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Test Method 1: ANSI C63.4-2014, American National Standard for…
