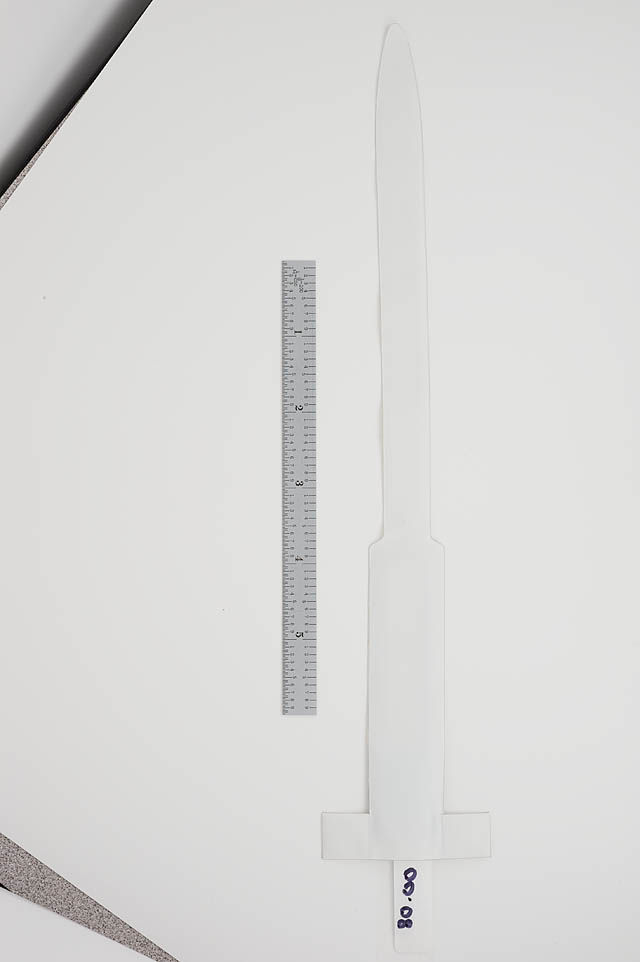

WUS00023RFID Tag

USER MANUAL Contents PREFACE Trademarks FCC Compliance Copyright Statement ID-B100 Introduction Features Hardware LED Indicators Data Connections Antennas Orientation Environmental Limits CUSTOMER SERVICE airPointe Customer Support USER MANUAL PREFACE Trademarks airPointe of New Hampshire and the airPointe of New Hampshire logo are trademarks of airPointe of New Hampshire. All other product names are copyright and registered trademarks or trade names of their respective owners. Information in this document is provided solely to enable system and software implementers to use the airPointe of New Hampshire system. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits or integrated circuits based on the information in this document. airPointe of New Hampshire reserves the right to make changes without further notice to any products herein. airPointe of New Hampshire makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does airPointe of New Hampshire assume any liability arising out of the application or use of any product, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. The user of this system is cautioned that any changes or modifications to this system, not expressly approved by airPointe of New Hampshire could void the warranty. FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. --Changes or modifications not expressly approved by airPointe of New Hampshire could void the user’s authority to operate the equipment USER MANUAL FCC COMPLIANCE (cont.) PREFACE “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” COPYRIGHT STATEMENT Copyright © 2009 airPointe of New Hampshire. All Rights Reserved. This document, as well as the hardware and firmware described therein, are furnished under license and may only be used or copied in accordance with the terms of such license. The information in these pages are furnished for informational use only, are subject to change without notice, and should not be construed as a commitment by airPointe of New Hampshire, airPointe of New Hampshire assumes no responsibility or liability for any errors or inaccuracies that may appear in these pages. Every effort has been made to supply complete and accurate information. However, airPointe of New Hampshire assumes no responsibility for its use, or for any infringements of patents or other rights of third parties, which would result. airPointe of New Hampshire 35E Industrial Way Suite 101 Rochester, NH 03867 USER MANUAL ID-B100 INTRODUCTION airPointe delivers software and hardware solutions that enable healthcare organizations to streamline operations, improve quality-of-care, reduce costs and generate additional revenue. airPointe develops an innovative next generation Intelligent Real-Time Location System (i-RTLS) which can gather data on high-value assets within an organization, including medical equipment, clinical staff, patients and visitors. An active tag is placed on an item or person that requires monitoring. The battery powered active tags can transmit and receive information throughout a secure wireless router network. Information, or data, that is intelligently and automatically collected from each tag will identify the asset type, the location, movement timestamp and other desired device attributes. This data allows items to be easily located anywhere within the wireless network, as well as their proximity relationship to each other. FEATURES - 300MHz RF operation - Ultra-lightweight bracelet construction - Easy installation on wrist, adhesively secured - Scan-able ID barcode for database entry - Automatically connects to i-RTLS on power-up - Two week battery life USER MANUAL USER INSTRUCTIONS 1) Scan barcode or enter unique ID into i-RTLS from pull tab. 2) Pull activation tag to enable bracelet operation 3) Remove adhesive cover strip on Tabs A and B USER MANUAL 4) Place bracelet around patient wrist 5) Fold over tabs A and B 6) Cut off excess strap 7) ID-B100 is now operational and patient ready to be monitored by i-RTLS USER MANUAL SPECIFICATIONS Dimensions 11in x 1in (l x w) Operating Frequency 300-321MHz, 336-347MHz Operating Range Up to 50ft. from <Router> Operating Life 2 Weeks ENVIRONMENTAL LIMITS Humidity: ID-B100 Bracelets are water resistant but are not waterproof Temperature: 0° C to 70°C If device is exposed to temperatures or humidity levels outside of the parameters above, it may cause the device to not function properly. CUSTOMER SERVICE AIRPOINTE CUSTOMER SUPPORT airPointe gives the ability to intended parties to contact airPointe directly if any problems should aris…

Text truncated - open the document above for the full version.

Curtis-Straus LLC is accredited to ISO/IEC 17025 by A2LA for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. Any opinions or interpretations expressed in this report are outside the scope of our A2LA accreditation as A2LA only accredits testing. ____________________________________________________________ Curtis-Straus • •• • 527 Great Road • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 21 Test Report Report No EJ0025-1 Client AirPointe of New Hampshire 35E Industrial Way, Suite 101 Rochester, NH 03867 Phone 603-994-2200 FRN 0018228197 Model ID-B100 FCC ID WUS00023 Equipment Type Equipment Code Part 15 Security/Remote Control Transmitter DSC Results As detailed within this report Prepared by Matthew Burman – Compliance Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date October 16, 2009 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 20 of this report. Test Report for AirPointe of New Hampshire • •• • Report No. EJ0025-1 October 16, 2009 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus • •• • 527 Great Road • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 2 of 21 Contents Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Fundamental Emission ............................................................................................................5 Bandwidth ...............................................................................................................................6 Harmonics and Spurious Emissions ........................................................................................9 Duty Cycle Correction Factor.................................................................................................11 Measurement Uncertainty......................................................................................................13 Test Equipment Used ............................................................................................................14 Conditions Of Testing ............................................................................................................20 Test Report for AirPointe of New Hampshire • •• • Report No. EJ0025-1 October 16, 2009 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • •• • 527 Great Road • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 21 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.231(e). The product is the ID-B100 Bracelet. The operating frequency range is 300.5- 346.5MHz. It is powered by +3VDC coin cell batteries. The manufacturer is setting the power levels for two different frequency ranges as follows: 300.5 – 320.5MHz +10dBm setting 336.5 – 346.5MHz +10dBm The frequencies between 320.5 and 336.5MHz are not used. Test Methodology Testing was performed according to ANSI C63.4-2003. Radiated emissions were maximized by rotating the device around its three orthogonal axes, as well as varying the test antenna’s height and polarity. Frequency range investigated: 30MHz – 3.5GHz Measurement distance: 30-3500MHz 3m The receiver portion of this device is subject to the Verification authorization procedure as per 15.101(b). The associated digital circuitry is also subject to the Verification authorization procedure as per 15.101(a). A separate test report has been issued to AirPointe of New Hampshire in order to cover both of these requirements. Test Report for AirPointe of New Hampshire • •• • Report No. EJ0025-1 October 16, 2009 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • •• • 527 Great Road • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 21 Product Tested - Configuration Documentation EUT Configuration Work Order:J0025 Company: AirPointe of New Hampshire Company Address: 35E Industrial Way Rochester, NH 03867 Contact: Bob Duggan Person Present: Bob Duggan MNSNFCC ID EUT:ID-B100Sample 1WUS00023 EUT Description: ID Bracelet EUT TX Frequencies: 300.5-346.5MHz Support Equipment: MNSN None EUT Ports: Port LabelPort Type No. of ports No. PopulatedCable TypeShieldedFerritesLength Max LengthUnpopulated Reason None Software / Operating Mode Description: EUT operating in TX mode. Test Report for AirPointe of New Hampshire • •• • Report No. EJ0025-1 October 16, 2009 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • •• • 527 Great Road • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 5 of 21 Fundamental Emission LIMIT Fundamental Frequency Field Strength of Fundamental (microvolts/meter) Field Strength of Spurious Emission (microvolts/meter) 260 - 470 MHz 1,500 to 5,000 150 to 500 [15.231(e)] Average Limit[dBμV/m] = 20log((16.6667(F[in MHz]) – 2833.3333) @ 3m Example Calculation: 20log((16.6667(302.5) – 2833.3333) = 66.8dBμV/m @ 3m MEASUREMENT Radiated Fundamental Emissions TableVersion 1.017.012 Date: 08-Sep-09 Company: AirPointe Work Order: J0025 Engineer: Matthew Burman EUT Desc: Charlie EUT Operating Voltage/Frequency: 3VDC (battery) Temp: 20.5°C Humidity: 49% Frequenc…
