WUS00045Active RFID Tag

USER MANUAL Contents PREFACE Trademarks FCC Compliance Copyright Statement E3490 Introduction Features Hardware LED Indicators Data Connections Antennas Orientation Environmental Limits CUSTOMER SERVICE airPointe Customer Support USER MANUAL PREFACE Trademarks airPointe of New Hampshire and the airPointe of New Hampshire logo are trademarks of airPointe of New Hampshire. All other product names are copyright and registered trademarks or trade names of their respective owners. Information in this document is provided solely to enable system and software implementers to use the airPointe of New Hampshire system. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits or integrated circuits based on the information in this document. airPointe of New Hampshire reserves the right to make changes without further notice to any products herein. airPointe of New Hampshire makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does airPointe of New Hampshire assume any liability arising out of the application or use of any product, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. The user of this system is cautioned that any changes or modifications to this system, not expressly approved by airPointe of New Hampshire could void the warranty. FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help. ‐‐Changes or modifications not expressly approved by airPointe of New Hampshire could void the user’s authority to operate the equipment USER MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PREFACE COPYRIGHT STATEMENT Copyright © 2009 airPointe of New Hampshire. All Rights Reserved. This document, as well as the hardware and firmware described therein, are furnished under license and may only be used or copied in accordance with the terms of such license. The information in these pages are furnished for informational use only, are subject to change without notice, and should not be construed as a commitment by airPointe of New Hampshire, airPointe of New Hampshire assumes no responsibility or liability for any errors or inaccuracies that may appear in these pages. Every effort has been made to supply complete and accurate information. However, airPointe of New Hampshire assumes no responsibility for its use, or for any infringements of patents or other rights of third parties, which would result. airPointe of New Hampshire 35E Industrial Way Suite 101 Rochester, NH 03867 USER MANUAL E3490 INTRODUCTION airPointe delivers software and hardware solutions that enable healthcare organizations to streamline operations, improve quality‐of‐care, reduce costs and generate additional revenue. airPointe develops an innovative next generation Intelligent Real‐Time Location System (i‐RTLS) which can gather data on high‐value assets within an organization, including medical equipment, clinical staff, patients and visitors. An active tag is placed on an item or person that requires monitoring. The battery powered active tags can transmit information throughout a secure wireless router network. Information, or data, that is intelligently and automatically collected from each tag will identify the asset type, the location, movement timestamp and other desired device attributes. This data allows items to be easily located anywhere within the wireless network, as well as their proximity relationship to each other. FEATURES ‐ Battery life of 4 years ‐ PIR Motion Detector ‐ Temperature and Battery Voltage Monitor ‐ Auto‐Detect ‐ Room level RFID tag detection HARDWARE The repeater is encased in a 5.20” x 2.83” x 0.8” (132mm x 72mm x 57mm) UL rated ABS Cellcore plastic housing and contain the internal components of a RF transmitter and battery source. USER MANUAL LED Indicators None on this model Data Connections Internal, all programming will be done at airPointe. E3490 Antennas Internal. ORIENTATION When possible, the repeaters should be placed on structures in the highest least obstructive manner. This will optimize the readers’ ability to receive the most accurate data from the repeater. ENVIRONMENTAL LIMITS Humidity: Water resistant Temperature: 0° C to 70°C If device is exposed to temperatures or humidity levels outside of the parameters above, it may cause the device to not function properly. USER MANUAL CUSTOMER SERVICE AIRPOINTE CUSTOMER SUPPORT airPointe gives the ability to intended parties to contact airPointe directly if any problems should arise. ‐Customer Support Via Phone: 603.994.2200 Via Email: [email protected] Via the Web: www.airpointe.com/support

From: [email protected] [mailto:[email protected]] Sent: Tuesday, May 01, 2012 10:18 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 925550) afterfcctopFCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People Office of Engineering and Technology Inquiry on 04/19/2012 : Inquiry: This inquiry has two related questions. 1) Is Part 15.231a and Part 15.231e mutually exclusive? 2) Can the following device be considered for compliance under 15.231a? Device is an ACTIVE RFID TAG operating at 434MHz that is placed on assets, staff, and non-staff personnel including patients. For a tag placed on an asset, some of it's functions include theft detection of a tagged asset and real time location information of necessary tagged assets during emergency situations. For tags placed on staff and non-staff personnel, some functions include real time location information of people during emergency situations, including emergency personnel as well as non-staff and patients. The ACTIVE RFID TAG is triggered by a motion sensor and immediatly transmits a preamble, sync signal, and ID data. The preamble is for the recieving unit to detect, followed by a sync signal, that causes the recieving unit to latch the measured signal strength, and ID Data to identify the transmitting tag. The total transmission time is following each trigger of the motion sensor is 900uSec. Follwing a transmission, the tag prohibits the detection of subsequent motion sensor triggers for 1.2sec. So, the tag will not transmit more than 900uSec every 1.2sec while in motion. When the tag is not in motion, indicated by no trigger detection from motion sensor, will, after 10sec, transmit for 900uSec. The tag will transmit every 10sec after the last non-triggered transmission for 900uSec when not in motion. The total non-motion transmission time over one hour is less than 350mSec. The non-motion transmissions allow the system to determine that the tags are operational and set the appropriate alerts to necessary personnel in the event the tags are not operational. FCC response on 05/01/2012 It is possible that a device could operate under both 15.231(a-d) and 15.231(e) if it has separate modes of operation in which one mode is totally under 15.231(a other is totally under 15.231(e). The device you describe would not comply with 15.231(a) only. To determine compliance, each applicable rule for the rule part applied for needs to be addressed to be considered. Attachment Details: Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

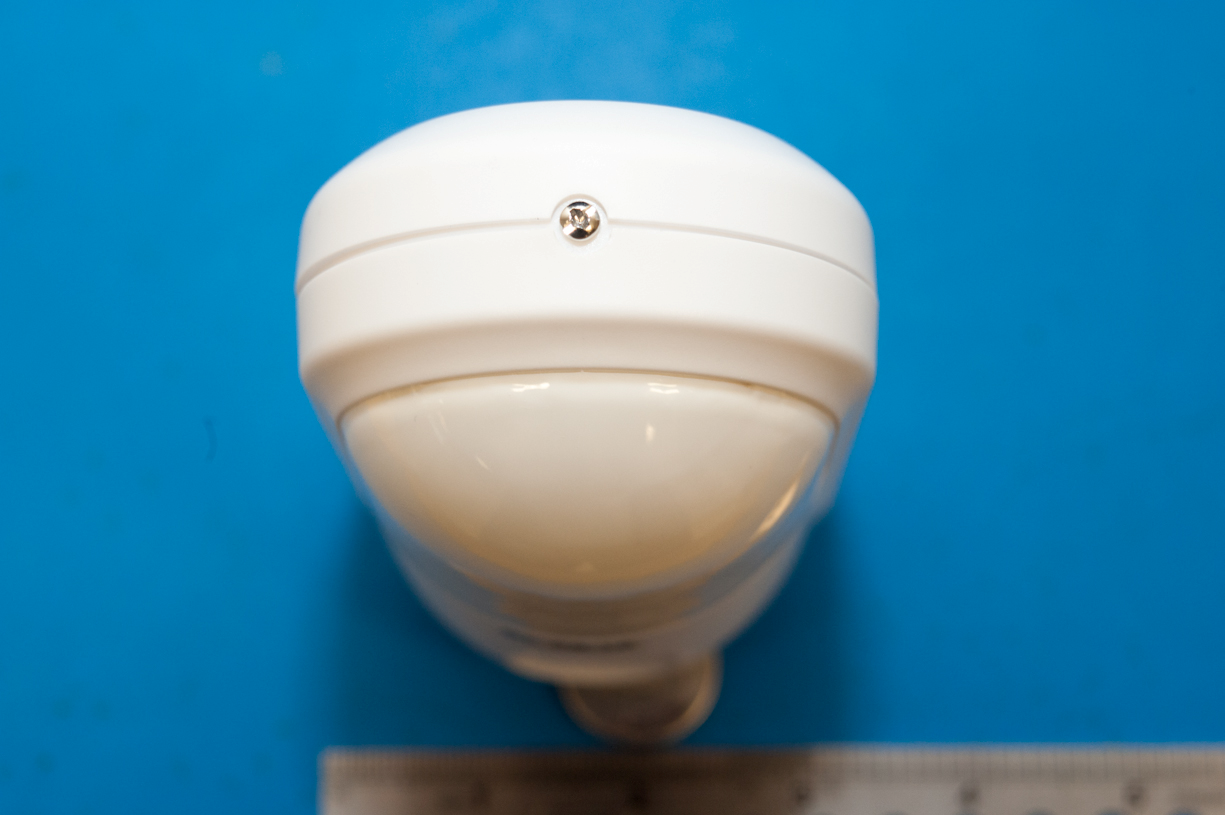

EL2270-6 AirPointe of New Hampshire External Photographs EL2270-6 AirPointe of New Hampshire External Photographs EL2270-6 AirPointe of New Hampshire External Photographs

EL2270-6 AirPointe of New Hampshire Internal Photographs EL2270-6 AirPointe of New Hampshire Internal Photographs EL2270-6 AirPointe of New Hampshire Internal Photographs EL2270-6 AirPointe of New Hampshire Internal Photographs

OET Inquiry Responses Re: FCC ID: WUS00040, WUS00041, WUS00045 Applicant: AirPointe of New Hampshire Correspondence Reference Number: Form 731 Confirmation Number: Date of Original E-mail: STATEMENT 1: Your grants for FCC ID’s WUS00041, WUS00045, and WUS00040 will be issued/reissued with the following grant note which is in accordance with your filings: "This device is for commercial use only and intended for use in a confined area with an appropriate system receiver as indicated in the Certification filing." Please respond to let us know whether or not you have any issues with the grant note. RESPONSE: We have no issue with this grant note. QUESTION: Under Section 15.231(a) all transmissions from your device must be remote control (turning something on of off), not just some. How do your devices comply with this rule? How exactly does your system work? How do the different parts work together? RESPONSE: They system is comprised of three types of physical elements: Tags, Enhancers, and Readers. Tags are RF transmitters that are attached to assets (people or equipment) within a facility in which Readers and Enhancers are installed. The tags send two types of signals, one is a user initiated control signal and the other is a status signal. The user initiated control signal is transmitted when the user directs the tag to signal via the stimulation of the tags sensors (Button, Tap on the case that causes sufficient vibration within the tag to start a transmission, etc.). The control signal is an RF transmission approximately 1ms in duration and is used to turn on a light. In addition the control signal also contains information detailing what sensor was activated by the user, such as button 1 or button 2 and a numeric identifier. The status signal is an RF transmission approximately 1ms in duration sent at regular periodic intervals no faster than once every 10secs. The status signal includes information such as a numeric identifier, battery voltage, and temperature. An Enhancer is a device similar to a Tag that is mounted in fixed location within a facility that also has the ability to receive RF signals. Similar to a Tag the Enhancer has a control signal and a status signal that it transmits. As with the tag the control signal of a duration less than 50ms is used to turn on a light and also contains information about what sensor was activated by the user, a numeric identifier, and information identifying which tags it received signals from during the immediate time surrounding the user activation. The status signal is an RF transmission approximately 1ms in duration sent at regular periodic intervals no faster than once every 10secs. The status signal includes information such as a numeric identifier, battery voltage, and temperature. Readers are mounted in fixed location at a facility and receive RF signals from Tags and Enhancers. The readers turn on a light when the appropriate signals are received from Tags and Enhancers. They also collect the additional information received in the control and status signal and send that information to a central server for further processing and resulting actions (updating user screens, sending text message alerts, sending email alerts, etc). This collected information is sent to the server either via a wired or wireless (Wi-Fi) Ethernet connection. Re: FCC ID: WUS00041 Applicant: AirPointe of New Hampshire Correspondence Reference Number: 43324 Form 731 Confirmation Number: EA757412 Date of Original E-mail: 01/31/2013 STATEMENT: Under Section 15.231(a) the intentional radiator is restricted to the transmission of a control signal. Data may be sent with the control signal. QUESTION: Please indicate how your device complies with this rule part. Describe the control signal the device sends. RESPONSE: The user initiated control signal is an RF transmission with a particular data packet format that is transmitted when the user directs the tag to signal via the stimulation of the Tags sensors (Button, Tap on the case that causes sufficient vibration within the tag to start a transmission, etc.). In addition the control signal also contains information detailing what sensor was activated by the user, such as button 1 or button 2 and a unique numeric identifier for that Tag. FCC ID: WUS00045 Applicant: AirPointe of New Hampshire Correspondence Reference Number: 43214 Form 731 Confirmation Number: EA600975 Date of Original E-mail: 01/15/2013 STATEMENT: You state in your application that your device is a repeater. Repeaters must comply with the requirements stated in KDB Publication 602159. QUESTION: What is/are the FCC ID number(s) of (all) the transmitter(s) with which the repeater is authorized to operate? QUESTION: For the test results provided in the test report, with which transmitter was the repeater operating? RESPONSE: Unfortunately the term repeater in the description of this device was a poor choice of words, as a result we have changed to using the term Enhancer. This particular device does not fall under the definition of a repeater as described in KDB Publication 602159. KDB Publication 602159 describes a repeater that re‐transmits an input signal following some type of conditioning to that signal. Our device does not operate under the same definition of a repeater described in KDB Publication 602159. The device operates in two modes, one being a user activated mode in which a user causes the transmission of an RF signal that is used to turn on a light at e Receiver, and a status mode in which the device transmits periodic status signals. In the control signal information about what sensor was activated by the user, a numeric identifier, and information identifying which tags it received signals from during the immediate time surrounding the user activation is also included. Re: FCC ID: WUS00045 Applicant: AirPointe of New Hampshire Correspondence Reference Number: 43409 Form 731 Confirmation Number: EA600975 Date of Original E-mail: 02/07/2013 QU…

Text truncated - open the document above for the full version.

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 15 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EL2270-6 Client AirPointe of New Hampshire Address 35E Industrial Way Suite 101 Rochester, NH 03867 Phone 603-994-2200 Items tested Mako 440 FCC ID WUS00045 FRN 0018228197 Equipment Type Part 15 Security/Remote Control Transmitter Equipment Code DSC FCC Rule Parts 47 CFR 15.231(a) Test Dates December 15-16, 2011 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date April 25, 2012 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 14 of this report. Test Report for AirPointe of New Hampshire • •• • Report No. EL2270-6 April 25, 2012 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 15 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Test Results ............................................................................................................................5 Fundamental Emission.........................................................................................................5 Bandwidth ............................................................................................................................7 Harmonics and Spurious Emissions.....................................................................................9 Timing Requirements / Duty Cycle Correction Factor.........................................................11 Measurement Uncertainty......................................................................................................13 Conditions Of Testin ..............................................................................................................14 Form Final Report REV 7-20-07 (DW) Test Report for AirPointe of New Hampshire • •• • Report No. EL2270-6 April 25, 2012 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 15 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.231(a). The product is the Mako 440. The operating frequency is 440MHz. It is powered by +3VDC coin cell batteries. Line Conducted Emissions was not performed. We found that the product met the requirements without modification. Don Proulx from AirPointe was present during the testing. The test sample was received in good condition. Test Methodology Testing was performed according to ANSI C63.4-2009 and ANSI C63.10-2009. Radiated emissions were maximized by rotating the device around its three orthogonal axes, as well as varying the test antenna’s height and polarity. The EUT’s antenna cannot be maximized separately. Fresh batteries were used for testing. Frequency range investigated: 30MHz – 4.5GHz Measurement distance: 30-4500MHz 3m This device has no receiver portion. Test Report for AirPointe of New Hampshire • •• • Report No. EL2270-6 April 25, 2012 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 15 Product Tested - Configuration Documentation EUT Configuration Work Order: L2270 Company: airPointe Company Address: 35E Industrial Way Rochester, NH 03867 Contact: Don Proulx Person Present: Don Proulx MNSN EUT: E3490Sample 1 EUT Description: MAKO 440 - Active RFID Tag EUT TX Frequency:440MHz Support Equipment: MNSN NONE EUT Ports: Port LabelPort Type No. of ports No. PopulatedCable TypeShieldedFerritesLength Max Length In/Out NEBS TypeUnpopulated Reason NONE Software / Operating Mode Description: EUT is continuously transmitting a 440MHz signal Test Report for AirPointe of New Hampshire • •• • Report No. EL2270-6 April 25, 2012 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 5 of 15 Test Results Fundamental Emission LIMIT Fundamental Frequency Field Strength of Fundamental (microvolts/meter) Field Strength of Spurious Emission (microvolts/meter) 260-470MHz 3,750 to 12,500 375 to 1,250 [15.231(a)] MEASUREMENT Radiated Emissions TableVersion…

Text truncated - open the document above for the full version.

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 11 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EL2270-9 Client AirPointe of New Hampshire Address 35E Industrial Way Suite 101 Rochester, NH 03867 Phone 603-994-2200 Items tested Mako 440 FCC ID WUS00045 FRN 0018228197 Equipment Type Part 15 Security/Remote Control Transmitter Equipment Code DSC FCC Rule Parts 47 CFR 15.231(e) (Partial Testing) Test Dates March 5, 2012 and June 16, 2014 Results As detailed within this report Prepared by Tuyen Truong– Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date February 20, 2015 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 10 of this report. Test Report for AirPointe of New Hampshire  Report No. EL2270-9 February 20, 2015 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 11 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 3 Product Tested - Configuration Documentation ....................................................................... 4 Test Results ............................................................................................................................ 5 Fundamental Emission ......................................................................................................... 5 Timing Requirements / Duty Cycle Correction Factor ........................................................... 7 Measurement Uncertainty........................................................................................................ 9 Conditions Of Testin .............................................................................................................. 10 Form Final Report REV 7-20-07 (DW) Test Report for AirPointe of New Hampshire  Report No. EL2270-9 February 20, 2015 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release February 20, 2015 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 11 Summary This report is an amendment to report EL2270-6 to support an application for certification of a transmitter operating pursuant to 47 CFR 15.231(e) (for fundamental radiated emission testing and timing tests only) while in beacon mode. The remainder of testing can be found in report EL2270-6. The product is the Mako 440. The operating frequency is 440MHz. It is powered by +3VDC coin cell batteries. Line Conducted Emissions was not performed. We found that the product met the requirements with modification. The power level was reduced to level 8D (equivalent to 1.4dBm). Don Proulx from AirPointe was present during the testing. The test sample was received in good condition. Test Methodology Testing was performed according to ANSI C63.4-2009 and ANSI C63.10-2009. Radiated emissions were maximized by rotating the device around its three orthogonal axes, as well as varying the test antenna’s height and polarity. The EUT’s antenna cannot be maximized separately. Fresh batteries were used for testing. Test Report for AirPointe of New Hampshire  Report No. EL2270-9 February 20, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 11 Product Tested - Configuration Documentation EUT Configuration Work Order: L2270 Company: airPointe Company Address: 35E Industrial Way Rochester, NH 03867 Contact: Don Proulx Person Present: Don Proulx MN SN EUT: E3490 Sample 1 EUT Description: MAKO 440 - Active RFID Tag EUT TX Frequency: 440MHz Support Equipment: MN SN NONE EUT Ports: Port Label Port Type No. of ports No. Populated Cable Type Shielded Ferrites Length Max Length In/Out NEBS Type Unpopulated Reason NONE Software / Operating Mode Description: EUT is continuously transmitting a 440MHz signal Test Report for AirPointe of New Hampshire  Report No. EL2270-9 February 20, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 5 of 11 Test Results Fundamental Emission LIMIT Fundamental Frequency Field Strength of Fundamental (microvolts/meter) Field Strength of Spurious Emission (microvolts/meter) 440MHz 1,500 to 5,000 150 to 500 [15.231(e)] MEASUREMENT Radiated Emissions Table Version 1.017.055 Date: 05-Mar-12 Company: Airpointe Work Order: L2270 Engineer: Tuyen Truong EUT Desc: Mako440 EUT Operating Voltage/Frequency: 3Vd…

Text truncated - open the document above for the full version.

EL2270-6 AirPointe of New Hampshire Test Setup Photographs Radiated Emissions – Below 1GHz – Anechoic Chamber Radiated Emissions – Above 1GHz – Anechoic Chamber
