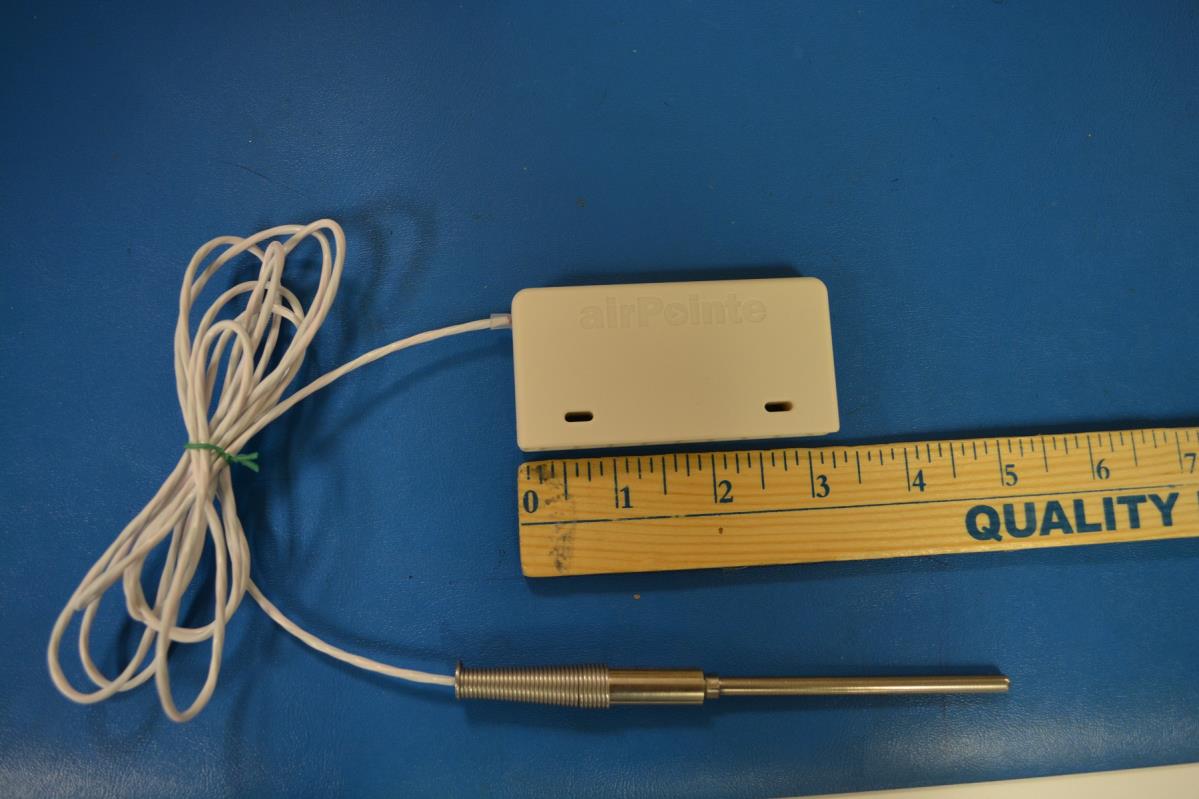

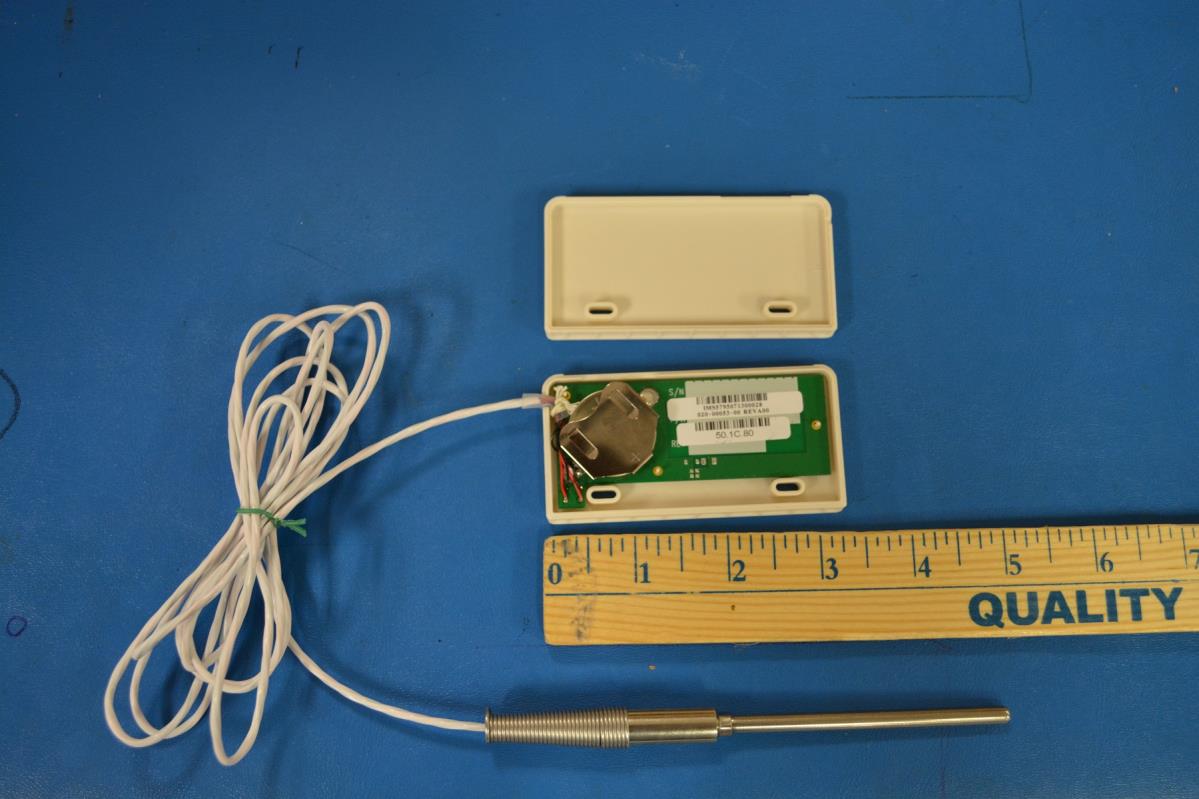

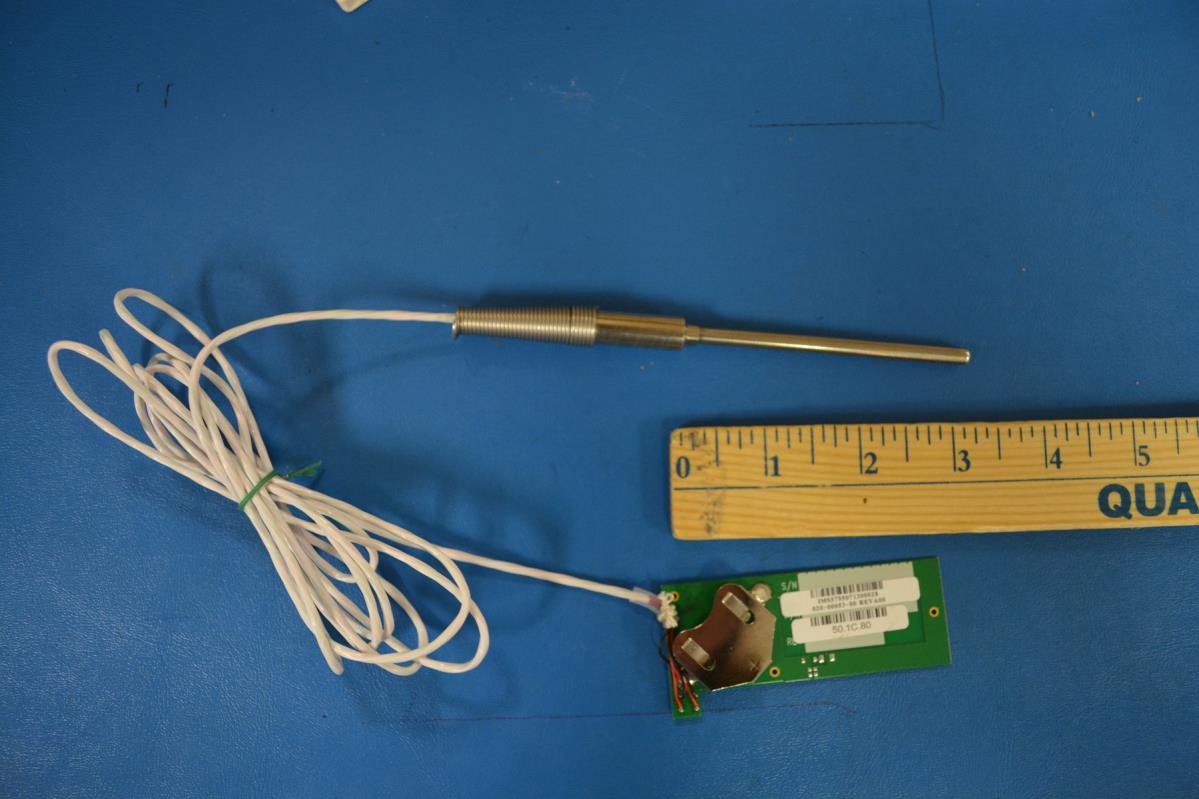

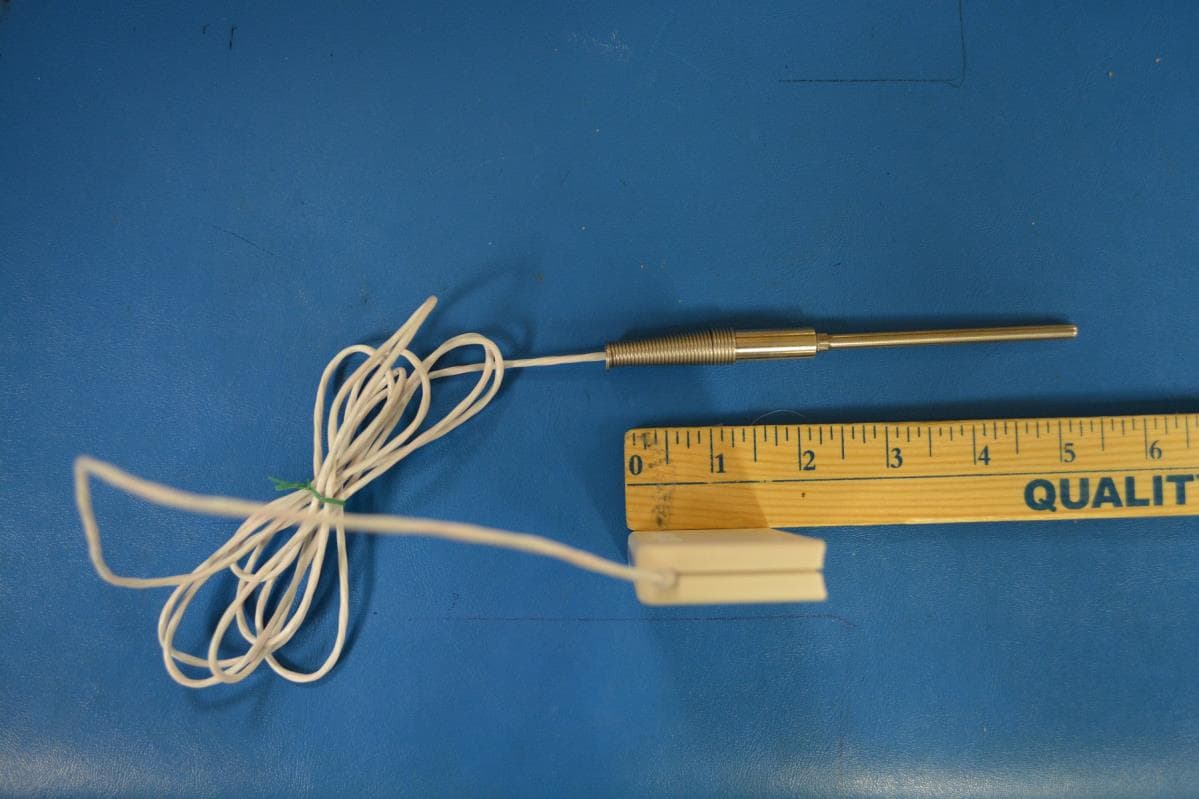

WUS00055Security/Remote Control Transmitter

USER MANUAL Contents PREFACE Trademarks FCC Compliance Copyright Statement T6730 Introduction Features Hardware LED Indicators Data Connections Antennas Orientation Environmental Limits CUSTOMER SERVICE airPointe Customer Support USER MANUAL PREFACE Trademarks airPointe of New Hampshire and the airPointe of New Hampshire logo are trademarks of airPointe of New Hampshire. All other product names are copyright and registered trademarks or trade names of their respective owners. Information in this document is provided solely to enable system and software implementers to use the airPointe of New Hampshire system. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits or integrated circuits based on the information in this document. airPointe of New Hampshire reserves the right to make changes without further notice to any products herein. airPointe of New Hampshire makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does airPointe of New Hampshire assume any liability arising out of the application or use of any product, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. The user of this system is cautioned that any changes or modifications to this system, not expressly approved by airPointe of New Hampshire could void the warranty. FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. --Changes or modifications not expressly approved by airPointe of New Hampshire could void the user’s authority to operate the equipment USER MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PREFACE COPYRIGHT STATEMENT Copyright © 2014 airPointe of New Hampshire. All Rights Reserved. This document, as well as the hardware and firmware described therein, are furnished under license and may only be used or copied in accordance with the terms of such license. The information in these pages are furnished for informational use only, are subject to change without notice, and should not be construed as a commitment by airPointe of New Hampshire, airPointe of New Hampshire assumes no responsibility or liability for any errors or inaccuracies that may appear in these pages. Every effort has been made to supply complete and accurate information. However, airPointe of New Hampshire assumes no responsibility for its use, or for any infringements of patents or other rights of third parties, which would result. airPointe of New Hampshire 35E Industrial Way Suite 101 Rochester, NH 03867 USER MANUAL T6730 INTRODUCTION airPointe delivers software and hardware solutions that enable healthcare organizations to streamline operations, improve quality-of-care, reduce costs and generate additional revenue. airPointe develops an innovative next generation Intelligent Real-Time Location System (i-RTLS) which can gather data on high-value assets within an organization, including medical equipment, clinical staff, patients and visitors. An active tag is placed on an item or person that requires monitoring. The battery powered active tags can transmit information throughout a secure wireless router network. Information, or data, that is intelligently and automatically collected from each tag will identify the asset type, the location, movement timestamp and other desired device attributes. This data allows items to be easily located anywhere within the wireless network, as well as their proximity relationship to each other. FEATURES - Battery life of 4 years - Extended Temperature Probe - Hermetically sealed - Auto-Detect - Small form factor HARDWARE The tags are incased in a 3 .2” x 1.6” x 0.5” (8.1cm x 4.1cm x 1.3cm) UL rated ABS plastic housing and contain the internal components of a RF transmitter and battery source. USER MANUAL LED Indicators None on this model Data Connections Internal, all programming will be done at airPointe. T6730 Antennas Internal. ORIENTATION When possible, the tags should be placed on assets in the highest least obstructive manner. This will optimize the readers’ ability to receive the most accurate data from the tag. ENVIRONMENTAL LIMITS Humidity: Submersible in water (hermetically sealed) Temperature: 0° C to 70°C If device is exposed to temperatures or humidity levels outside of the parameters above, it may cause the device to not function properly. USER MANUAL CUSTOMER SERVICE AIRPOINTE CUSTOMER SUPPORT airPointe gives the ability to intended parties to contact airPointe directly if any problems should arise. -Customer Support Via Phone: 603.994.2200 Via Email: [email protected] Via the Web: www.airpointe.com/support

TAD Label FCC ID/PN/REV 10/15/2014 Revision: 0.0 Author: Mike Peña NOTES:1. DIMENSIONS ARE IN INCHES, TOLERANCES: TWO PL ACE DECIMAL +/- 0.010, THREE PLACE DECIMAL +/- 0.005 2. MATERIAL: PO LYESTER, WHITE 3. L-23 ADHESIVE AND RELEASE LINER 4. EQUIVALENT/ALTERNATE MATERIALS PERMITTED WITH AI RPOINTE APPROVAL

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 17 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EO2230-3 Client AirPointe of New Hampshire Address 35E Industrial Way Suite 101 Rochester, NH 03867 Phone 603-994-2200 Items tested T6730 FCC ID WUS00055 FRN 0018228197 Equipment Type Part 15 Security/Remote Control Transmitter Equipment Code DSC FCC Rule Parts 47 CFR 15.231(e) Test Dates August 22, 2014 Results As detailed within this report Prepared by Tuyen Truong – Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 3/11/2015 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 16 of this report. Test Report for AirPointe of New Hampshire  Report No. EO2230-3 March 11, 2015 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 17 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 3 Product Tested - Configuration Documentation ....................................................................... 4 Test Results ............................................................................................................................ 5 Fundamental Emission ......................................................................................................... 5 Bandwidth ............................................................................................................................ 7 Harmonics and Spurious Emissions ..................................................................................... 9 Duty Cycle Correction Factor ............................................................................................. 11 Timing Requirements ......................................................................................................... 13 Measurement Uncertainty...................................................................................................... 15 Conditions Of Testing ............................................................................................................ 16 Form Final Report REV 7-20-07 (DW) Test Report for AirPointe of New Hampshire  Report No. EO2230-3 March 11, 2015 ______________________________________________________________________ Issue No. Reason for change Date Issued 1 Original Release March 11, 2015 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 17 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 47 CFR 15.231(e). The product is the T6730. The operating frequency is 440MHz. It is powered by +3Vdc coin cell batteries, therefore, Line Conducted Emissions is not applicable. We found that the product met the requirements without modification. Mike Pena from AirPointe was present during the testing. The test sample was received in good condition. Test Methodology Testing was performed according to ANSI C63.4-2003 and ANSI C63.10-2009. Radiated emissions were maximized by rotating the device around its three orthogonal axes, as well as varying the test antenna’s height and polarity. The EUT’s antenna cannot be maximized separately. Fresh batteries were used for testing. Frequency range investigated: 30MHz – 5GHz Measurement distance: 30-5000MHz 3m This device has no receiver portion. The EUT complies with 47 CFR 15.231(e). The EUT transmits every 10 seconds for duration of 887.5μs. In order to meet 15.231(e) Field strength of fundamental frequency, the EUT power was set at 5.8dB. Spurious emissions were tested using the highest power settings available as the EUT was set to pass the Field strength of fundamental frequency limit. Test Report for AirPointe of New Hampshire  Report No. EO2230-3 March 11, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 17 Product Tested - Configuration Documentation EUT Configuration Work Order: O2230 Company: airPointe Company Address: 35E Industrial Way Rochester, NH 03867 Contact: Don Proulx Person Present: Mike Pena MN PN SN EUT: T6730 -- Sample 1 EUT Description: TAD EUT TX Frequency: 440 MHz Support Equipment: MN SN None EUT Ports: Port Label Port Type No. of ports No. Populated Cable Type Shielded Ferrites Length Max Length In/Out NEBS Type Unpopulated Reason Temperature Probe I/O 1 1 4-wires No No 1.4m 1.4m Indoor Software / Operating M ode Description: EUT is 3Vdc Battery Powered. EUT measures temperatures and transmit the packets at 10-second interval. Test Report for AirPointe of New Hampshire  Report No. EO2230-3 March 11, 2015 ____________________________________________…

Text truncated - open the document above for the full version.

EMI Radiated – 30 to 1000MHz EMI Radiated – 1 to 5GHz EUT Placement – X orientation EUT Placement – Y orientation EUT Placement – Z orientation
