WWMMN427V1150 Mbps Wireless Lite-N USB Module

Proware Technologies Co Ltd.
150 Mbps Wireless Lite-N USB Module - FCC ID WWMMN427V1 - Proware Technologies Co Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 24, 2011
Application Purpose
Original Equipment
Date of Application
Jul 18, 2011
Equipment Note
150 Mbps Wireless Lite-N USB Module
Frequency Range
2422.00000000 - 2452.00000000
Company
Proware Technologies Co Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PW-MN427 Wireless Lite-N USB Module Rev: 1.0.0 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: The channel of Module is decided by AP. Therefore, the channel of the product will be restricted between CH1 and CH11 when worked in USA. I II CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Introduction .......................................................................................... 2 1.1 Product Overview .............................................................................................. 2 1.2 Main Features ................................................................................................... 2 1.3 LED Status ........................................................................................................ 2 Chapter 2 Installation Guide ................................................................................. 3 2.1 Hardware Installation ........................................................................................ 3 2.2 Software Installation .......................................................................................... 3 2.2.1 Overview ............................................................................................................. 3 2.2.2 Installation Guide ................................................................................................ 3 2.3 Uninstall Software ............................................................................................. 8 2.3.1 Uninstall the driver software from your PC ......................................................... 8 2.3.2 Uninstall the utility software from your PC .......................................................... 8 Chapter 3 Configuration ........................................................................................ 9 3.1 Configuration of Utility ....................................................................................... 9 3.1.1 Profile .................................................................................................................. 9 3.1.2 Network ............................................................................................................. 12 3.1.3 Advanced .......................................................................................................... 13 3.1.4 Statistics............................................................................................................ 14 3.1.5 WPS .................................................................................................................. 14 3.1.6 Radio On/Off ..................................................................................................... 16 3.1.7 About....................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

AGENCY AUTHORIZATION LETTER FCC ID:WWMMN427V1 Date:Jun 13,2011 To whom it may conc ern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologie s Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Cover Letter(s)

Date: Jul 13,2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: WWMMN427V1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Cover Letter(s)

Attestation for FCC Declaration of Conformity FCC ID: WWMDN421V1 Date: May 18,2011 Please be notified that we, the undersigned, PROWARE Technologies Co., Ltd. declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1000467, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Cover Letter(s)

Modular Approval Request Letter Dear Application Examiner, PROWARE,It’s PW-MN427,FCC ID:WWMMN427V1 , would like to have your authorization as a limited modular approval specific to the computer device such as Internet Television, Media Player, IPTV Set Top Box, IP Camera and Print Server. The requirements of section 15.212 have been met and shown on the following statements. 1, “The modular transmitter must have it’s own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2, “The modular transmitter must have buffered modulation data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3070. 3,“The modular transmitter must have it’s own power supply regulation.” The USB interface provides 3.3V DC, the on board power IC MP2104 convert 3.3V DC to 1.5V DC. The chip RT3070 uses both 3.3V DC and 1.5V DC, 3.3V DC also used to supply external PA (RTC6661). 4,“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements, it’s have I-PEX antenna connector that no antenna other than that furnished by the responsible party shall be used with the device, The spurious emissions are shown in the test report. 5, “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration via a PCB to Notebook, please see section photographs of test configuration in the test report. 6, “The modular transmitter must be labeled with it’s own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules, detail instructions for maintaining compliance are given in the users Manual. 8, “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF exposure is addressed in the test report. Best Regarts! Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

External Photos

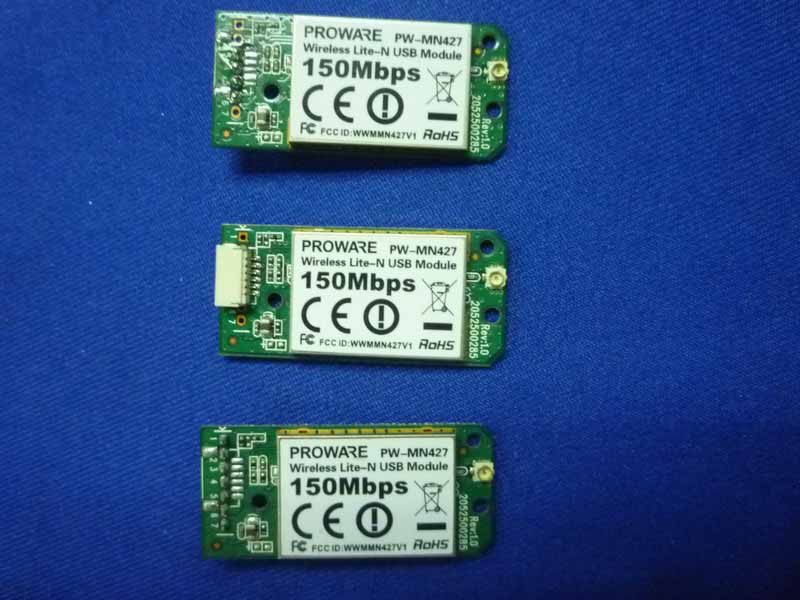

R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

ID Label/Location Info

12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 PW-MN427 1.0屏蔽罩标贴 第一版 PW-MN427 1.0 2010-12-10 葛焕丽 80g艾利铜版纸+光膜 黑白印刷 23.5*16.3mm,0.5R 文字转曲线 1:1 2:1 PW-MN427 150Mbps Wireless Lite-N USB Module FCC ID:WWMMN427V1 Label Label Label

Internal Photos

R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT

RF Exposure Info

R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 11.2.Estimation Result EUT: 150Mbps Wireless Lite-N USB Module M/N: PW-MN427 Test date:2011-06-16 Pressure: 101.4kpa Humidity: 48% Tested by: Leo-Li Test site: RF Site Temperature:24.7°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 2 dBi Test Mode CH Frequency (MHz) Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 19.36 86.30 2 1.58 0.0272 CH6 2437 19.58 90.78 2 1.58 0.0286 CH11 2462 19.55 90.16 2 1.58 0.0284 11g CH1 2412 20.61 115.08 2 1.58 0.0363 CH6 2437 20.72 118.03 2 1.58 0.0372 CH11 2462 21.23 132.74 2 1.58 0.0419 11n HT20 CH1 2412 22.35 171.79 2 1.58 0.0542 CH6 2437 23.44 220.80 2 1.58 0.0697 CH11 2462 20.73 118.30 2 1.58 0.0373 11n HT40 CH1 2422 19.65 92.26 2 1.58 0.0291 CH4 2437 23.10 204.17 2 1.58 0.0644 CH7 2452 19.15 82.22 2 1.58 0.0259 Note: The estimation distance is 20cm

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Proware Technologies Co., Ltd. 150Mbps Wireless Lite-N USB Module Model No.: PW-MN427 FCC ID: WWMMN427V1 Prepared for : Proware Technologies Co., Ltd. 2nd F1 East Wing, South Section, Factory Building 24, Science & Technology Park, Shennan Rd, Nanshan District, Shenzhen Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number : ACS-F11122 Date of Test : May.22~Jun.16, 2011 Date of Report : Jun.25, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-5 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ......................................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ..........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. page FCC ID:WWMMN427V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11122 13-3 (Above 1000MHz)

Contact Information

Applicant

Yongquan Wang(Product Dept. Manager)
[email protected]+86-755-26508263Fax: +86-755-26508930

Technical Contact

Audix TechnologyKen Lu
[email protected]86 775 26639497

52 Block Shenzhen Science and Industry · Shenzhen · China

Test Firm

Audix Technology (Shenzhen) Co., Ltd.Smart Tsai
[email protected]86-755-26639495Fax: 86-755-26632877

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz204.20 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. Modular Approval. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. The OEM is responsible for providing the documentation required for modular use. The responsibility for the use of this module, in all configurations utilized or contemplated, remains with the manufacturer. End-users and (professional) installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
