WWMMN561V2300M Wireless N Mini-PCI Adapter

PW-MN561 300Mbps Wireless N Mini PCI Adapter COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of PROWARE TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from PROWARE TECHNOLOGIES CO., LTD. Copyright © 2010 PROWARE TECHNOLOGIES CO., LTD. All rights reserved. http://www.proware.com.cn FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The final end host device which contains this module must be labeled in a visible area with "Contains FCC ID: WWMMN561V2”. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Introduction ........................................................................................... 2 1.1 Overview of the Product .......................................................................................... 2 1.2 Features .................................................................................................................. 2 Chapter 2 Installation Guide.................................................................................. 3 2.1 Hardware Installation .............................................................................................. 3 2.2 Software Installation ................................................................................................ 3 Appendix A: Specifications ..................................................................................... 4 Appendix B: Glossary.............................................................................................. 5 1 Package Contents The following items should be found in your package: ¾ PW-MN561 300Mbps Wireless N Mini PCI Adapters ) Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. Conventions: The ‘Adapter’ mentioned in this user guide stands for PW-MN561 300Mbps Wireless N Mini PCI Adapter without any explanations. PW-MN561 300Mbps Wireless N Mini PCI Adapter 2 Chapter 1 Introduction Thank you for choosing the PW-MN561 300Mbps Wireless N Mini PCI Adapter! 1.1 Overview of the Product The adapter is an 802.11n client device; it is mainly designed to provide a high-speed and unrivaled wireless performance for wireless embedded system application, such as EPON. Of course, it also can be used into your notebook because of its standard Mini-PCI interface. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming and so on. With the 802.11n technology, higher throughput improvements using MIMO (multiple input, multiple output antennas), the PW-MN561’s auto-sensing cap…

Text truncated - open the document above for the full version.

PROWARE TECHNOLOGIES CO., LTD. Attestation for FCC Declaration of Conformity FCC ID: WWMMN561V2 Date: Mar 4,2010 Please be notified that we, the undersigned, Proware Technologies Co Ltd., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F990177, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

Modular Approval Request Letter Dear Application Examiner, Proware Technologies Co., Ltd.，Our product PW-MN561, FCC ID： WWMMN561V2, would like to have your authorization as a full modular approval specific to the computer device such as desktop/laptop computer.The requirements of section 15.212 have been met and shown on the following statements. 1, “The modular transmitter must have it’s own RF shielding.” The radio portion of this module has been shielded,please see exhibition External Photo. 2, “The modular transmitter must have buffered modulation data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9223 3，“The modular transmitter must have it’s own power supply regulation.” The mini PCI interface provides 3.3V DC,the on board power IC MP2104DJ convert 3.3V DC to 1.2V DC 4，“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements,it’s have I-PEX antenna connector that no antenna other than that furnished by the responsible party shall be used with the device,The spurious emissions are shown in the test report. 5, “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration via a PCB to Notebook,please see section photographs of test configration in the test report. 6, “The modular transmitter must be labeled with it’s own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules,detail instructions for maintaining compliance are given in the users Manual. 8, “The modular transmitter must conply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements.RF exposure is addressed in the test report. Best Regarts! PROWARE TECHNOLOGIES CO., LTD. Sincerely, Web site: WWW.PROWARE.COM.CN Tel: 86-755-26525554 Fax: 86-755-26508930 Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd.

PROWARE TECHNOLOGIES CO., LTD. AGENCY AUTHORIZATION LETTER FCC ID：WWMMN561V2 Date: Mar 1,2010 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China）to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site:WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. Date: Mar 1,2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: WWMMN561V2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

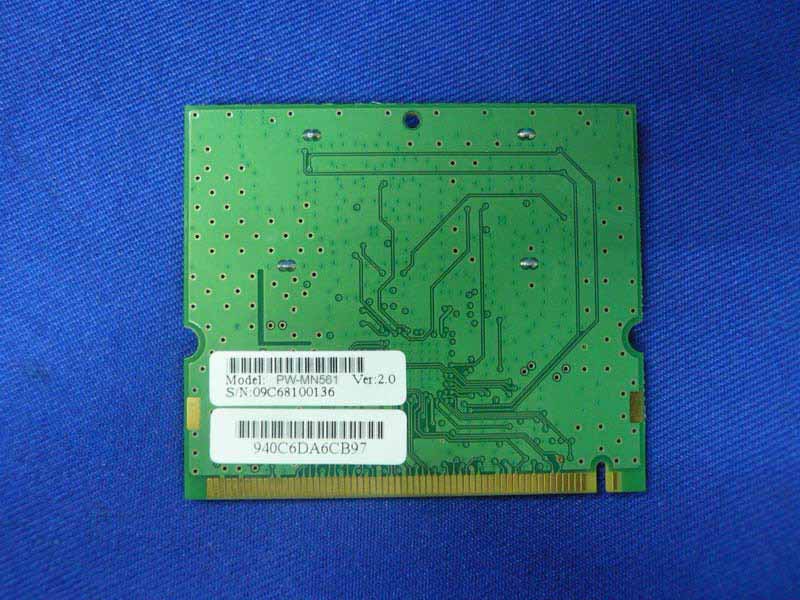

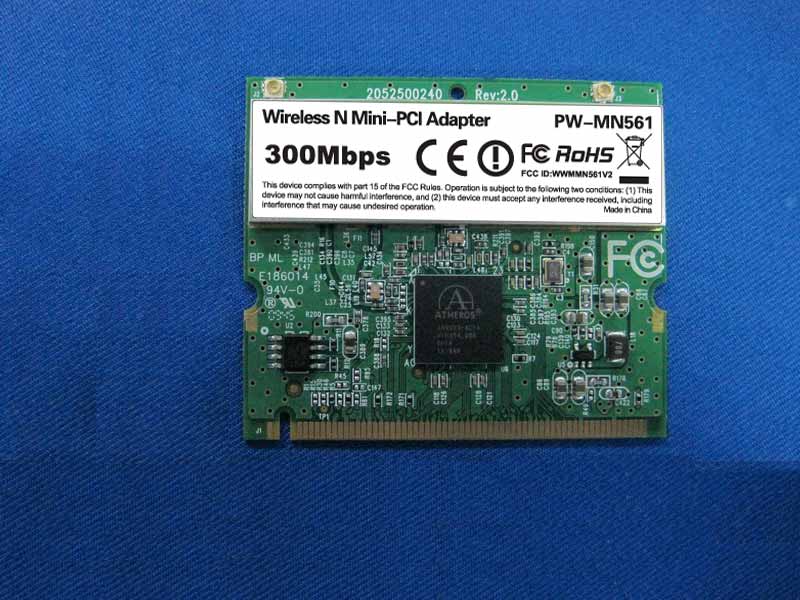

Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Figure 3 General Appearance of the EUT Figure 4 Components Side of the PCB

Label Location

FCC ID:WWMMN561V2 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10041 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:WWMMN561V2 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10041 Figure 3 General Appearance of the EUT Figure 4 Antenna of the EUT FCC ID:WWMMN561V2 Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10041 Figure 5 Antenna of the EUT

FCC ID:WWMMN561V2 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10041 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 1 2412 17.08 51.0521.580.0161 6 2437 18.23 66.5321.580.0210 11b 11 2462 17.11 51.4021.580.0162 1 2412 20.78 119.6721.580.0378 6 2437 22.12 162.9321.580.0514 11g 11 2462 22.05 160.3221.580.0506 1 2412 22.69 185.7821.580.0586 6 2437 25.04 319.1521.580.1007 11n HT20 11 2462 23.28 212.8121.580.0671 1 2422 18.91 77.8021.580.0245 4 2437 25.98 396.2821.580.1250 11n HT40 7 2452 18.28 67.3021.580.0212 Note: The estimation distance is 20cm

FCC ID:WWMMN561V2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10041 APPLICATION FOR CERTIFICATION On Behalf of Proware Technologies Co., Ltd. 300Mbps Wireless N Mini-PCI Adapter Model Number: PW-MN561 FCC ID: WWMMN561V2 Prepared for : Proware Technologies Co., Ltd. 4/F, Building 7, Section 2, Honghualing Industrial Park, Xili, Nanshan District, Shenzhen, P.R.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10041 Date of Test ： Feb.04~08, 2010 Date of Report ： Mar.03, 2010 FCC ID:WWMMN561V2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10041 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test information .............................................................................................................................2-2 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce ...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit................................…

Text truncated - open the document above for the full version.

1.1. Photos of Power Line Conducted Emission Test 1.2. Photos of Radiated Emission Test 30-1000MHz Above 1000MHz
